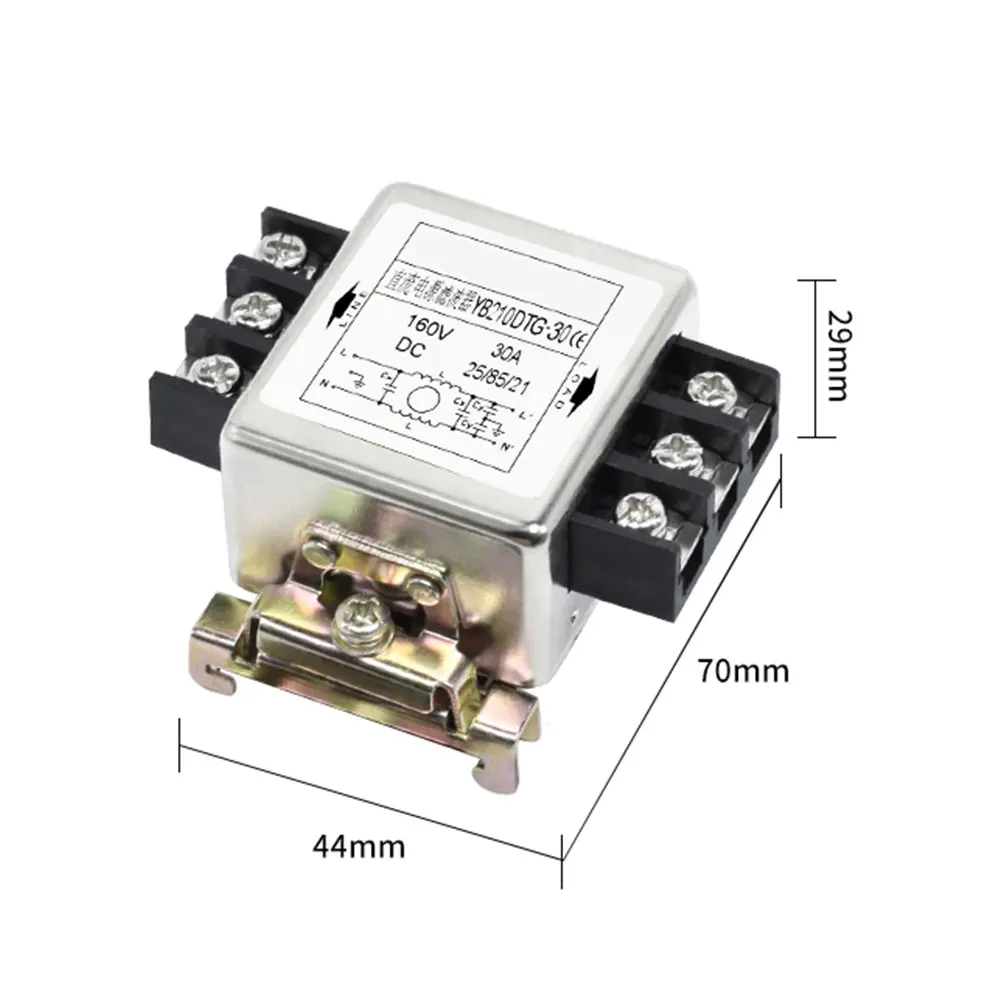

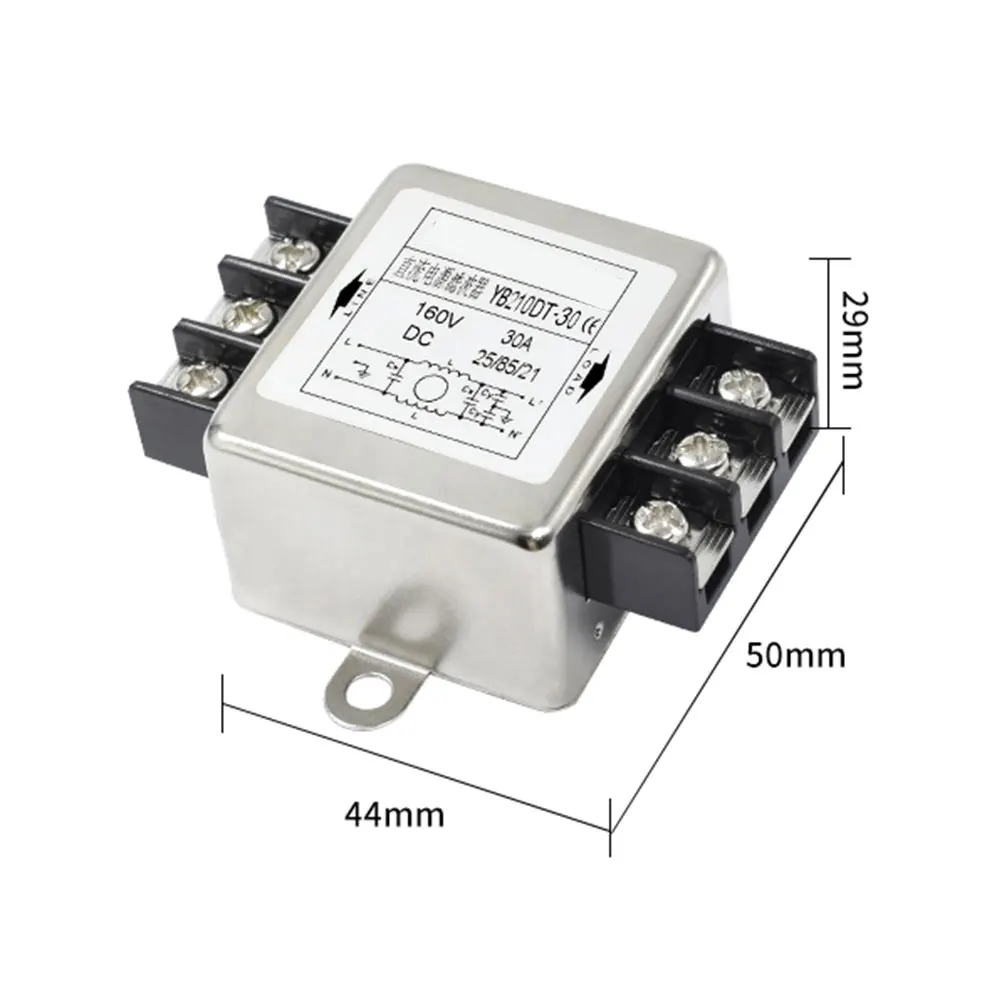

160 VDC Single Stage Three Line Power EMI Filter CE FCC for UL ROHS Compliant LV Products

Introducing, the Yoongwin 160 VDC Single Stage Three Line Power EMI Filter, the perfect solution to ensure your LV products are compliant with CE, FCC, UL, and ROHS standards. This EMI filter is designed to effectively reduce electromagnetic interference, providing a safe and reliable power supply for your electronic devices.

With a voltage rating of 160 VDC, this EMI filter is suitable for a wide range of low voltage applications. The single stage three-line design ensures optimal performance and efficiency in filtering out unwanted noise and interference from the power supply. This helps to protect your sensitive electronic components and ensure smooth operation of your devices.

The Yoongwin EMI filter is easy to install and compatible with a variety of LV products, making it a versatile and cost-effective solution for your power filtering needs. It is compact in size, allowing for flexible mounting options and integration into your existing system.

In addition to its technical capabilities, this EMI filter also meets stringent safety and environmental standards. The CE, FCC, UL, and ROHS certifications ensure that the filter has been thoroughly tested and approved for use in various applications. You can have peace of mind knowing that your LV products are in compliance with industry regulations.

Whether you are designing new electronic devices or upgrading existing systems, the Yoongwin 160 VDC Single Stage Three Line Power EMI Filter is a reliable and high-quality solution. Trust Yoongwin for all your power filtering needs and experience the difference in performance and reliability.

Don't compromise on the quality and safety of your electronic devices. Choose the Yoongwin 160 VDC Single Stage Three Line Power EMI Filter for superior protection and performance. Upgrade your LV products today and ensure smooth operation for years to come

Product Description

Product Detail

Maximum operating voltage（VAC）	Operating frequency（Hz）	Hipot test voltage P-N(VDC)、PN-E - VAC	Operating temperatureHz	Minimum insulation resistance
160	dc	1000（P-N，VDC）、1000（PN-E，VDC）	-25~+85℃	>200M@500VDC

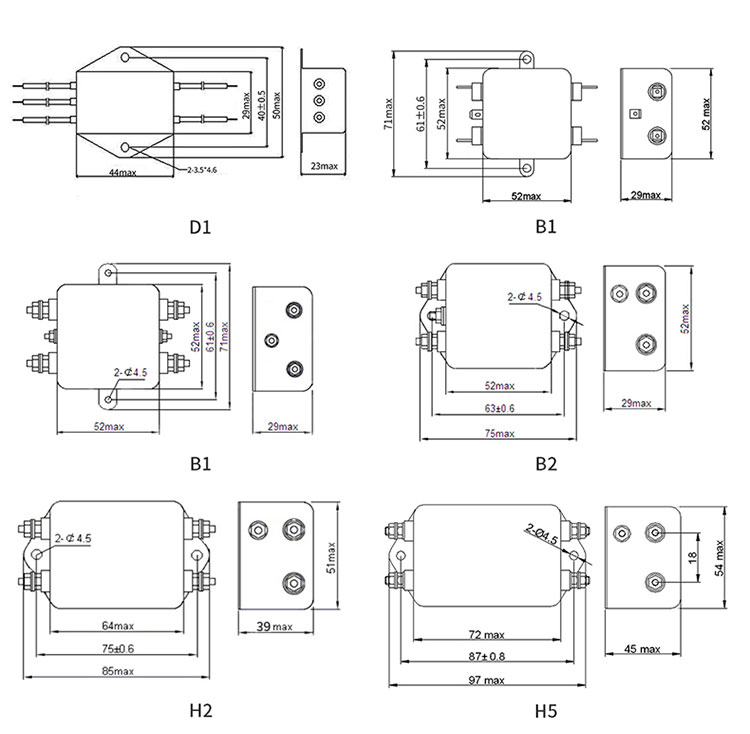

Part No	Connections - Wire	Connections - Bolts	Connections - Solder	Current rating @40℃	Housing	Leakage current

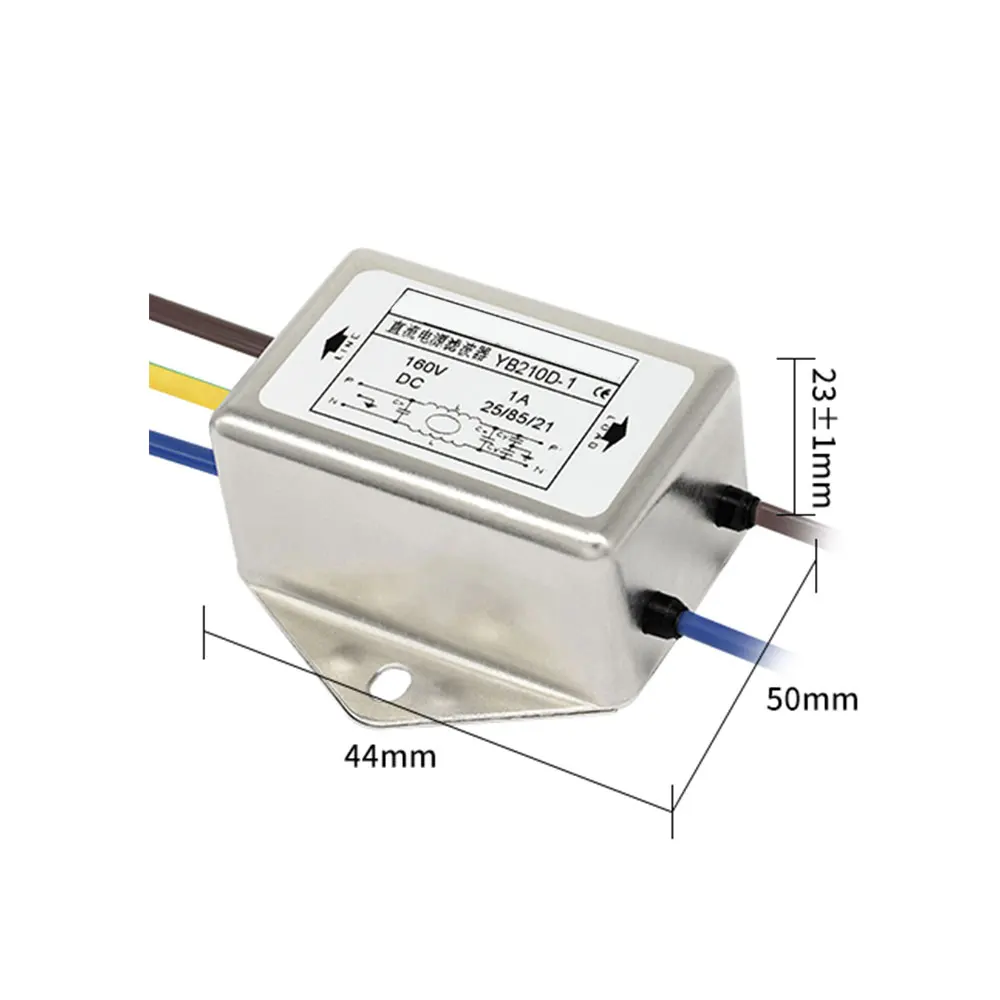

YB210D-1	/W	----	----	1A	D1	< 0.3mA
YB210D-3	/W	----	----	3A	D1	< 0.3mA
YB210D-6	/W	----	----	6A	D1	< 0.3mA
YB210D-10	/W	/M	/L	10A	D1/B1/B2	< 0.3mA
YB210D-20	----	/M	/L	20A	B1/B2	< 0.3mA
YB210D-30	----	/M	----	30A	H2	< 0.5mA
YB210D-40	----	/M	----	40A	H5	< 0.5mA

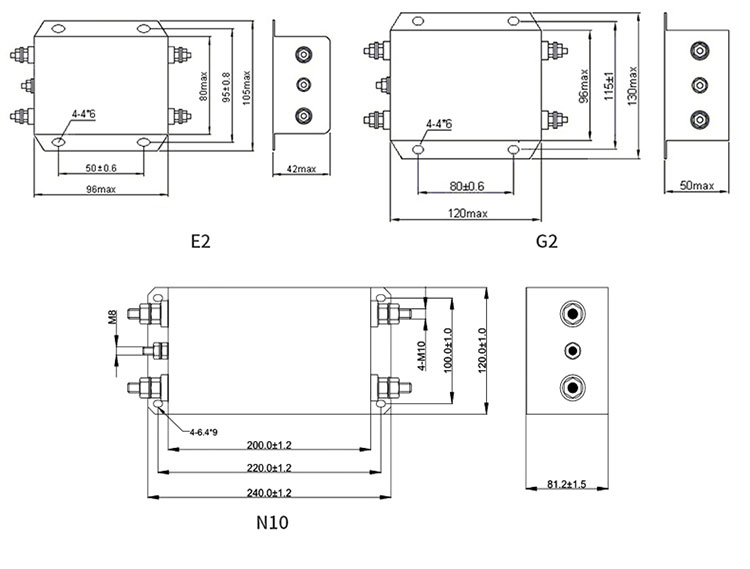

YB210D-50	----	/M	----	50A	E2	< 0.5mA
YB210D-75	----	/M	----	75A	G2	< 1.0mA
YB210D-100	----	/M	----	100A	G2	< 1.0mA
YB210D-150	----	/M	----	150A	N10	< 5mA
YB210D-200	----	/M	----	200A	N10	< 15mA

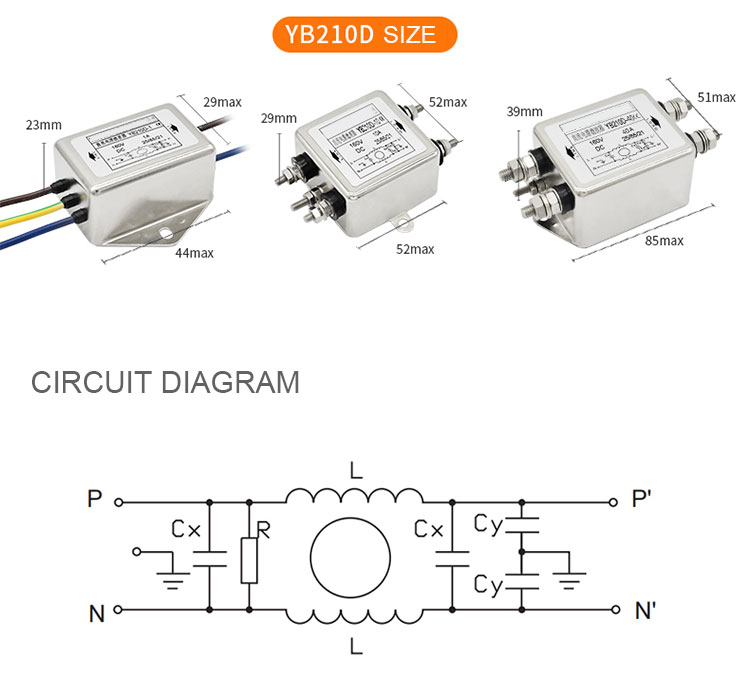

Part No	Components - L  - mH	Components - Cx - μF	Components - Cy - nF	Components - R - MΩ
YB210D-1	5.5	0.1	2.2	----
YB210D-3	2.5	0.1	2.2	----
YB210D-6	0.8	0.1	2.2	----
YB210D-10	1	0.22	2.2	1
YB210D-20	0.4	0.22	2.2	1
YB210D-30	0.3	0.22	4.7	1
YB210D-40	0.3	0.22	4.7	1
YB210D-50	0.2	0.47	4.7	1
YB210D-75	0.2	1	10	0.47
YB210D-100	0.18	2.2	10	0.47
YB210D-150	0.15	4.4	10	0.22
YB210D-200	0.15	13.2	100	0.22
