Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage
P-P(VDC) 、PN-E(VDC) 、P-N(VDC)
|
Operating temperatureHz |
Minimum insulation resistance |
380V/440V/520V |
50/60 |
2150（P-P，VDC）、2700（PN-E，VDC）、1760（P-N，VDC） |
-25~+85℃ |
>200M@500VDC |

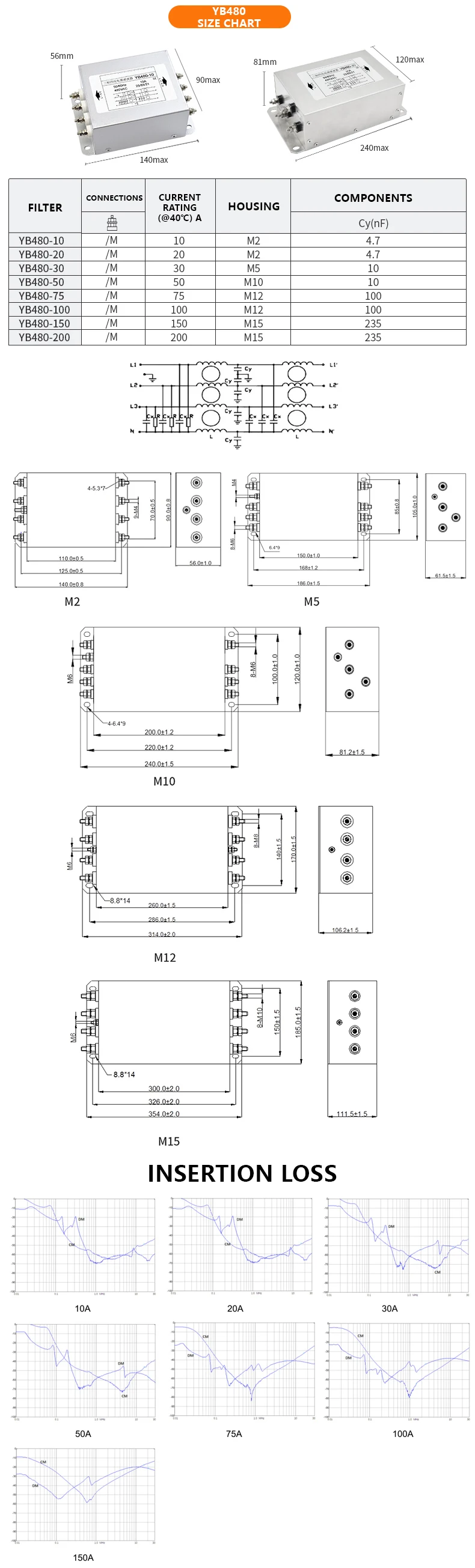

Product Model |
Connections - Bolts |
Current rating @40℃ |
Components - Cy(nF) |
YB480-10 |
/M |
10A |
4.7 |
YB480-20 |
/M |
20A |
4.7 |
YB480-30 |
/M |
30A |
10 |
YB480-50 |
/M |
50A |
10 |
YB480-75 |
/M |
75A |
100 |
YB480-100 |
/M |
100A |
100 |
YB480-150 |
/M |
150A |
235 |
YB480-200 |
/M |
200A |
235 |
