440V Double-Stage Three-Phase Three-Wire Power Filter LV Products with 5A/10A/20A/30A/40A/50A/60A/75A/100A/150A/200A Capacities

440V Double-Stage Three-Phase Three-Wire Power Filter LV Products with 5A/10A/20A/30A/40A/50A/60A/75A/100A/150A/200A Capacities

Description

[email protected]

Description

Product Description

Product Detail

Maximum operating voltage（VAC）	Operating frequency Hz	Hipot test voltage P-P(VDC) 、P-E(VDC)	Operating temperatureHz	Minimum insulation resistance


440	50/60	2150（P-P，VDC）、2700（P-E，VDC）	-25~+85℃	>200M@500VDC

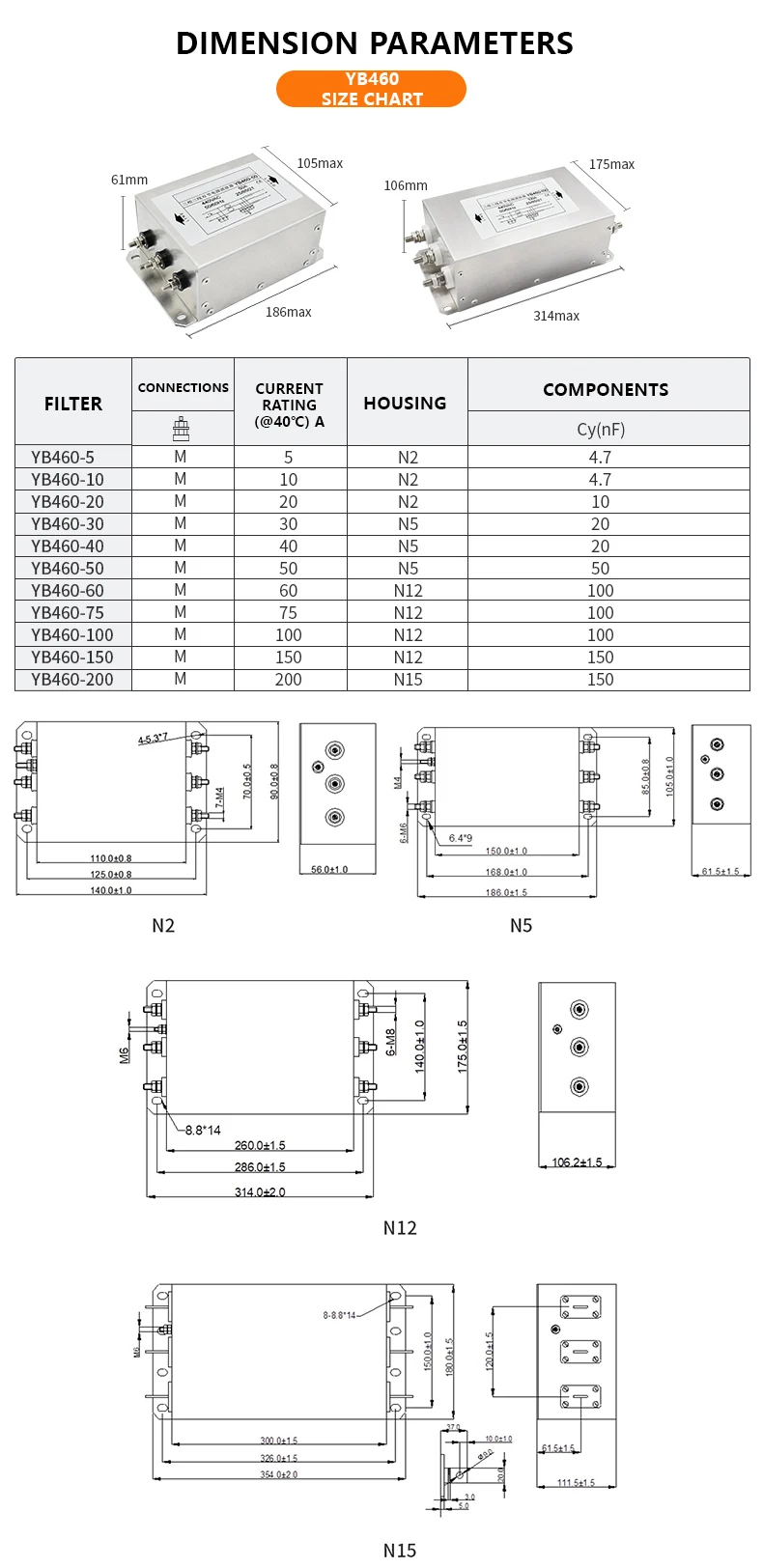

Product Model	Connections	Current rating @40℃	Components - Cy(nF)
YB460-5	/M	5A	4.7
YB460-10	/M	10A	4.7
YB460-20	/M	20A	10
YB460-30	/M	30A	20
YB460-40	/M	40A	20
YB460-50	/M	50A	50
YB460-60	/M	60A	100
YB460-75	/M	75A	100
YB460-100	/M	100A	100
YB460-150	/M	150A	150
YB460-200	/M	200A	150

440V Double-Stage Three-Phase Three-Wire Power Filter LV Products with 5A/10A/20A/30A/40A/50A/60A/75A/100A/150A/200A Capacities manufacture

440V Double-Stage Three-Phase Three-Wire Power Filter LV Products with 5A/10A/20A/30A/40A/50A/60A/75A/100A/150A/200A Capacities details

440V Double-Stage Three-Phase Three-Wire Power Filter LV Products with 5A/10A/20A/30A/40A/50A/60A/75A/100A/150A/200A Capacities supplier
