Home > Products > Others > Filters > Power Filter
Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage P-N(VDC) 、PN-E(VAC) |
Operating temperatureHz |
Minimum insulation resistance |
250 |
50/60 |
1760（P-N，VDC）、2000（PN-E，VAC） |
-25~+85℃ |
>200M@500VDC |
Product Model |
Current rating @40℃ |
Leakage current |
Components - L (mH) |
Components - Cx(nF) |
Components - Cy(nF) |
Components - R(MΩ) |
YB410TL-3 |
3A |
≤ 0.3mA |
2.5 |
100 |
2.2 |
1.5 |
YB410TL-6 |
6A |
≤ 0.3mA |
1 |
100 |
2.2 |
1.5 |
YB410TL-10 |
10A |
≤ 0.3mA |
0.5 |
220 |
2.2 |
1 |
YB410TL-15 |
15A |
≤ 0.3mA |
0.4 |
220 |
2.2 |
1 |

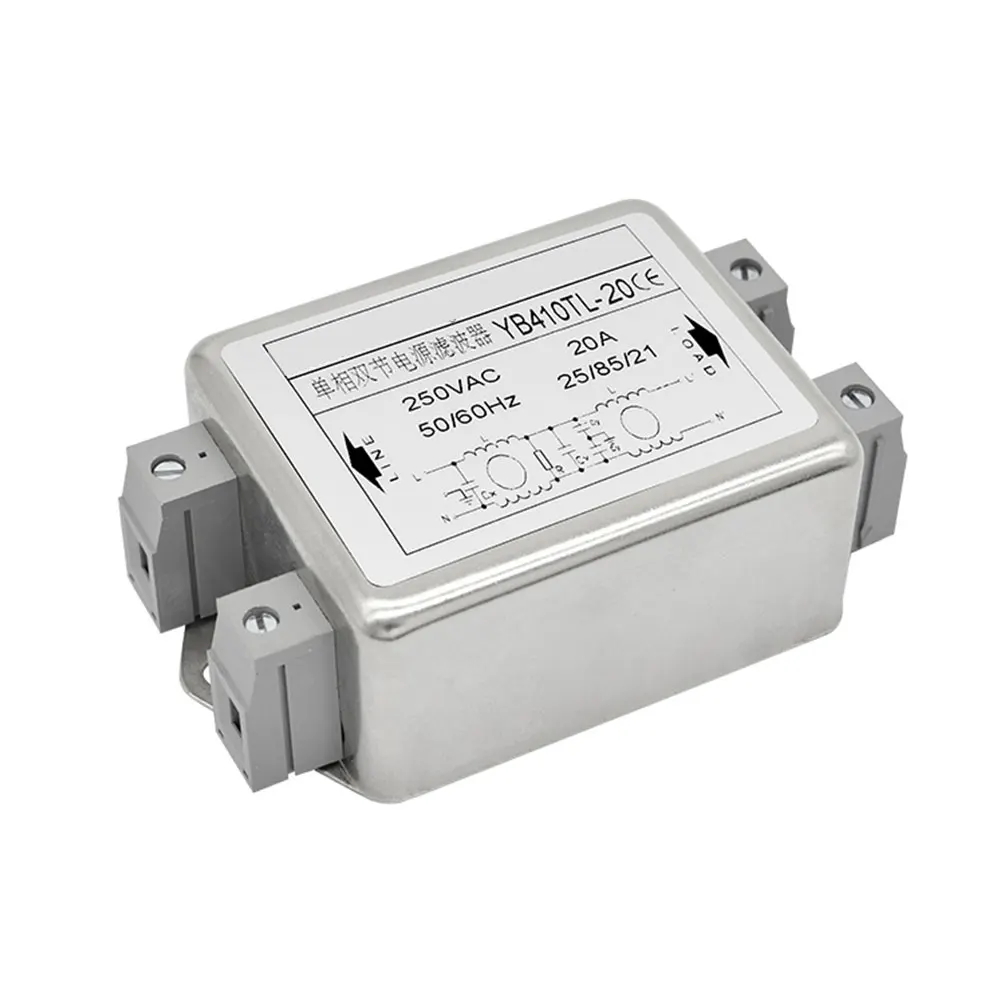

YB410TL-20 |
20A |
≤ 0.5mA |
0.3 |
220 |
4.7 |
1 |

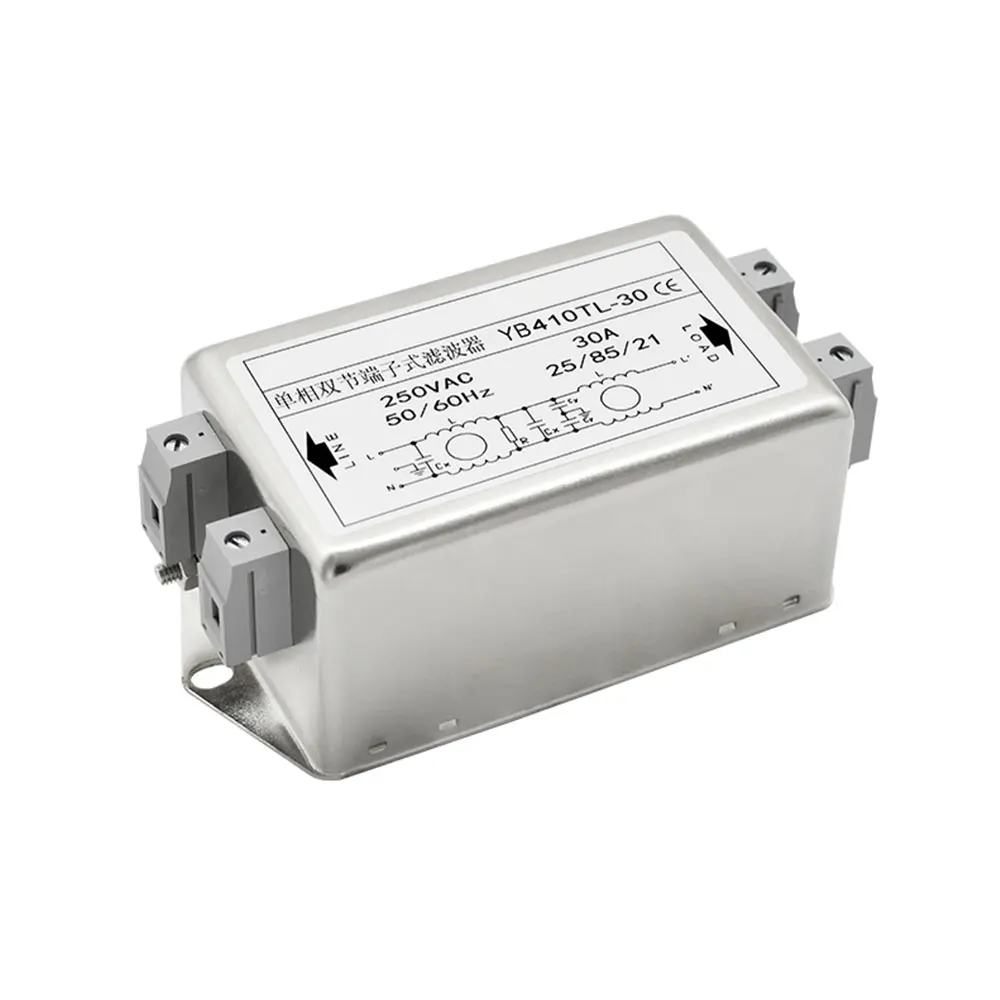

YB410TL-30 |
30A |
≤ 0.5mA |
0.28 |
470 |
4.7 |
0.47 |

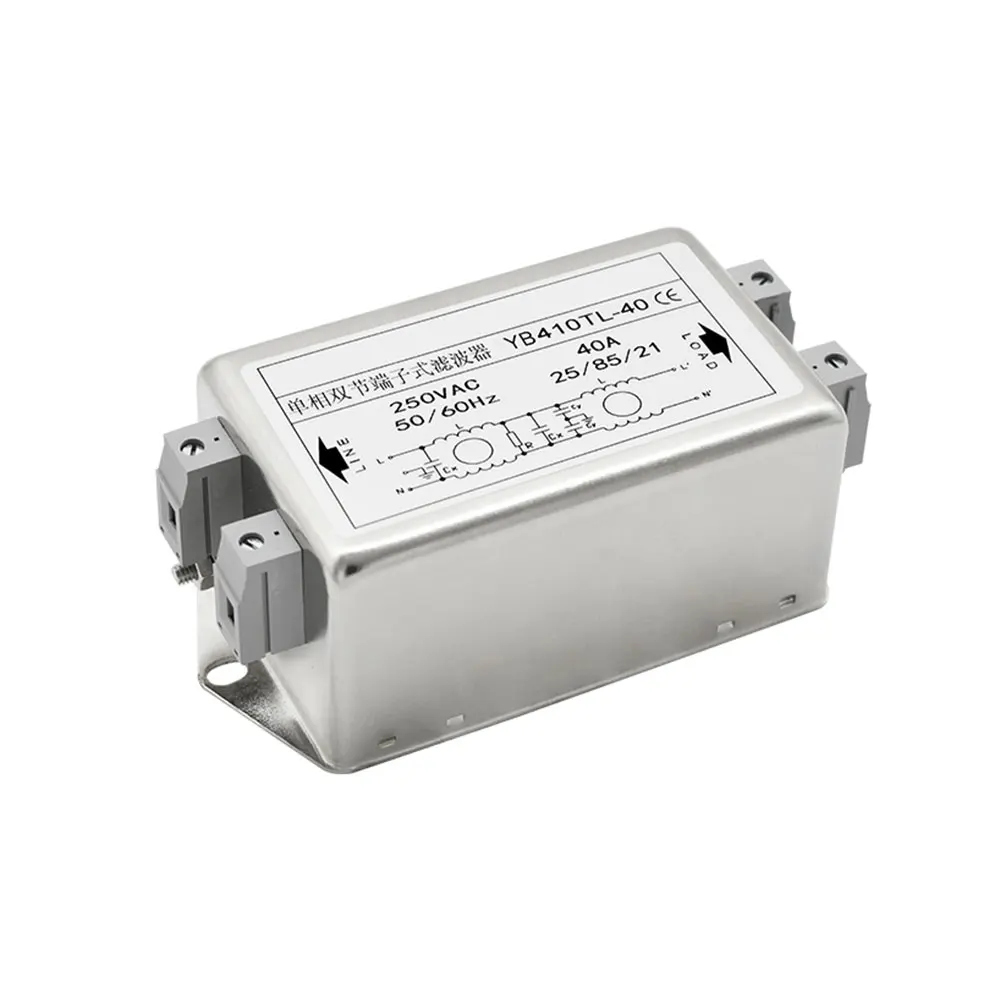

YB410TL-40 |
40A |
≤ 0.5mA |
0.25 |
1 |
4.7 |
0.47 |
YB410TL-50 |
50A |
≤ 1.0mA |
0.2 |
1 |
10 |
0.47 |
