Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products
Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products

Single-Phase AC 250V Power Filter with 1A 3A 6A 10A 20A 30A Terminal Rails Single-Stage LV Products

Get a Quote Contact Us
  • Description
product single phase ac 250v power filter with 1a 3a 6a 10a 20a 30a terminal rails single stage lv products-1

[email protected]
Inquiry
Product Description
Product Detail
Maximum operating voltage（VAC）
Operating frequency（Hz）
Hipot test voltage P-N(VDC) 、PN-E(VAC)
Operating temperatureHz
Minimum insulation resistance
250
50/60
1760（P-N，VDC）、2000（PN-E，VAC）
-25~+85℃
>200M@500VDC
Part No.
Connections - Terminal
Connections - Guide rail
Current rating @40℃
Leakage current
Components - L (mH)
Components - Cx(μF)
Components - Cy(nF)
Components - R(MΩ)
YB210T-1
√
√
1A
<0.3mA
5.5
0.1
2.2
----
YB210T-3
√
√
3A
<0.3mA
2.5
0.1
2.2
----
YB210T-6
√
√
6A
<0.3mA
0.8
0.1
2.2
----

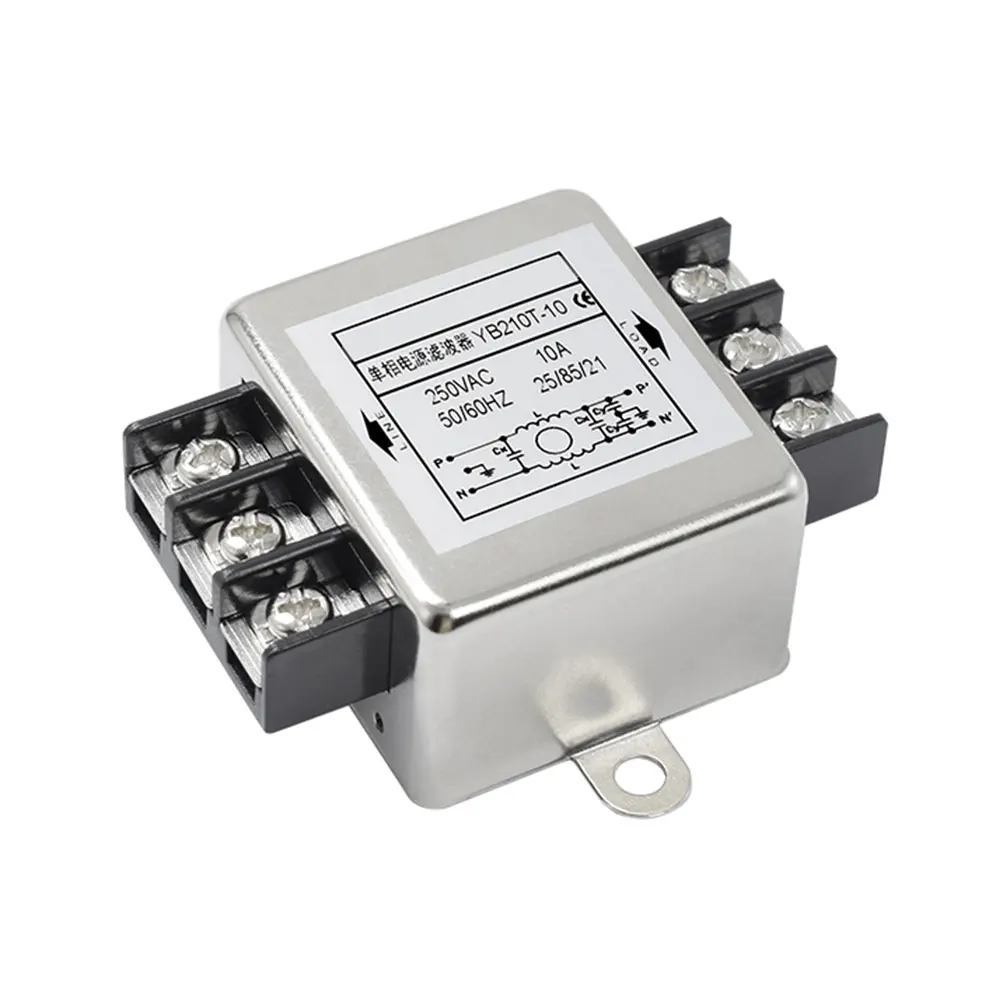

YB210T-10
√
√
10A
<0.3mA
1
0.22
2.2
1
YB210T-20
√
√
20A
<0.3mA
0.4
0.22
2.2
1
YB210T-30
√
√
30A
<0.5mA
0.3
0.22
4.7
1

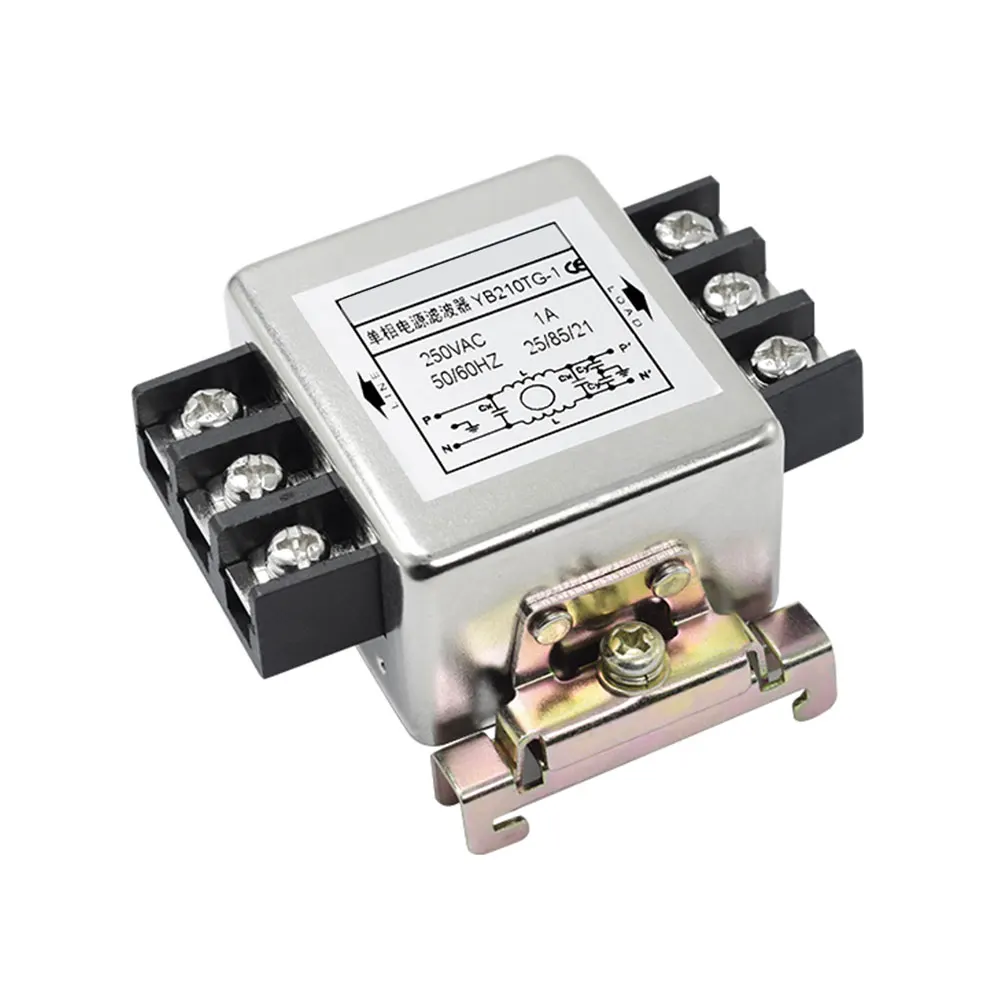

YB210TG-1
√
√
1A
<0.3mA
5.5
0.1
2.2
----
YB210TG-3
√
√
3A
<0.3mA
2.5
0.1
2.2
----

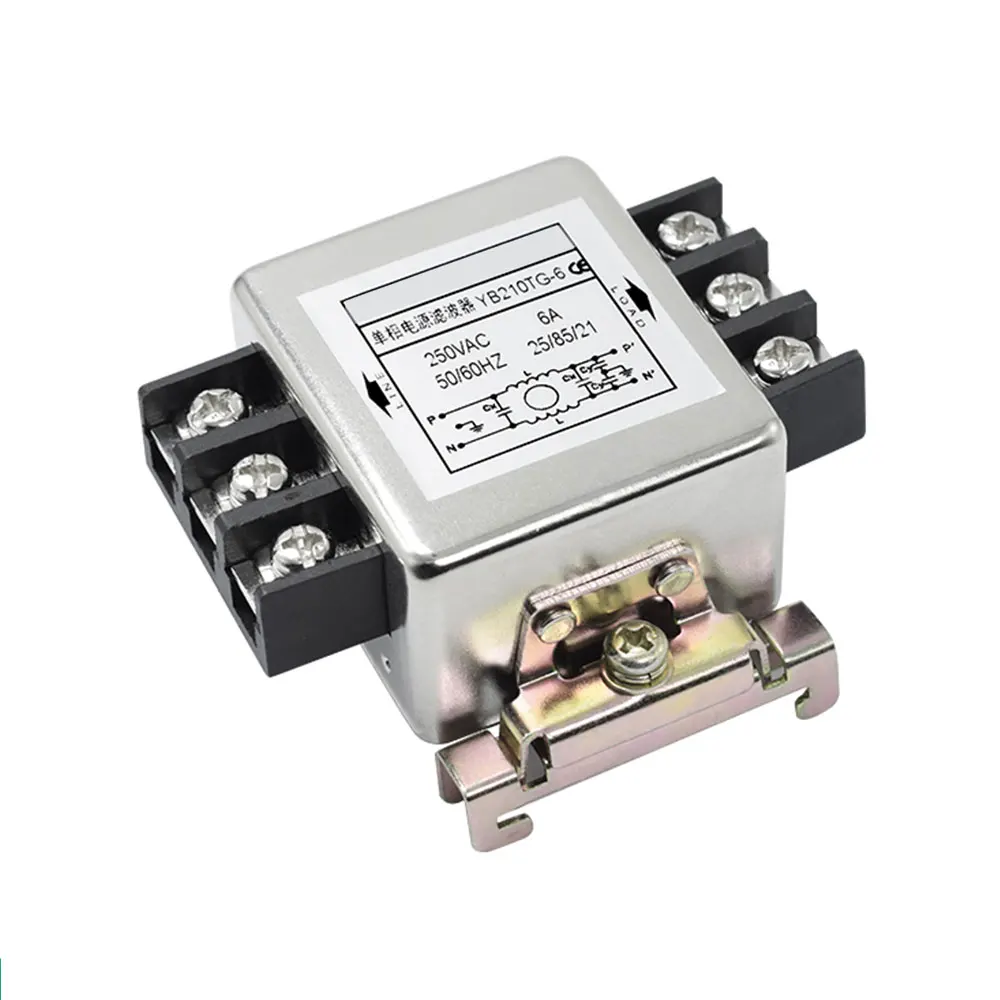

YB210TG-6
√
√
6A
<0.3mA
0.8
0.1
2.2
----
YB210TG-10
√
√
10A
<0.3mA
1
0.22
2.2
1
YB210TG-20
√
√
20A
<0.3mA
0.4
0.22
2.2
1

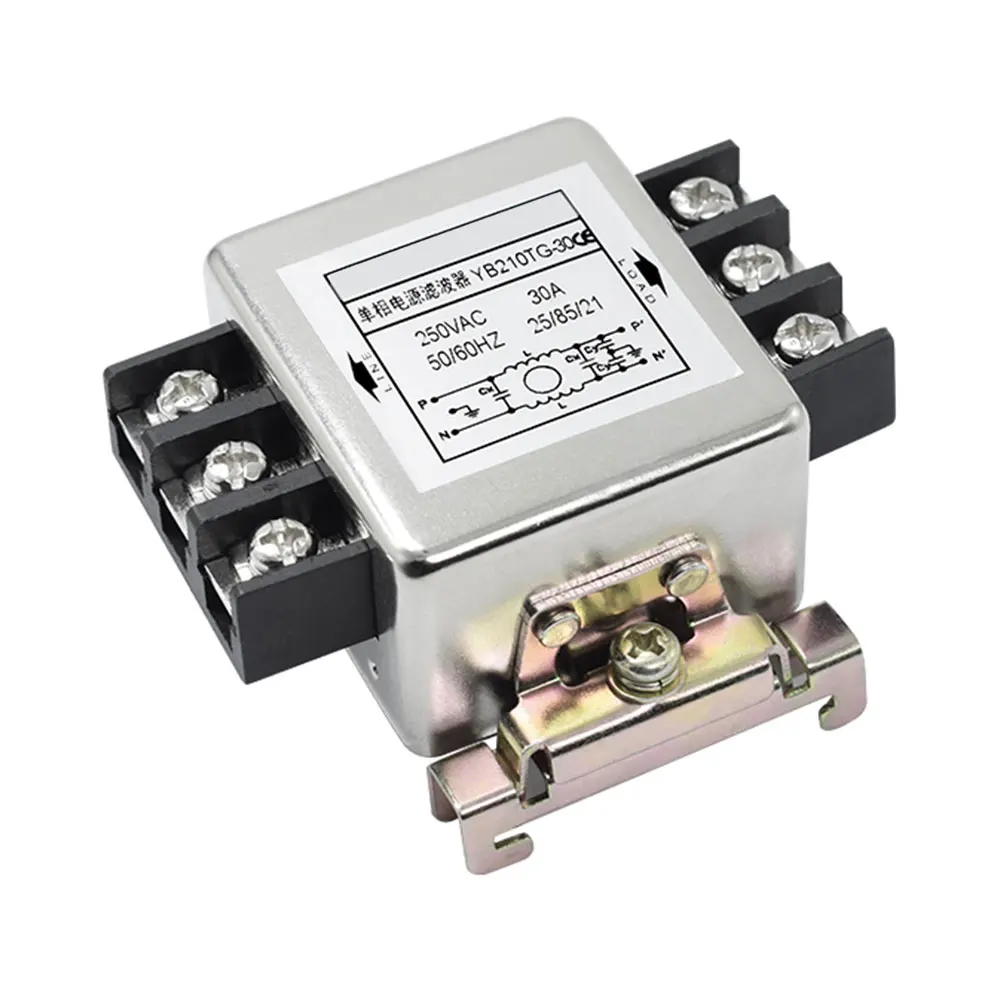

YB210TG-30
√
√
30A
<0.5mA
0.3
0.22
4.7
1
