Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products

Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products

Get a Quote Contact Us
  • Description
dc double section power emi filter industrial medical device power supply choke coil low voltage products-1

[email protected]
Inquiry
Product Description
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products details
Product Detail
Maximum operating voltage（VAC）
Operating frequency（Hz）
Hipot test voltage P-N(VDC) 、PN-E(VAC)
Leakage current
Minimum insulation resistance
0~250V
50HZ/60HZ DC
1500（P-N，VDC）、1800（PN-E，VAC）
1.5 MA@250VAC/50HZ
>100MQ@500VDC
Part No.
Connections - Wire
Current rating @40℃
Housing
Leakage current

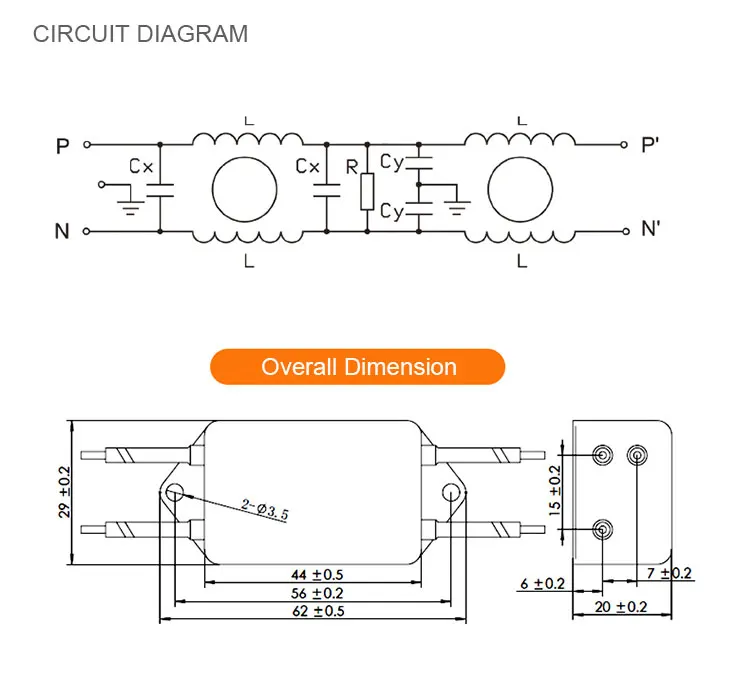

Components - L (mH)
Components - Cx(μF)
Components - R(MΩ)
Components - Cy(nF)
Weight (g)

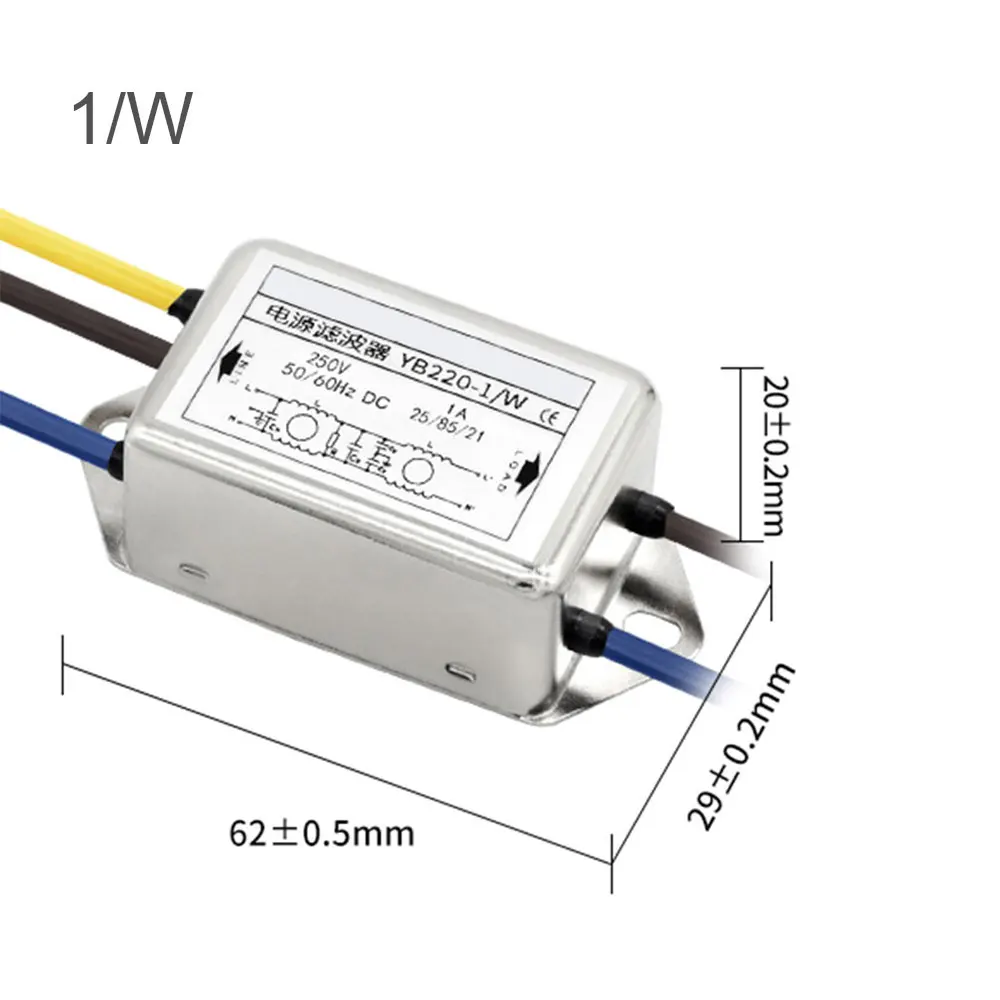

YB220-1/W
W
1A
D1
<1.5mA
7.8
100
1.5
2.2
65

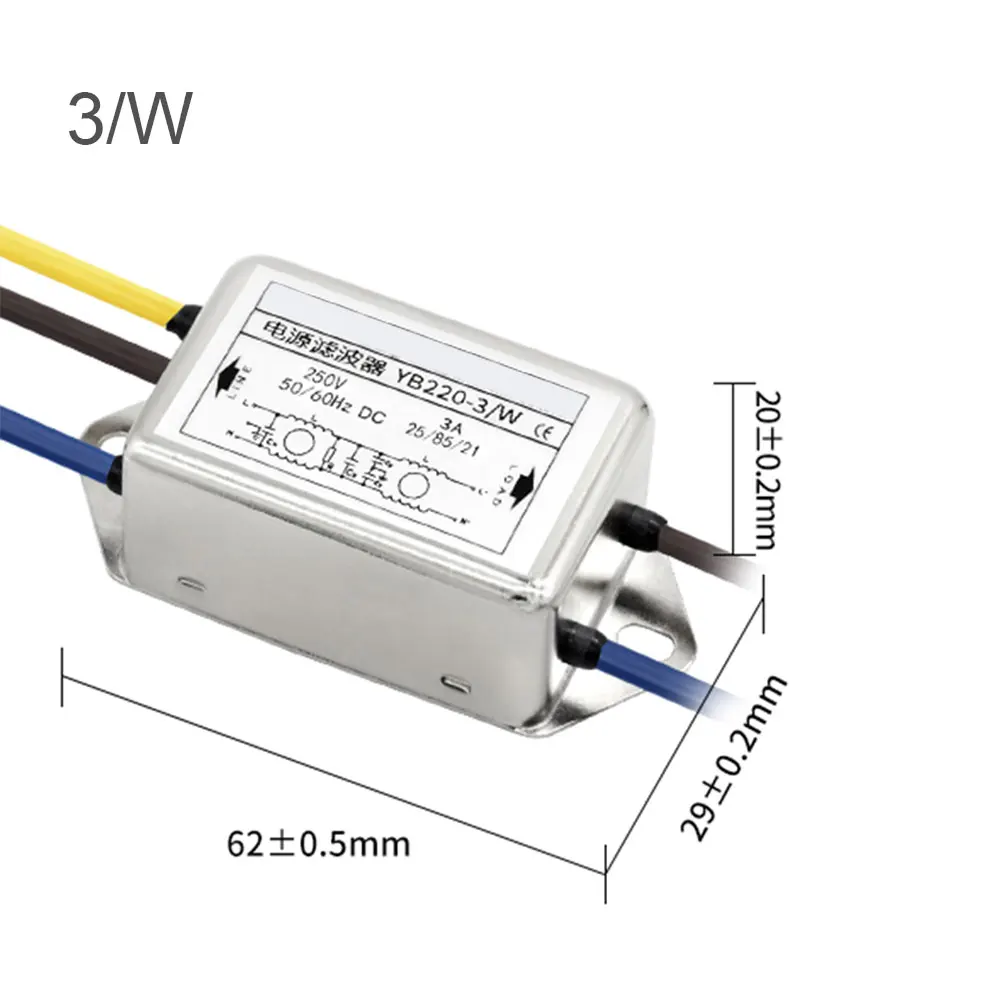

YB220-3/W
W
3A
D1
< 1.5mA
2.5
100
1.5
2.2
65
YB220-6/W
W
6A
D1
<1.5mA
1.0
100
1.5
2.2
65
YB220-10/W
W
10A
D1
< 1.5mA
0.5
100
1.0
2.2
65
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products supplier
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products supplier
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products manufacture
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products supplier
Single Phase AC/DC Double Section Power EMI Filter Industrial Medical Device Power Supply Choke Coil Low Voltage Products manufacture
