Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage P-N(VDC) 、PN-E(VAC) |
Operating temperatureHz |
Minimum insulation resistance |
250 |
50/60 |
1760（P-N，VDC）、2000（PN-E，VAC） |
-25~+85℃ |
>200M@500VDC |
Product Model |
Connections - Terminal |
Connections - Guide rail |
Current rating @40℃ |
Leakage current |
Components - L (mH) |
Components - Cx(μF) |
Components - Cy(nF) |
Components - R(MΩ) |
YB410T-1 |
√ |
---- |
1A |
<0.3mA |
7.8 |
100 |
2.2 |
1 |
YB410T-3 |
√ |
---- |
3A |
<0.3mA |
2.5 |
100 |
2.2 |
1 |

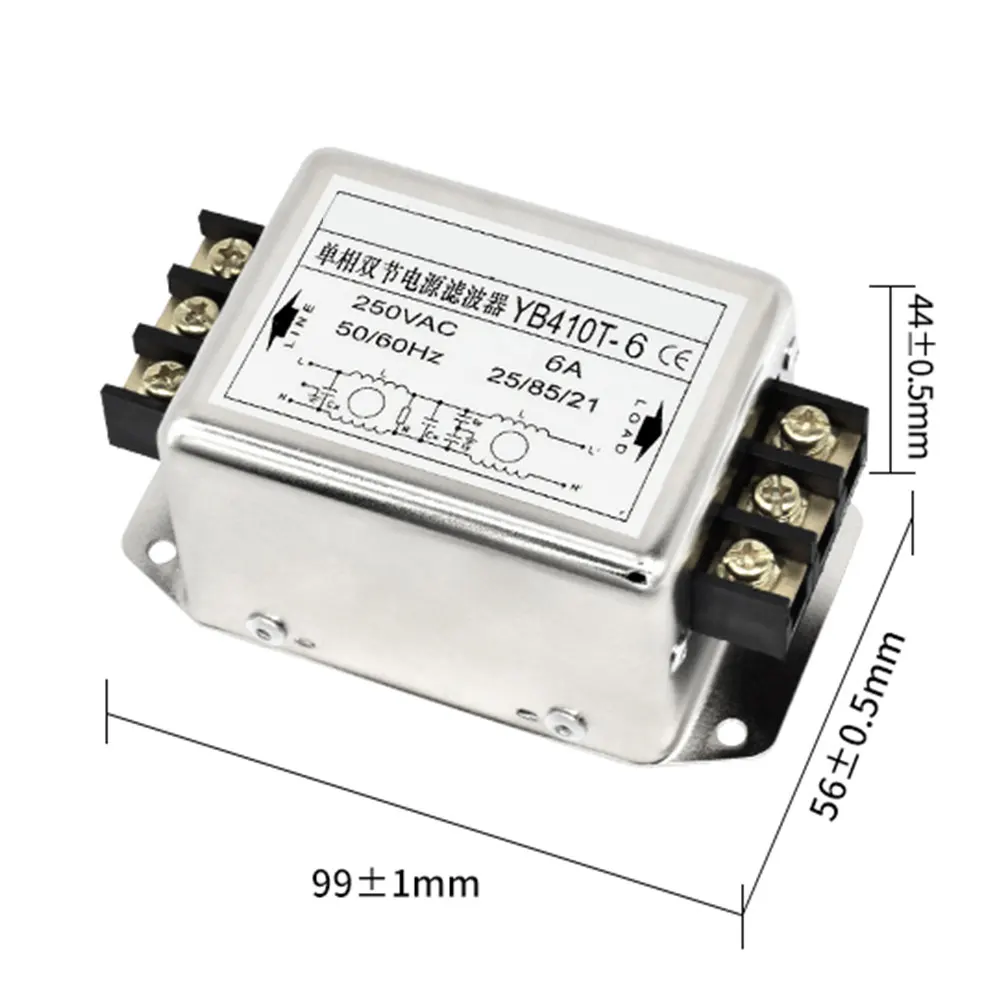

YB410T-6 |
√ |
---- |
6A |
<0.3mA |
1 |
100 |
2.2 |
1 |
YB410T-10 |
√ |
---- |
10A |
<0.3mA |
0.5 |
220 |
2.2 |
1 |
YB410T-20 |
√ |
---- |
20A |
<0.5mA |
0.3 |
220 |
4.7 |
1 |
YB410T-30 |
√ |
---- |
30A |
<0.5mA |
0.28 |
470 |
4.7 |
0.47 |

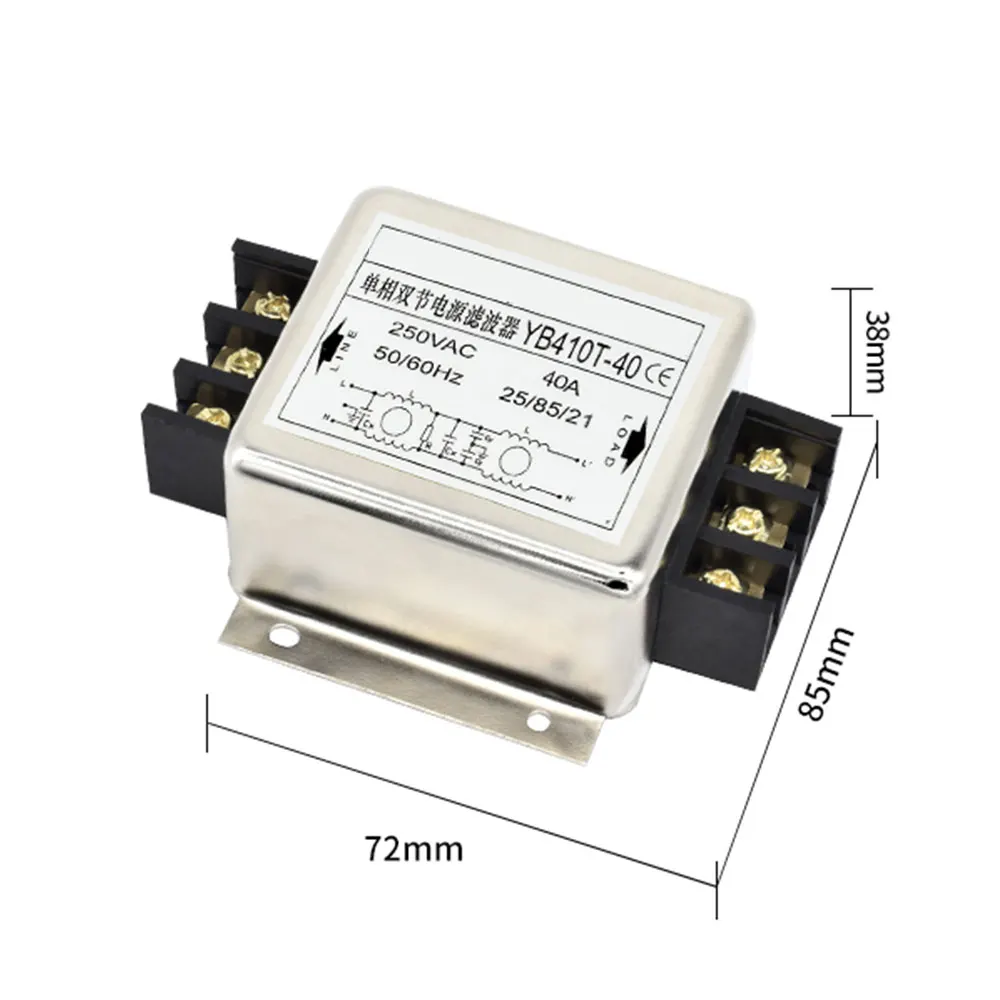

YB410T-40 |
√ |
---- |
40A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
YB410T-50 |
√ |
---- |
50A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
YB410TG-1 |
√ |
√ |
1A |
<0.3mA |
7.8 |
100 |
2.2 |
1 |
YB410TG-3 |
√ |
√ |
3A |
<0.3mA |
2.5 |
100 |
2.2 |
1 |
YB410TG-6 |
√ |
√ |
6A |
<0.3mA |
1 |
100 |
2.2 |
1 |
YB410TG-10 |
√ |
√ |
10A |
<0.3mA |
0.5 |
220 |
2.2 |
1 |
YB410TG-20 |
√ |
√ |
20A |
<0.5mA |
0.3 |
220 |
4.7 |
1 |
YB410TG-30 |
√ |
√ |
30A |
<0.5mA |
0.28 |
470 |
4.7 |
0.47 |
YB410TG-40 |
√ |
√ |
40A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
YB410TG-50 |
√ |
√ |
50A |
<1.0mA |
0.2 |
470 |
10 |
0.47 |
