Single-Stage 1A/3A/6A/10A/20A/30A DC Terminal Rail Power Filter Single-Phase LV Products

Introducing the Yoongwin Single-Stage DC Terminal Rail Power Filter, a must-have accessory for any household or business looking to improve the performance and reliability of their electrical systems. This innovative product is designed to provide superior filtration for single-phase low voltage products, ensuring a smooth and efficient flow of power to your devices

With a range of options available including 1A, 3A, 6A, 10A, 20A, and 30A models, you can choose the perfect power filter to suit your specific needs. Whether you're powering up a small home office or a large industrial operation, the Yoongwin Single-Stage DC Terminal Rail Power Filter has you covered

What sets this product apart is its single-stage design, which offers a high level of filtration while maintaining a compact and user-friendly form factor. Installing the power filter is a breeze, thanks to its convenient terminal rail design that allows for easy connection to your existing power supply

Once installed, you'll immediately notice the benefits of the Yoongwin Single-Stage DC Terminal Rail Power Filter. Say goodbye to interference and noise in your electrical system, as this filter effectively eliminates disturbances and ensures a clean and stable power supply to your devices. This results in improved performance, reduced downtime, and longer lifespan for your valuable equipment

In addition to enhancing the performance of your electrical system, the Yoongwin Single-Stage DC Terminal Rail Power Filter also prioritizes safety. With built-in protections against overloading, short circuits, and overheating, you can rest easy knowing that your devices are well-protected against electrical hazards

Don't let poor power quality compromise the performance of your electronics. Invest in the Yoongwin Single-Stage DC Terminal Rail Power Filter today and experience the difference for yourself. Trust Yoongwin for all your power filtration needs and enjoy reliable, efficient, and safe electrical power for years to come

Product Description

Product Detail

Maximum operating voltageVAC	Operating frequency Hz	Hipot test voltage P-N VDC 、PN-EVAC	Operating temperatureHz	Minimum insulation resistance
160	dc	1000 P-N，VDC、1000 PN-E，VDC	-25~+85℃	>200M@500VDC

Part No	Connections - Terminal	Connections - Guide rail	Current rating @40℃	Leakage current	Components - L mH	Components - Cx μF	Components - Cy nF	Components - R MΩ

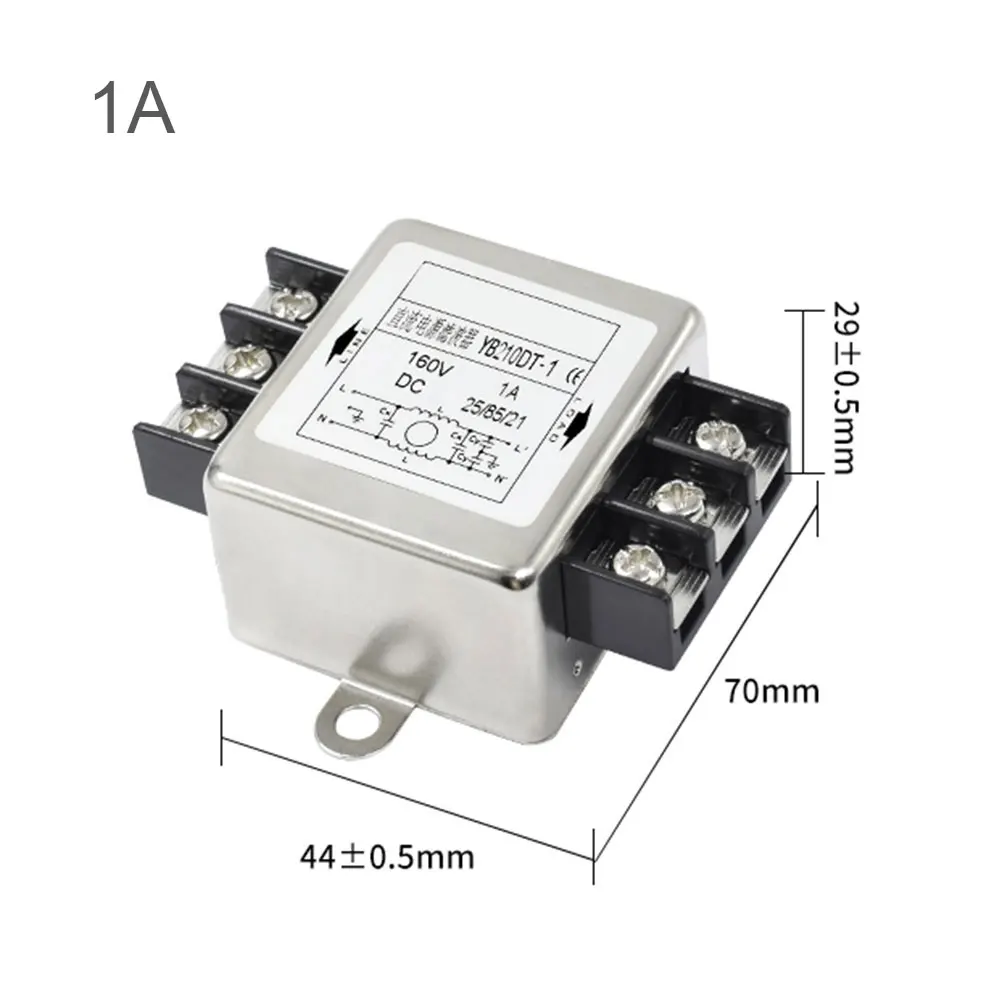

YB210DT-1	√	√	1A	<0.3ma<>	5.5	0.1	2.2	----

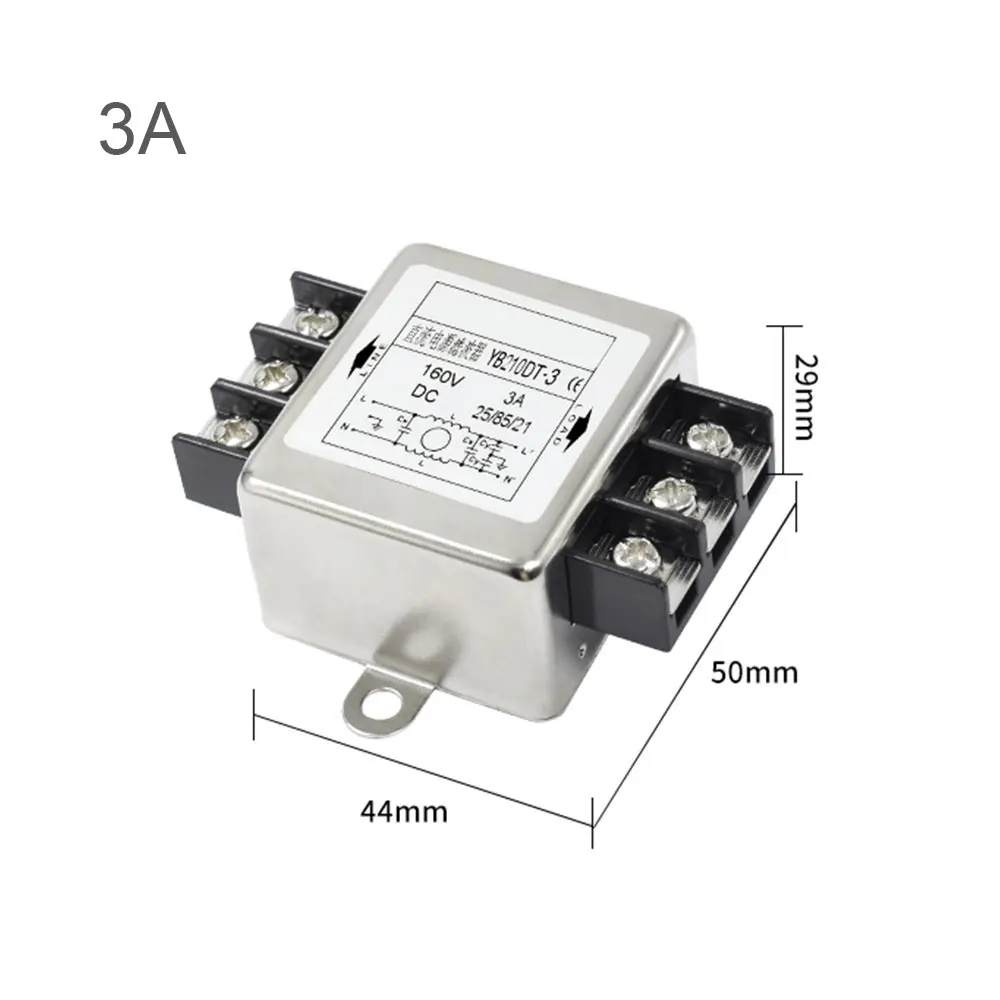

YB210DT-3	√	√	3A	<0.3ma<>	2.5	0.1	2.2	----

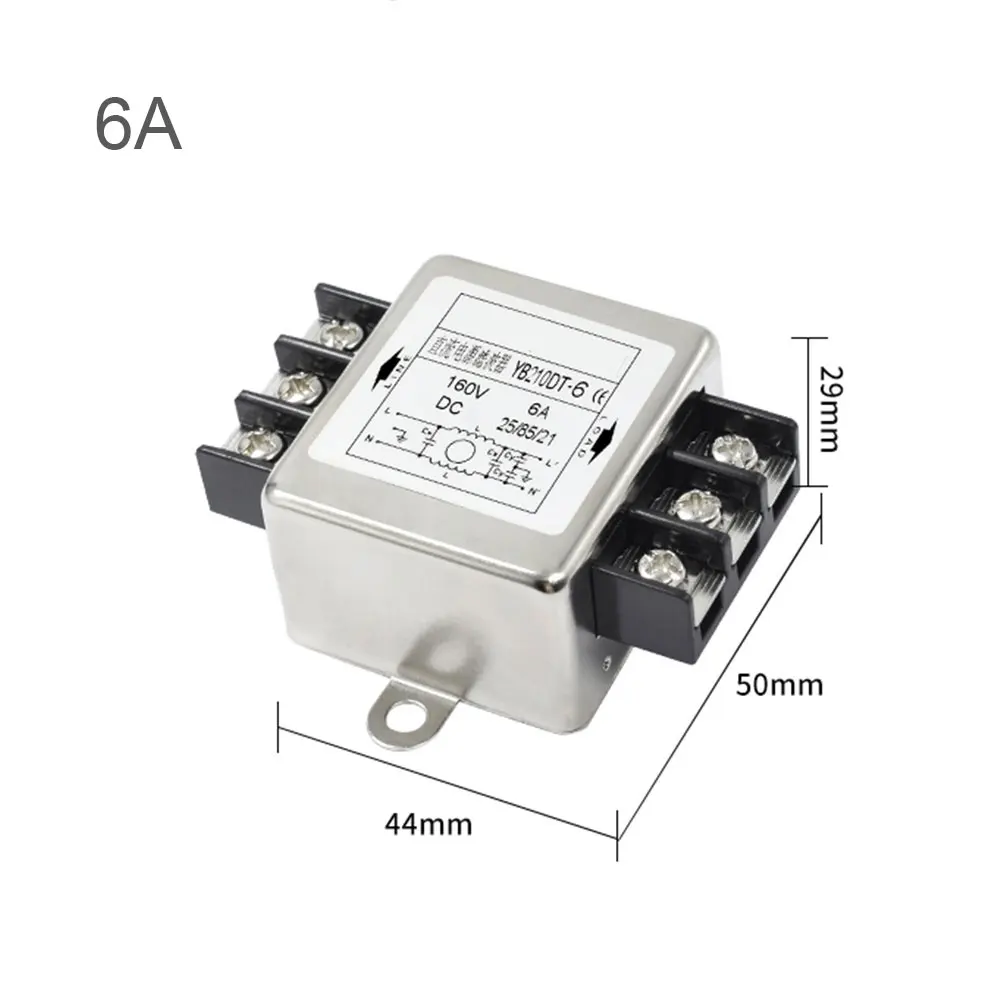

YB210DT-6	√	√	6A	<0.3ma<>	0.8	0.1	2.2	----
YB210DT-10	√	√	10A	<0.3ma<>	1	0.22	2.2	1
YB210DT-20	√	√	20A	<0.3ma<>	0.4	0.22	2.2	1
YB210DT-30	√	√	30A	<0.5ma<>	0.3	0.22	4.7	1
YB210DTG-1	√	√	1A	<0.3ma<>	5.5	0.1	2.2	----
YB210DTG-3	√	√	3A	<0.3ma<>	2.5	0.1	2.2	----
YB210DTG6	√	√	6A	<0.3ma<>	0.8	0.1	2.2	----
YB210DTG-10	√	√	10A	<0.3ma<>	1	0.22	2.2	1
YB210DTG-20	√	√	20A	<0.3ma<>	0.4	0.22	2.2	1

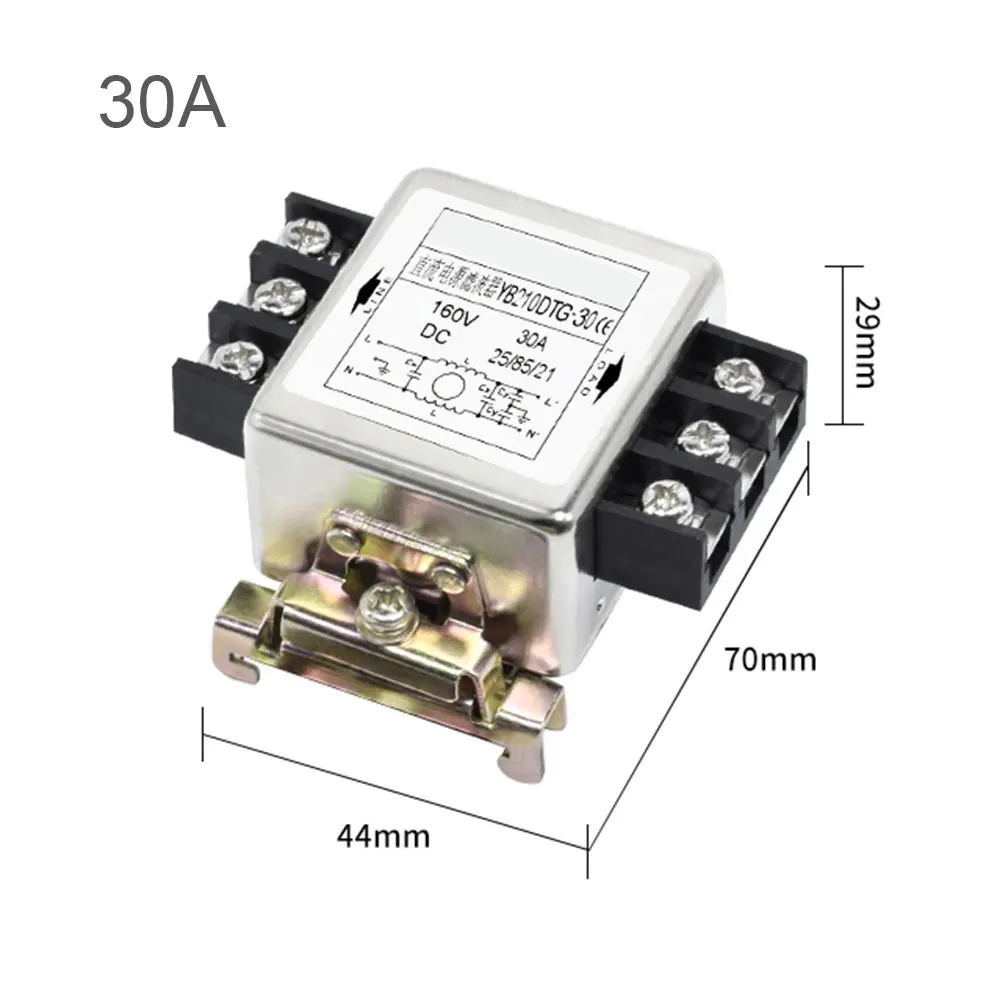

YB210DTG-30	√	√	30A	<0.5ma<>	0.3	0.22	4.7	1
