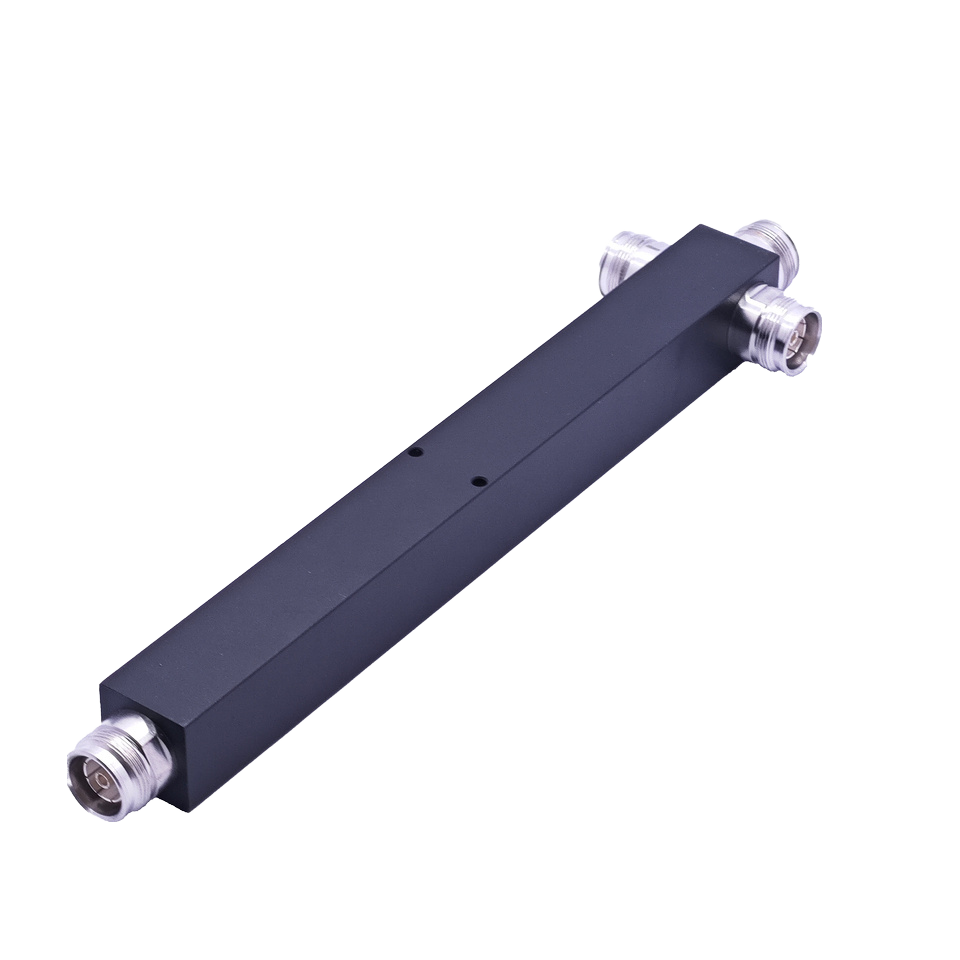

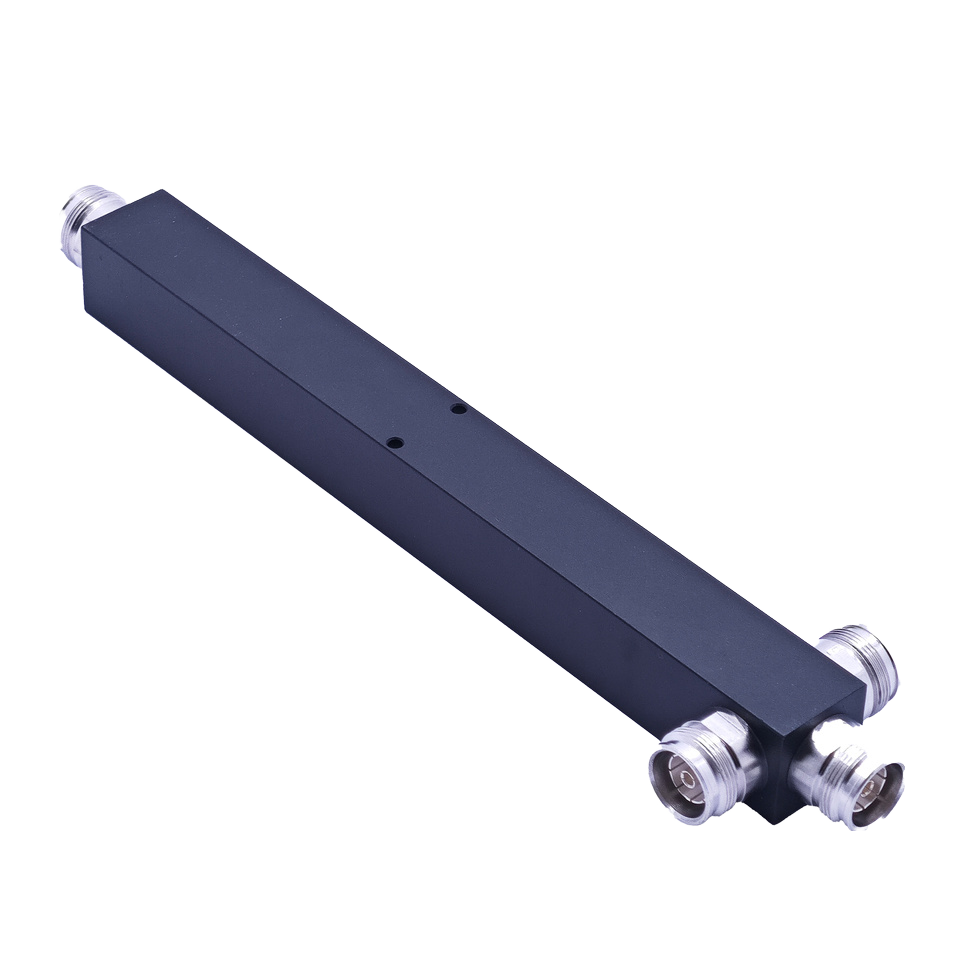

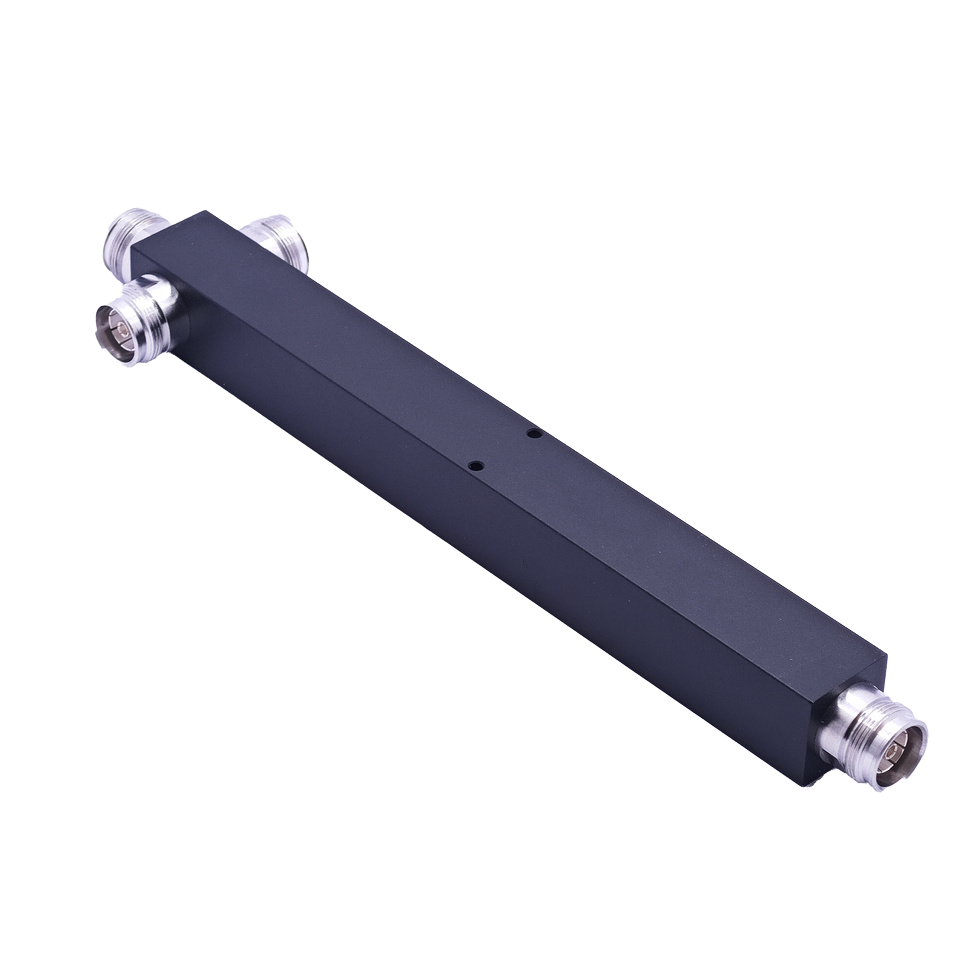

This YOONGWIN (Model: YW-698-4000-300W-3) RF Power Splitter/Tapper series is engineered for robust and precise signal distribution in modern telecom infrastructure. Designed to operate across the critical 698 MHz to 4000 MHz frequency band, it fully supports 2G, 3G, 4G, and 5G network deployments. The series offers three models: Splitter 2 (2-Way), Splitter 3 (3-Way), and Splitter 4 (4-Way), each optimized with specific split ratios (3dB, 4.8dB, and 6dB respectively) to minimize insertion loss (≤0.3 dB to ≤0.5 dB) and maintain excellent Voltage Standing Wave Ratio (VSWR ≤1.25:1 - ≤1.3:1).
A key highlight is its exceptional power handling capability, supporting continuous operation at 300W average power and surges up to 1000W peak power, making it suitable for high-density cell sites. The device delivers superior linearity with third-order Intermodulation Distortion (IMD) performance ≤-161 dBc. Built for demanding environments, it features an IP65-rated housing for dust and water resistance, coupled with an operational temperature range of -40°C to +65°C and tolerance for up to 100% relative humidity. The compact, black enclosure houses industry-standard DIN female connectors, ensuring seamless integration into both indoor installations (offices, residential complexes) and outdoor deployments (towers, remote radio units). Packaging is optimized for each variant, with dimensions ranging from 193x25x25 mm for the 2-way to 230x25x25 mm for 3/4-way models.
| Brand Name | YOONGWIN |
| Model Number | YW-698-4000-300W-3 |
| Place of Origin | Jiangsu, China |
| Mounting Type | threaded installation / threaded mounting |
| Description | Low PIM Low VSWR support 2G/3G/4G/5G |
| Features | General purpose |
| Operating Frequency | 698-4000 MHz |
| Size | 230*25*25mm |
| Working temperature | -40°C to 65°C |
| Color | Black |
| Weight | 0.6Kg |
| Minimum Order Quantity | 100 |
| Price | 2.20$ |
| Delivery Time | 20 days |
| Payment Terms | Paypal/TT |
| Device Type | Splitter 2 | Splitter 3 | Splitter 4 |
| Electrical Specifications | |||
| Frequency Range(MHz) | 698 - 4000 | ||
| Splitter[dB] | 3 | 4.8 | 6 |
| Insertion Loss[dB] | ≤0.3 dB | ≤0.4 dB | ≤0.5 dB |
| VSWR | ≤1.25:1 | ≤1.25:1 | ≤1.3:1 |
| 3rd Order IMD [dBc](Two +43 dBm carriers) | ≤ - 161dBc | ||
| Average Power[W] | 300W | ||
| Peak Power, maximum[W] | 1000W | ||
| Impedance[Ω] | 50 | ||
| Environmental Specifications | |||
| Operating Temperature[°C] | - 40°C to + 65°C | ||
| Relative humidity | Up to 100% | ||
| Ingress Protection Test Method | IP65 | ||
| General Specifications | |||
| Application | Indoor/Outdoor | ||
| Color | Black | ||
| Interface | DIN Female | ||
| Packaging and Weights | |||
| Size [mm] | 193×25×25 | 230×25×25 | 230×25×25 |
| Weight, [ Kg] | ≤0.55Kg | ≤0.6Kg | ≤0.7Kg |
Alternative Names: RF Splitter, RF Power Divider, 2/3/4-Way RF Tapper
Main Use: Distributes RF signals (698–4000 MHz) for 2G/3G/4G/5G networks in indoor/outdoor environments and Distributed Antenna Systems (DAS).
Core Specs:
Frequency Range: 698–4000 MHz
Impedance: 50 Ω
Power Handling: Avg. 300 W, Peak 1000 W
Environmental: IP65 rating, Operating Temp: -40°C to +65°C
Splitter Types: 2-Way (Splitter 2), 3-Way (Splitter 3), 4-Way (Splitter 4)
Interfaces: DIN Female
Color: Black
Cellular Base Stations (Macro/Small Cells)
Distributed Antenna Systems (DAS) for buildings & campuses
In-building wireless coverage solutions (Offices, Hospitals, Stadiums)
Signal branching for Remote Radio Units (RRUs)
Telecom infrastructure supporting 2G/3G/4G/5G voice, data, and IoT backhaul
Indoor and outdoor environments requiring reliable RF signal distribution
1. High Power Robustness: Handles exceptionally high peak power loads (1000W), ensuring reliability in high-traffic cellular networks.
2. Operational Resilience: IP65 protection combined with extreme temperature tolerance (-40°C to +65°C) guarantees performance in harsh outdoor and industrial settings.
3. Signal Integrity Focus: Ultra-low insertion loss and tight VSWR control minimize signal degradation, preserving network quality and data throughput.
4. Deployment Versatility: Supports all major mobile generations (2G-5G) across indoor and outdoor scenarios with three split ratios (2/3/4-way) in a single product line.
5. Industry-Standard Compatibility: DIN female connectors ensure easy integration with existing telecom infrastructure components.
