Item |
4G LTE Mi-Fi |
|

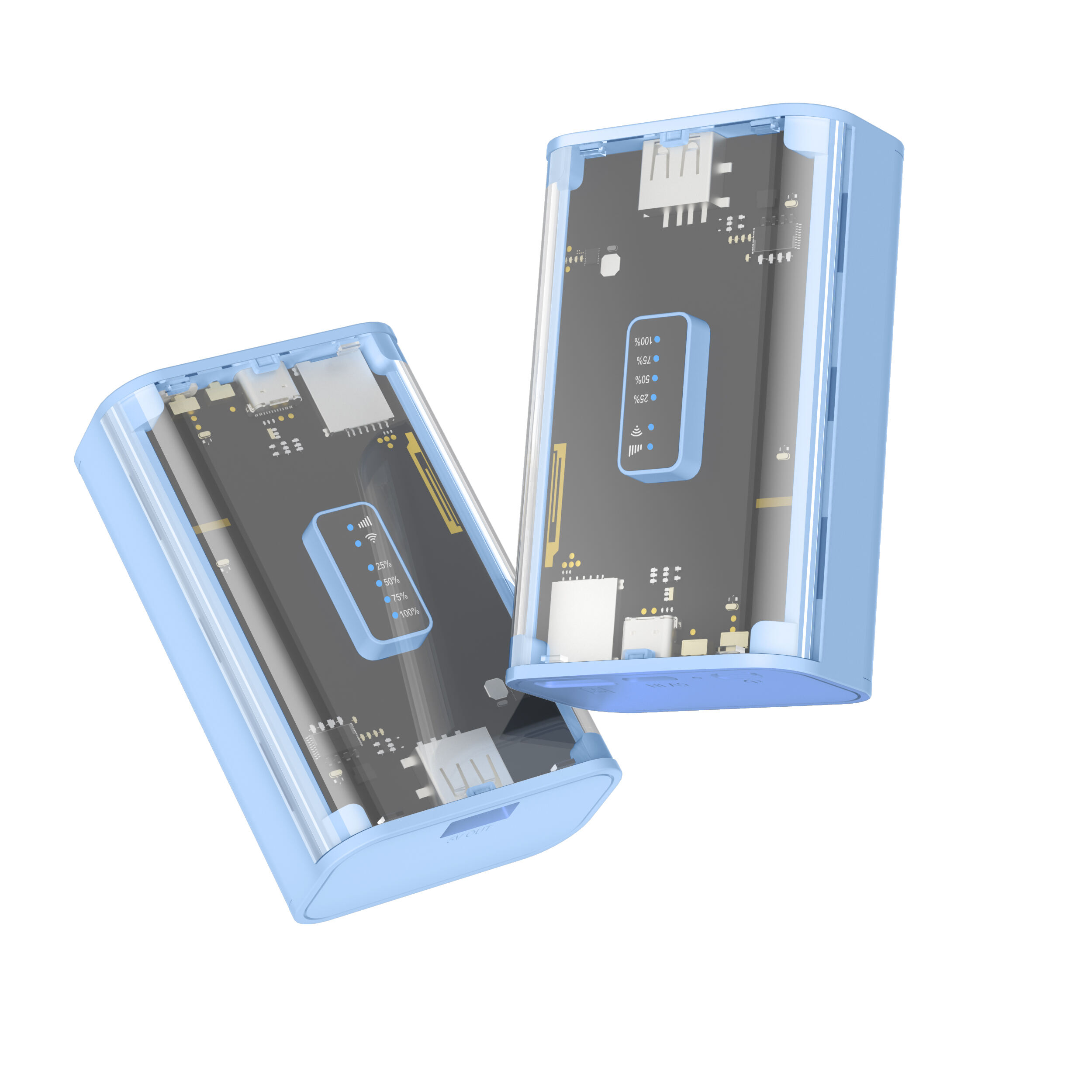

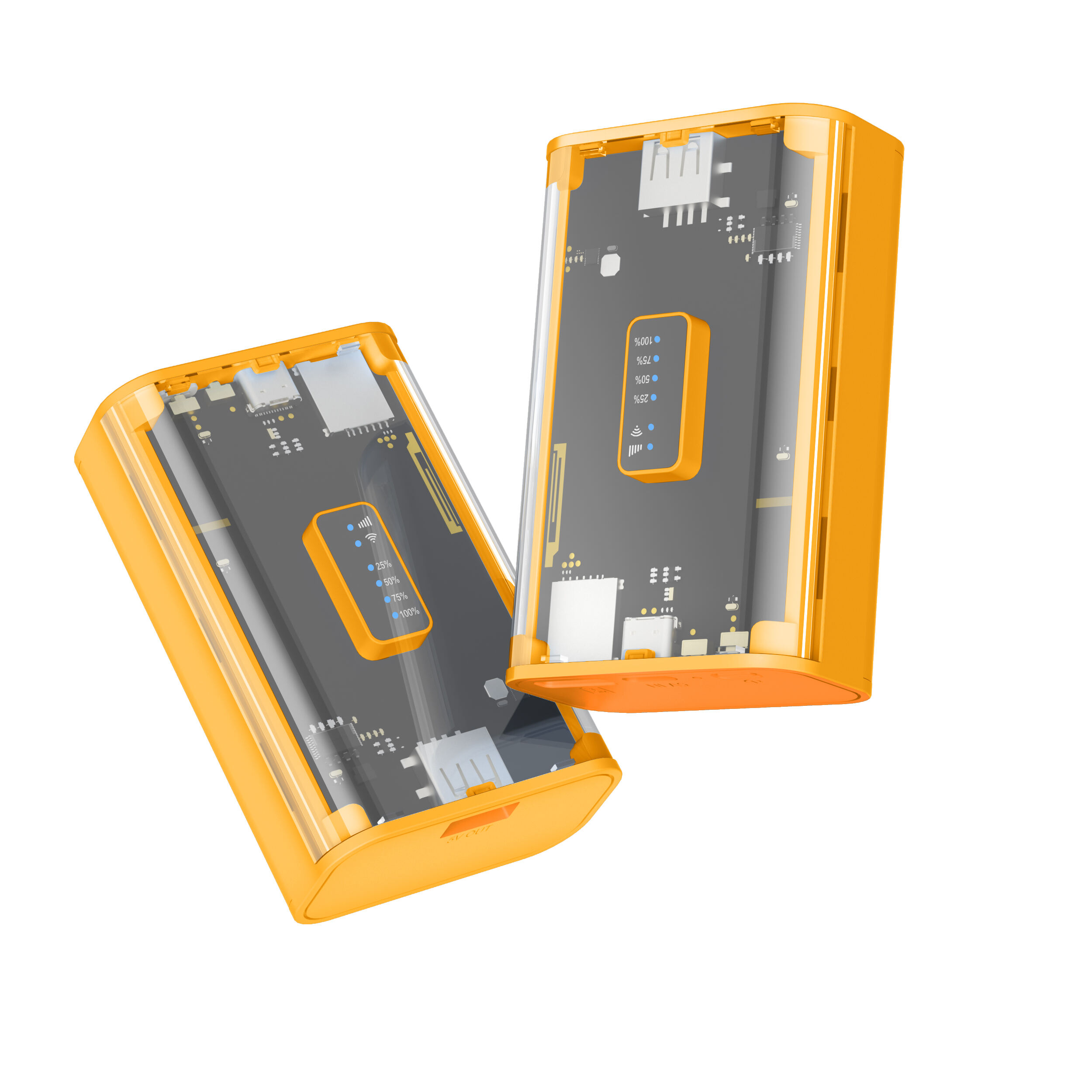

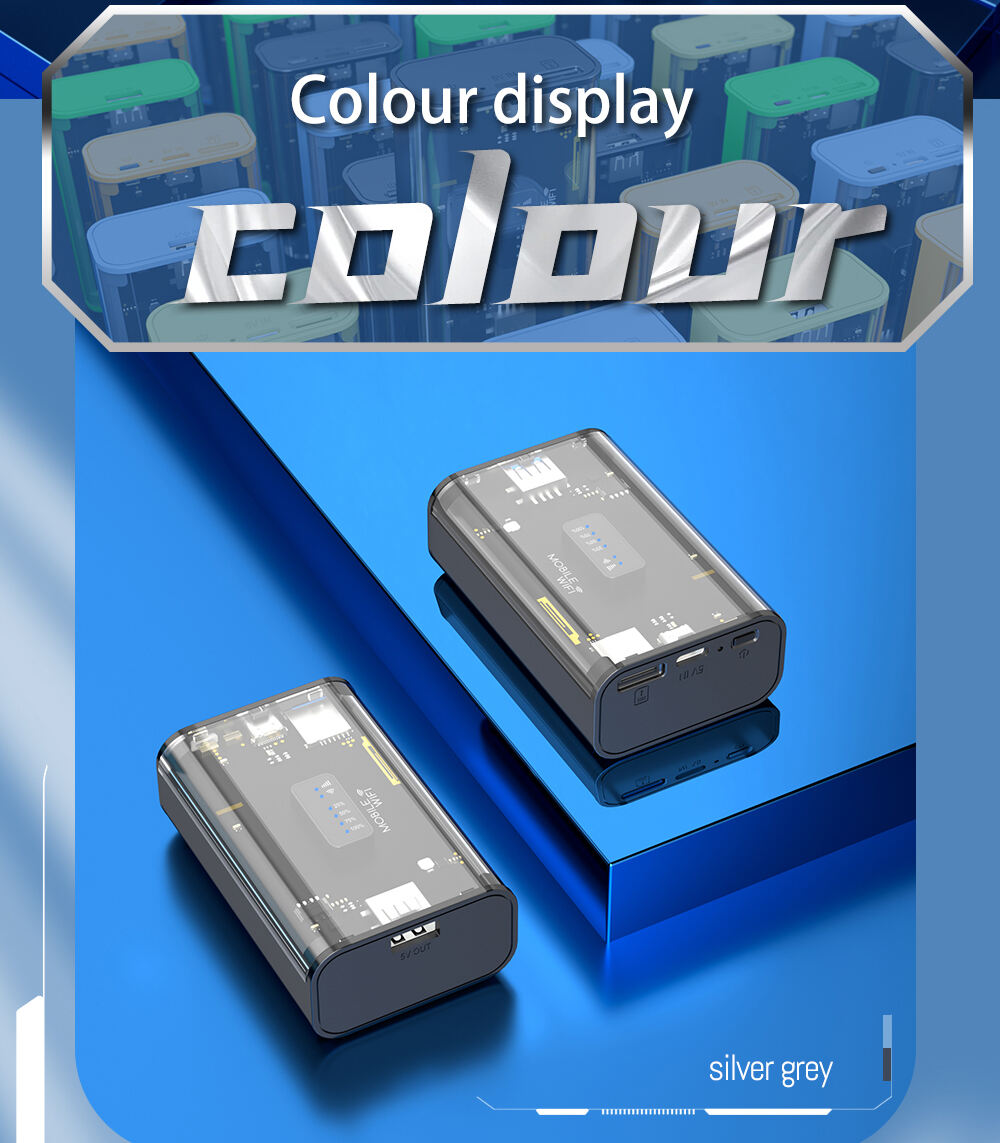

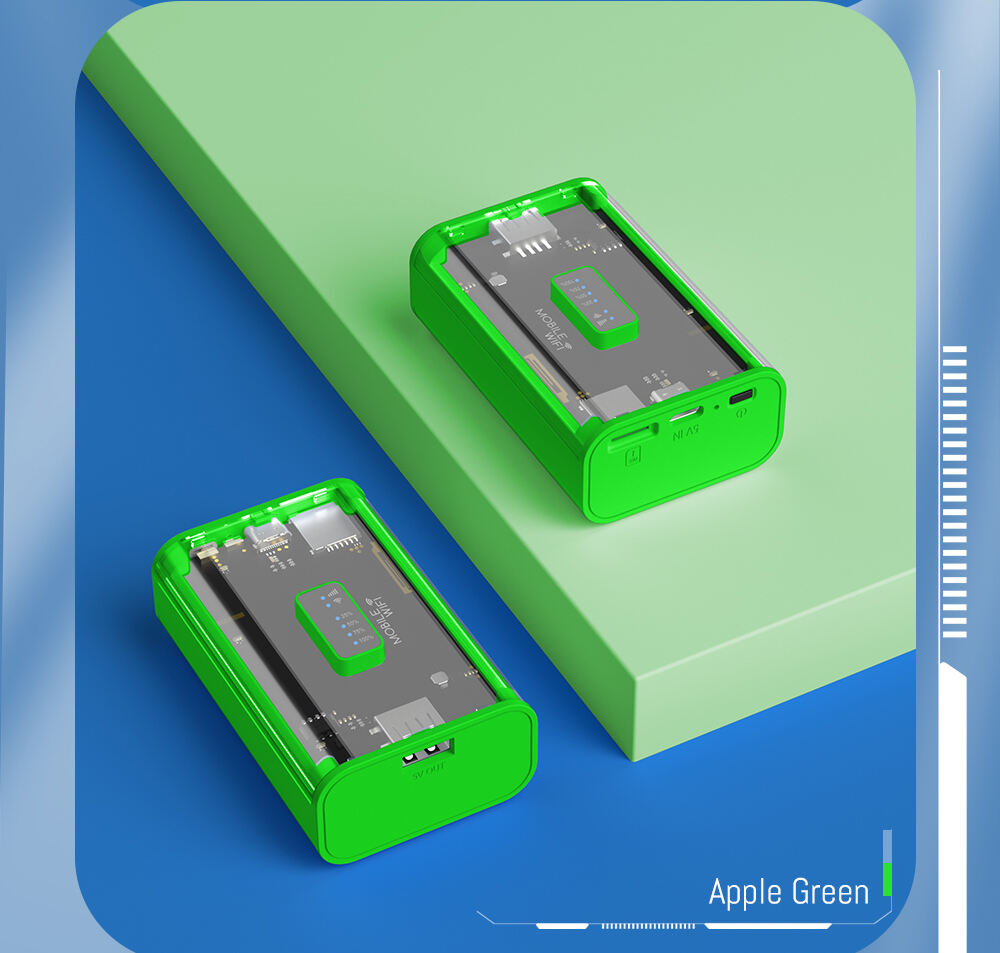

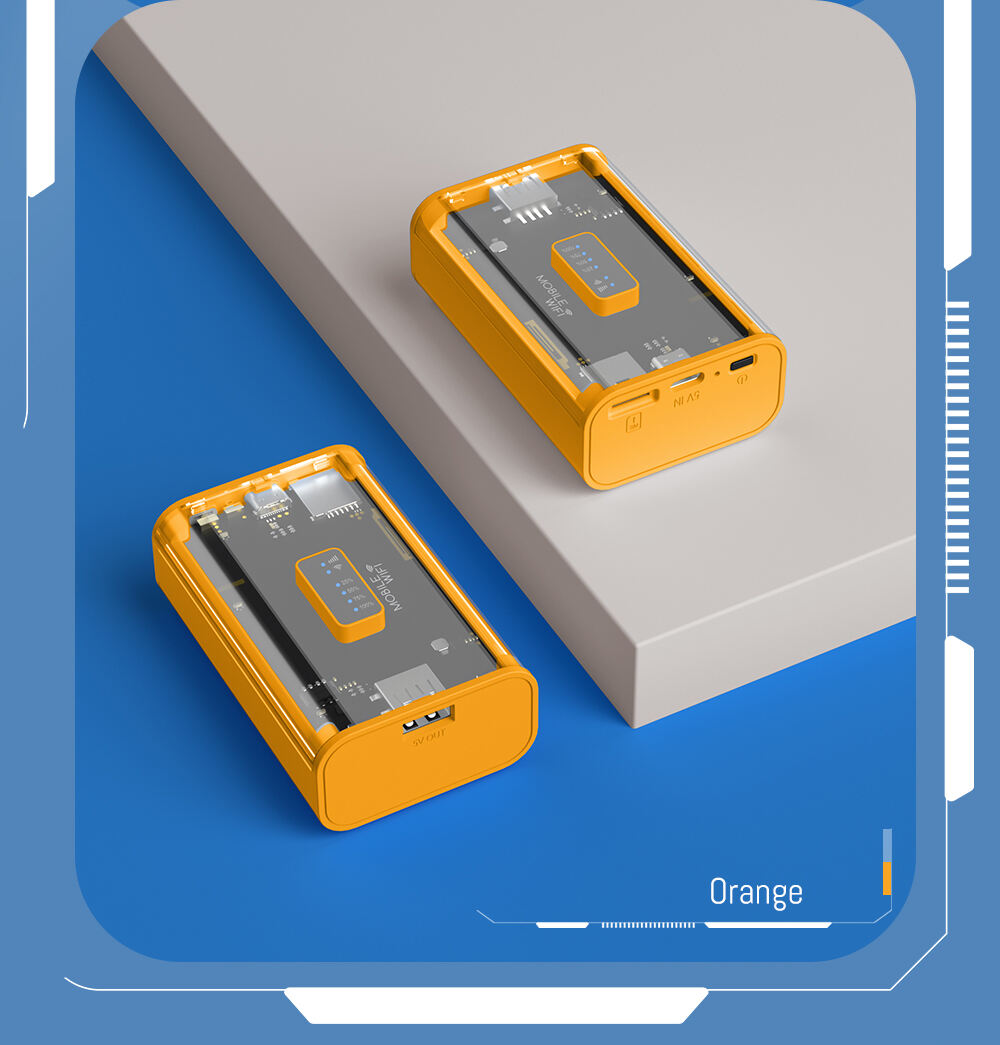

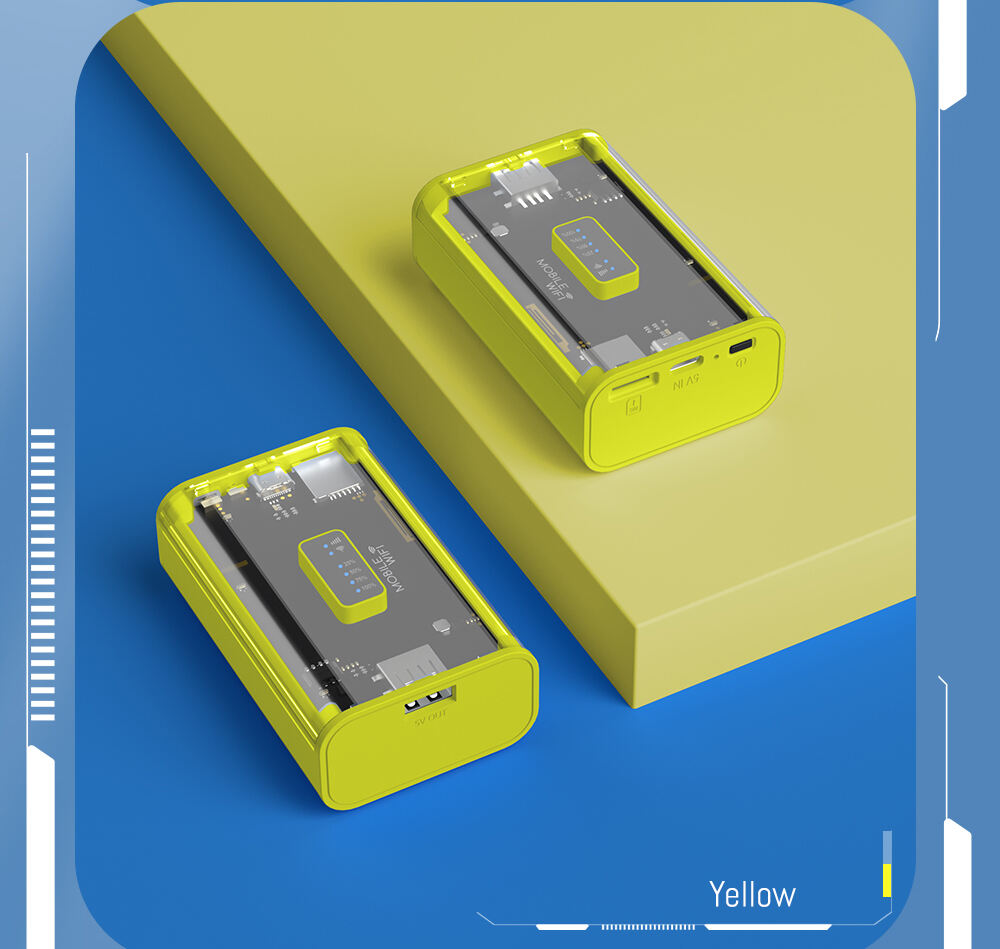

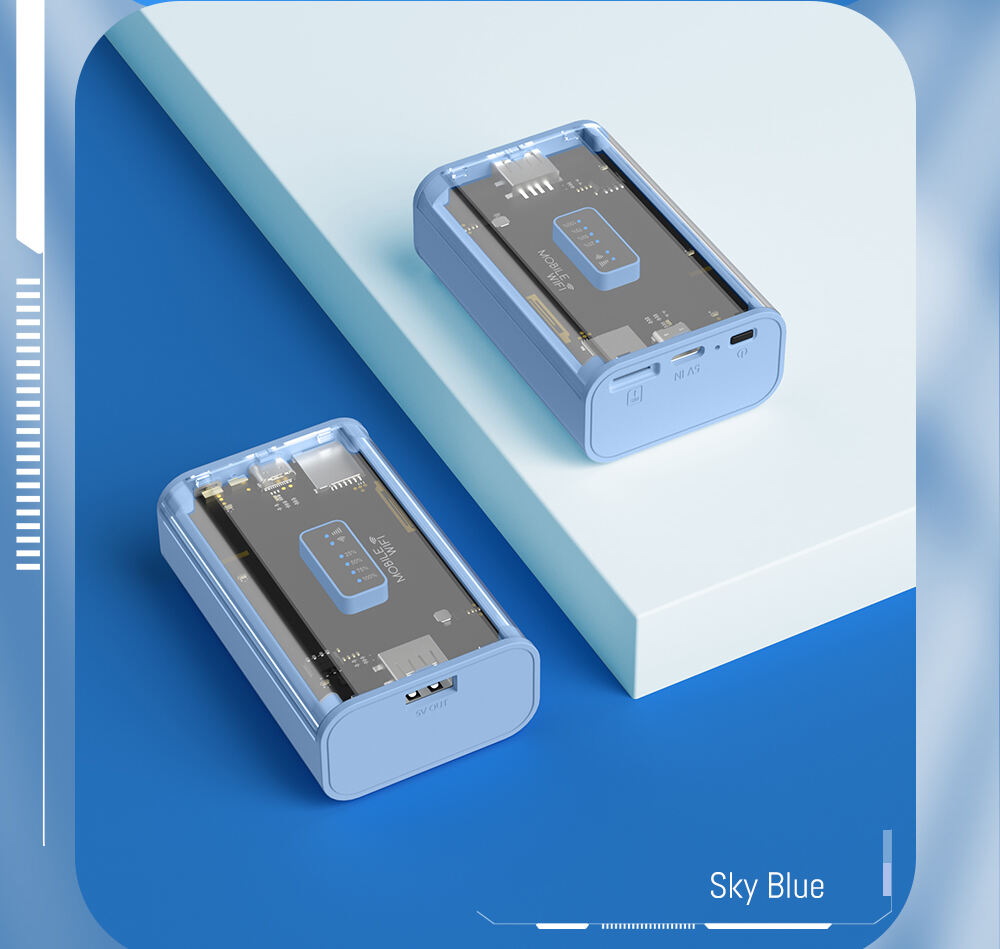

Colors |
The stock color is gray, and custom colors are available. |
Appearance |

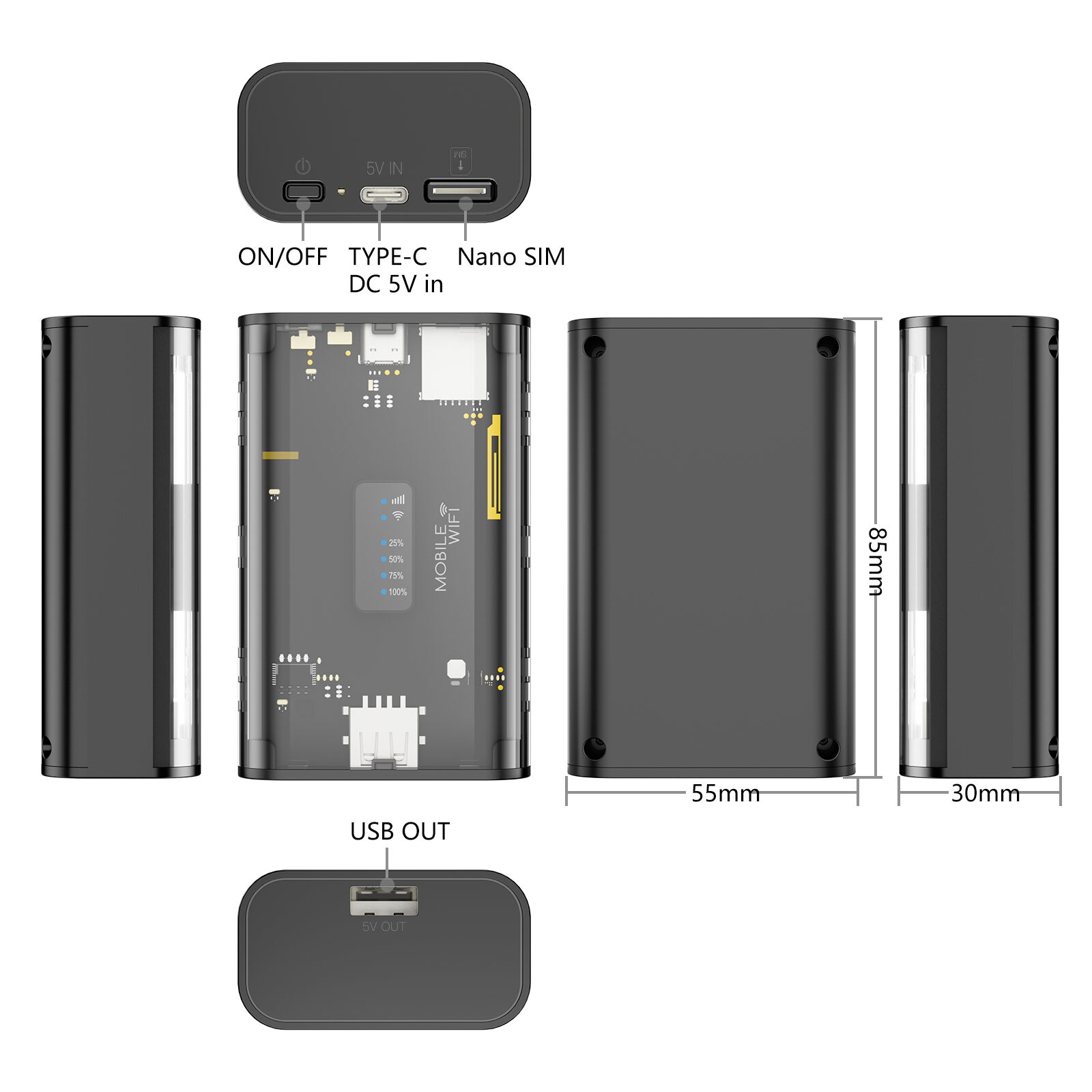

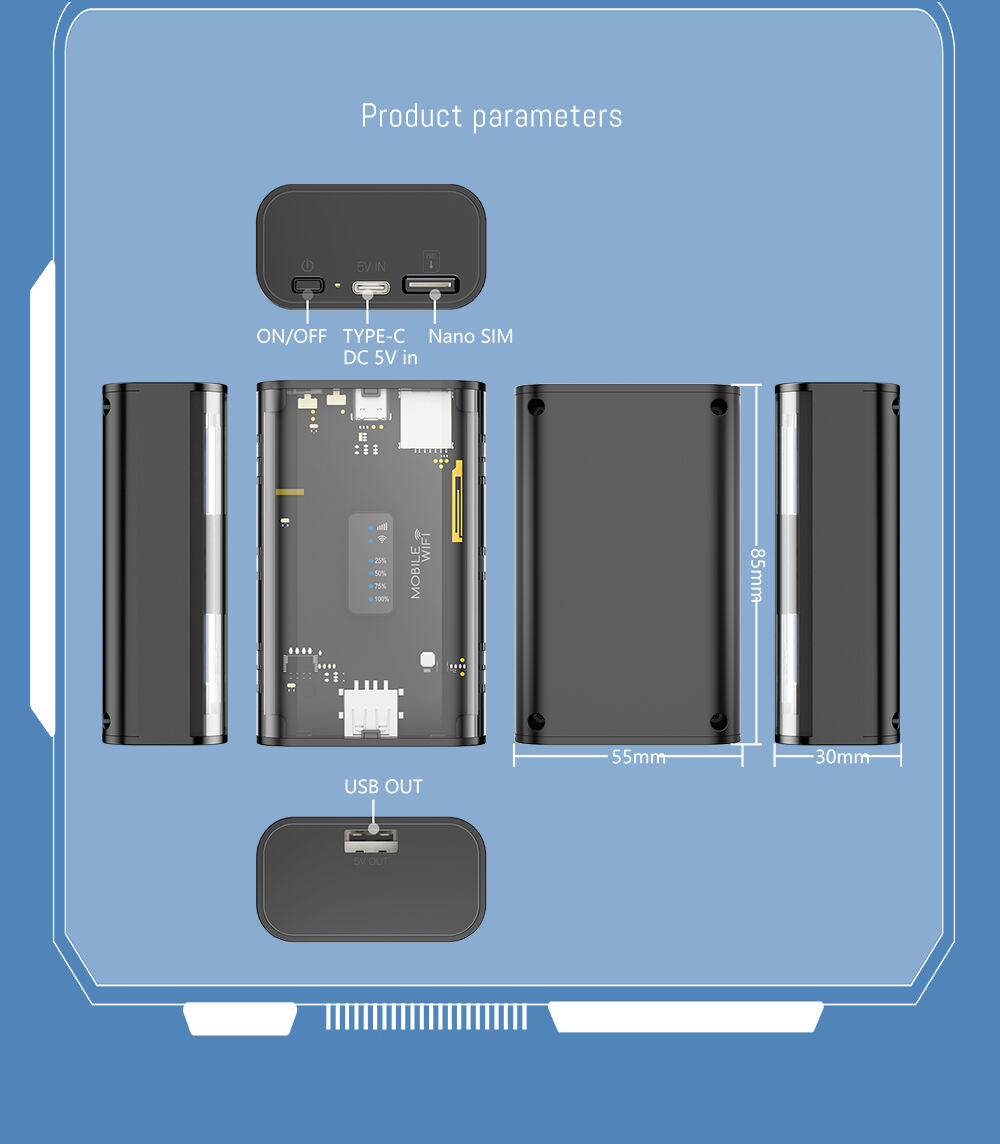

Dimension (L × W × H) |
85*55*30mm |
Weight |
148g(with battery） |

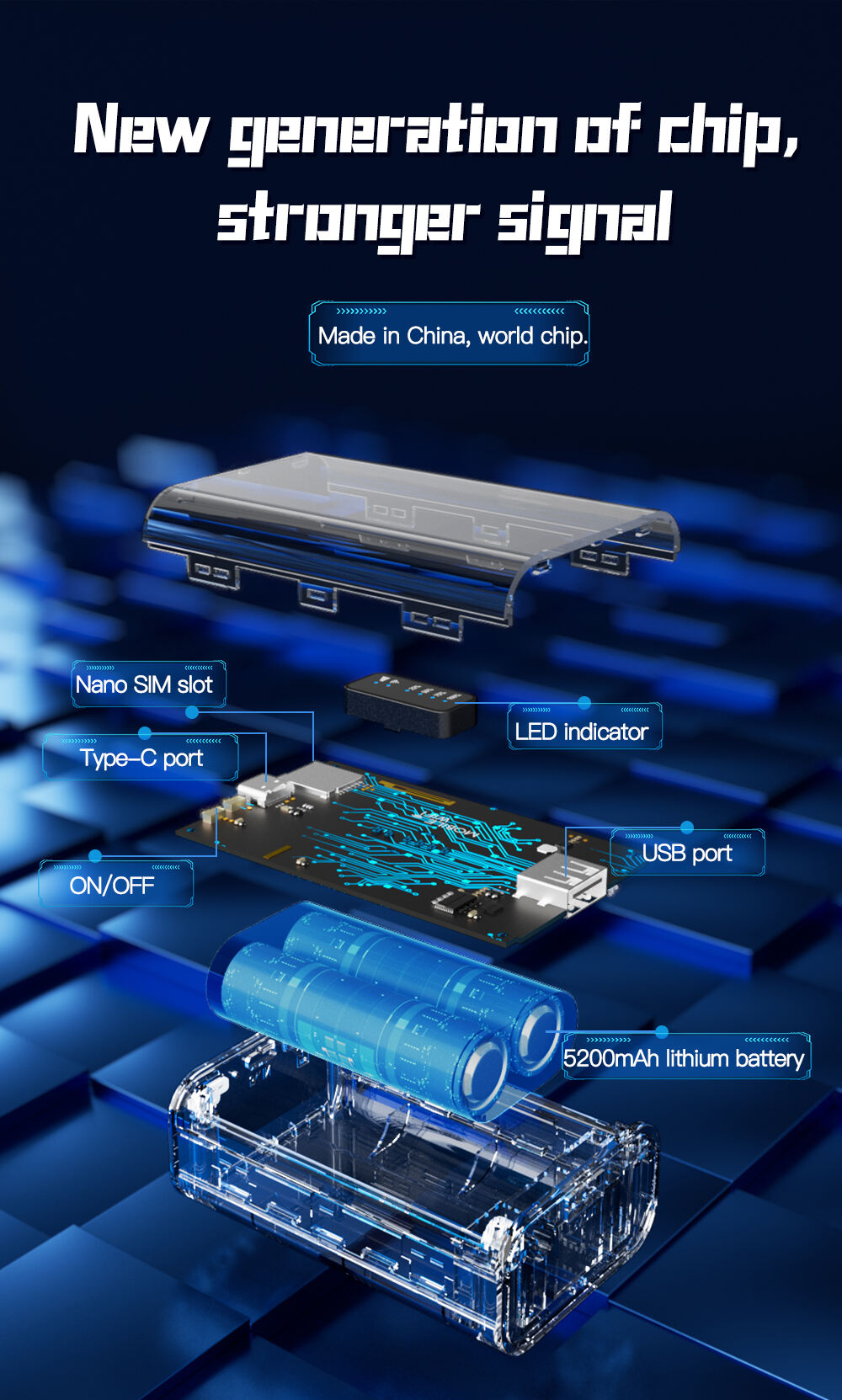

Hardware Platform |
HW_VER |
MF931-V2.0 |
MTK Chipset |
MT6735 |
Memory |
4GByte EMMC+512MByte DDR2 |
Band |
FDD operating band B1,B3,B5,B7,B8,（B20optional） |
TDD operating band B38,B39,B40,B41 |
WCDMA:B1,B5,B8 EVDO:BC0 |
GSM:B3 B8 |
Diversity Band |
FDD operating band B1,B3,B5,B7,B8,（B20optional） |
TDD operating band B38,B39,B40,B41 |
WCDMA:B1,B5,B8 EVDO:BC0 |
GSM:B3 B8 |
3GPP |
3GPP R9 Cat.4 |
3GPP R9 Cat.4 |
3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM) TD-HSDPA Cat.14 TD-HSUPA Cat.6 EVDO Revision 1 and A |
NA |
Transfer rate |
up to 150Mbps DL up to 50Mbps UL |
up to 150Mbps DL up to 50Mbps UL |
HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL EVDO up to 3.1Mbps DL EVDO up to 1.8Mbps UL TD-HSDPA up to2.8Mbps DL TD-HSUPA up
to2.2Mbps UL |
NA |
Wi-Fi Chipset |
MT6625 |
Wi-Fi |
IEEE 802.11b/g/n |
Wi-Fi Transfer rate |
up to 150Mbps |
Encryption |
Wi-Fi Protected Access™ (WPA/WPA2)2 |
GPS |
GPS(optional)（ps: high version chipset supports Beidou system） |
Internet |
Wi-Fi |
Wi-Fi AP， Up to 10 users |
WIFI SSID |
4G-MiFi-XXXX（last 4 digits of the MAC address） |
WIFI password |
1234567890 |
USB |
RNDIS |
Display |
LCD |
1.44 inchs, 128x128 resolution, to show signal strength, network mode, operator logo, battery level, charging status, unread
messages, SSID, WiFi password, the statistics. |
Battery |
Lithium ion |
6000mAh, Usually 3.7V, Max charging voltage 4.2V |
Maximum power consumption |
4W |
Maximum working time |
About 30 hours( depends on the network environment) |
Maximum standby time |
About 60 hours( depends on the network environment) |
Interface |
Type C usb |
1.5A Charge IN |
SIM |
1 MICRO SIM,1 SIM(Support hot-swap） |
USB |
USB TYPE A (1.5A OUT) |
KEY |
1 Power button(long press 3s to turn on, 4s-5s the initialization complete ready for accessing internet), 1 Reset button (long
press 5s to restore factory settings) |
Operating Environment |
Working temperature |
0° - 35°C (32°F - 95°F) |
Non-working temperature |
‑20° - 45°C (‑4° - 113°F) |
Relative humidity |
Non-condensation status 5% - 95% |
Working height |
Current tested max height 3000m (10,000 inch) |
Operation system |
PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 |
MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later |
IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later |
Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later |
Operation Browser |
Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari or above |
Software Platform |
System |
Android 6.0 |
WEB |
Gateway |
|
Log in |
Password：admin ( passord modification reqested to done at first loging as default setting
Language(Chinese/English) |
Status |
Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users |
Networks |
APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore
defaulf APN parameters.
Traffic statistics:
Traffic Limitation: Afering reaching the set value, limit the speed as set. |
Wifi |
WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS
WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover
access to internet. |
System Management |
Login password management: User name, password modification
System operation: Restart, Shutdown, Restore factory setting
System Information: Check software version, WLAN MAC address, IMEI NO.
Phonebook setting: New, modify, look up, delete contact
GPS control: Turn on/off GPS function |
SMS Management |
SMS create, delete, send |
Micro SD |
WEB sharing |
Fimware upgrade |
Support web outo upgrading |
OTHER |
SIM lock |
SIM card lock/unlock |
SIM card compatibility |
China Unicom, China Telecom, China Mobile and other 4G SIM cards |
