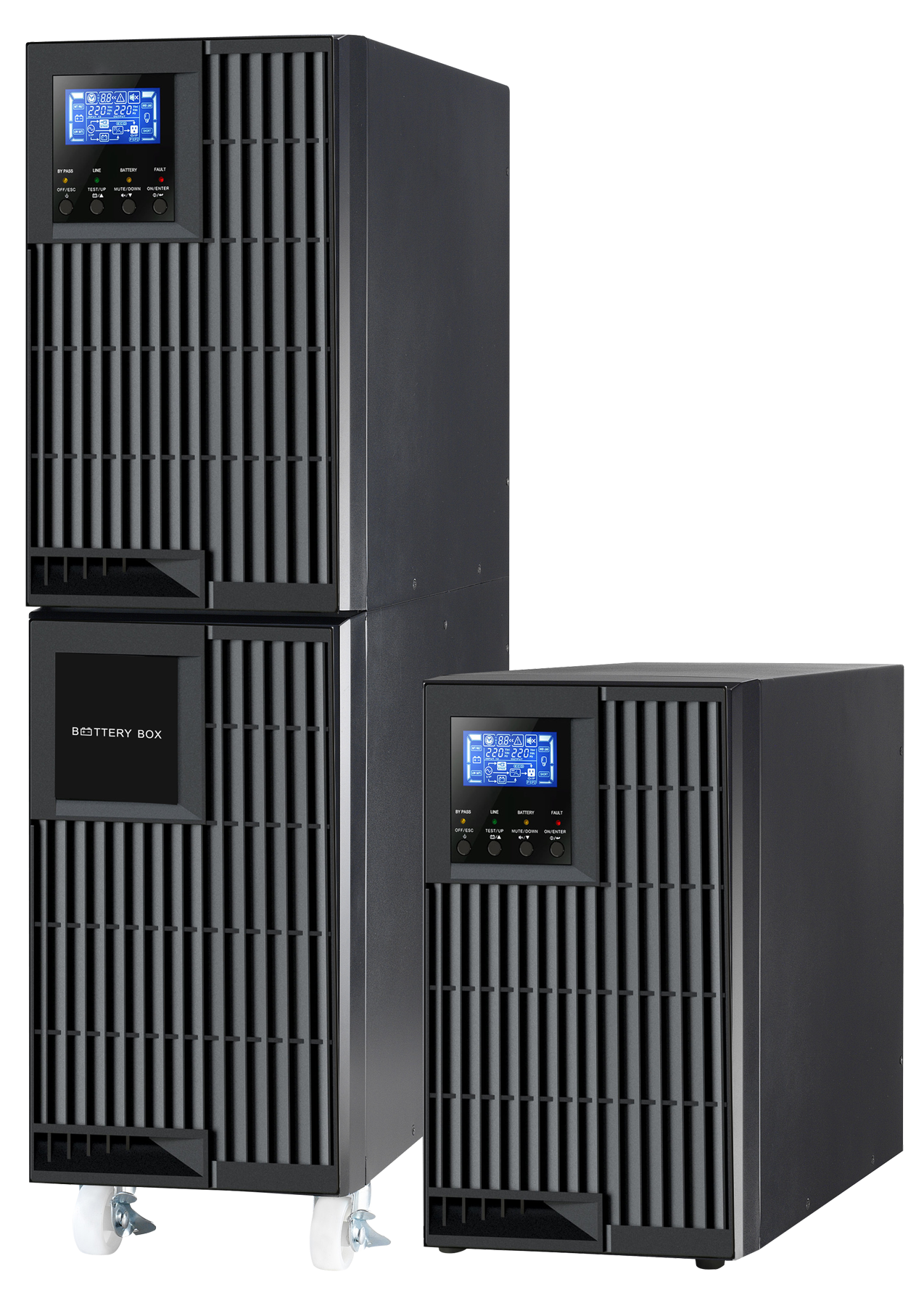

HQ-G series Single input single output high frequency online UPS

Home PC, computer room, data processing center, communication, finance, securities, transportation, medical, petrochemical and other fields.

Superior power grid environmental adaptability
Ultra wide input voltage range, even in remote areas with very harsh power environment

Compatible with generator input
Wide input voltage and frequency range, better solve the configuration and control of generator, to provide clean, safe and stable power supply for the load.

Cold start and mains start functions
In case of abnormal mains power, the UPS can be started directly with batteries to meet emergency needs.
In the battery-free state, the UPS can be directly started by the mains power supply and used as a high precision voltage regulator.

ECO mode of economic operation
It has ECO operation mode, which is energy efficient and reduces the user's cost.

Friendly human-machine interface
1-3kVA display panel can be LCD display or LED display.
The standard LCD display panel for machines with 6kVA and above can clearly display the UPS operation status, load status, battery status, etc. on the panel, which is convenient for users to read and operate.
The latest DSP control technology is adopted
Advanced DSP digital control technology effectively improves product performance and system reliability.
Automatic correction of input power factor
The digital control active power factor correction technology is adopted to make the input power factor as high as 0.99 or more, so as to avoid pollution to the power grid environment, reduce the front-end distribution cost of UPS, and reduce the customer input cost.

50/60Hz, frequency adaptive function
Automatic frequency recognition, suitable for 50Hz/60Hz power system, to meet the global power system
