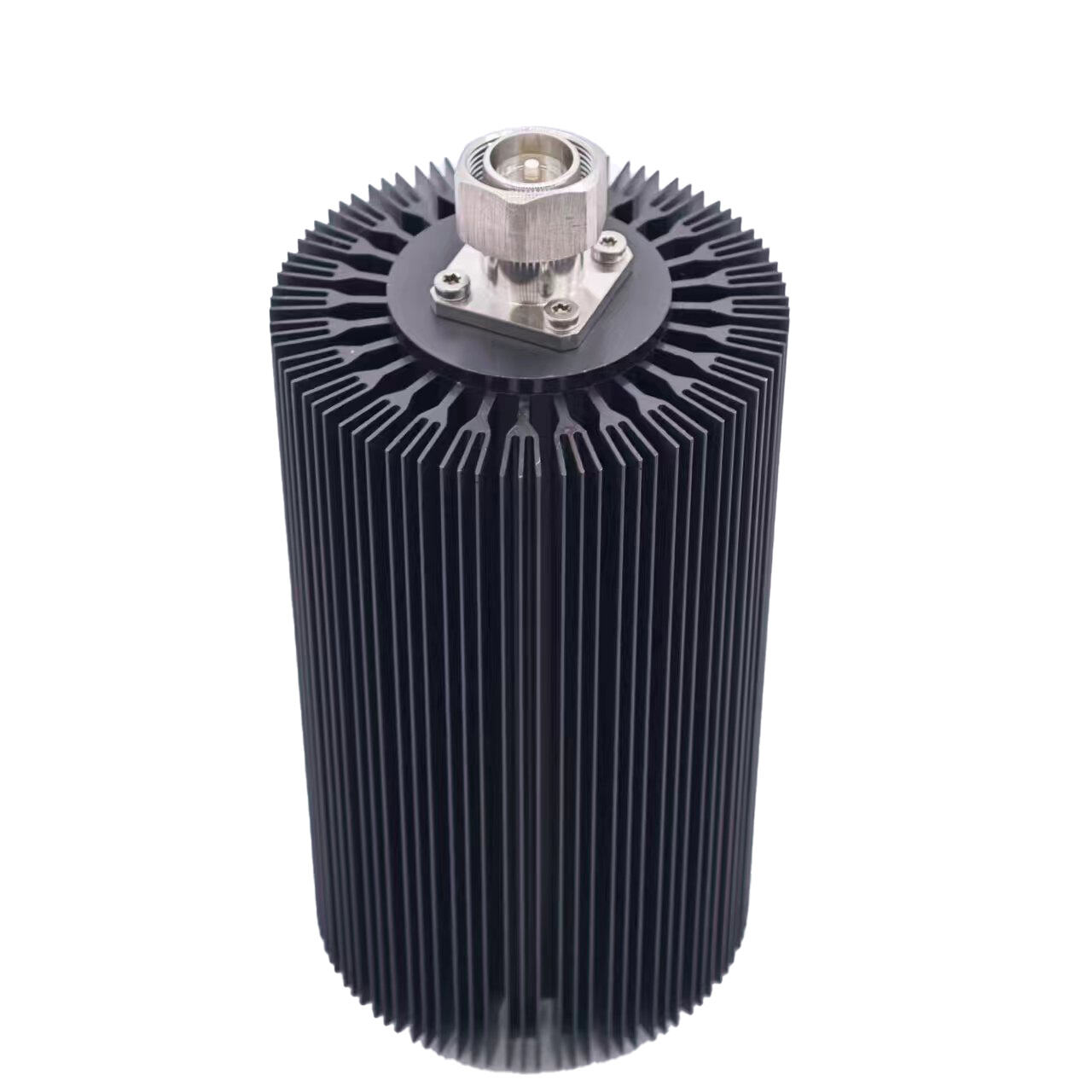

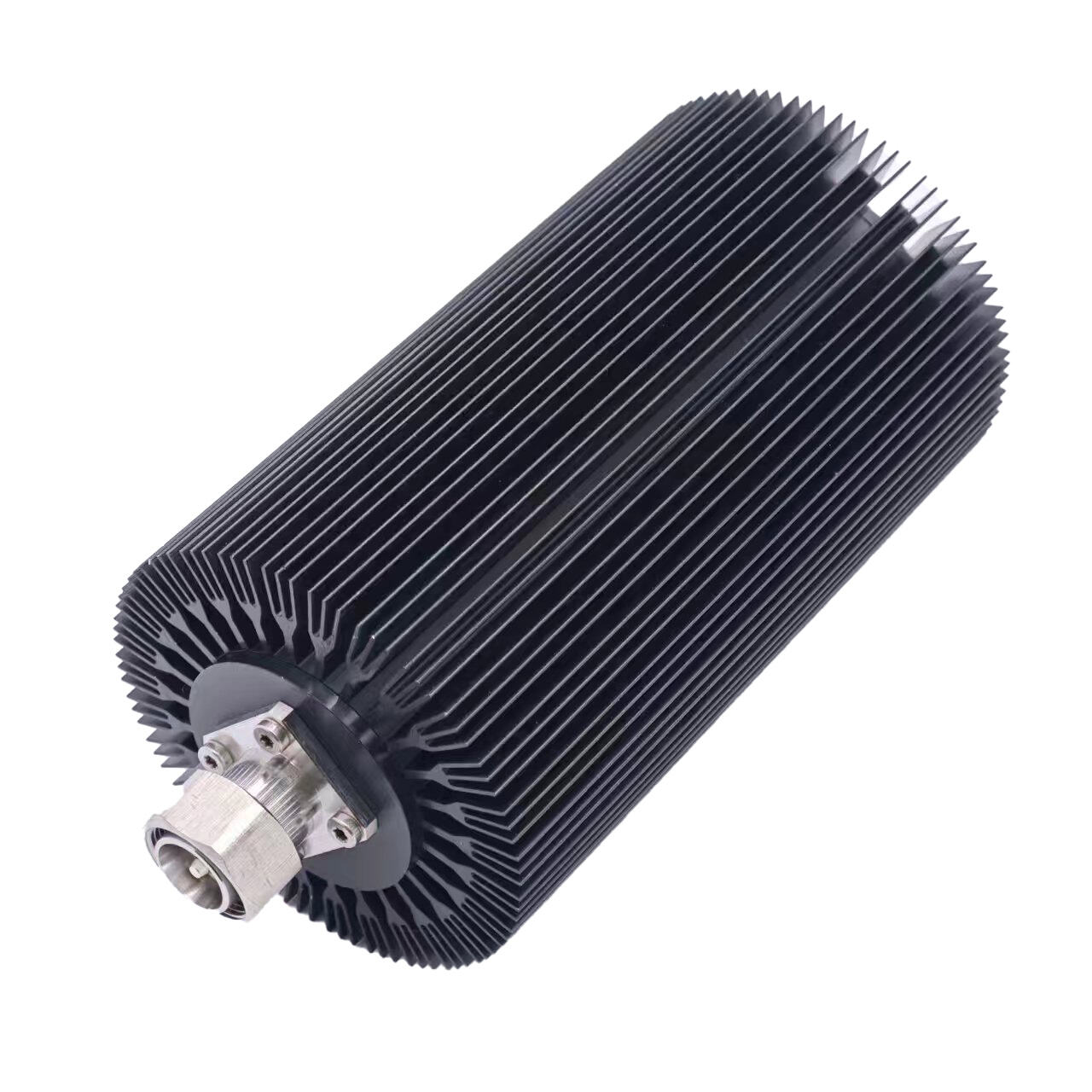

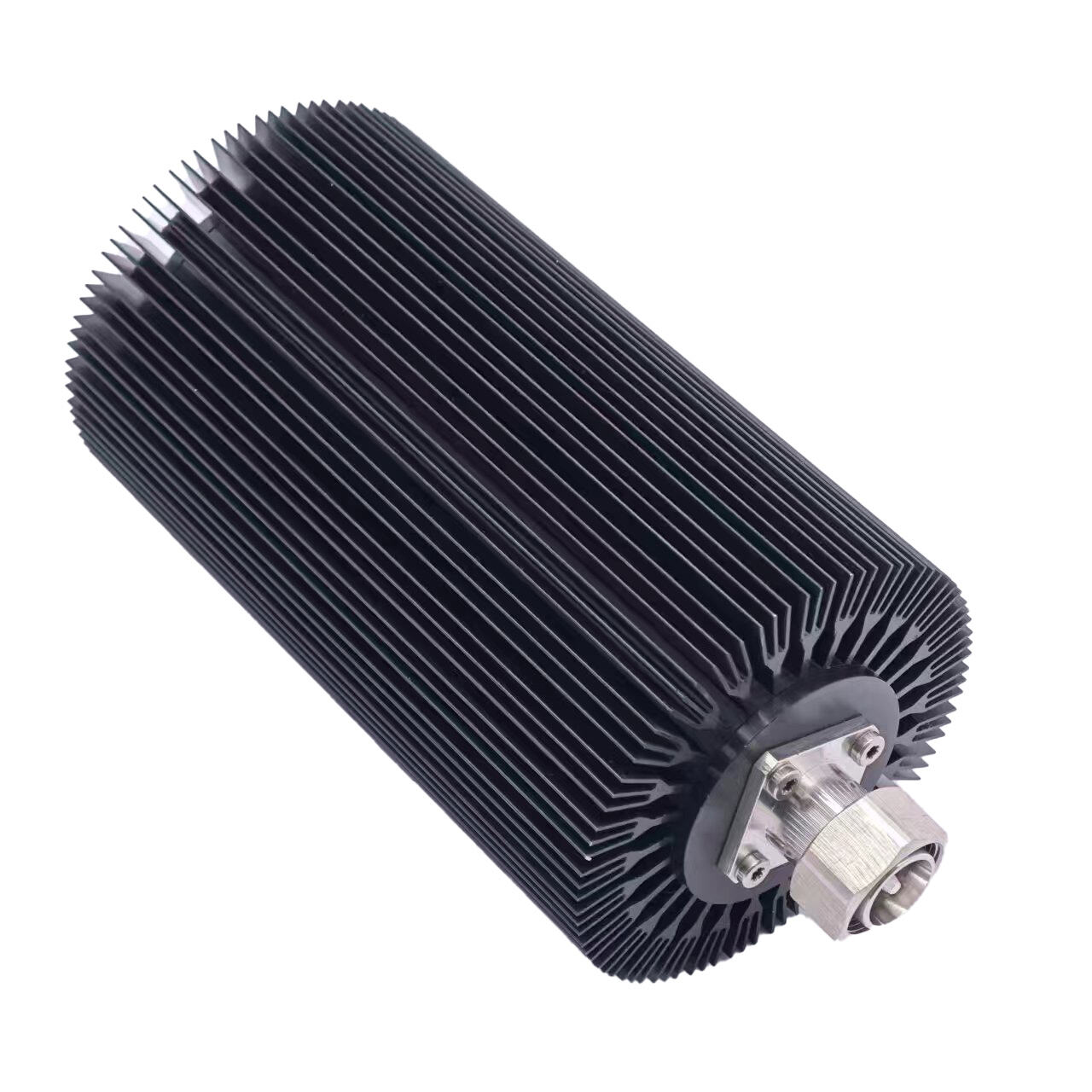

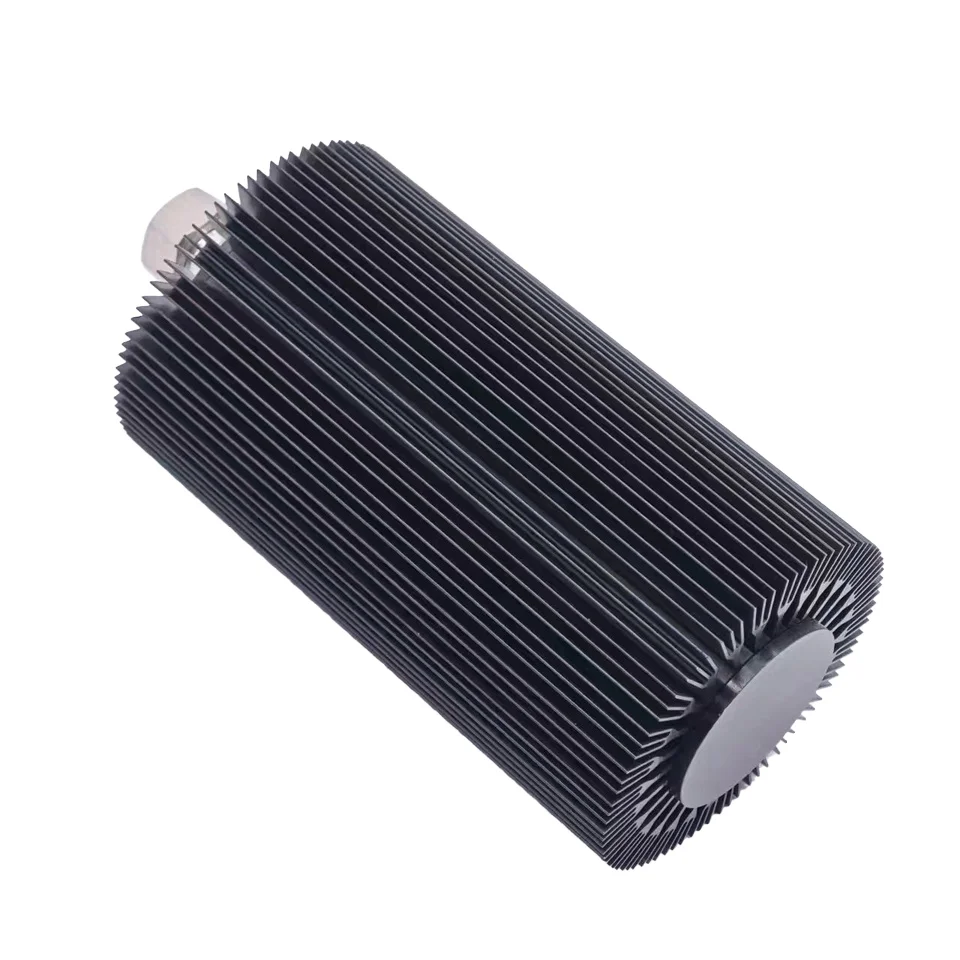

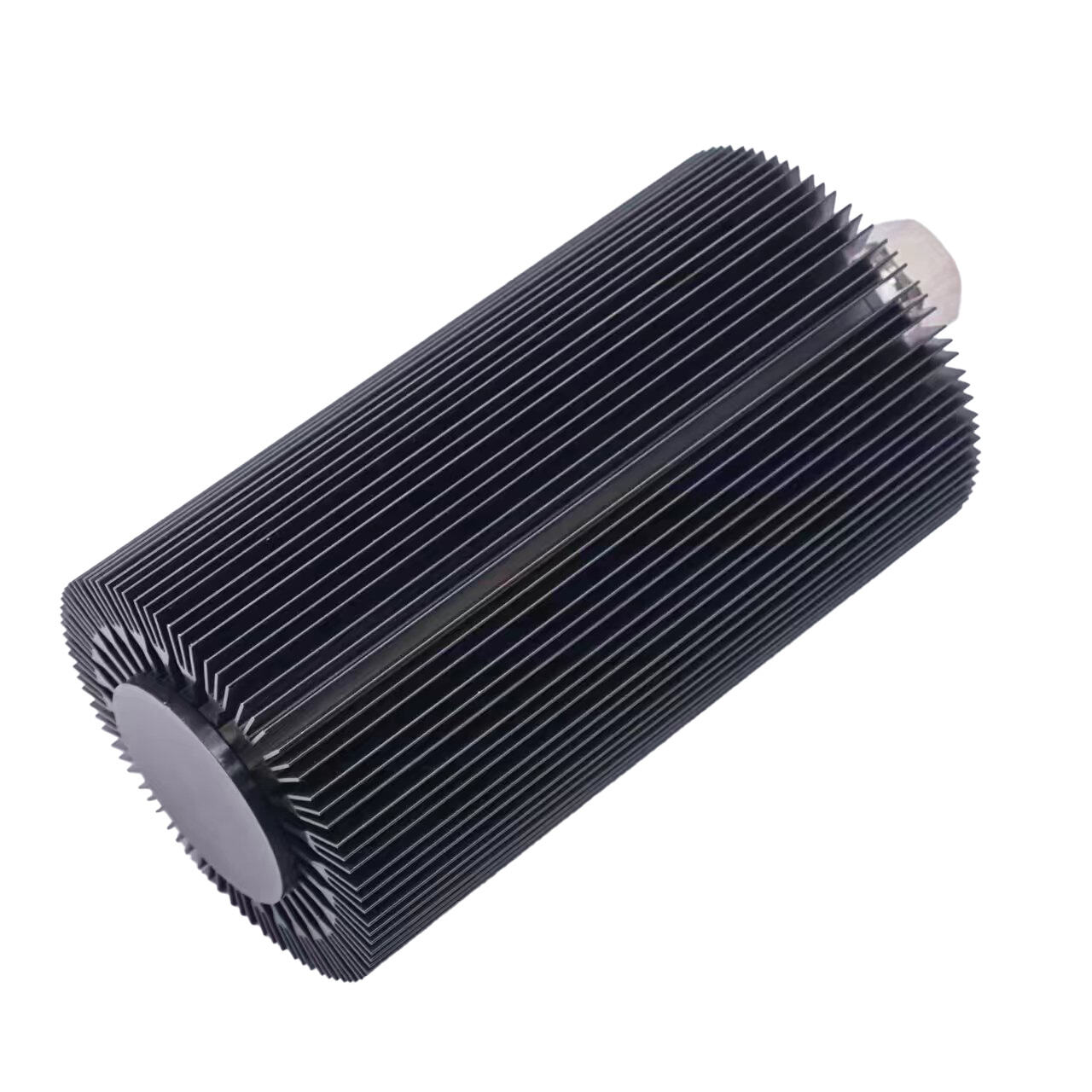

Introducing, the Yoongwin 100W Low PIM Termination Load Dummy Load, the perfect solution for ensuring optimal performance and signal quality in your RF systems. This versatile product is designed to support a wide range of frequencies from 550MHz to 4200MHz, making it suitable for use with 2G, 3G, 4G, and even 5G networks.
Whether you are testing, calibrating, or simply terminating RF signals, the Yoongwin dummy load provides reliable and consistent performance. With a power handling capacity of up to 100W, this termination load is capable of handling high power levels without compromising on signal integrity. This ensures that your RF equipment remains protected and operates efficiently at all times.
One of the key features of the Yoongwin dummy load is its low PIM (Passive Intermodulation) design, which helps reduce signal interference and distortion. This ensures that your RF systems deliver clean and accurate signals, resulting in improved overall performance. Additionally, the RF shields included in the design help minimize signal leakage and maximize signal isolation, further enhancing the quality of your RF transmissions.
The compact and lightweight design of the Yoongwin dummy load makes it easy to integrate into your existing RF setup. Its durable construction ensures long-lasting reliability, making it an ideal choice for both laboratory and field applications. Whether you are conducting tests in a controlled environment or out in the field, this termination load is designed to meet your needs.
With the Yoongwin 100W Low PIM Termination Load Dummy Load, you can trust that your RF systems will operate at their best. Ensure optimal signal quality and performance across a wide range of frequencies with this versatile and reliable product. Experience the difference that the Yoongwin dummy load can make in your RF applications
Device Type |
550-4200MHz Low PIM Load 100W |
|
Electrical Specifications |
||
Frequency Range(MHz) |
550-4200 |
|
VSWR |
≤1.25:1 @ 550–2700 MHz | ≤1.3:1 @ 2700–4200 MHz |
|
3rd Order IMD [dBc] (Two +43 dBm carriers) |
≤-161dBc |
|
Average Power[W] |
100W |
|
Peak Power, maximum[W] |
1000W |
|
Impedance[Ω] |
50 |
|
Environmental Specifications |
||
Operating Temperature[℃] |
-40°C to +55°C |
|
Relative humidity |
Up to 100% |
|
Waterproof Grade |
IP65 |
|
General Specifications |
||
Application |
Indoor/Outdoor |
|
Color |
Black |
|
Interface |
N, 4.3-10, DIN Female - Male |
|
Packaging and Weights |
||
Size [mm] |
Φ83×150mm |
|
Weight, [ Kg] |
≤1.2Kg |
|
