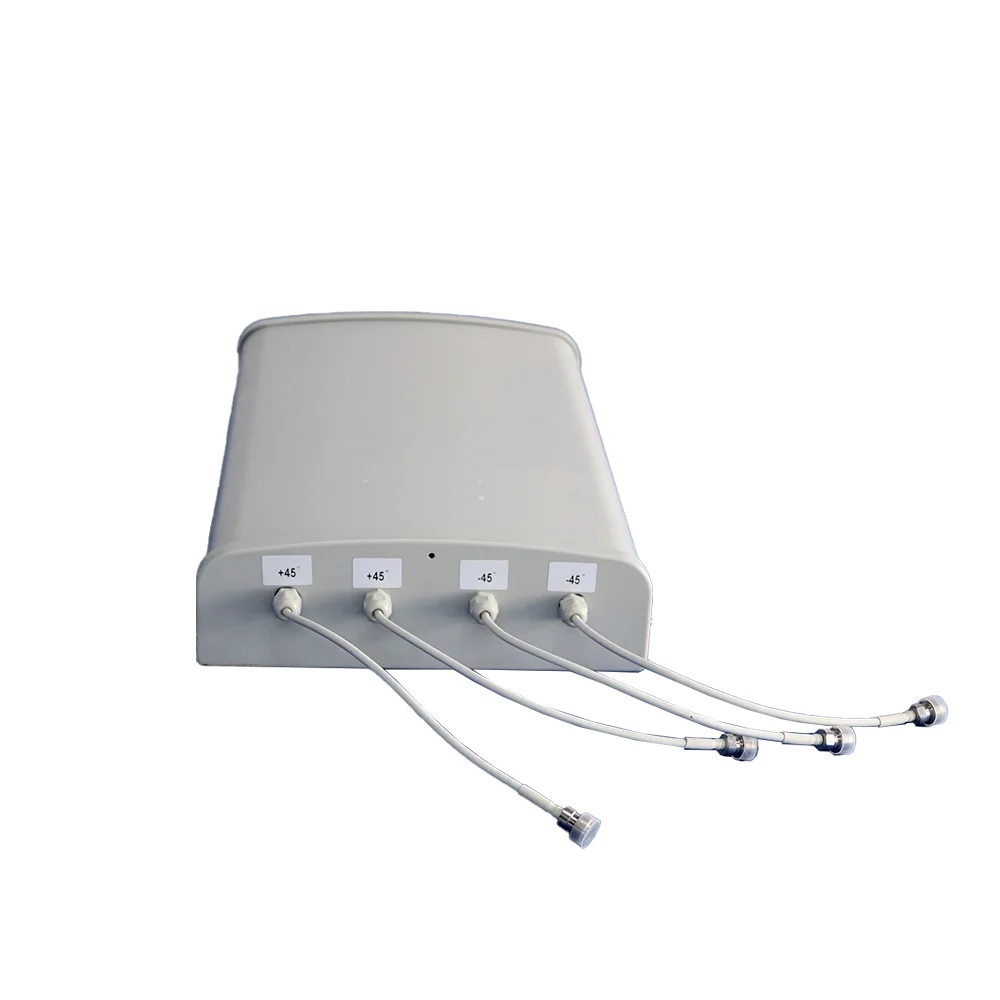

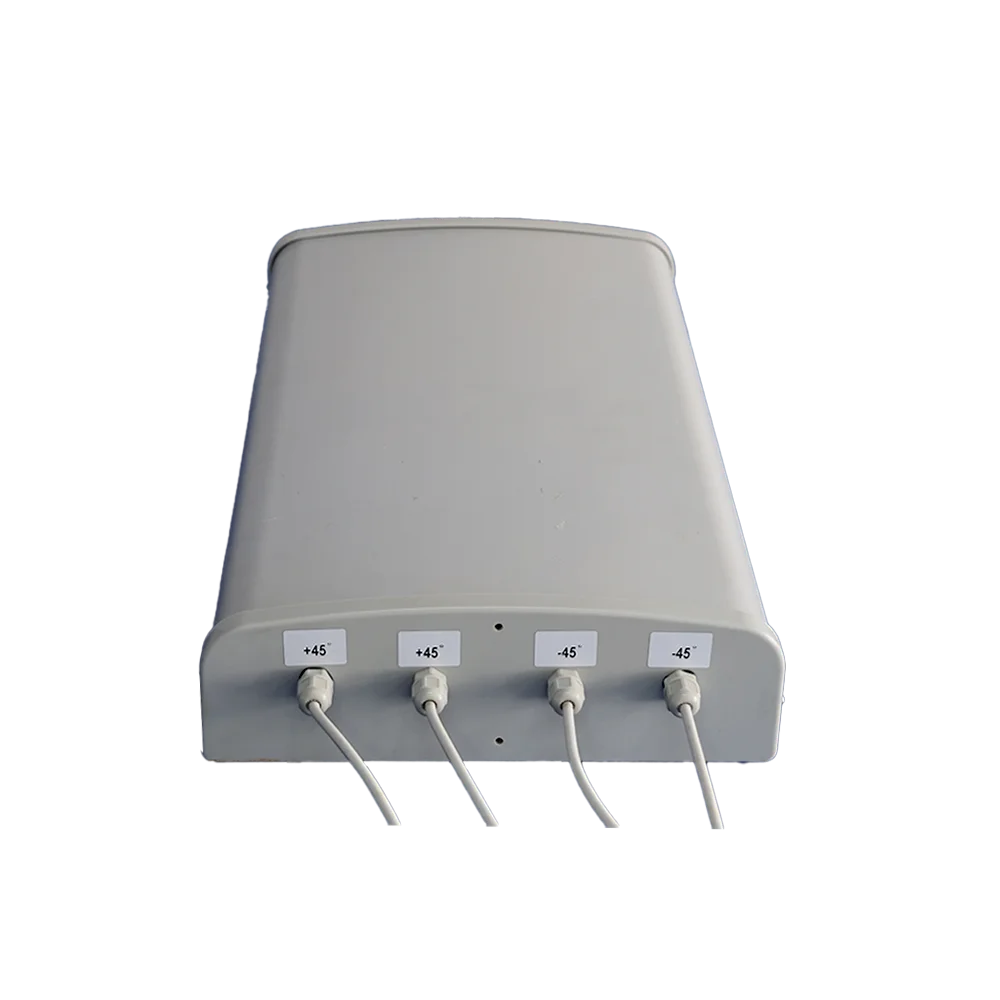

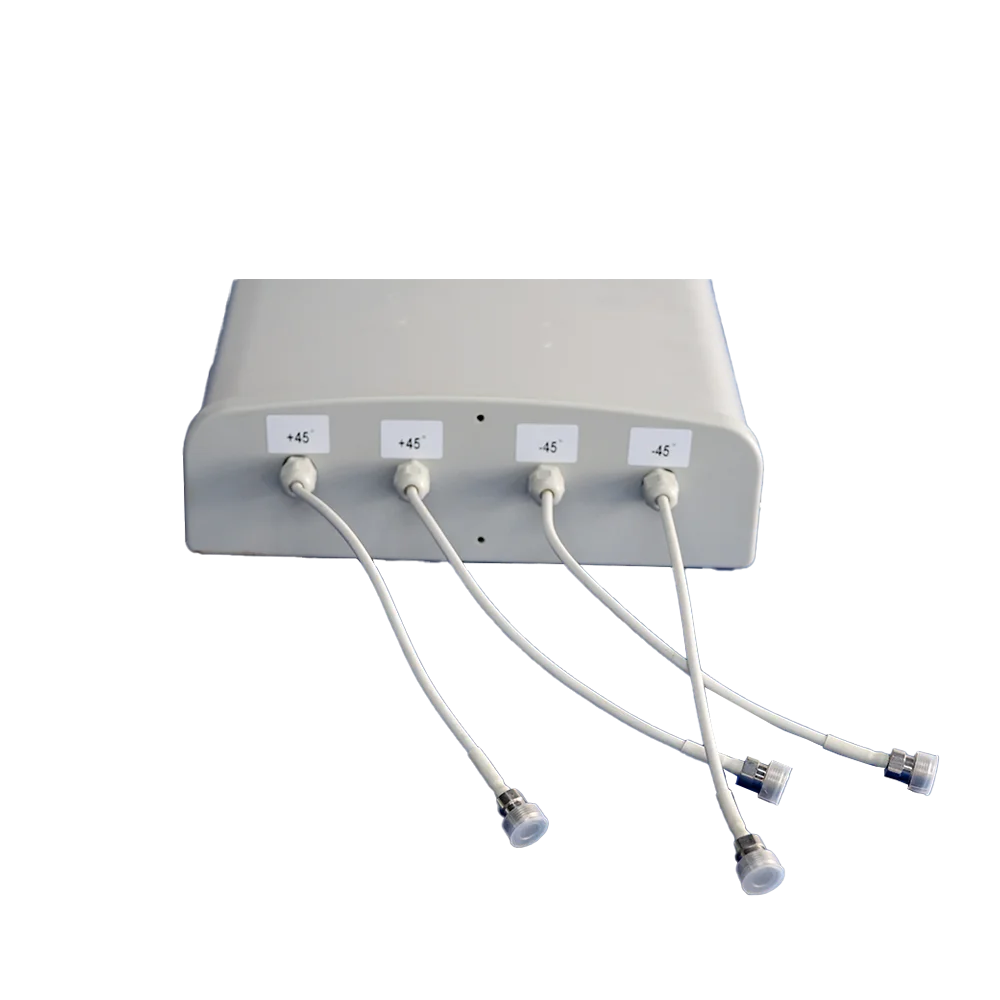

16dBi Gain 1710-2690 & 4800-5000MHz 4-Port Multi-Band Shaped Beam Antenna for 4G/5G Base Station

16dBi Gain 1710-2690 & 4800-5000MHz 4-Port Multi-Band Shaped Beam Antenna for 4G/5G Base Station

Description

[email protected]

Description

Product Description

1. Tri-Band Operation in a Single Antenna
Integrates 1710-2200MHz, 2200-2690MHz, and 4800-5000MHz bands, supporting 4G, 5G, and future network technologies, which simplifies site deployment and reduces visual impact.

2. Precise 20° Shaped Beam for Focused Coverage
Features a narrow 20°±5 horizontal and vertical beamwidth with excellent side-lobe suppression (≥16dB), delivering targeted coverage and reducing inter-cell interference.

3. High Gain for Superior Signal Reach
Delivers up to 16dBi gain across major operating bands, ensuring strong signal penetration and extended coverage range for both urban and suburban environments.

4. Robust Performance in Dense Networks
With a high front-to-back ratio (≥22dB) and good intermodulation performance, it maintains signal clarity and stability in congested multi-operator environments.

5. Durable Design for Outdoor Longevity
Built with a UPVC radome and capable of operating in temperatures from -40°C

Product Detail

Electrical Indicators
Frequency (MHz)	1710 - 2200	2200 - 2690	4800 - 5000
Polarization Mode	±45°
Electrical Downtilt Angle (°)	0
Gain (dBi)	15±5	16±1	16±1
Horizontal 3dB Beamwidth (°)	25±5	20±5	20±5
Vertical 3dB Beamwidth (°)	25±5	20±5	20±5
Front - to - back Ratio (dB)	≥22
Cross Polarization Ratio (dB)	Axial ≥15
Horizontal Side - Lobe Suppression (dB)	≥16
Vertical Side - Lobe Suppression (dB)	≥16
Input Impedance (Ω)	50
VSWR	≤1.7
Third - order Intermodulation (dBm)	2*43dBm ≤ - 97; /
Isolation (dB)	≥25
Power Handling (W)	100
Ground Protection	DC
Mechanical Parameters
Connector Type	4*NK
Radome Material	UPVC
Dimension (mm)	900450145
Operating Temperature (°C)	- 40 ~ 60
Pole Diameter (mm)	Φ50 - 115

Application Scenarios

1.Urban and Suburban Macro Cell Coverage: Provides precise sector coverage for base stations in areas requiring high capacity and focused signal beams.

2.4G/LTE and 5G NR Network Deployment: Supports key low-band (1.7-2.7GHz) and 5G C-band (4.8-5.0GHz) frequencies, ideal for modern network rollouts.

3.High-Traffic Area Capacity Enhancement: Excellent for stadiums, transportation hubs, and business districts where controlled beamwidth minimizes interference and maximizes user capacity.

4.Point-to-Multi-Point Wireless Systems: Can be used as a central hub for fixed wireless access or private network backhaul due to its high gain and multi-port design.

5.Network Modernization and Density Improvement: Allows operators to replace older antennas and add new 5G capabilities on existing infrastructure with a single, integrated antenna.
