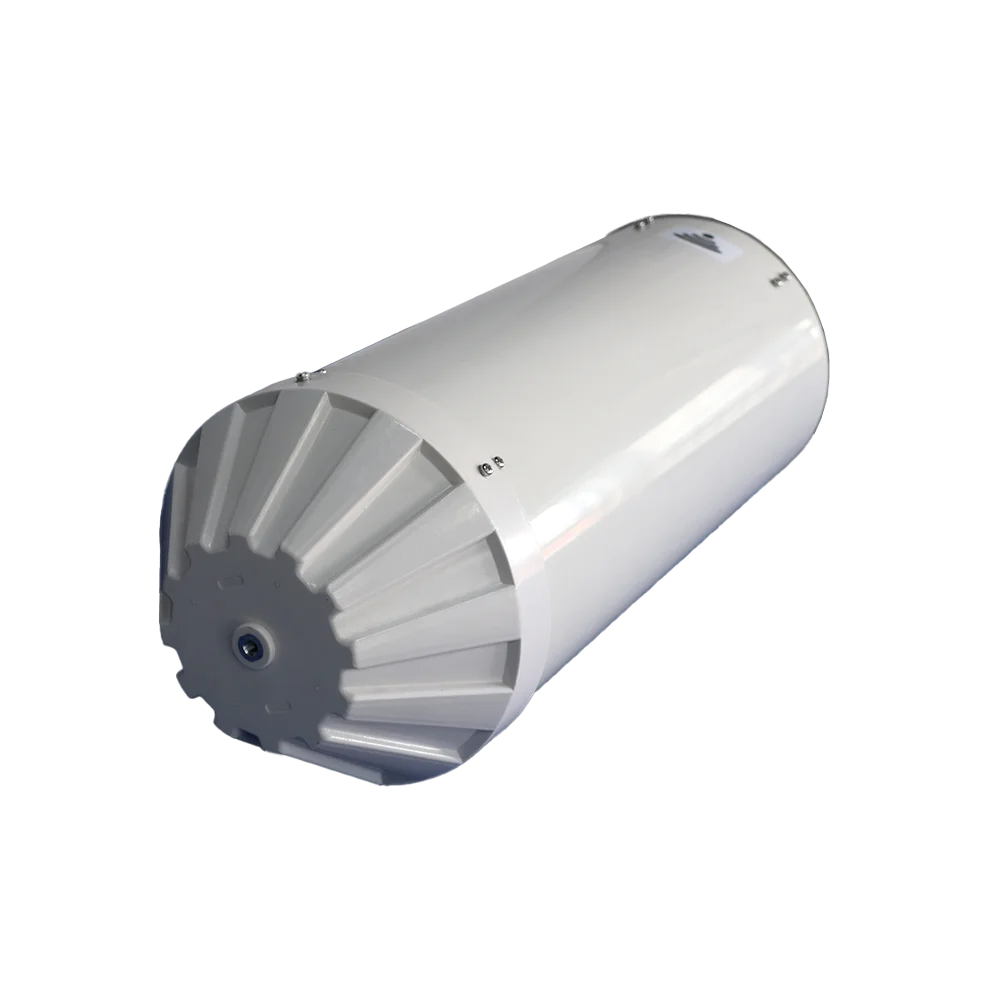

20°-65° Electrical Tilt 14dBi Gain 1710-2170MHz 2-Port Mid-Band RET Antenna

20°-65° Electrical Tilt 14dBi Gain 1710-2170MHz 2-Port Mid-Band RET Antenna

Description

[email protected]

Description

Product Description

1. Remote Electrical Tilt (RET) for Easy Optimization
Features built-in electrical downtilt adjustment (20°-65° continuous range), enabling remote network optimization and
significantly reducing maintenance costs.

2. High Gain & Flexible Beam Coverage
Offers up to 14dBi gain with a stable 33° horizontal beamwidth and adjustable vertical beamwidth, providing coverage
flexibility for various scenarios.

3. Excellent Interference Suppression
With a front-to-back ratio ≥20dB and intermodulation ≤ -100dBm, it ensures clean signals and high performance in congested network environments.

4. Robust Build for Long-Term Reliability
Encased in a UPVC radome and operating from -40°C to 60°C, it is built to withstand harsh outdoor conditions year-round.

5. Easy Integration and Installation
Standard 2NK connectors and a compact design (≤700300*300mm) make it straightforward to deploy on existing and new site infrastructures.

Product Detail

Electrical Indicators
Frequency (MHz)	1710 - 2170
Polarization Mode	±45°
Gain (dBi)	≥14; ≥12; ≥9.5
Horizontal 3dB Beamwidth (°)	33±7
Vertical Beamwidth (°)	20±10; 40±20; 65±25
(Need to support built - in electrical adjustment, continuous adjustable range 20 - 65 (°))	20±10; 40±20; 65±25
Front - to - back Ratio (dB)	≥20
Vertical 3dB Beamwidth Cross Polarization Ratio (dB)	≥10
Horizontal 3dB Beamwidth Cross Polarization Ratio (dB)	≥10
Input Impedance (Ω)	50
VSWR	≤1.5
Third - order Intermodulation (dBm)	2*37dBm ≤ - 100±7
Isolation (dB)	≥25
Power Handling (W)	50
Ground Protection	DC
Mechanical Parameters

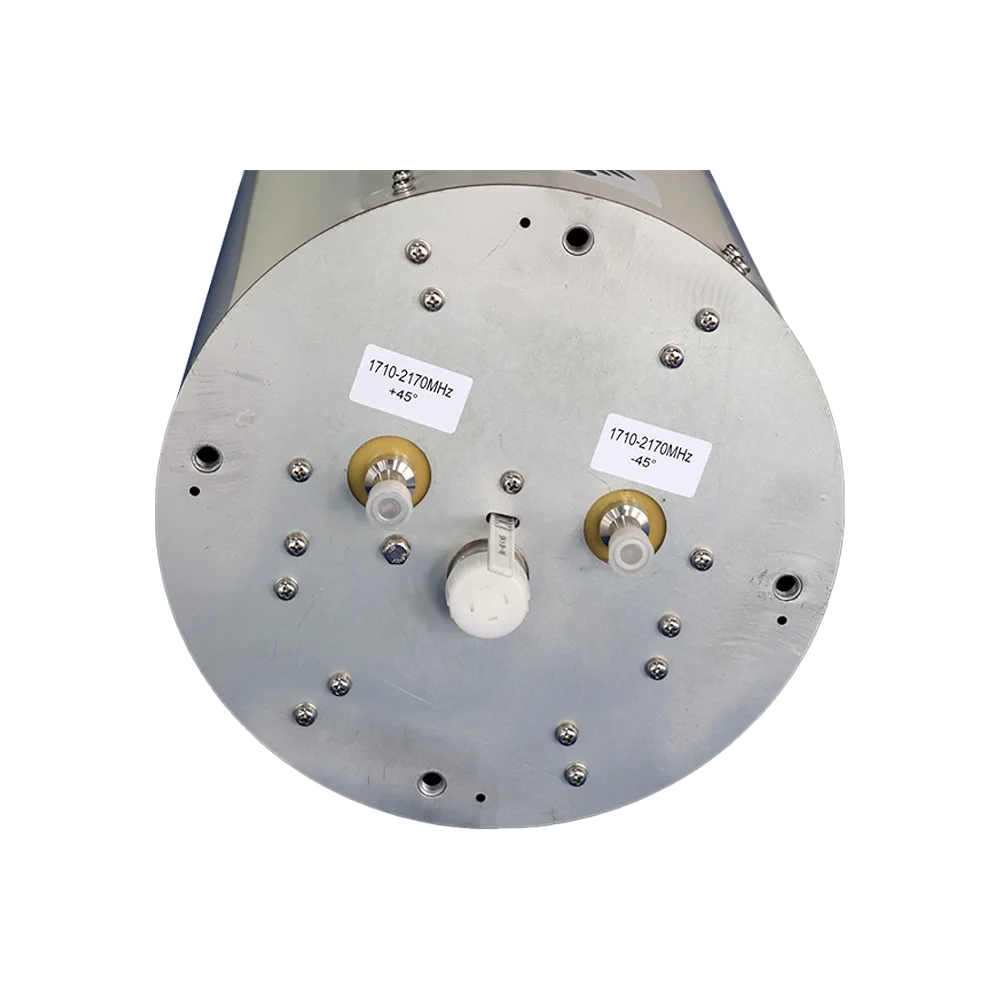

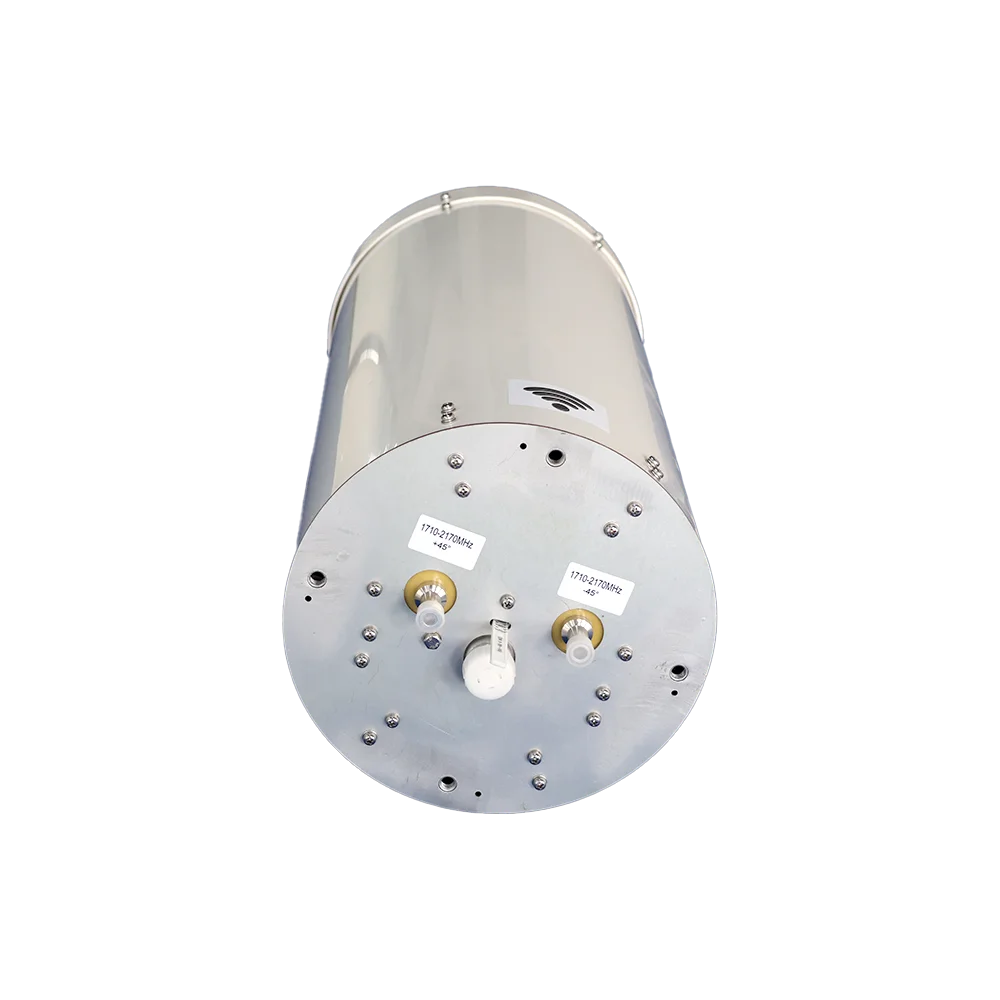

Connector Type	2*NK
Realization of Adjustment Function	Vertical beamwidth (°)
Realization of Adjustment Function		Supports built - in electrical adjustment, and the downtilt angle supports mechanical adjustment function
Radome Material	UPVC
Dimension (mm)	≤700300300
Weight (kg)	≤14
Operating Temperature (°C)	- 40 ~ 60
