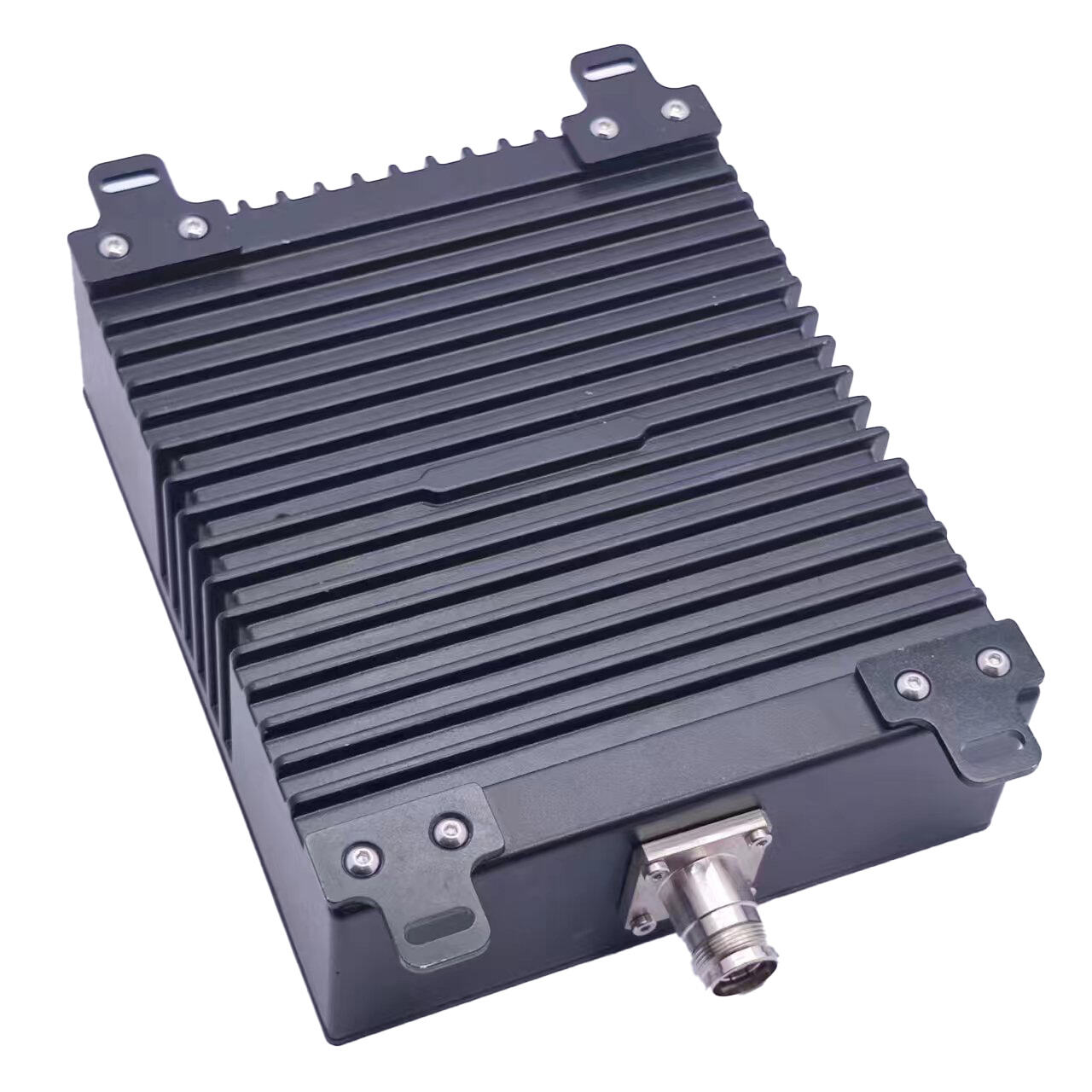

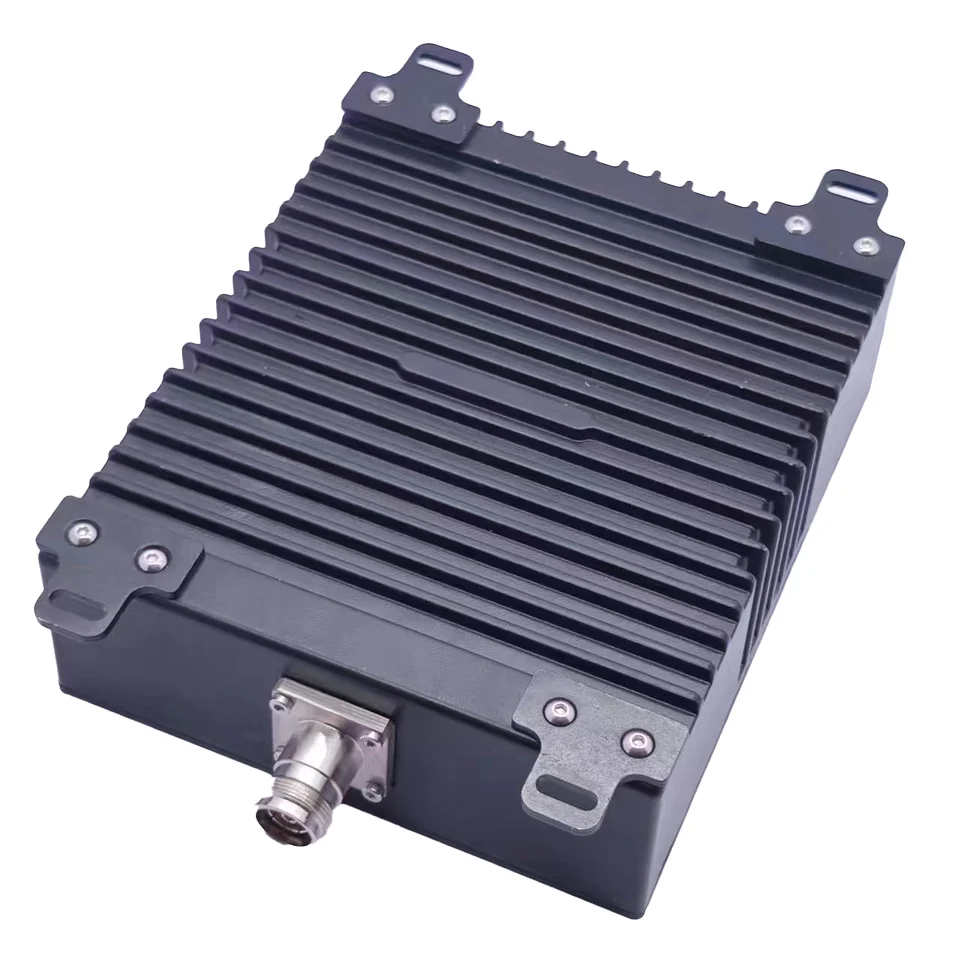

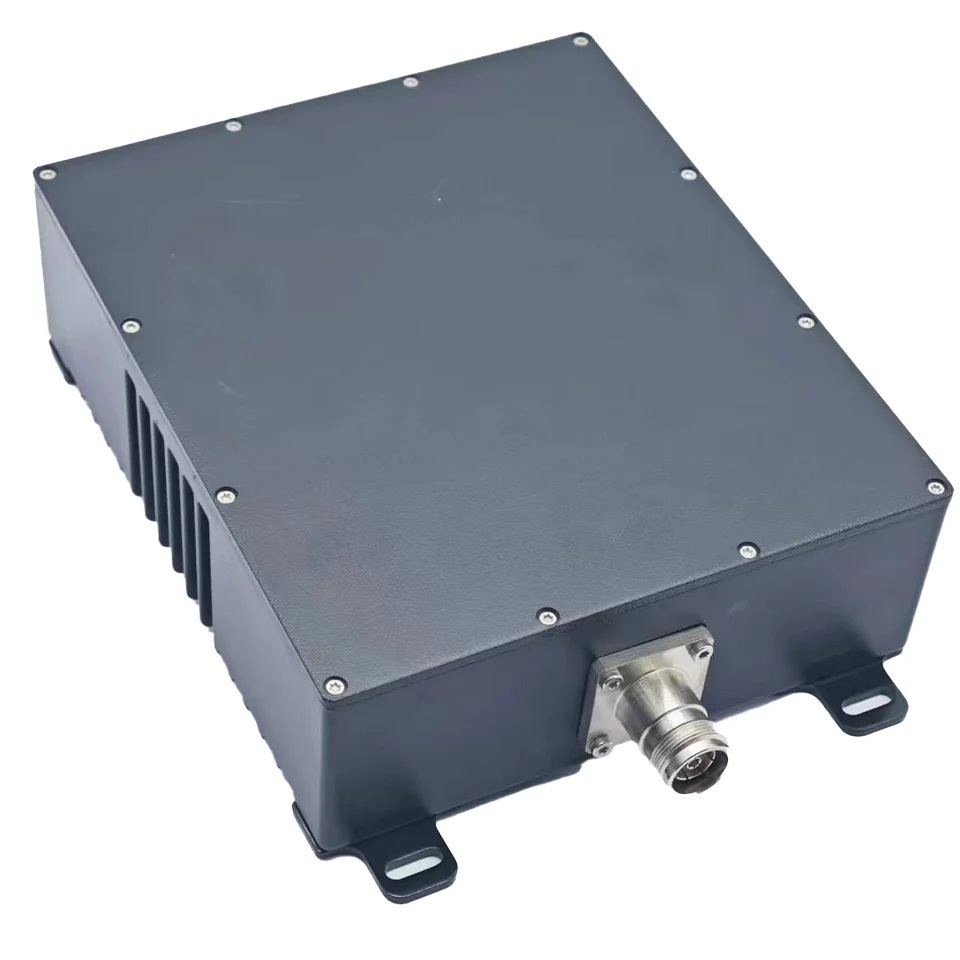

Introducing, the Yoongwin 200W Dummy Load RF Termination for all your IBS DAS needs! This top-of-the-line product is a must-have for anyone in the telecommunications industry looking to ensure peak performance and efficiency in their systems.
With a power rating of 200W and a wide frequency range of 550-4200 Mhz, this dummy load can handle high power levels with ease. The 4.3-10 Female (Male) Connector allows for easy and secure connections, ensuring a stable signal throughout your network.
One of the standout features of this dummy load is its impressive -160dBc Low PIM Load. This means that it produces extremely low levels of passive intermodulation distortion, ensuring clean and clear signals even in high-demand environments. You can trust that your IBS DAS system will run smoothly and efficiently with this load in place.
The Yoongwin 200W Dummy Load is designed for durability and reliability. Made from high-quality materials, this load is built to last and withstand the rigors of daily use. Whether you're setting up a new system or upgrading an existing one, this load is sure to meet your needs and exceed your expectations.
Not only does this dummy load offer top-notch performance, but it also provides peace of mind. With the Yoongwin brand name behind it, you can trust that you're getting a quality product that has been tested and proven in the field. Yoongwin is known for its commitment to excellence, and this load is no exception.
Whether you're a telecommunications professional working on IBS DAS systems or a DIY enthusiast looking to optimize your home network, the Yoongwin 200W Dummy Load RF Termination is the perfect tool for the job. Don't settle for subpar performance – invest in the best with Yoongwin. Order yours today and experience the difference for yourself
Device Type |

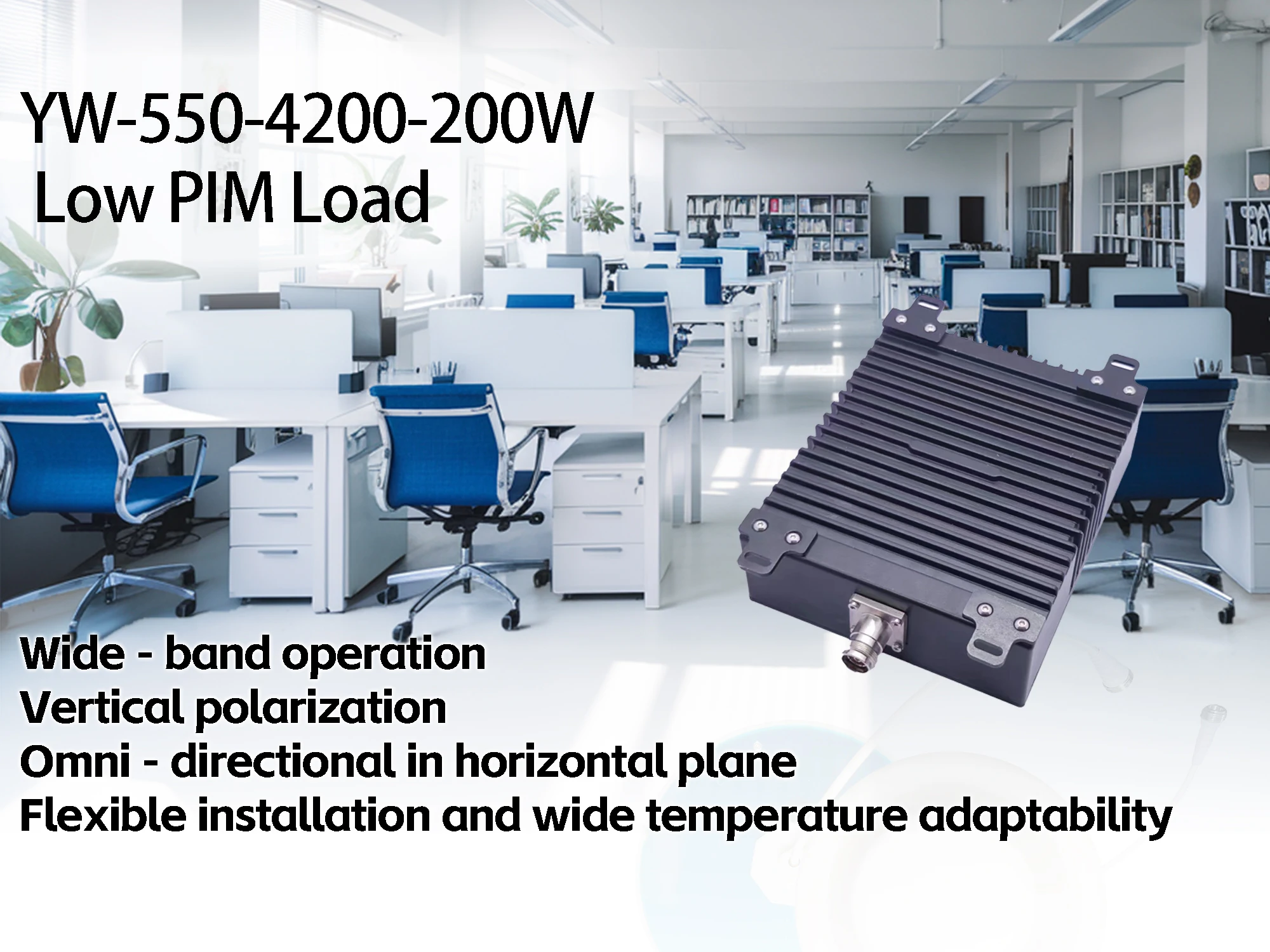

550-4200MHz Low PIM Load 200W |
|
Electrical Specifications |
||
Frequency Range(MHz) |
550-4200 |
|
VSWR |
≤1.25:1 @ 550–2700 MHz | ≤1.3:1 @ 2700–4200 MHz |
|
3rd Order IMD [dBc] (Two +43 dBm carriers) |
≤-161dBc |
|
Average Power[W] |
200W |
|
Peak Power, maximum[W] |
1500W |
|
Impedance[Ω] |
50 |
|
Environmental Specifications |
||
Operating Temperature[℃] |
-40°C to +55°C |
|
Relative humidity |
Up to 100% |
|
Waterproof Grade |
IP65 |
|
General Specifications |
||
Application |
Indoor/Outdoor |
|
Color |
Black |
|
Interface |
N, 4.3-10, DIN Female - Male |
|
Packaging and Weights |
||
Size [mm] |
240×160×64mm |
|
Weight, [ Kg] |
≤2.5Kg |
|
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
