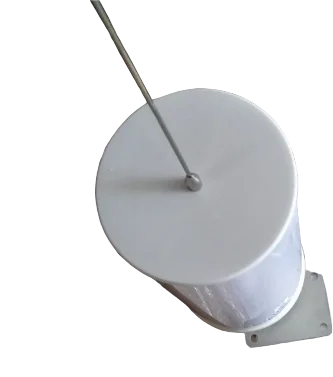

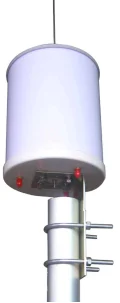

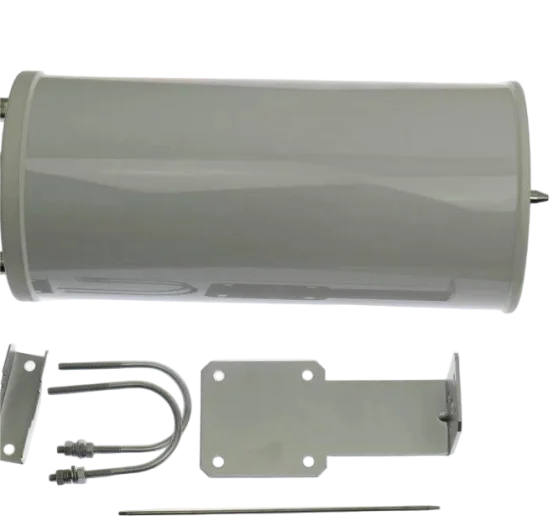

2.4/5GHz Dual-band 3×3 MIMO Omnidirectional Antenna |
||||
Technical Specifications |
YW-M6Q-2458V6AN |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Bandwidth (MHz) |
100 |
700 |
||
Polarization |
Vertical |
|||
Gain (dBi) |
6 |
8 |
||
Beamwidth (°) |
E:40 |
E:17 |
||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
≤2 |
||
Maximum Power (W) |
20 |
|||
Connector Type |
6×NK or as specified 3×2.4GHz Ports, 3×5GHz Ports |
|||
Antenna Dimensions (mm) |
Φ145×185 |
|||
Antenna Color |
White |
|||
Antenna Weight (kg) |
0.8 |
|||
Cover Material |
ABS/PC |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Mast Diameter (mm) |
30~50 |
|||
