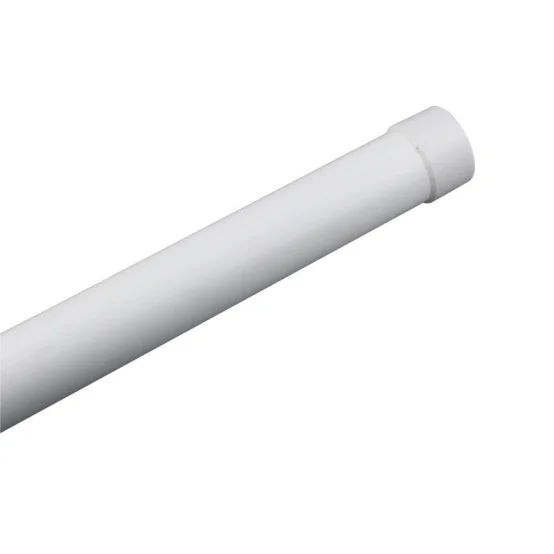

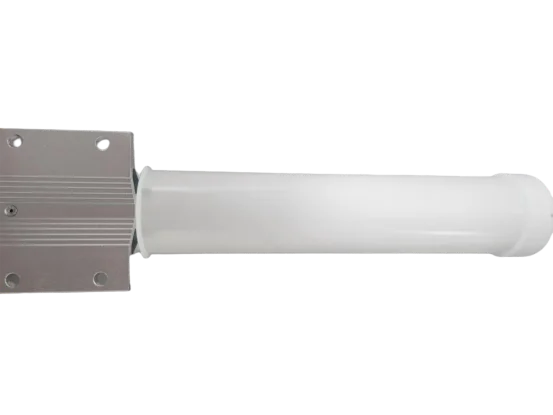

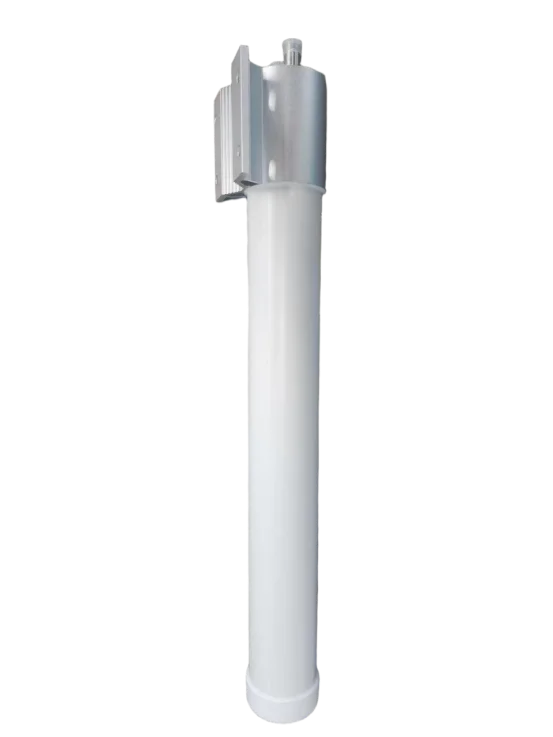

360° Coverage 2xNK Connectors 5dBi Gain 703-960MHz Dual-Channel Omnidirectional Fiberglass Antenna

360° Coverage 2xNK Connectors 5dBi Gain 703-960MHz Dual-Channel Omnidirectional Fiberglass Antenna

Description

[email protected]

Description

Product Description

1.Dual-Channel Independent Operation: Supports simultaneous operation on two frequency bands (703-803/885-960MHz). Enables multi-system integration without interference, doubling your communication capacity.

2.True 360° Omnidirectional Coverage: With ≥15° vertical beamwidth, ensures consistent signal reception from all directions. Ideal for base station applications requiring uniform coverage in all azimuths.

3.Professional 2×NK Connector Configuration: Provides flexible connection options for multiple systems. Enables redundant setups or simultaneous operation of different communication equipment on a single antenna structure.

4.Industrial-Grade Fiberglass Construction: FRP radome withstands extreme temperatures from -40℃ to +60℃ and wind speeds up to 60m/s. Built for long-term outdoor deployment in harsh environmental conditions.

5.High-Power 100W Capacity: Supports extended-range communications with clear signal quality. DC grounding protection ensures equipment safety during lightning conditions, providing peace of mind in critical applications.

Product Detail

Electrical Performance
Frequency Range (MHz)	703～960×2
Frequency Range (MHz)		703～803/885～960
Polarization	V (Vertical)
Voltage Standing Wave Ratio (VSWR)	≤1.5
Gain (dBi)	5
Electrical Downtilt (°)	0
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	≥15
Maximum Power (W)	100
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical Specifications
Connector Type	2×NK
Antenna Dimensions (mm)	≤700×Φ160
Radome Material	Fiberglass Reinforced Plastic (FRP)
Operating Temperature (℃)	-40～+60
Maximum Wind Speed (m/s)	60
Installation Method	Pole-Mounted
Pole Diameter (mm)	Φ50～Φ80
