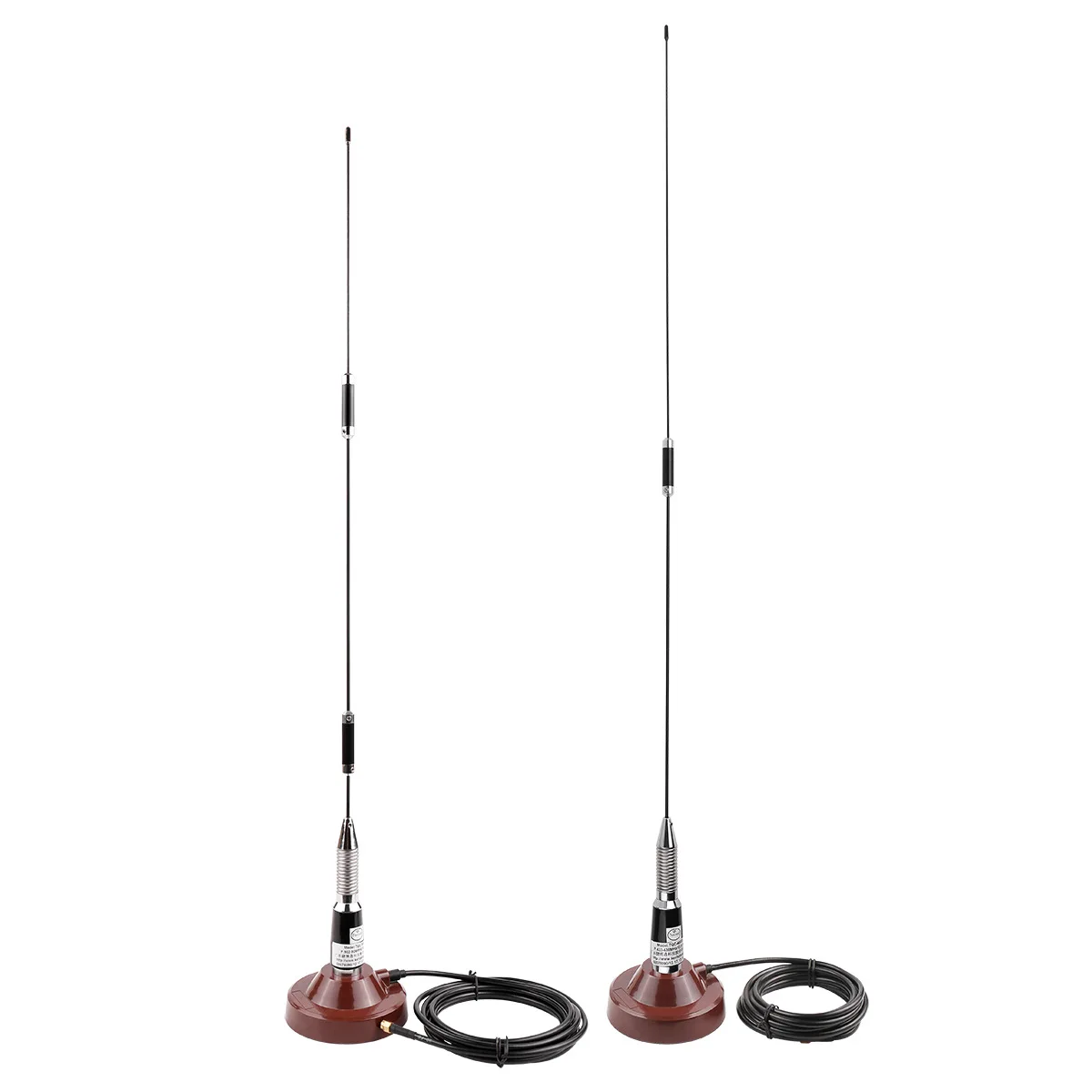

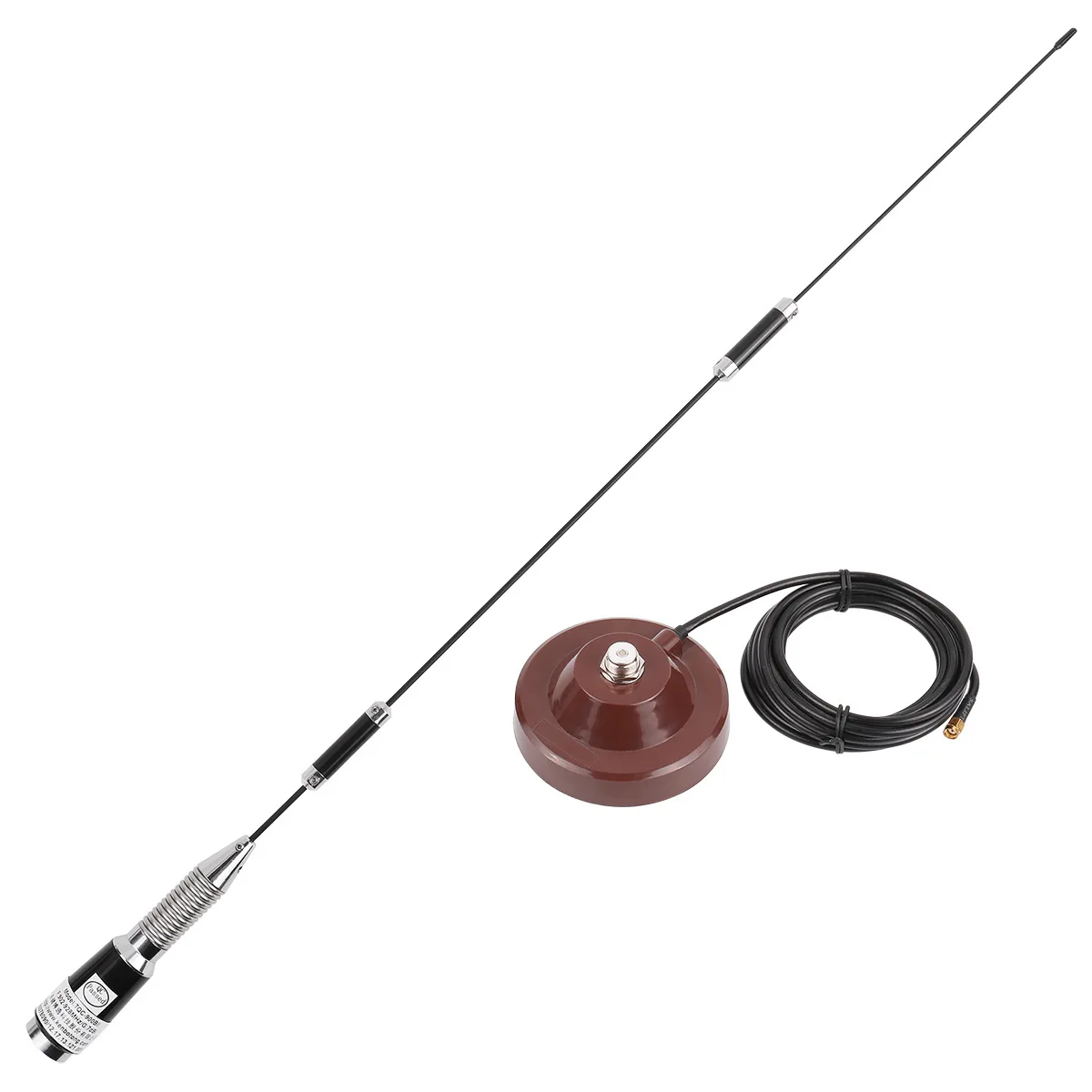

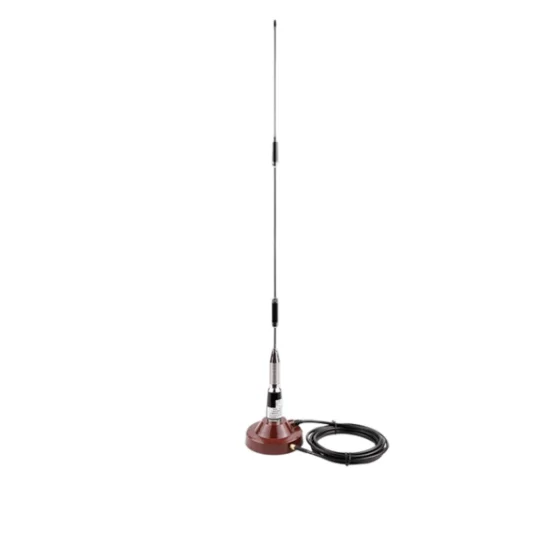

375-420MHz 5.5dBi Gain SMA Connector Vehicle-Mounted Antenna for Professional Mobile Radio Systems

375-420MHz 5.5dBi Gain SMA Connector Vehicle-Mounted Antenna for Professional Mobile Radio Systems

Description

[email protected]

Description

Product Description

1. High 5.5dBi Gain for Extended Range
Delivers strong signal performance, ensuring reliable communication over longer distances in mobile environments.

2. True 360° Omnidirectional Coverage
Provides consistent all-around horizontal signal reception, ideal for vehicles operating in dynamic and unpredictable routes.

3. SMA Connector for Easy & Secure Installation
Equipped with a standard SMA-K connector for quick, tool-free setup and broad compatibility with modern radio equipment.

4. Robust Design for Vehicle Deployment
Features a durable construction with a total height of 920±20mm (including M110 base), built to withstand vibrations and harsh outdoor conditions.

5. Wide Temperature Tolerance for All Climates
Operates reliably in extreme temperatures from -40°C to +60°C, ensuring consistent performance in virtually any environmental condition.

Product Detail

Electrical Indicators
Model	YW - 35VPG5 - 400 - A
Frequency Range - MHz	375 ~ 420
Bandwidth - MHz	45
Polarization Mode	Vertical
Voltage Standing Wave Ratio	< 2.0
Gain - dBi	5.5
Horizontal Half - Power Beamwidth (°)	360
Vertical Half - Power Beamwidth (°)	35
Maximum Power - W	100
Input Impedance - Ω	50
Lightning Protection	DC Grounding
Mechanical Indicators
Connector Type (Cable End)	SMA - K
Operating Temperature - ℃	- 40 ~ +60
Cable Specification	SYV - 50 - 3
Cable Length - m	3
Antenna Height (Including M110 Base, mm)	920±20
