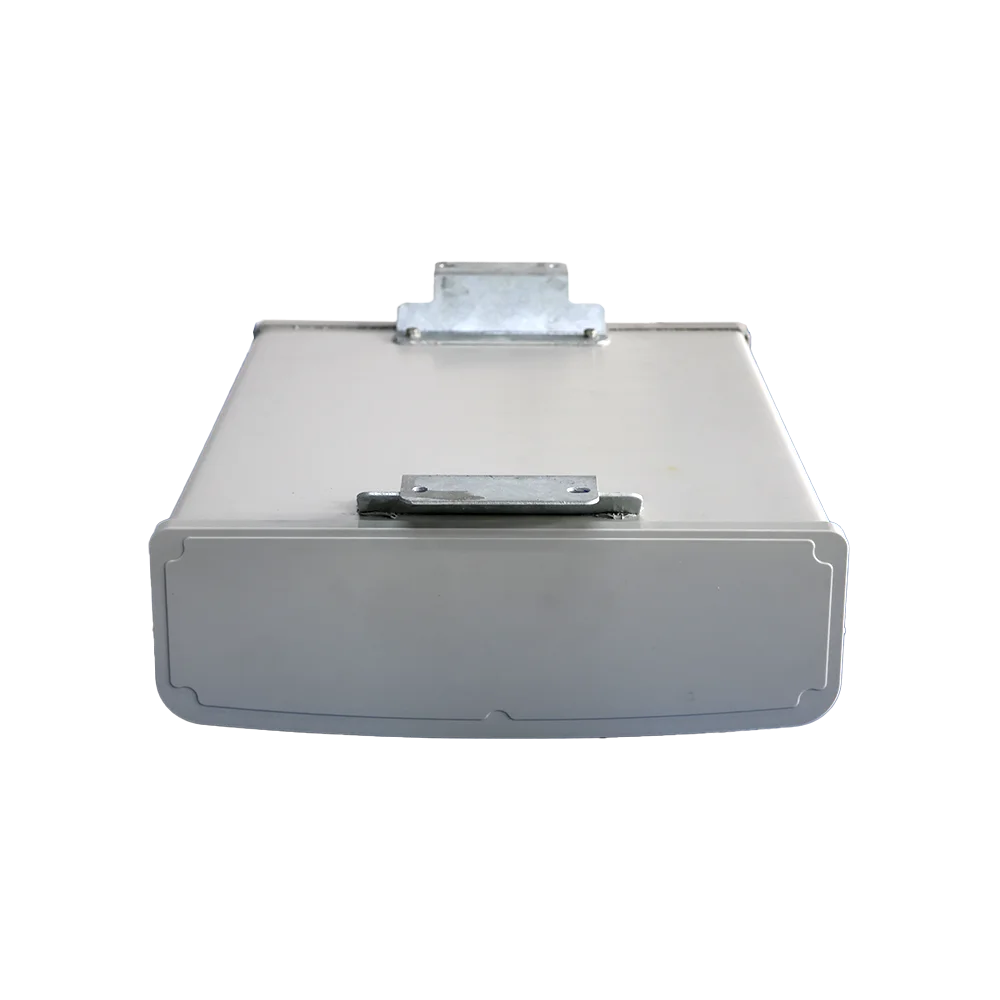

4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage
4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage

4-Port 1710-2690MHz Dual Band 16dBi High Gain 15° Shaped Beam Antenna for Stadium & Arena Coverage

Get a Quote Contact Us
  • Description
product 4 port 1710 2690mhz dual band 16dbi high gain 15 shaped beam antenna for stadium arena coverage-1

[email protected]
Inquiry
Product Description

1. Precise Beam Shaping for Targeted Coverage
Features a narrow 15°±5° beamwidth in both planes with excellent side-lobe suppression (≥13dB), concentrating signal energy exactly where it's needed and reducing interference in dense environments.
2. High Gain & Wide Dual-Band Support
Delivers strong 16dBi gain across the 1710-2690MHz dual bands, ensuring superior signal penetration and coverage for 4G/LTE and 5G networks in large spaces.
3. High Power & Superior Signal Clarity
Handles up to 200W power and boasts outstanding third-order intermodulation (≤-107dBm), guaranteeing clear signal quality and performance in high-traffic, multi-carrier scenarios.
4. Robust Build for Harsh Environments
Constructed with a UPVC radome, designed to withstand wind speeds up to 110km/h and operate reliably in extreme temperatures from -40°C to +60°C.
5. Easy Installation with Bottom Interfaces

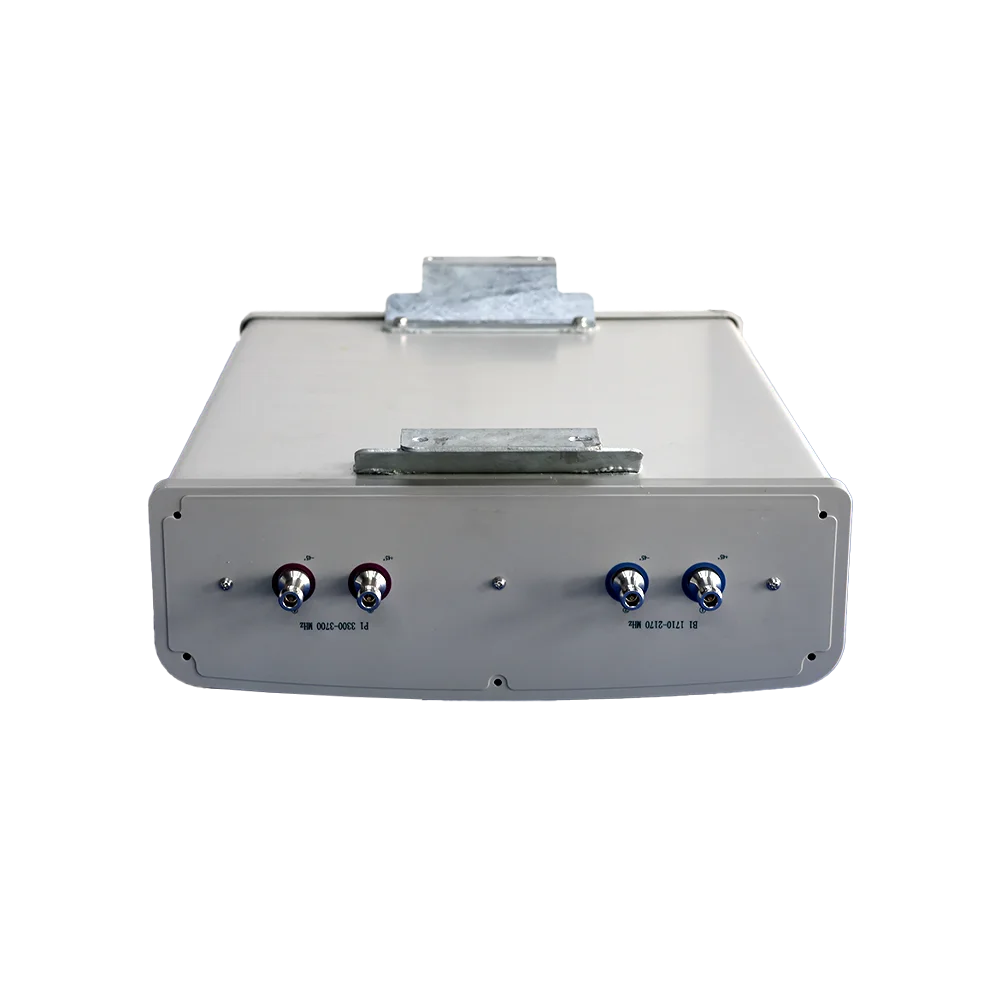

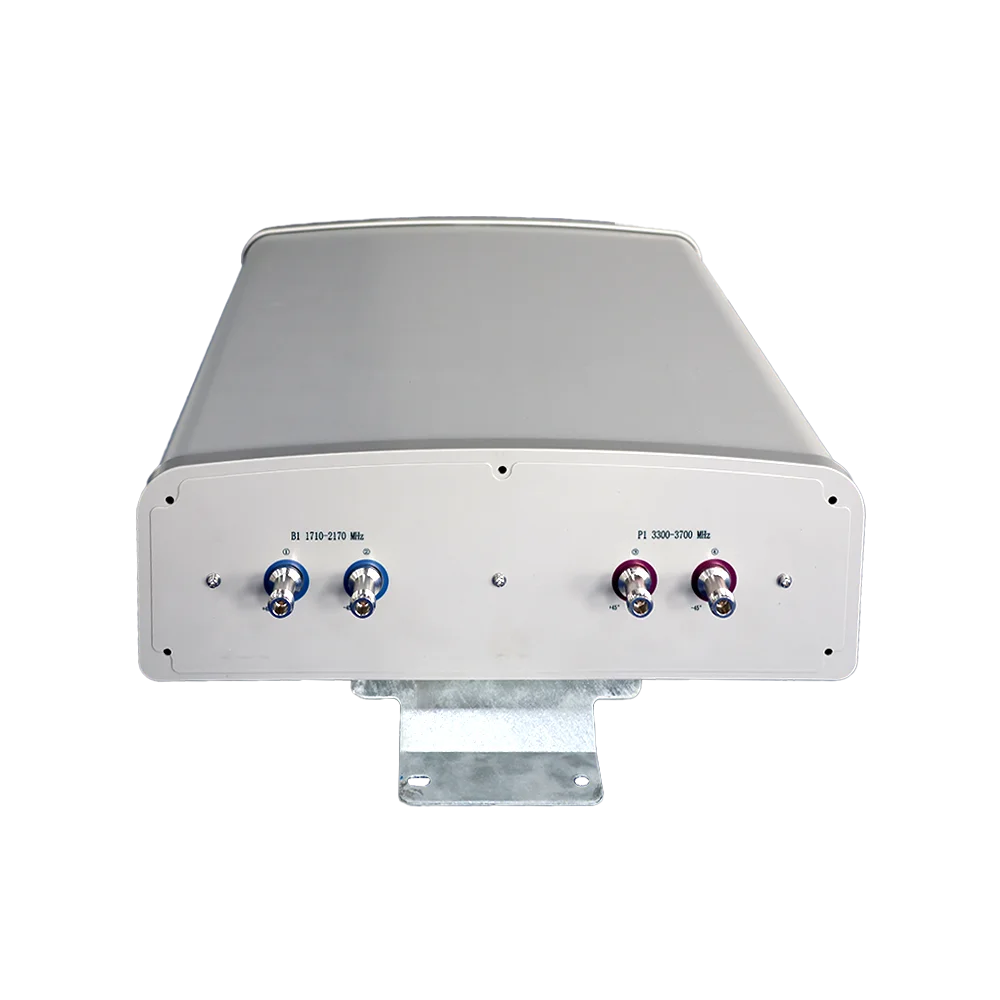

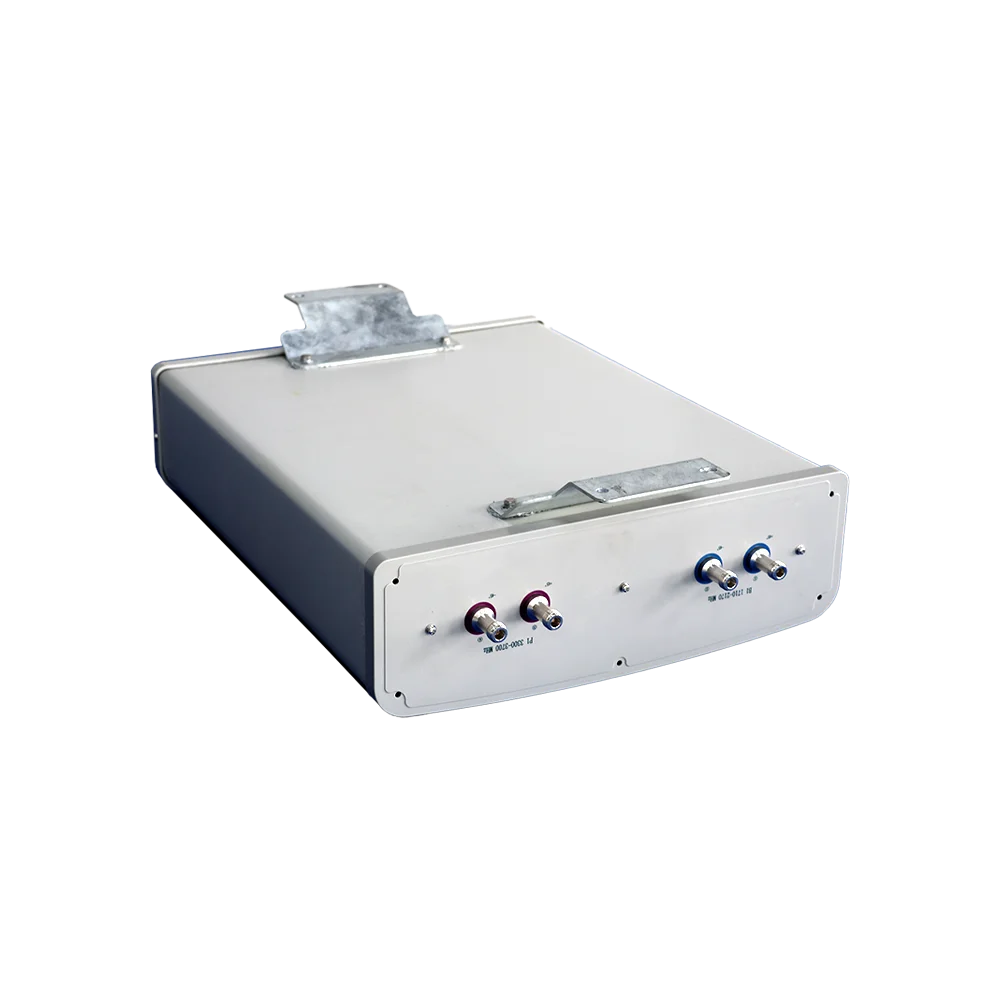

Features 4 bottom-mounted NK-type connectors and compatible with standard pole diameters (Φ50~115mm), significantly simplifying the mounting process and reducing installation time.
Product Detail
Electrical Indicators
Frequency (MHz)
1710 ~ 2690×2
Polarization Mode
±45°
Gain (dBi)
16
Horizontal Beamwidth (°)
15±5
Vertical Beamwidth (°)
15±5
Horizontal Side - Lobe Suppression (dB)
≥13
Vertical Side - Lobe Suppression (dB)
≥13
Horizontal 20dB Roll - off Angle (°)
≤25
Vertical 20dB Roll - off Angle (°)
≤25
Front - to - back Ratio (dB)
≥20
Isolation (dB)
≥20
Third - order Intermodulation (@2×43dBm)
≤ - 107
Input Impedance (Ω)
50
VSWR
≤1.5
Power Handling (W)
200
Ground Protection
DC
Mechanical Parameters
Connector Type
4*NK
Connector Position
Bottom
Radome Material
UPVC
Radome Color
Gray
Dimension (mm)
1050*500*164
Weight (kg)
≤15
Limit Wind Speed (km/h)
110
Operating Temperature (°C)
- 40 ~ +60
Pole Diameter (mm)
Φ50 ~ 115
