Electrical Specifications |
||||||||||||
Operating Frequency Band (MHz) |
885~960 |
1710~1830 |
1885~1915 |
2010~2025 |
2300~2400 |
2515~2675 |
||||||
Polarization (°) |
±45° |
|||||||||||
Voltage Standing Wave Ratio (VSWR) of Each Radiating Port |
≤1.5 |
|||||||||||
Third-Order Intermodulation (dBm, @2×37 dBm) |
≤-107 |
≤-107 |
/ |
/ |
/ |
/ |
||||||
Second-Order Intermodulation (dBm, @2×37 dBm) |
≤-107 |
/ |
/ |
/ |
/ |
/ |
||||||
Average Power Handling Capacity (W) |
≥50 |
|||||||||||
Isolation (dB) |
≥25 |
|||||||||||
Horizontal Half-Power Beamwidth (°) |
≥65 |
|||||||||||
Vertical Half-Power Beamwidth (°) |
≥55 |
[20, 35] |
[20, 35] |
[20, 35] |
[15, 35] |
[15, 35] |
||||||
Gain (dBi) |
≥8 |
≥12 |
≥13 |
≥13 |
≥13 |
≥13 |
||||||
Cross-Polarization Ratio in Vertical 3dB Beamwidth (dB) |
/ |
≥10 |
≥10 |
≥10 |
≥10 |
≥10 |
||||||
Cross-Polarization Ratio in Horizontal 3dB Beamwidth (dB) |
/ |
≥10 |
≥10 |
≥10 |
≥10 |
≥10 |
||||||
Front-to-Back Ratio (dB) |
≥21 |
≥23 |
≥23 |
≥23 |
≥23 |
≥23 |
||||||
Mechanical Specifications |
||||||||||||
Interface Model |

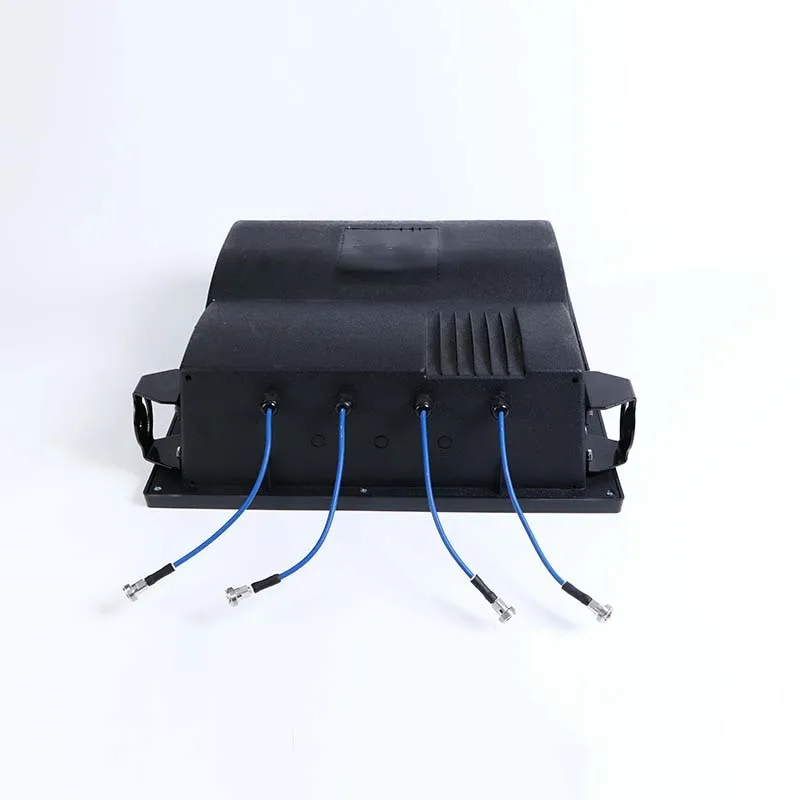

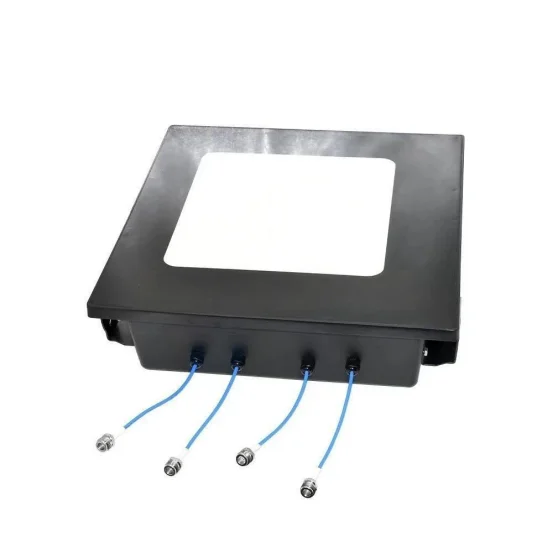

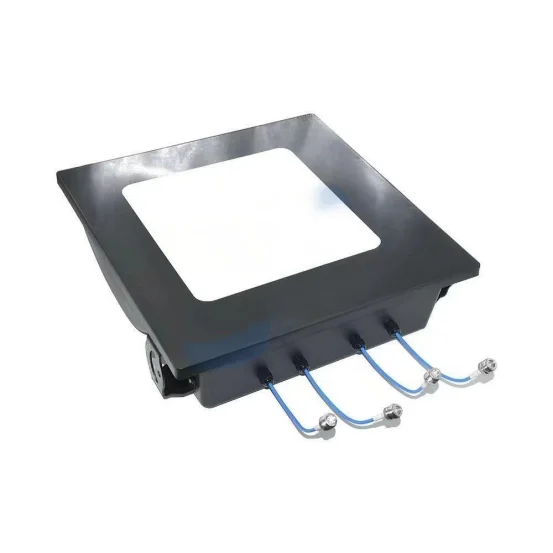

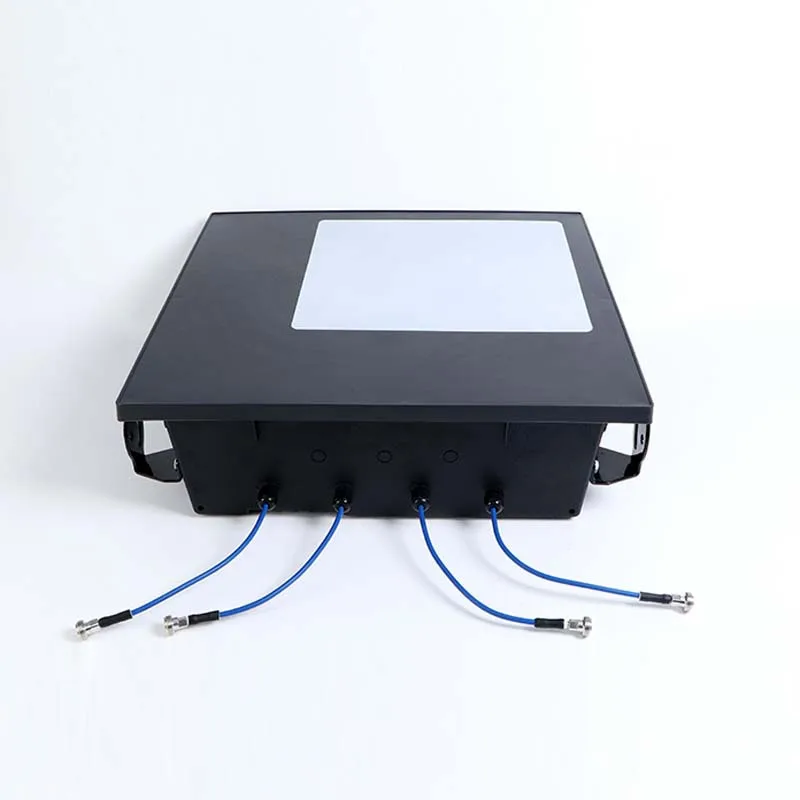

4×N-Female (Lead Length ≥200 mm, Lead Outer Diameter ≥5 mm) |
|||||||||||
Antenna Dimensions (mm) |
430×425×140 |
|||||||||||
Packaging Dimensions (mm) |
460×450×150 |
|||||||||||
Antenna Weight (kg) |
3.4 |
|||||||||||
Weight of Mounting Accessories (kg) |
0.9 |
|||||||||||
Radome Material |
Weather-Resistant PP (Polypropylene) |
|||||||||||
Adjustable Range of Mechanical Angle (°) |
Horizontal: ±45 (Triangular Bracket Required); Vertical: -30~+70 |
|||||||||||
Maximum Wind Speed (km/h) |
200 |
|||||||||||
Ambient Temperature (°C) |
Operating Temperature (°C): -40~+70; Extreme Temperature: -55~+75 |
|||||||||||
Lightning Protection |
DC Grounding |
|||||||||||
