4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering
4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering

4U Server - 8 GPU Support AMD EPYC Rome/Milan CPU, 128 Cores, 8TB DDR4, PCI-E 4.0 for AI/HPC/3D Rendering

Get a Quote Contact Us
  • Description
3d rendering-1

[email protected]
Inquiry
Product Description
Product Detail
3d rendering-2
1. Product Overview

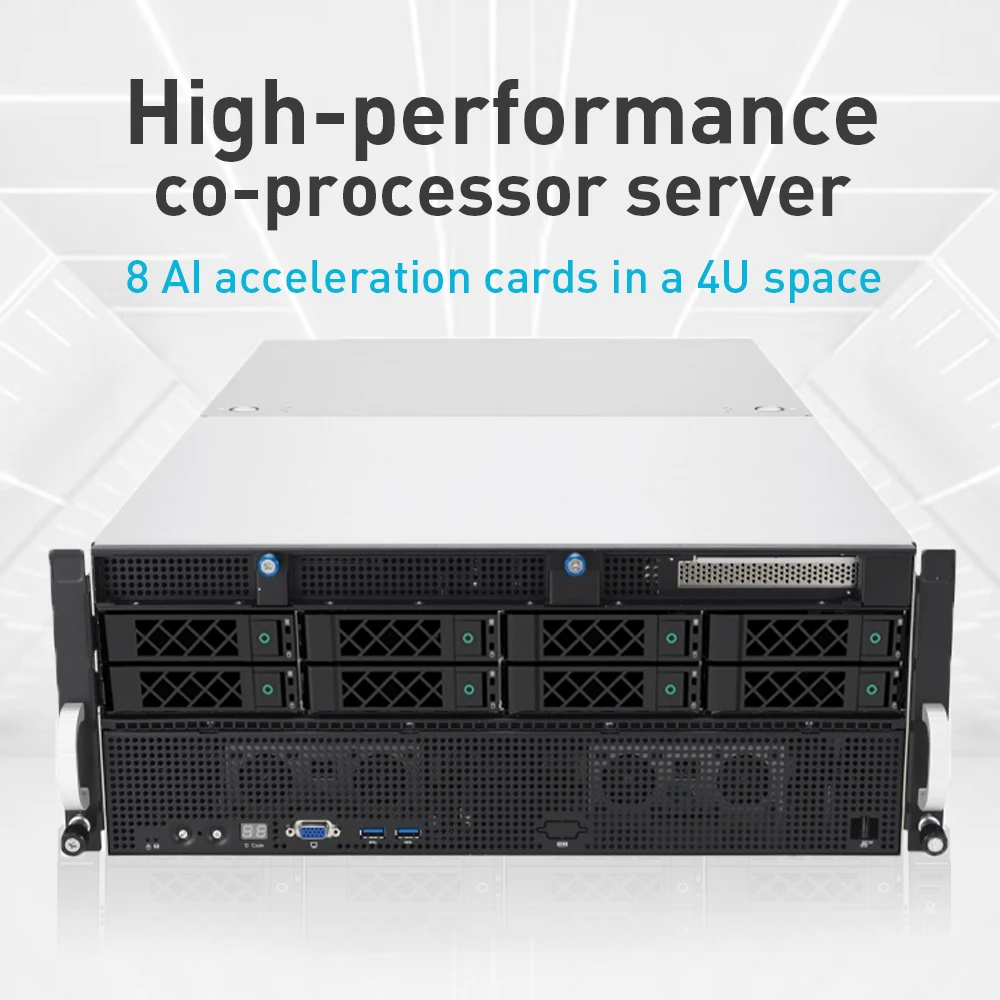

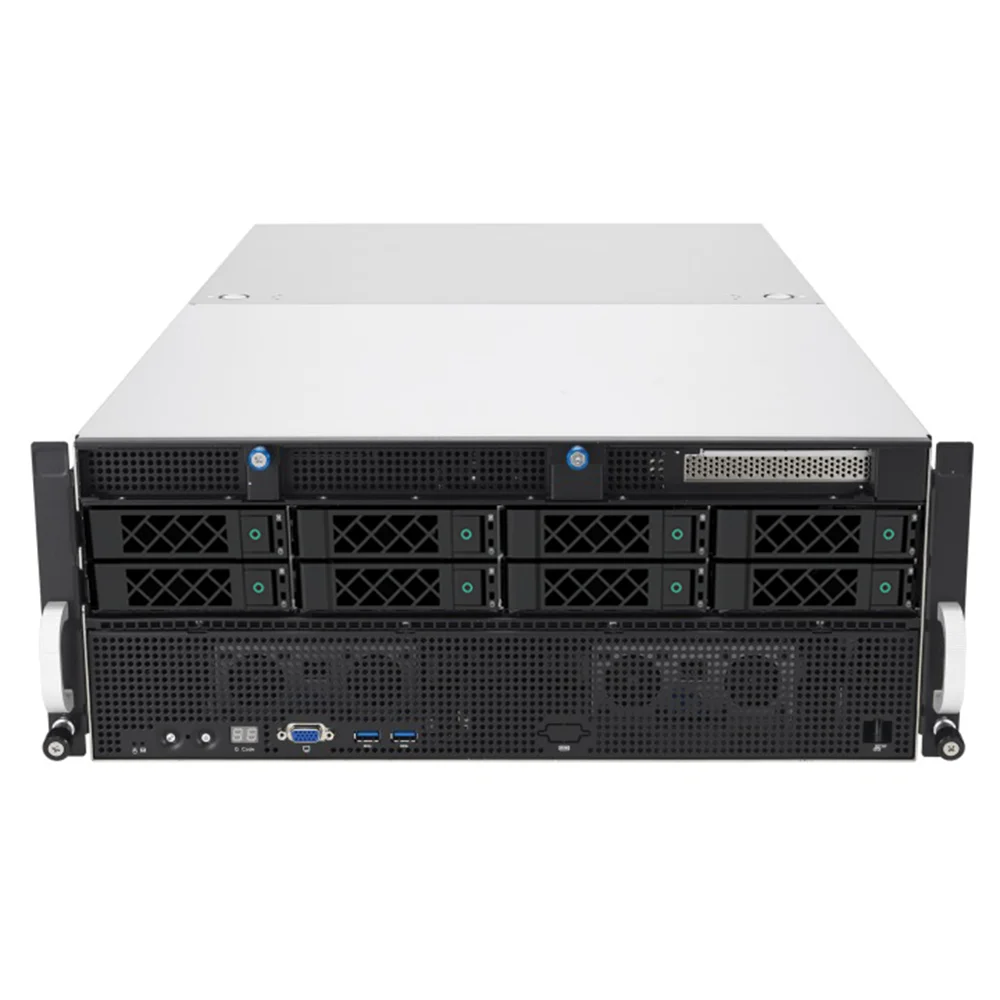

R8428 A12 is a high-performance co-processor server designed based on AMD® EYPCTM Rome/Milan series processors. This product can accommodate up to 8 AI acceleration cards in a 4U space, featuring high performance, high reliability, and easy maintenance. It is specifically designed for deep learning computing applications and has wide applicability in AI computing, rendering farms, and high-performance computing applications. It is also the preferred choice for 3D rendering and high-performance computing businesses.
2. Product Features
2.1 Strong and balanced performance design
* From a functional perspective, we focus on core features and optimize design in terms of energy efficiency, reliability,
virtualization, ease of operation, maintainability, and flexibility to meet the demands of high-performance computing.
* For applications requiring higher computing and IO performance, we can provide balanced performance and storage density to support the deployment of AI computing, HPC applications, and cluster infrastructure.
2.2 Strong performance
* Equipped with AMD® EYPCTM Rome/Milan series processors, it boasts up to 128 computing cores on a single machine, and utilizes DDR4 memory with a maximum support of 3200MHz, providing higher utilization, throughput, and bandwidth for coprocessor applications.
* It supports the latest PCI-E 4.0 expansion interface, with a transmission rate doubled compared to the previous generation.
2.3 Intelligent management system
* By embedding an intelligent management chip in the server, various management functions such as complete IPMI2.0 remote system monitoring, remote KVM, virtual media, and more can be achieved. When paired with the SuperCloud cloud platform management suite, it greatly simplifies user device deployment, enables one-click virtualization applications, facilitates the deployment of virtual machines, and achieves dynamic adjustment of physical resources based on policies. The visual management module enables remote fault diagnosis and alarming of servers, significantly improving the operation and maintenance efficiency of data centers and reducing the workload of management personnel.
2.4 Excellent expansion
* Each CPU is paired with 16 memory slots, for a total of 32 memory slots. The memory capacity can be expanded up to 8TB, offering flexible and powerful memory configuration options.
* It provides 11 standard PCI-E slots, which can be configured with up to 8 high-performance GPUs or other types of acceleration products
3. Product technical specifications
3.1 Host performance
Processor
Supports 2 AMD® EYPCTM Rome/Milan series processors, with TDP ≤ 280W
Chipset
CPU integrated chipset
Memory type
 Supports DDR4 ECC 3200/2933/2400, with a memory voltage of 1.2V
(The operating frequency varies depending on the CPU and memory configuration)
Slot and capacity
 32 memory slots, with a maximum expandable memory capacity of 8TB (when using a single 256GB 3DS LRDIMM memory module)
Supports advanced features such as advanced memory error correction, memory mirroring, and memory hot standby
Hard disk
 Supports 8 3.5/2.5-inch hot-swappable hard drives, and supports SAS/SATA interface types
Supports 2 U.2 NVMe SSDs
Memory Controller
 Optional SAS controller (12G), supports RAID 0, 1, 10, and can be cascaded with JBOD expansion cabinets
The optional RAID controller (12G) supports a maximum of 2G of cache and supports RAID 0/1/10/5/50/6/60
And it can be extended with a cache data protection suite and a cache protection acceleration function
Network
Integrate two Gigabit network controllers (RJ45 interfaces)
Display System
Integrated graphics controller
CD-ROM
Ultra-thin DVD-RW drive with optional external USB interface
 3.2 Scalability
I/O expansion
Supports 11 PCIe 4.0 expansion slots, 9 PCIe 4.0 X16 expansion slots, and 2 PCIe 4.0 x8 slots
GPU
GPU card supporting 8 dual-wide PCIe interfaces
Peripheral Interface
 1×VGA interface
2×USB3.0 interfaces (rear)
1xRJ45 management interface
1× Serial interface
3.3 Chassis power supply
Chassis
 SuperCloud 4U GPU server chassis
175.6mm(H) x 439mm (W) x 798mm(D)
Net weight of server: 39kg
Server gross weight: 49kg
Fan
Eight intelligent control fans, with an optional rear exhaust cooling system
Power supply
 Standard configuration includes 2200W/2600W/3000W titanium (2+2) redundant power supplies, with a conversion rate of 96%;
Support advanced power supply features: support for PMBUS1.2, IPMI power status alarms, FRU information monitoring, power
consumption capping technology, active-standby and active-active switching functions for power supplies, and high-voltage DC and
AC switching functions;
 3.4 Random Accessories
Manual
Hyper Cloud Server User Manual
Rail
A set of standard rack-mount rails
Power line
National standard AC power cord
