Product Name |

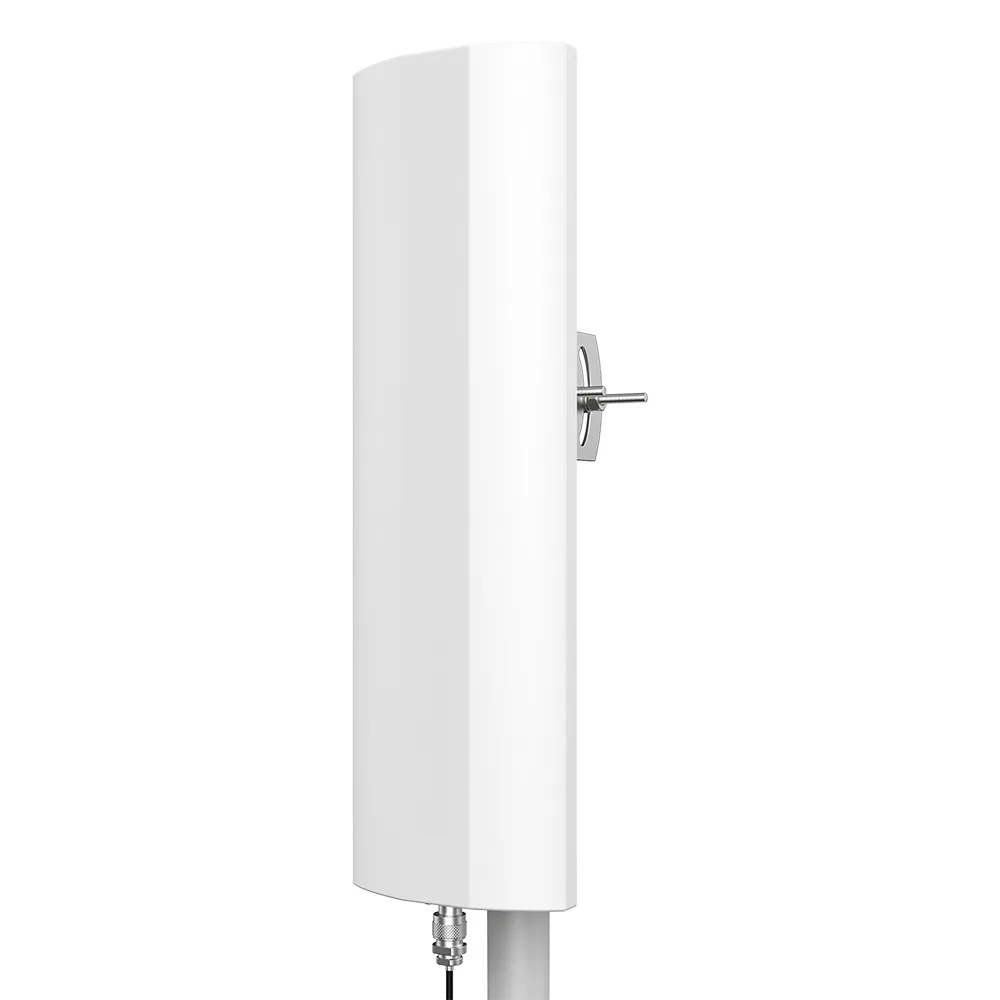

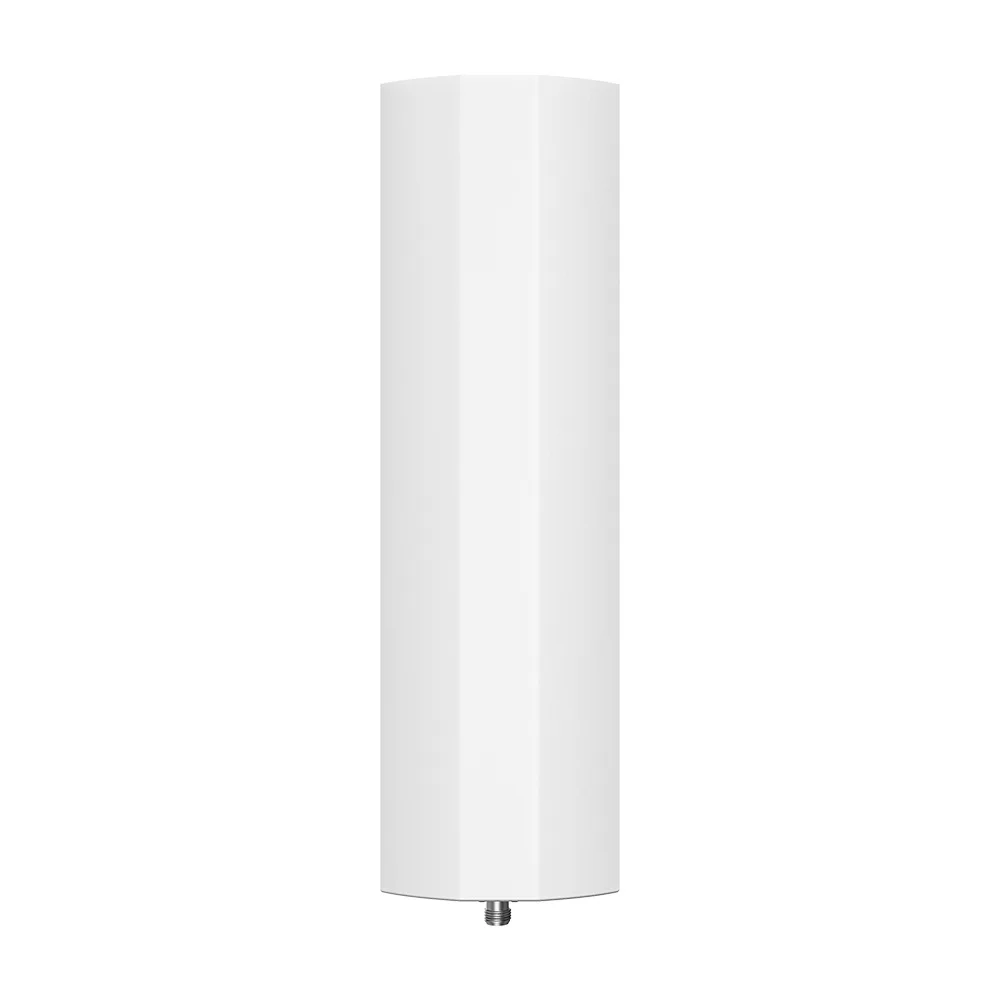

Sector-Directed Panel Antenna |
|
Electrical Index |
DB58-90V17B |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical |
|
Gain (dBi) |
17 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 7 |
||
Front-to-Back Ratio (dB) |
≥25 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||

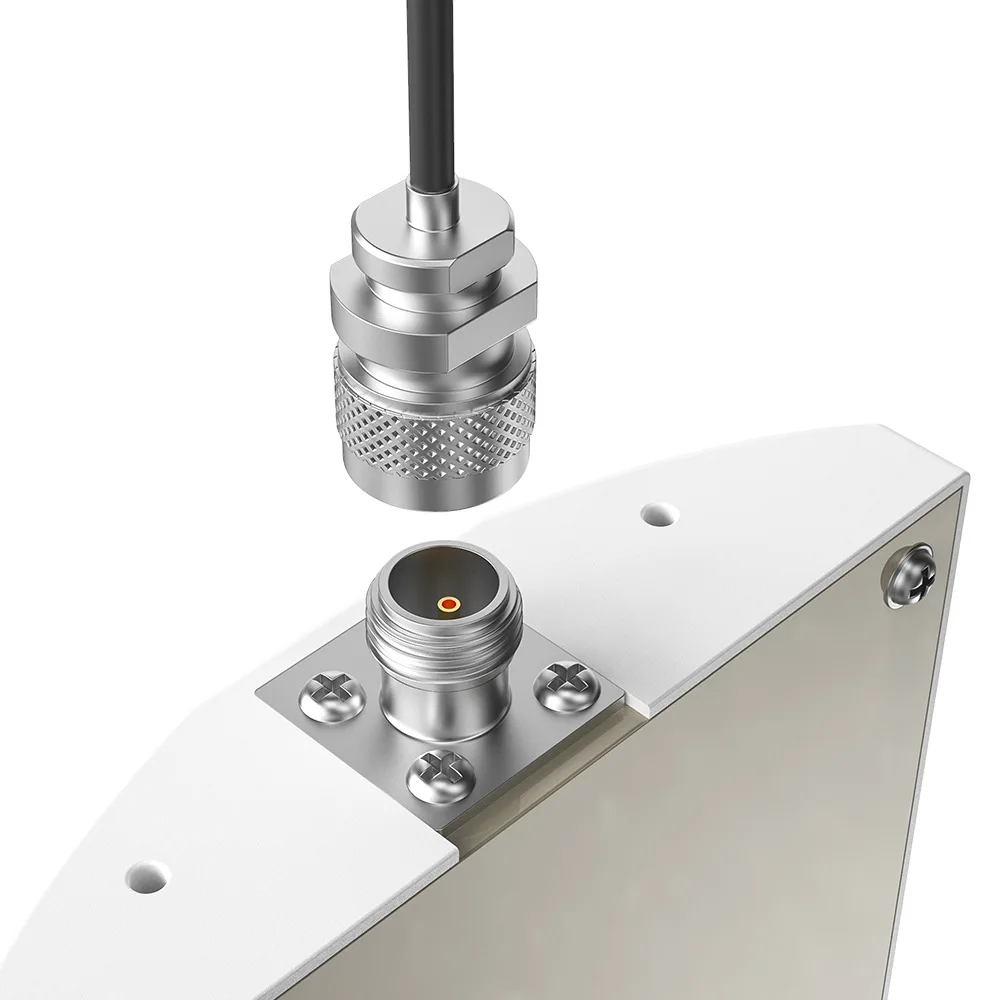

Connector Type |
N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
458×138×30 |
|
Antenna Weight (kg) |
Approximately 0.8 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Mechanical Adjustable Tilt (°) |
0–30 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–60 |
|
Mounting Part Model |
MK003B |
|
