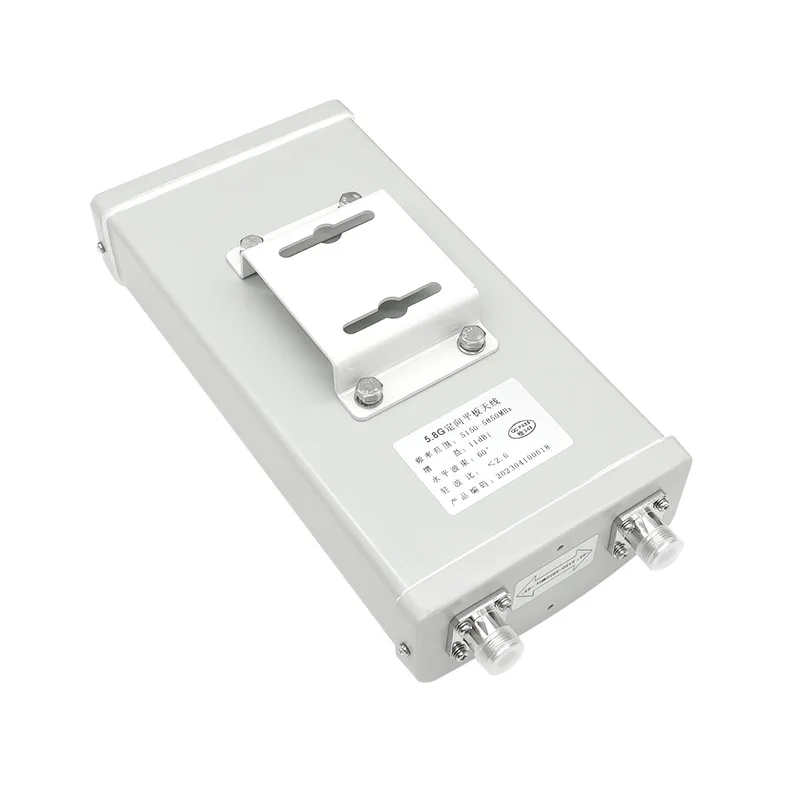

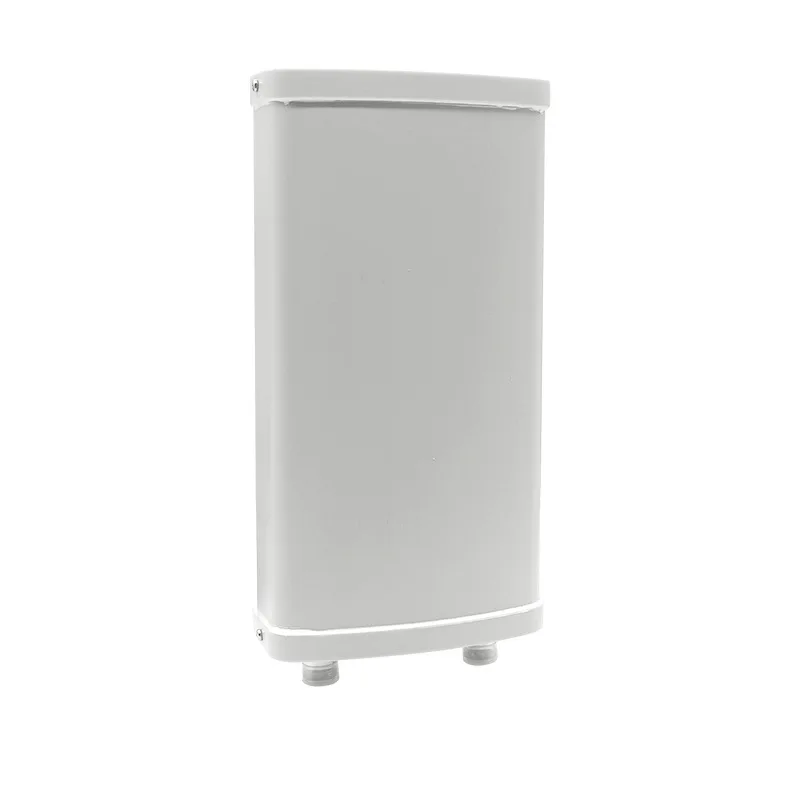

Product Name |
Sector-Directed Panel Antenna |
|
Electrical Index |
YW-DB58-90VH14A |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×14 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 15 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||

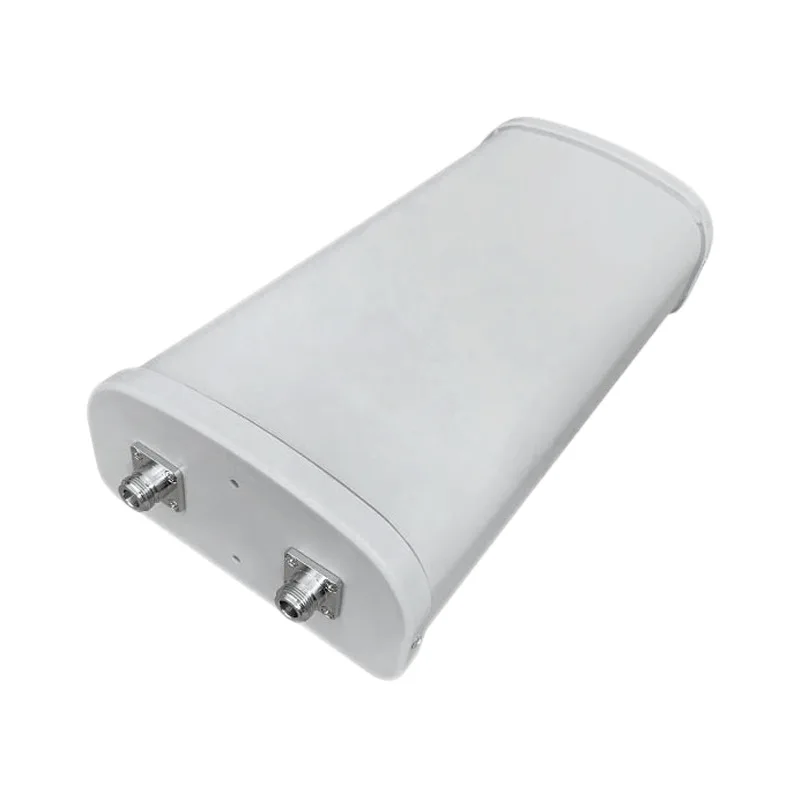

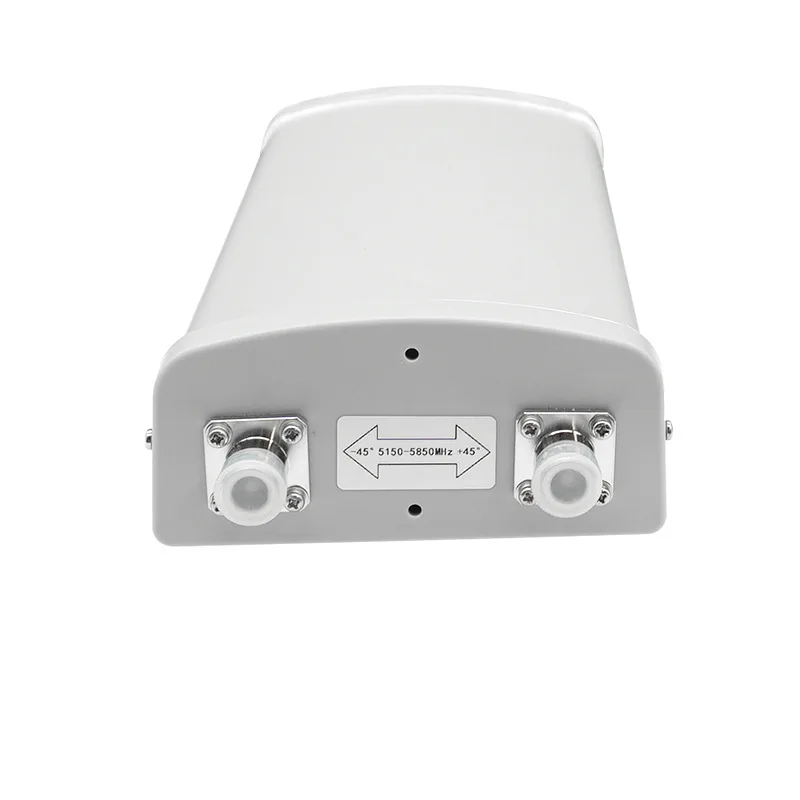

Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
230×128×56 |
|
Packaging Dimensions (mm) |
330×230×160 |
|
Antenna Weight (kg) |
1.2 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–75 |
|
Mounting Part Model |
MK003 |
|
Electrical Index |
YW-DB58-90VH15A |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×15 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 10 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
300×128×56 |
|
Packaging Dimensions (mm) |
400×230×160 |
|
Antenna Weight (kg) |
1.2 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–75 |
|
Mounting Part Model |
MK003 |
|
Electrical Index |
YW-DB58-90VH16A |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×15.5 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 7.5 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
400×128×56 |
|
Packaging Dimensions (mm) |
500×230×160 |
|
Antenna Weight (kg) |
1.4 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–75 |
|
Mounting Part Model |
MK003 |
|
Electrical Index |
YW-DB58-90VH17A |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×16.5 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 6.5 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
500×128×56 |
|
Packaging Dimensions (mm) |
600×230×160 |
|
Antenna Weight (kg) |
1.6 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–75 |
|
Mounting Part Model |
MK003 |
|
Electrical Index |
YW-DB58-90VH18A |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
2×18 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 4 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
760×128×56 |
|
Packaging Dimensions (mm) |
860×230×160 |
|
Antenna Weight (kg) |
3 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–15 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–75 |
|
Mounting Part Model |
MK003 |
|
