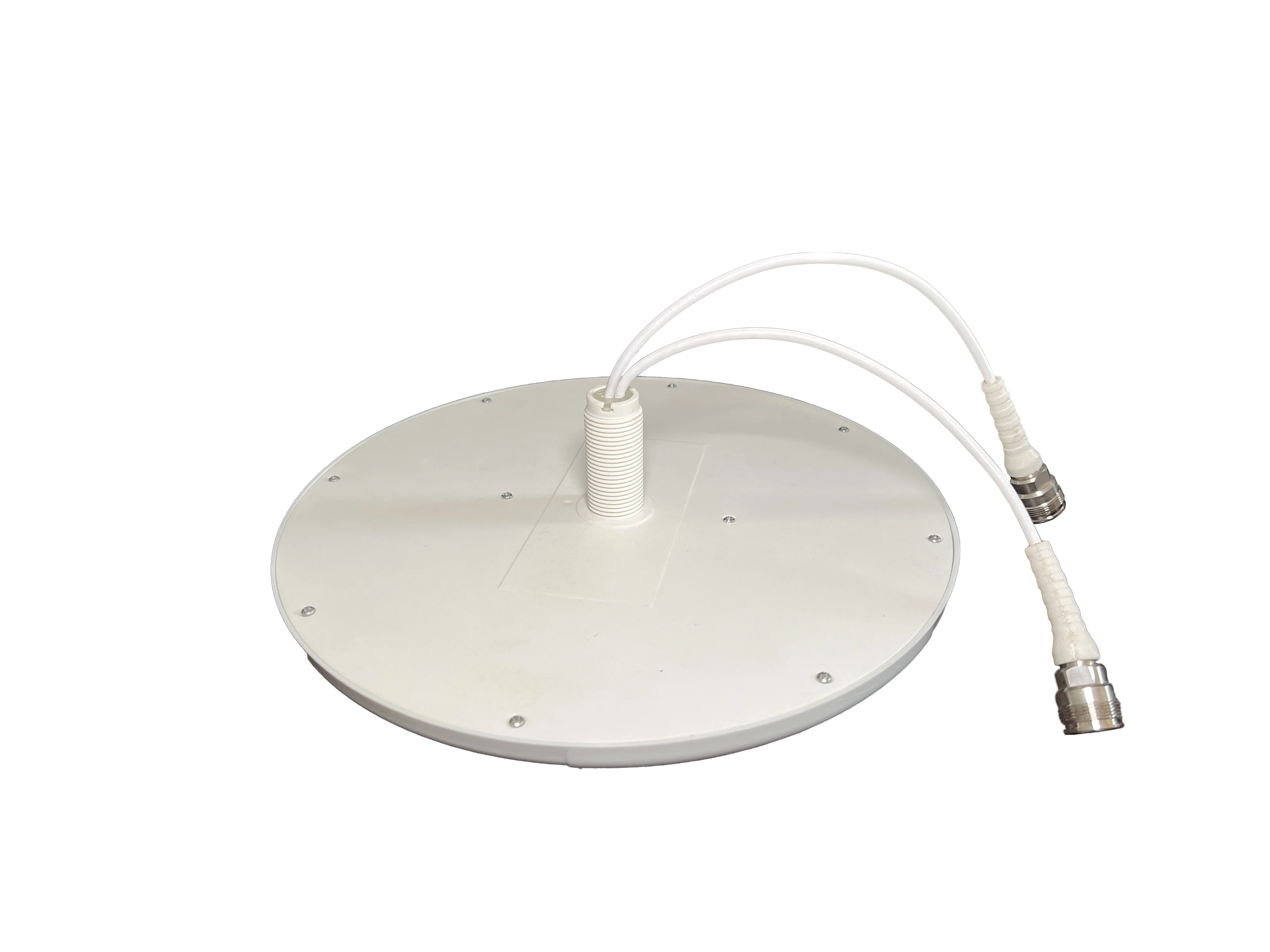

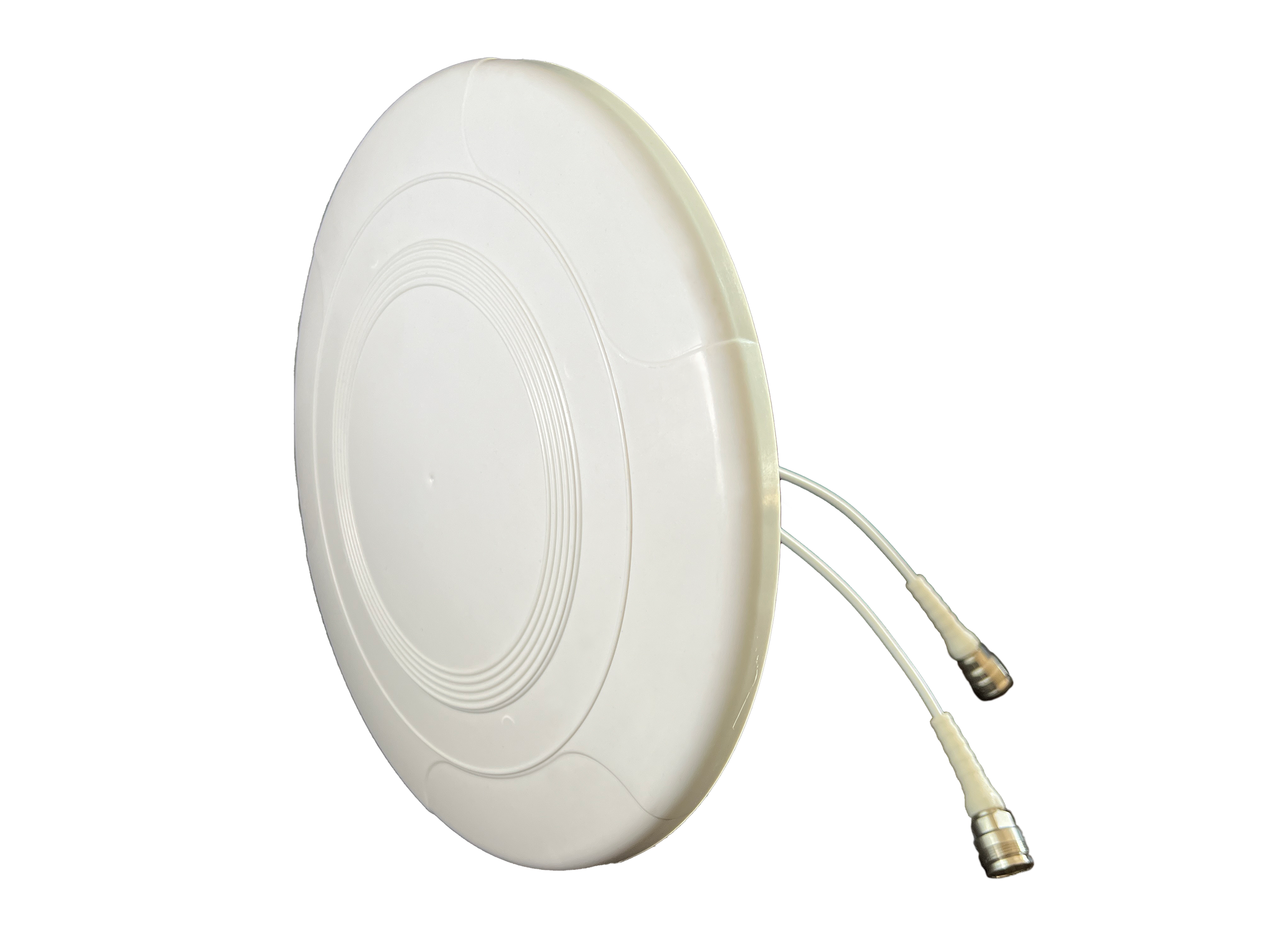

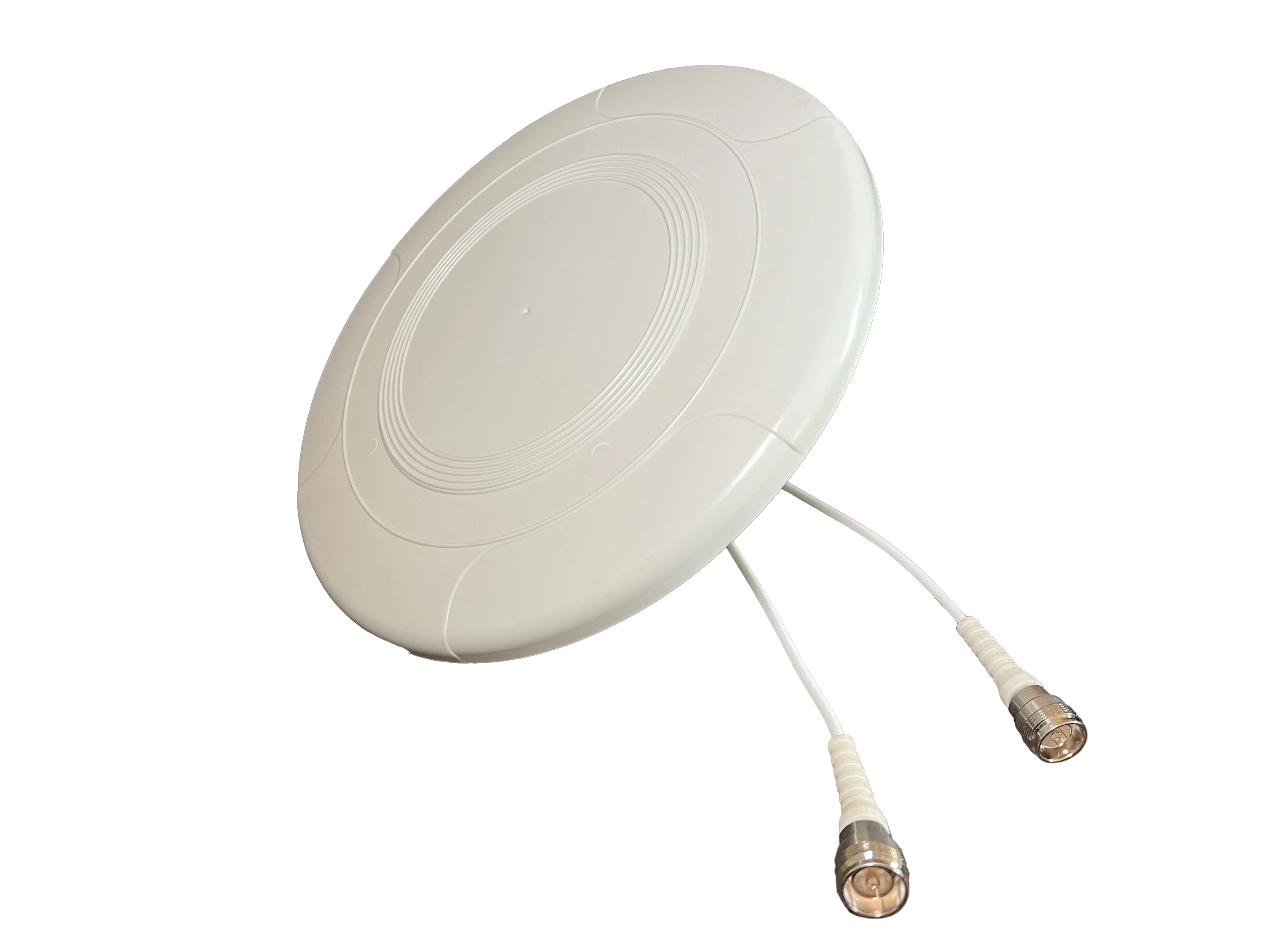

617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna DC-Grounded Communications

Yoongwin

Introducing the Yoongwin 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna DC-Grounded Communications. This cutting-edge antenna is designed to provide superior coverage and connectivity for your communication needs.

With a frequency range of 617 to 6000MHz, this antenna is perfect for a wide variety of applications, from cellular and wireless networks to public safety Yoongwin and surveillance systems. The dual horizontal-polarized design ensures optimal signal reception and transmission in all directions, making it ideal for indoor environments where consistent coverage is essential.

The 20W power rating of this antenna allows for reliable performance, even in high-traffic areas where multiple devices are competing for bandwidth. And with its ceiling-mounted design, this antenna can be discreetly installed in any commercial or residential space, providing seamless coverage without taking up valuable floor space.

The multi-band functionality of the Yoongwin 617 6000MHz antenna allows for simultaneous operation on multiple frequency bands, ensuring compatibility with a wide range of devices and networks. Whether you're using it for voice, data, or video communication, this antenna has you covered.

In addition, the DC-grounded design of this antenna provides added protection against lightning strikes and electrical surges, giving you peace of mind in any weather conditions. And with its omni-directional coverage, you can be sure that your signal will reach every corner of your space, no matter where you are.

The Yoongwin 617 6000MHz Dual Horizontal-Polarized 20W Ceiling-Mounted Multi-Band Omni-Directional Antenna DC-Grounded Communications is a versatile and reliable solution for all your communication needs. Whether you're looking to improve your network performance or expand your coverage area, this antenna is sure to deliver outstanding results. Trust Yoongwin for top-quality communication solutions that you can depend on.

Product Description

Product Detail

YWDSPXD617-6000H2-20W-6i-N-F
Frequency range (MHz)	617-960	1710-2700	3300-4000	4900-6000
Polarization	Linear(Horizontal) x 2
Gain(dBi)	2.2	4.5	5.5	6.0
Horizontal beam-width(°)	360
3dB Vertical beam-width(°)	105	40	40	30
VSWR	≤1.8	≤1.8	≤1.8	≤1.8
Isolation(dB)	≥16	≥20	≥23	≥23
Intermodulation IM3(dBc)	≤-150dBc(@2*43dBm
Impedance(Ω)	50
Maximum input power(W)	50

Connector	2×N-Female
Connector position	Bottom
Size(mm)	Φ280×18
weight(kg)	0.55
Radome material	ABS
Radome color	White
Operating temperature(℃)	-40～65
Mounting Kit	Ceiling, via hole

Recommend Products

Company Profile

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years.

Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.

Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available.

Q: What's the payment term? A: T/T, AliPay, Paypal, Afterpay, Klarna etc.

Q: What certifications do you have? A: Certified by FCC, CE, RoHS, ISO available upon request.

Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
