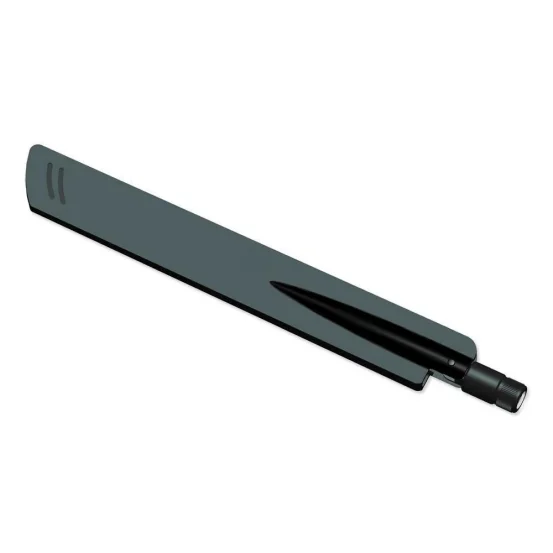

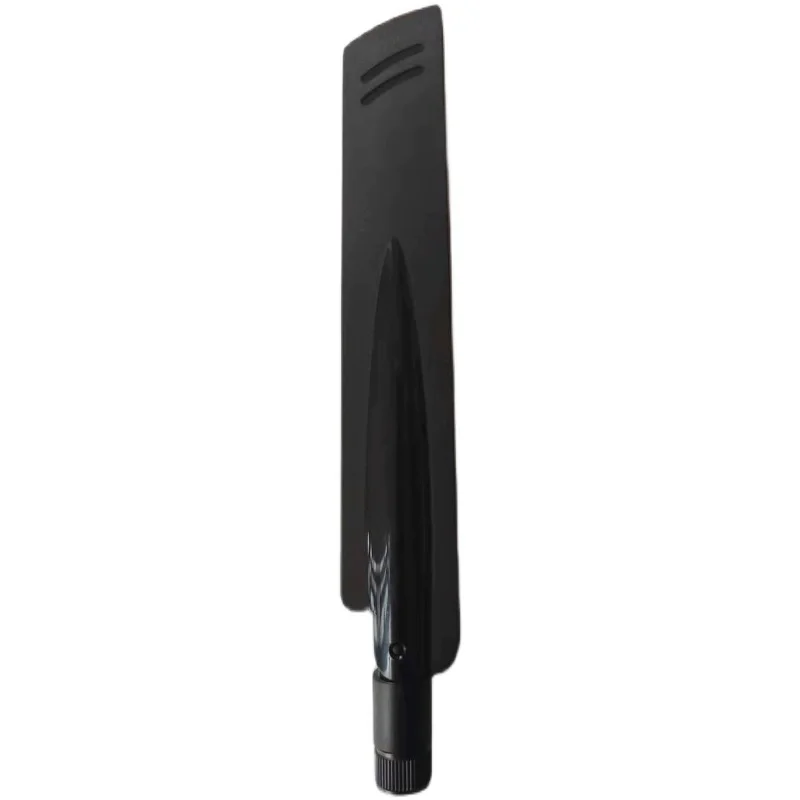

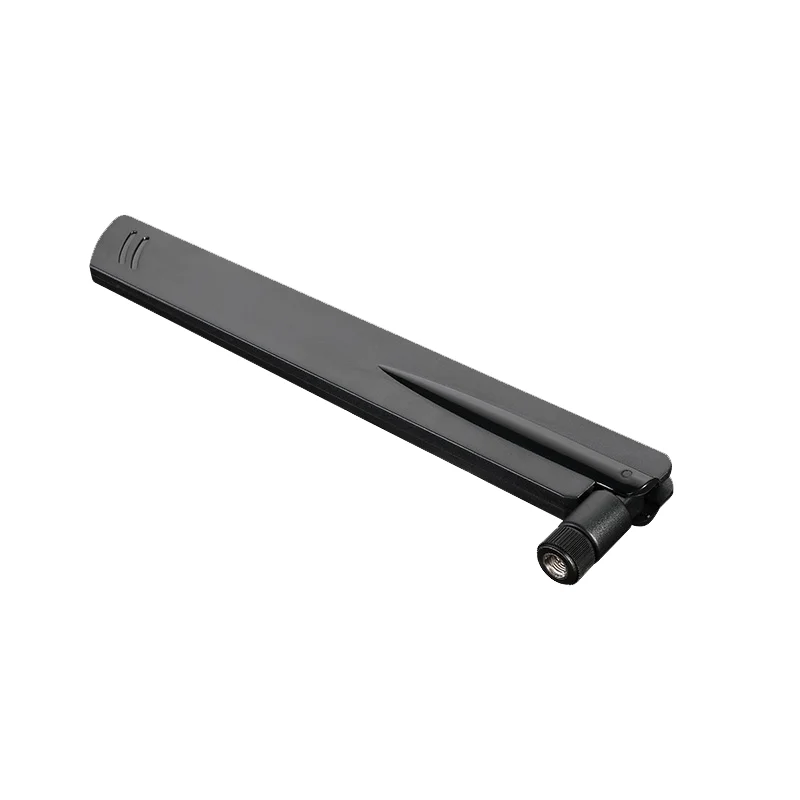

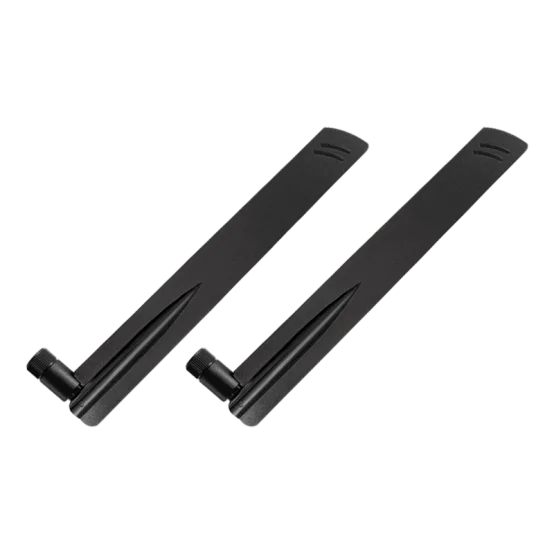

698-3800MHz 2.5dBi Gain Multi-Band Vertical Omni Antenna for 4G 5G Small Cell IoT Applications

698-3800MHz 2.5dBi Gain Multi-Band Vertical Omni Antenna for 4G 5G Small Cell IoT Applications

Description

[email protected]

Description

Product Description

1. Wide Multi-Band Frequency Coverage
Supports 698-960MHz, 1710-2700MHz, and 3300-3800MHz bands, compatible with 4G/LTE and 5G networks in a single compact antenna.

2. True 360° Omnidirectional Pattern
Provides uniform horizontal coverage with 65° vertical beamwidth, ideal for general coverage applications in various environments.

3. Compact and Lightweight Design
With dimensions of 220×20mm and weighing only 0.2kg, this antenna offers minimal visual impact while maintaining reliable performance.

4. Durable ABS Radome Construction
Features ABS material radome in white color, providing excellent weather resistance and UV protection for long-term outdoor use.

5. Easy Installation with Standard Connector
Equipped with SMA-J connector and designed for machine platform installation, offering simple deployment and compatibility with various equipment.

Product Detail

Frequency Range - MHz	698 - 960	1710 - 2700	3300 - 3800
Polarization Mode	Vertical
Voltage Standing Wave Ratio	≤2.5
Gain - dBi	2.5
Half - Power Beamwidth (°)	H: 360 V: 65
Maximum Power - W	5
Input Impedance - Ω	50
Lightning Protection	DC
Mechanical Indicators
Connector Type	SMA - J
Antenna Dimension - mm	220×20
Antenna Weight - kg	0.2
Windward Area - m²	0.01
Limit Wind Speed - m/s	60
Radome Material	ABS
Operating Temperature - °C	- 40 ~ 55
External Color	White
Installation Method	Installed on the machine platform
