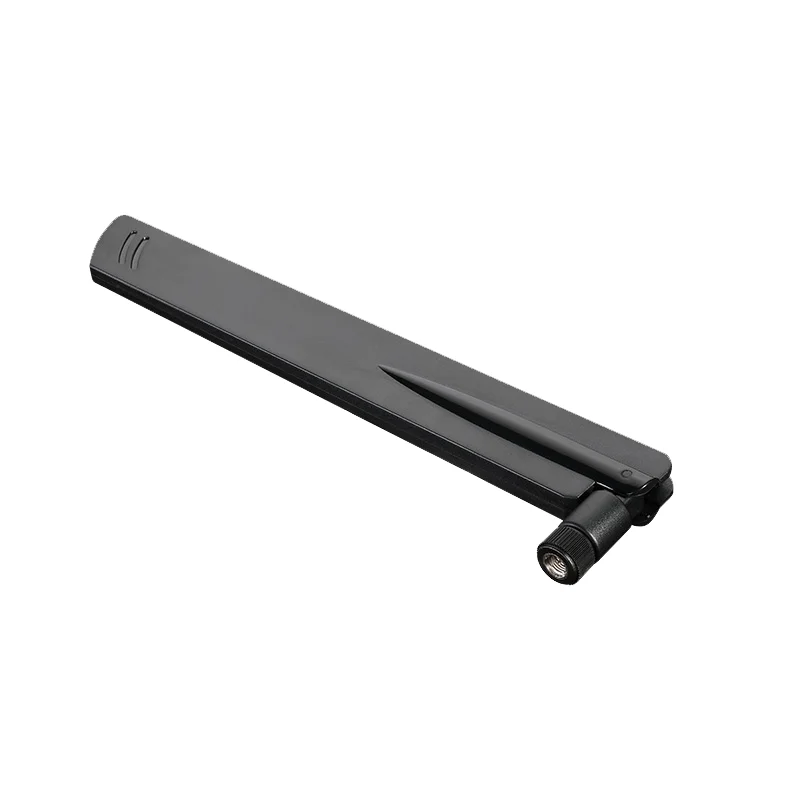

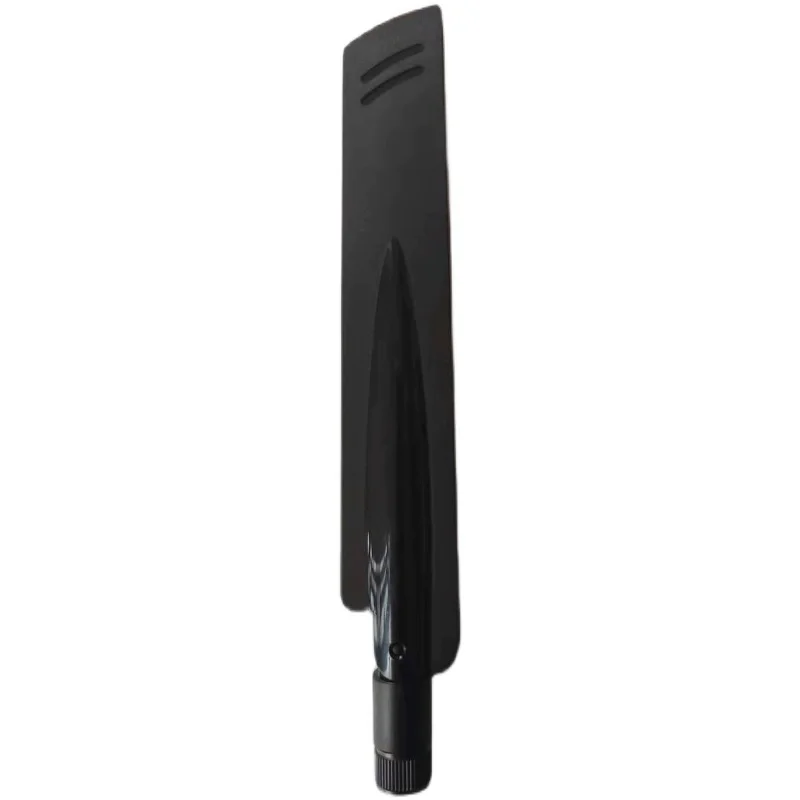

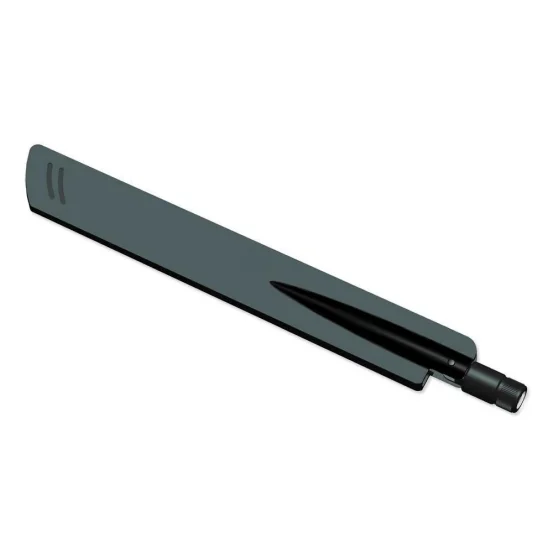

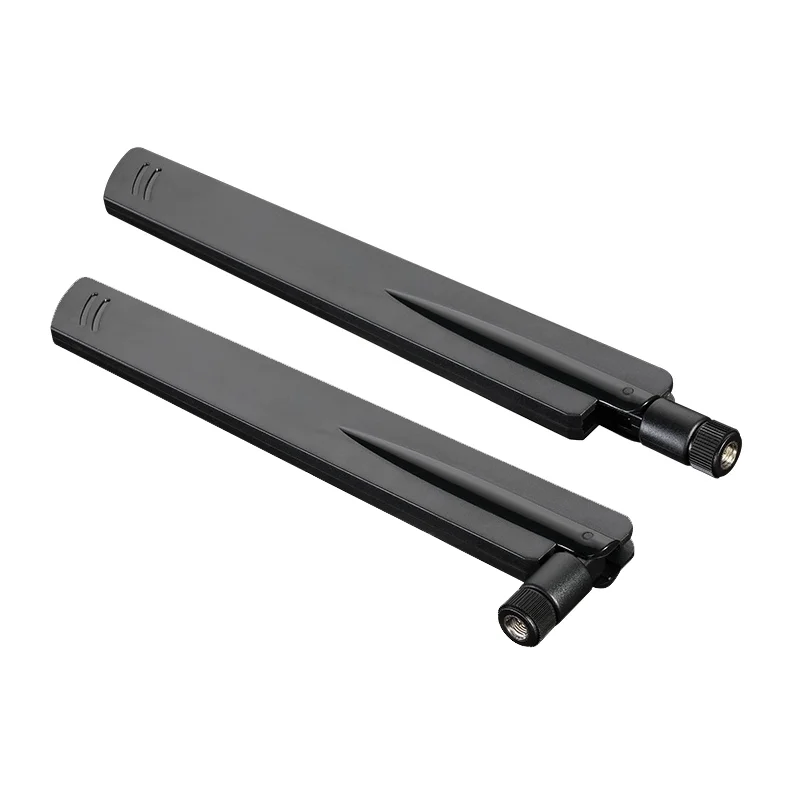

698-5000MHz Wide Coverage SMA-J Connector Multi-Band Omnidirectional Terminal Antenna for Mobile Router CPE Equipment

698-5000MHz Wide Coverage SMA-J Connector Multi-Band Omnidirectional Terminal Antenna for Mobile Router CPE Equipment

Description

[email protected]

Description

Product Description

1. Ultra-Wide Frequency Coverage
Supports 698-960MHz, 1400-1500MHz, 1710-2690MHz, and 3300-5000MHz bands, compatible with 4G, 5G, and IoT systems worldwide

2. True 360° Omnidirectional Pattern
Maintains consistent horizontal coverage with ±1.5° non-circularity, ensuring stable signal reception from all directions

3. Robust Environmental Protection
IP65 waterproof rating, salt spray resistance (96 hours per GB/T 2423.17), and operating temperature from -40°C to +70°C

4. Compact & Flexible Installation
Small dimensions (Φ13×195mm) with bendable bottom design for direct equipment mounting and space-constrained applications

5. Broad Compatibility & Reliable Performance
Standard SMA-J connector and optimized VSWR (≤3.5) across all supported frequency bands ensure easy integration and stable operation

Product Detail

Electrical Indicators
Frequency (MHz)	698 - 960	1400 - 1500	1710 - 2690	3300 - 5000
Polarization	Vertical
Gain (dBi)	≥ -0.2	2 - 2.4	2~3	2.1 - 4.7
Horizontal Plane Non - circularity (°)	± 1.5
Horizontal Plane Beamwidth (°)	360
Vertical Plane Beamwidth (°)	70
Input Impedance (Ω)	50
VSWR	≤ 3.5	≤ 3.5	≤ 3.0	≤ 3.0
Power Handling (W)	20
Mechanical Parameters
Connector Type	SMA - J
Connector Position	Bottom
Dimension (mm)	Φ13×195
Antenna Color	Black
Waterproof Grade	IP65
Operating Temperature (°C)	- 40 ~ + 70
Salt Spray Resistance	96 hours of neutral salt spray (GB/T 2423.17 - 2008)
Wind Resistance (m/s)	45
Installation Method	The bottom can be bent for direct equipment use
