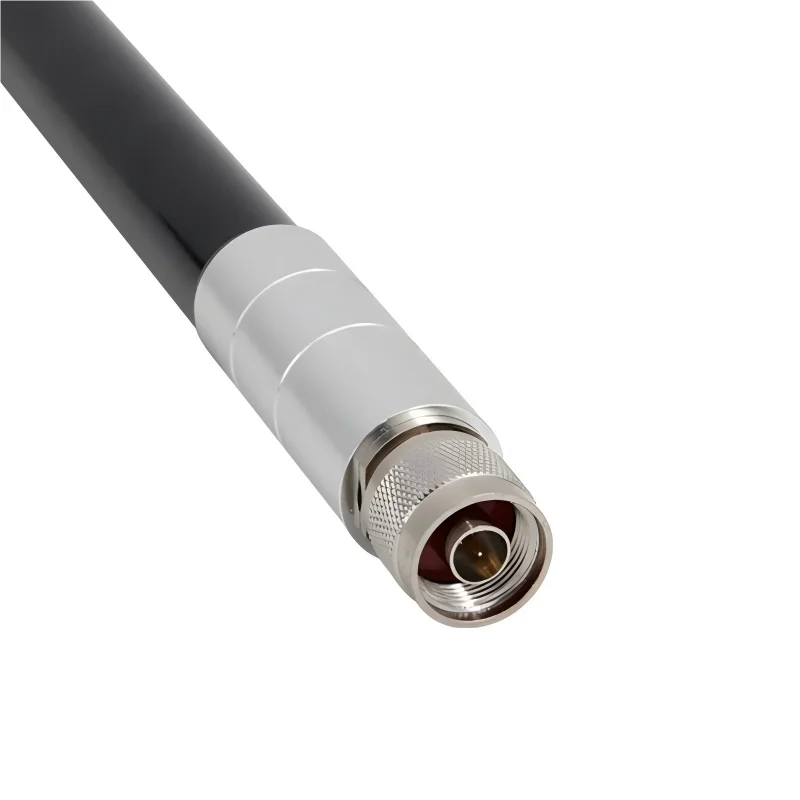

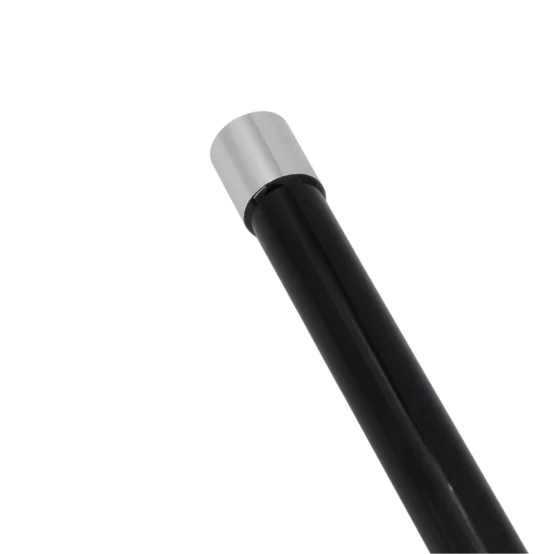

YW-QB58V7AW Fiberglass Omnidirectional Base Station Antenna |
|||
Technical Specifications |
QB58V7AW |
||
Frequency Range (MHz) |
5150～5850 |
5150～5850 |
|
Bandwidth (MHz) |
700 |
700 |
|
Polarization |
Vertical |
||
Gain (dBi) |
7 |
10 |
|
Input Impedance (Ω) |
50 |
11 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
||
Maximum Power (W) |
50 |
||
Connector Type |
N Male |
||
Antenna Length (cm) |
30 |
||
Antenna Weight (kg) |
Approximately 0.3 |
||
Cover Material |
Fiberglass (Gray) |
||
Ultimate Wind Speed (m/s) |
60 |
||
Mounting Method |
Used with magnetic suction cup mounts |
||
