RJ45 port |

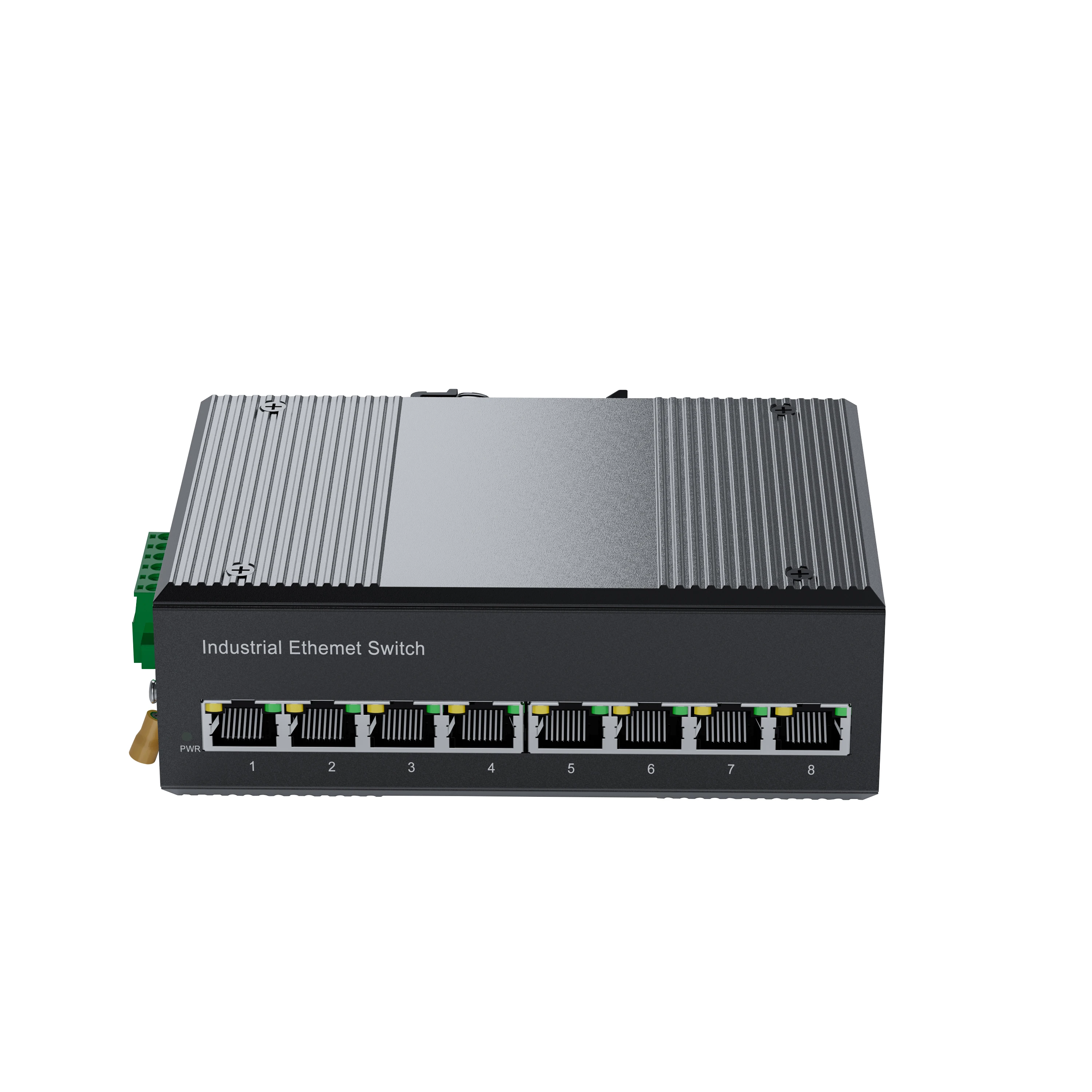

8* 10/100/1000Base-T (automatic detection) Full/Half Duplex MDI/MDI-X (Adaptive) Transmission distance: ≤ 100 meters |
Network Protocol |
IEEE802.3 - CSMA/CD； IEEE802.3i - 10Base-T； IEEE802.3u - 100Base-TX/FX； IEEE802.3x - Flow Control; IEEE802.3z - 1000Base-X； IEEE802.3ab - 1000Base-T； |
Work Environment |
Working temperature: -40~85 ℃ (-40~185 ° F) Storage temperature: -40~85 ℃ (-40~185 ° F) Relative humidity: 5% to 95% (no condensation) |
Power Interface |

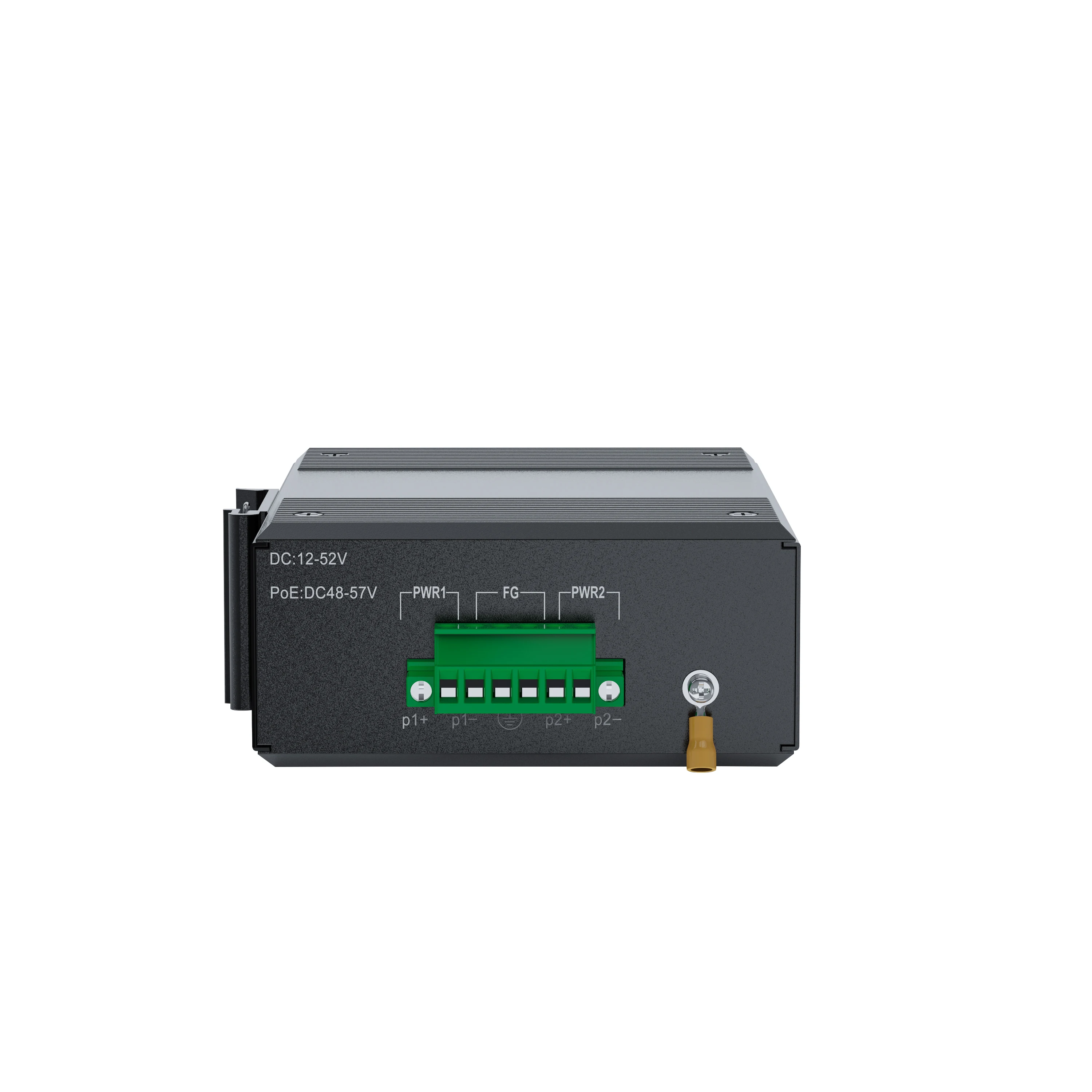

Input voltage: DC12-52V (non-PoE) Access terminal: 4-core terminal with 5.08mm spacing Supports dual power supply redundancy supporting reverse protection |
Switch Properties |
Application level: Level 2 Backplane bandwidth: 16Gbps Complete package forwarding rate: 11.904Mpps MAC table: 2K Package buffer: 1M Delay time:<3 μ s Exchange method: store forward Power consumption of the whole machine:<3W (non PoE) |
Mechanical Properties |

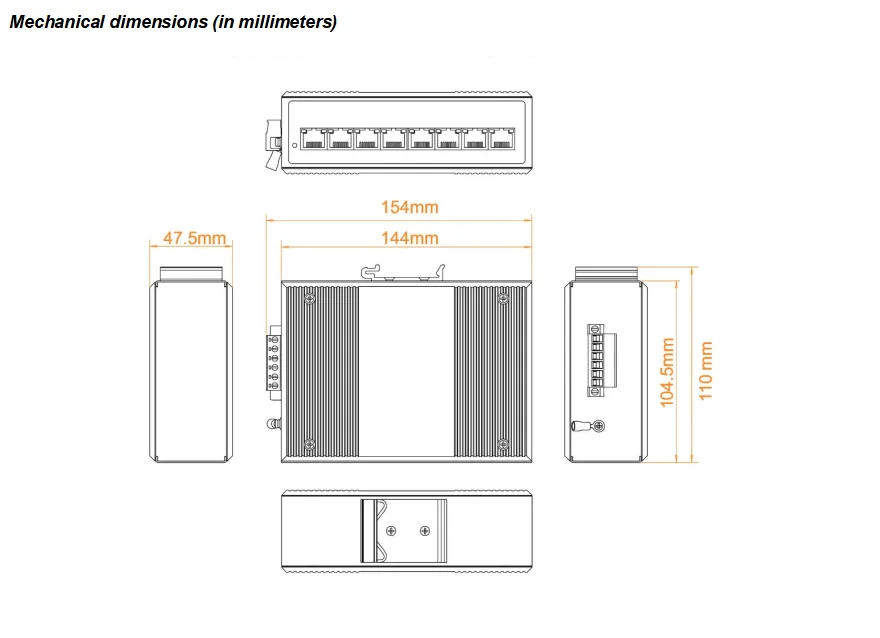

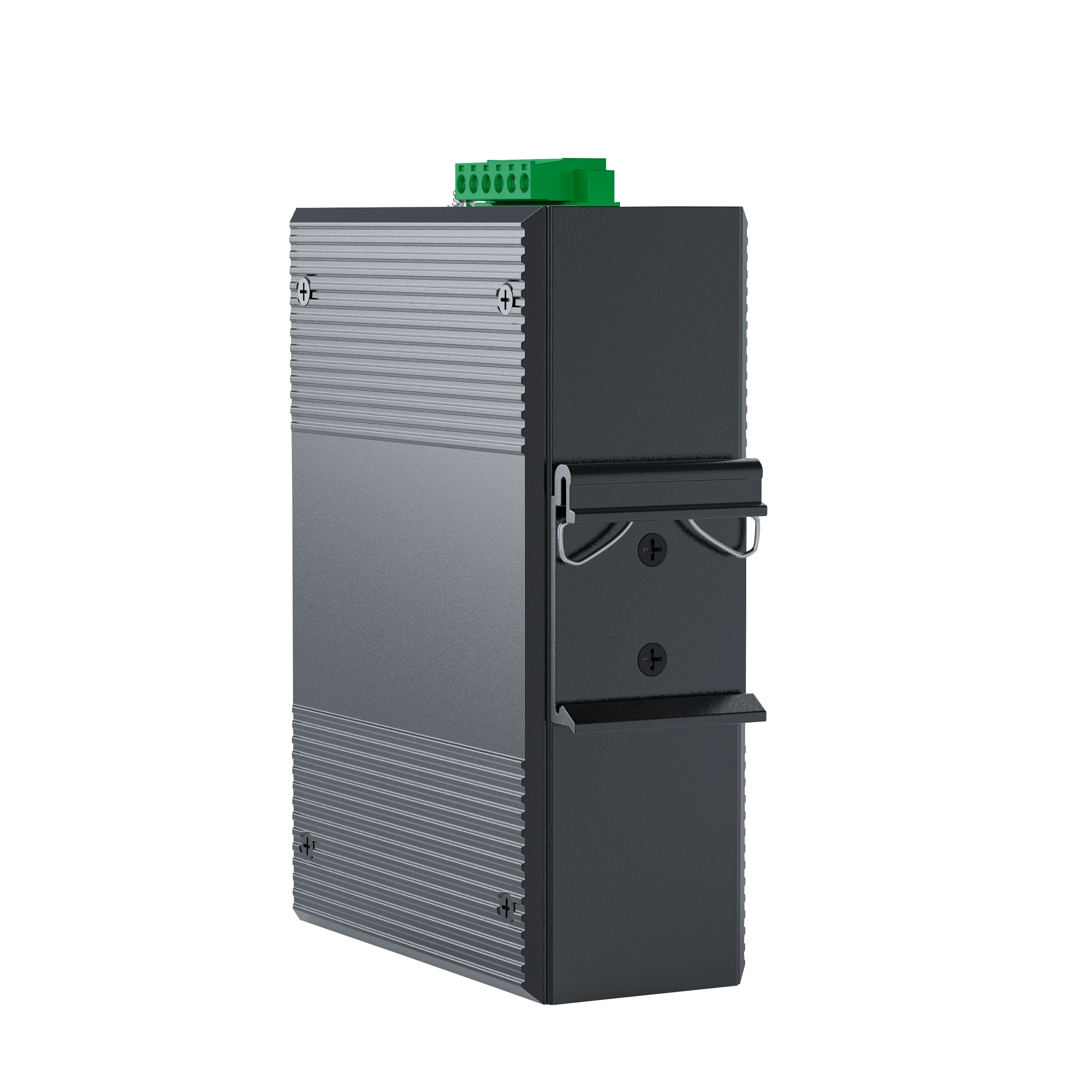

Shell: IP40 protection level, aluminum alloy metal shell Installation: DIN rail type, wall mounted installation Heat dissipation method: natural cooling, fanless Machine weight: 0.50Kg Whole machine including packaging weight: 0.60kg Product size: 144*104.5*47.5mm （L* W *H） |
LED Indicators |
Power indicator: PWR (red light) Port indicator: Yellow (Link/ACT) / Green (PoE) |
Authentication |
CE, FCC, RoHS, ISO9001, Ministry of Public Security inspection report, telecom grade network access license, Vettel testing report |
MTBF |
300000 hours |
Warranty |
5 years |
Industry standards |
EMI:
FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV
IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6(CS): 10V(150kHz～80MHz) IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
