Product Description

Product Features

1.Provide 4* 10/100/1000Base-T and 2 * 1000Base-X optical port,1*9module 2.ERPS/STP/RSTP/MSTP/QOS/SNMP（V1、V2、V3） 3.Capable of operating within a wide temperature range of -40 ℃ to 85 ℃ 4.IP40 protection level, fanless design, natural cooling 5.Aluminum alloy metal shell, DIN rail installation or wall mounting (optional) 6.Dual power supply DC12-52V, 6-core 5.08mm pitch terminal block 7.Anti static electricity (ESD) air ± 15KV contact ± 8KV 8.Network port lightning protection: common mode ± 4kV, differential mode ± 2kV 9.VLAN/DHCP/STP/RSTP/IGMP/QOS/WEB/Port Isolation/Port Mirroring

Product Overview

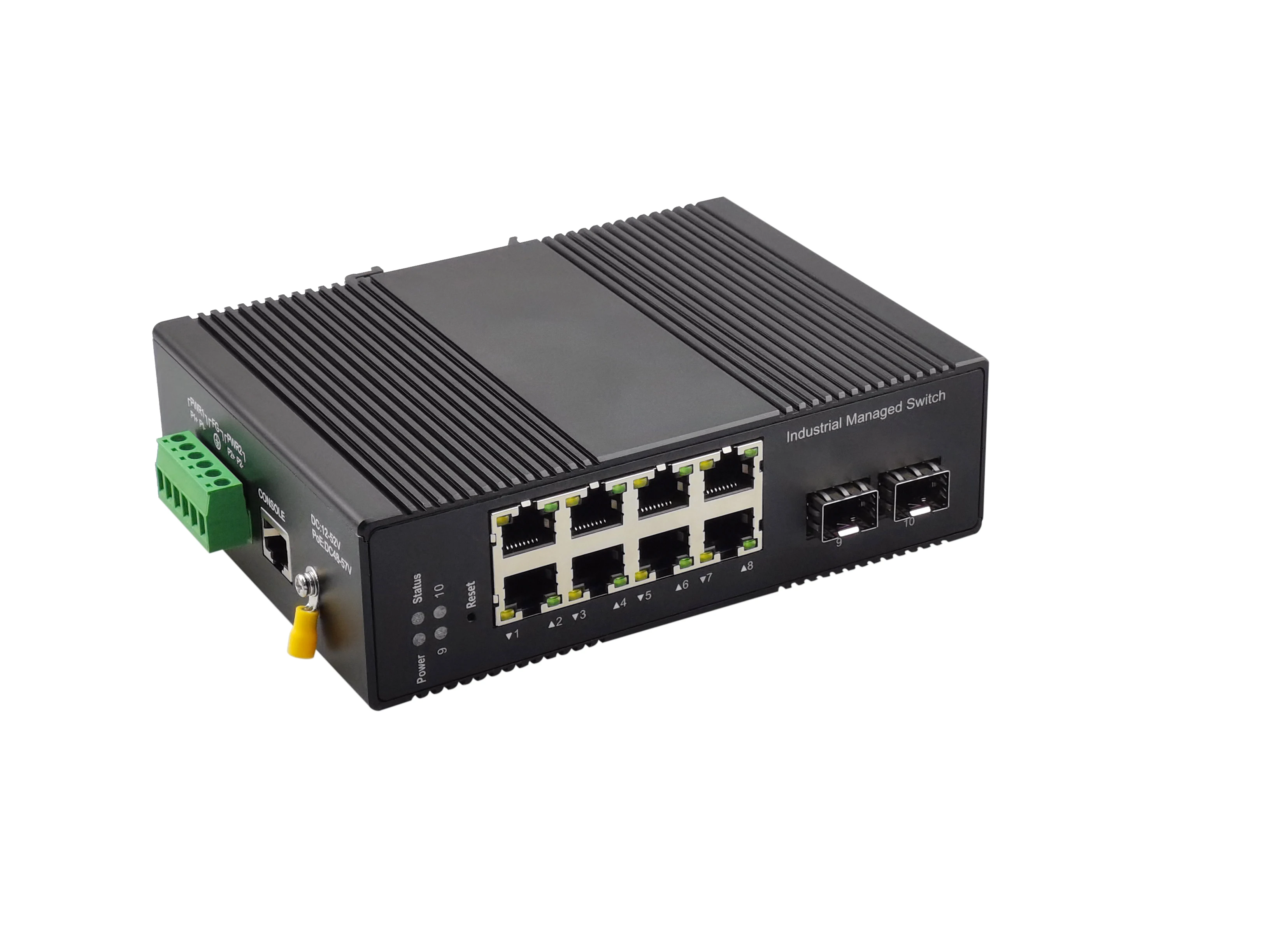

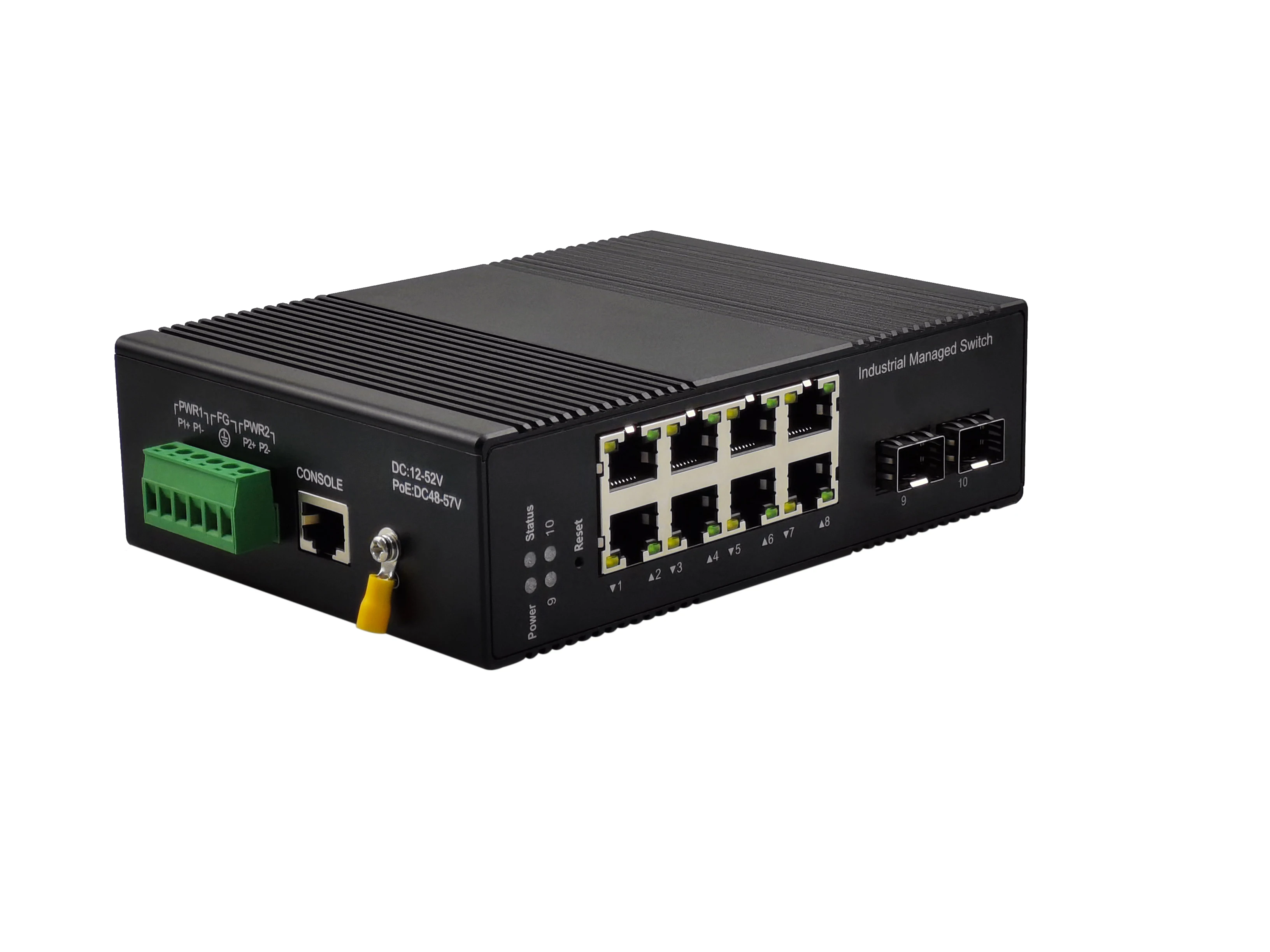

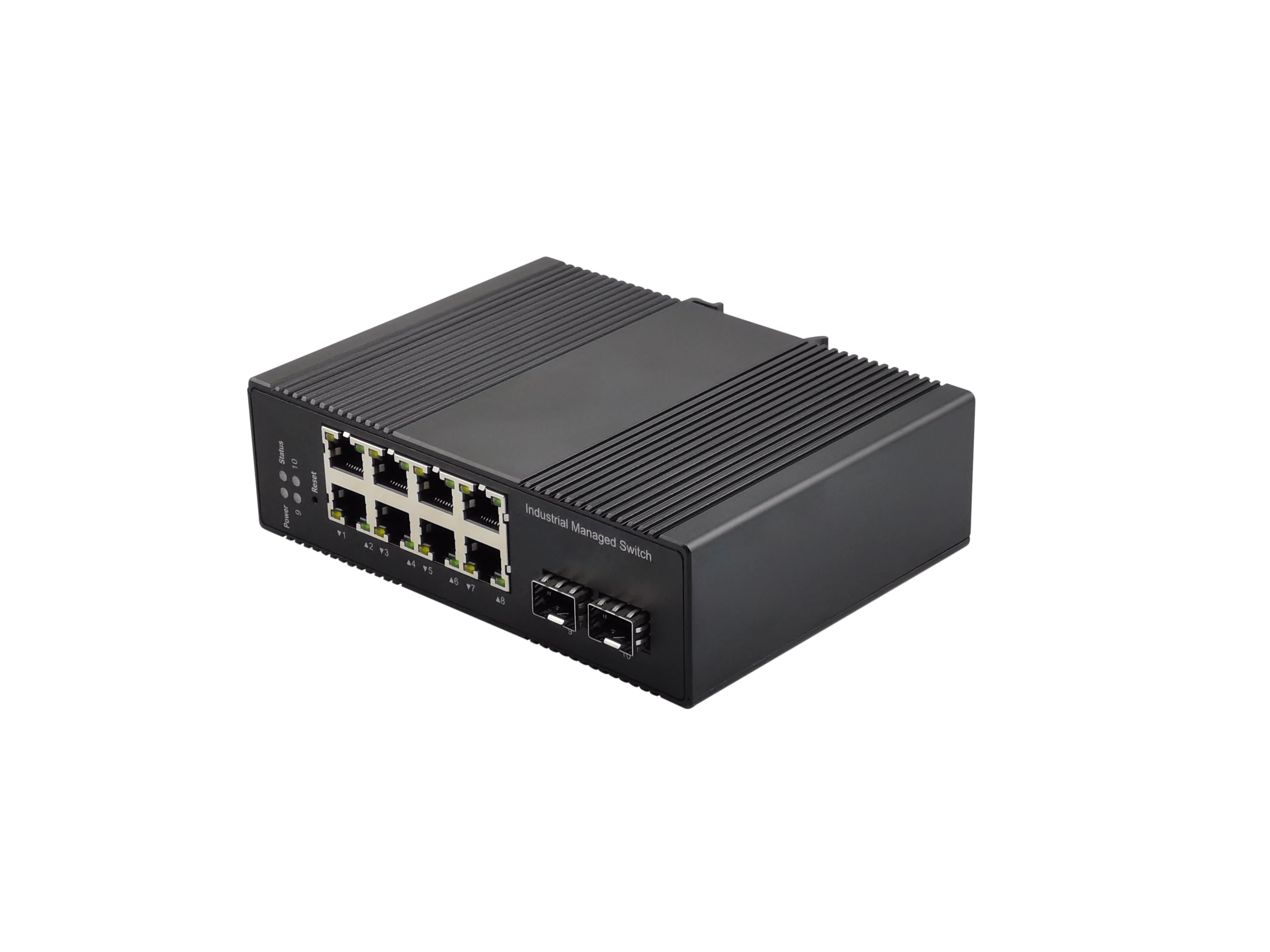

YW- ZT-IE6251-8GT2GS industrial-grade Ethernet transceiver, supporting 8*10/100/1000Base-T and 2* 1000Base-X optical port. Products comply with FCC, CE, ROHS standards. The industrial Ethernet transceiver has an operating temperature of -40°C to 85°C and can adapt to harsh outdoor cabinet environments. It has rail mounting features, IP40 protection level, and LED indicators, QoS ,making it a plug-and-play industrial-grade device. In short, the industrial Ethernet transceiver provides reliable and reliable solutions for various industrial environments with its excellent performance and design. Efficient networking solutions. With the rapid development of industrial scenarios such as smart manufacturing, smart mining, and smart transportation, industrial Ethernet transceivers will be used more and more widely, making important contributions to the realization of Industry 4.0.

Prices subject to sales rep’s quotation (exchange rate fluctuations).
RJ45 port	8 * 10/100/1000Base-T (automatic detection) Full/Half Duplex MDI/MDI-X (Adaptive) Transmission distance: ≤ 100 meters
Optical port characteristics	2* 1000Base-X Multimode: 850nm (transmission distance 0~550M), 50μm/125μm&62.5μm/125μm Single mode: 1310nm (transmission distance 3~40KM), 1550nm (transmission distance 0~120KM), 9.5μm/125μm
Network Protocol	IEEE802.3 - CSMA/CD； IEEE802.3i - 10Base-T； IEEE802.3u - 100Base-TX/FX； IEEE802.3x - Flow Control; IEEE802.3z - 1000Base-X； IEEE802.3ab - 1000Base-T；
Work Environment	Working temperature: -40~85 ℃ (-40~185 ° F) Storage temperature: -40~85 ℃ (-40~185 ° F) Relative humidity: 5% to 95% (no condensation)
Power Interface	Input voltage: DC12-52V (non-PoE) Connection terminal: 6-core 5.08mm spacing wiring terminal Support dual power redundancy Support reverse protection
Switch Properties	Application level: Level 2 Backplane bandwidth: 20Gbps Complete package forwarding rate:14.88Mpps MAC table: 8K Package buffer: 2M Delay time:<3 μ s Exchange method: store forward Power consumption of the whole machine:<6W (non PoE)

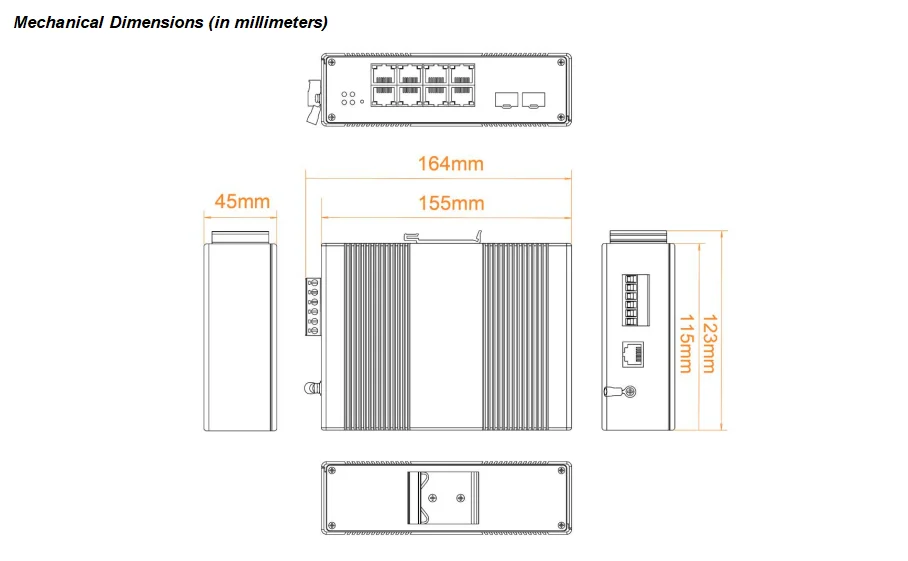

Mechanical Properties	Shell: IP40 protection level, aluminum alloy metal shell Installation: DIN rail type, wall mounted installation Heat dissipation method: natural cooling, fanless Machine weight: 0.85Kg Whole machine including packaging weight: 0.95kg Product size: 15511545mm （L* W *H）
LED Indicators	Power indicator light: PWR (red light) Light port indicator light: 9-10 (green light) Network port indicator light: yellow light (Link/ACT) green light (PoE)） System status indicator: Status
Restart button	Reset
Authentication	CE, FCC, RoHS, ISO9001, Ministry of Public Security inspection report, telecom grade network access license, Vettel testing report
MTBF	300000 hours
Warranty	5 years
Industry standards	EMI: FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz～80MHz) IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration)
Software Parameters
Network topology	Supports Ring topology Supports Star topology Supports Bus topology Supports Tree topology Supports Hybrid topology
PoE support(Optional)	Supports PoE Management PoE port 1-8 PoE Protocol 802.3af, 802.3at PoE pin allocation (Pin Assignment) 12+, 36- PoE Management Mode Support
Layer 2 switching	Support MDI/MDIX VLAN support and quantity (VLAN) 256 GVRP support Protocol VLAN support Voice VLAN support Video VLAN (Surveillance VLAN) support MAC VLAN support Ether channel/802.3ad support LACP support Interface Speed support Duplex Mode support Flow Control support Jumbo frame support DHCP Client support SNTP Client support Port Statistics support Protected Ports support EEE support ERPS support LLDP support LLDP 802.1 TLV support MSTP / RSTP / STP support STP BPDU Filter support STP BPDU guard support STP Port Fast support IGMP Snooping support MLD Snooping support MVR support
Layer 3 Function	IPV4 management address support IPV6 management address support Static Routes IPv4 support Static Routes IPv6 support Address Resolution Protocol (ARP) support Loop back Interface support DHCP Server support DNS Server support
Aggregation services	Access Control List (ACL) Support MAC standard/extended ACL Support IPV4 standard/extended ACL Support IPV6 standard/extended ACL Quality of Service (QOS) Support QOS remarking Support port trust Support port speed limit Support export queue rate limit Support SP, WRR scheduling algorithm Support COS mapping, DSCP mapping, IP priority mapping
Management Features	User Management (User Management) support System log (System Log) support Firmware upgrade (Upgrade Firmware) support File upgrade (Configuration File Download/Upload) support SNMP supports SNMP V1/V2/V3 WEB management support; Command line (CLI) support Telnet/SSH support; RMON support
Safety	Management channel configuration support AAA certification supported 802.1X authentication supported MAC-Based authentication supported WEB-Based certification supported DoS attack prevention support Dynamic ARP check supported DHCP snooping support IP Source Guard support Port Security Support Protected Ports supported Storm control support
Equipment Diagnosis	RAM log support ;Flash log support Port mirroring supports 1:1 or 1:M Ping support;Trace route support Electrical port test support Optical module information support UDLD protocol supported
