Electrical Specifications |
||
Operating Frequency Band (MHz) |
2×(1710~2170) |
|
Polarization (°) |
±45 |
|
Electrical Downtilt (°) |
13-25 |
|
Electrical Downtilt Accuracy (°) |
±1 |
|
VSWR of Each Radiating Port |
≤1.4 |
|
Third-Order Intermodulation (dBm, @2×43dBm) |
≤-110 |
|
Average Power Handling Capacity (W) |
≥250 |
|
Isolation (dB) |
≥28 |
|
Horizontal Half-Power Beamwidth (°) |
65±5 |
|
Vertical Half-Power Beamwidth (°) |
7±1 |
|
Gain (dBi) |
17.5 |
|
Cross-Polarization Ratio (dB, Axial) |
≥15 |
|
Cross-Polarization Ratio (dB, Within ±60°) |
≥10 |
|
Front-to-Back Ratio (dB, 180°±30°) |
≥25 |
|
Upper Side Lobe Suppression (dB) |
≥15 |
|
Mechanical Specifications |
||

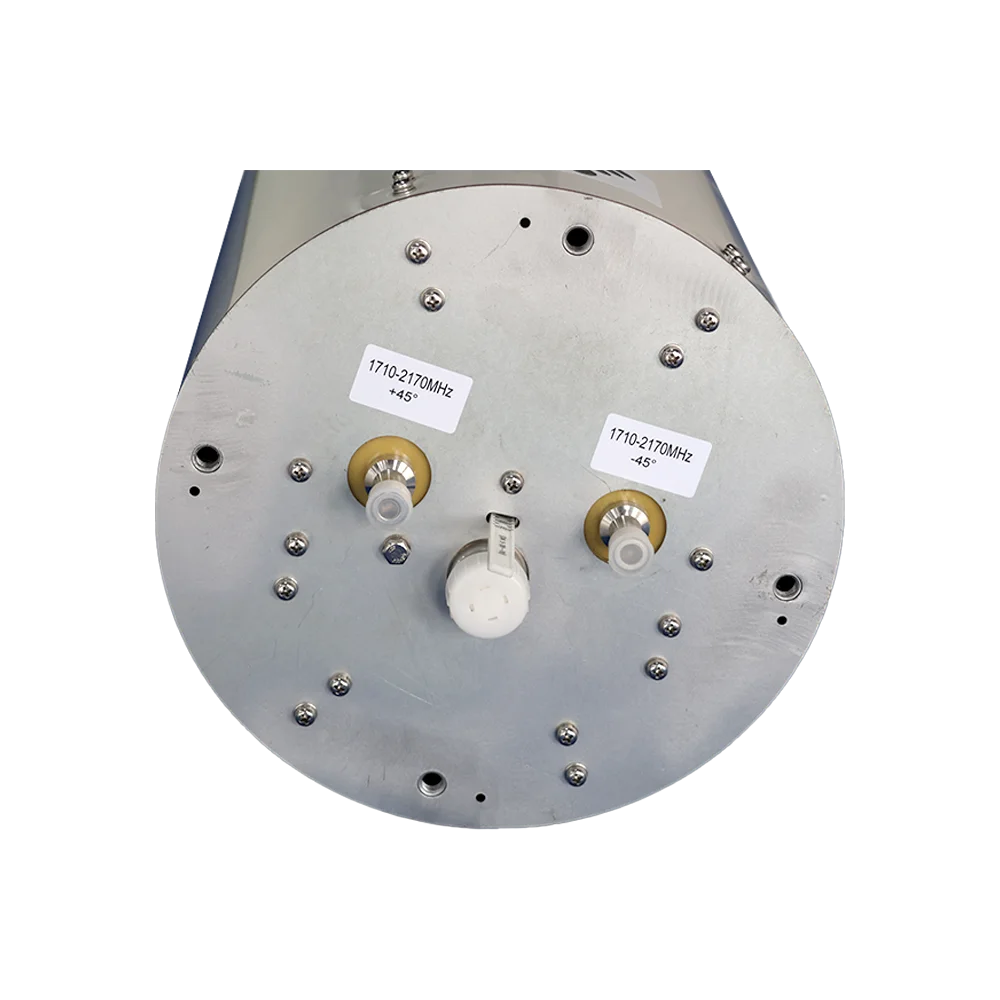

Connector Model |
4×7/16 DIN-Female |
|

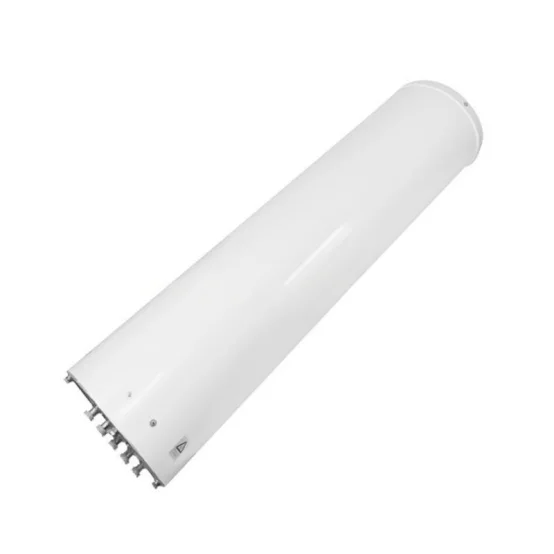

Antenna Dimensions (mm) |
≤Φ280×1400 |
|
Packaging Dimensions (mm) |
1535×335×335 |
|
Antenna Weight (kg) |
14.67 |
|
Radome Material |
UPVC |
|
Electrical Tilt Adjustment Method |
Manual |
|
Maximum Wind Speed (km/h) |
200 |
|
Ambient Temperature (°C) |
Operating Temperature: -40~+60; Extreme Temperature: -55~+75 |
|
Ice Loading Resistance |
Undamaged with 10mm ice coating |
|
Lightning Protection |
DC Grounding |
|
