Introducing, the Customizable 440VAC-520VAC 5A-150A Terminal with Special Output EMC Filter for Frequency Inverter LV Products from Yoongwin. This innovative product is designed to provide exceptional performance and reliability for a wide range of applications.
The Yoongwin Terminal is highly customizable, allowing users to tailor it to their specific needs. With a voltage range of 440VAC-520VAC and an amperage range of 5A-150A, this terminal is suitable for a variety of frequency inverter LV products. Whether you have a small-scale project or a large industrial application, this terminal can be customized to meet your requirements.
One of the standout features of this terminal is its special output EMC filter. This filter helps to reduce electromagnetic interference, ensuring that your equipment operates smoothly and efficiently. By minimizing interference, the terminal helps to improve the overall performance of your frequency inverter LV products.
Durability is another key consideration when it comes to the Yoongwin Terminal. Built to withstand the rigors of everyday use, this terminal is made from high-quality materials that are designed to last. With solid construction and reliable components, you can trust that this terminal will provide long-lasting performance.
Easy to install and use, the Yoongwin Terminal is a user-friendly solution for your frequency inverter LV products. With clear instructions and intuitive design, you can quickly and easily set up this terminal for seamless integration into your system. Whether you are a seasoned professional or a novice user, you will appreciate the simplicity and efficiency of this product.
The Yoongwin Customizable 440VAC-520VAC 5A-150A Terminal with Special Output EMC Filter for Frequency Inverter LV Products is a top-of-the-line solution for your power distribution needs. With its customizable design, special output EMC filter, and durable construction, this terminal offers unmatched performance and reliability. Trust Yoongwin to provide the quality and efficiency you need for your frequency inverter LV products
Maximum operating voltage （VAC） |
Operating frequency Hz |
Hipot test voltage
P - N(VDC) P - E - VDC
|
Operating temperatureHz |
Minimum insulation resistance |
|||||
400VAC~520VAC |
0 - 200 |
2150 2700 |
25/85/21 |
>200M@500VDC |

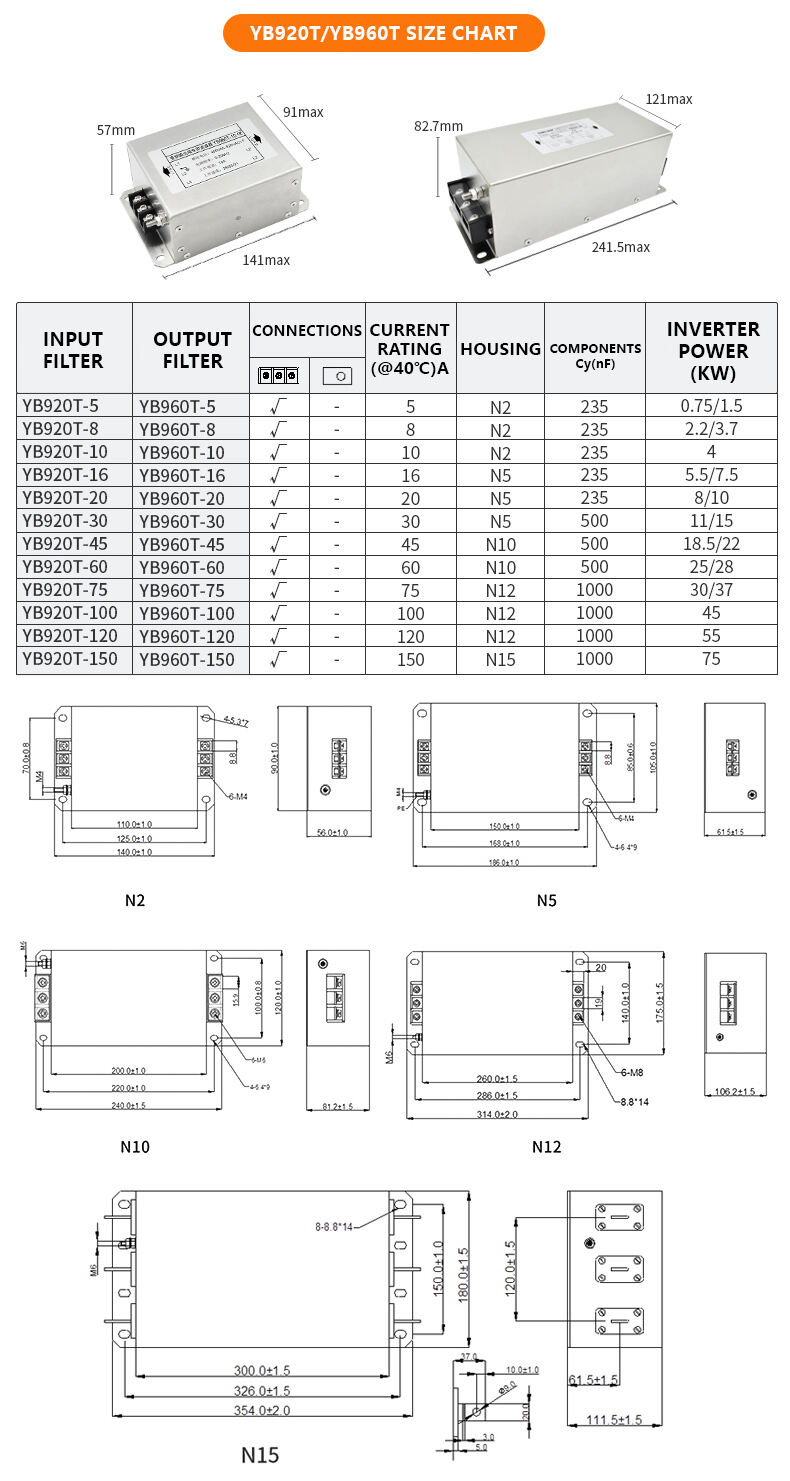

Product Model |
Connections - Type1 |
Connections - Type2 |
Current rating @40℃ |
Components - Cy - nF |
Inverter power - KW |
Housing |
YB960T-5 |
---- |
√ |
5A |
235 |
0.75/1.5 |
N2 |
YB960T-8 |
---- |
√ |
8A |
235 |
2.2/3.7 |
N2 |
YB960T-10 |
---- |
√ |
10A |
235 |
4 |
N2 |
YB960T-16 |
---- |
√ |
16A |
235 |
5.5/7.5 |
N5 |
YB960T-20 |
---- |
√ |
20A |
235 |
8.0/10.0 |
N5 |
YB960T-30 |
---- |
√ |
30A |
500 |
11.0/15.0 |
N5 |
YB960T-45 |
---- |
√ |
45A |
500 |
18.5/22 |
N10 |
YB960T-60 |
---- |
√ |
60A |
500 |
25/28 |
N10 |
YB960T-75 |
---- |
√ |
75A |
1000 |
30/37 |
N12 |
YB960T-100 |
---- |
√ |
100A |
1000 |
45 |
N12 |
YB960T-120 |
---- |
√ |
120A |
1000 |
55 |
N12 |
YB960T-150 |
---- |
√ |
150A |
1000 |
75 |
N15 |
