Output filtering for LV Frequency Inverters driving motors in:
CNC machines, robotics, and precision conveyors
Pumps, fans, and compressors (HVAC/industrial)
Packaging machinery and material handling systems
Systems with long motor cables (>50m) or sensitive control electronics
Renewable energy drivetrains requiring strict EMI control
Maximum operating voltage （VAC） |
Operating frequency Hz |
Hipot test voltage
P - N(VDC) P - E(VDC)
|
Operating temperatureHz |
Minimum insulation resistance |
400VAC~520VAC |
0 - 200 |
2150 2700 |
25/85/21 |
>200M@500VDC |

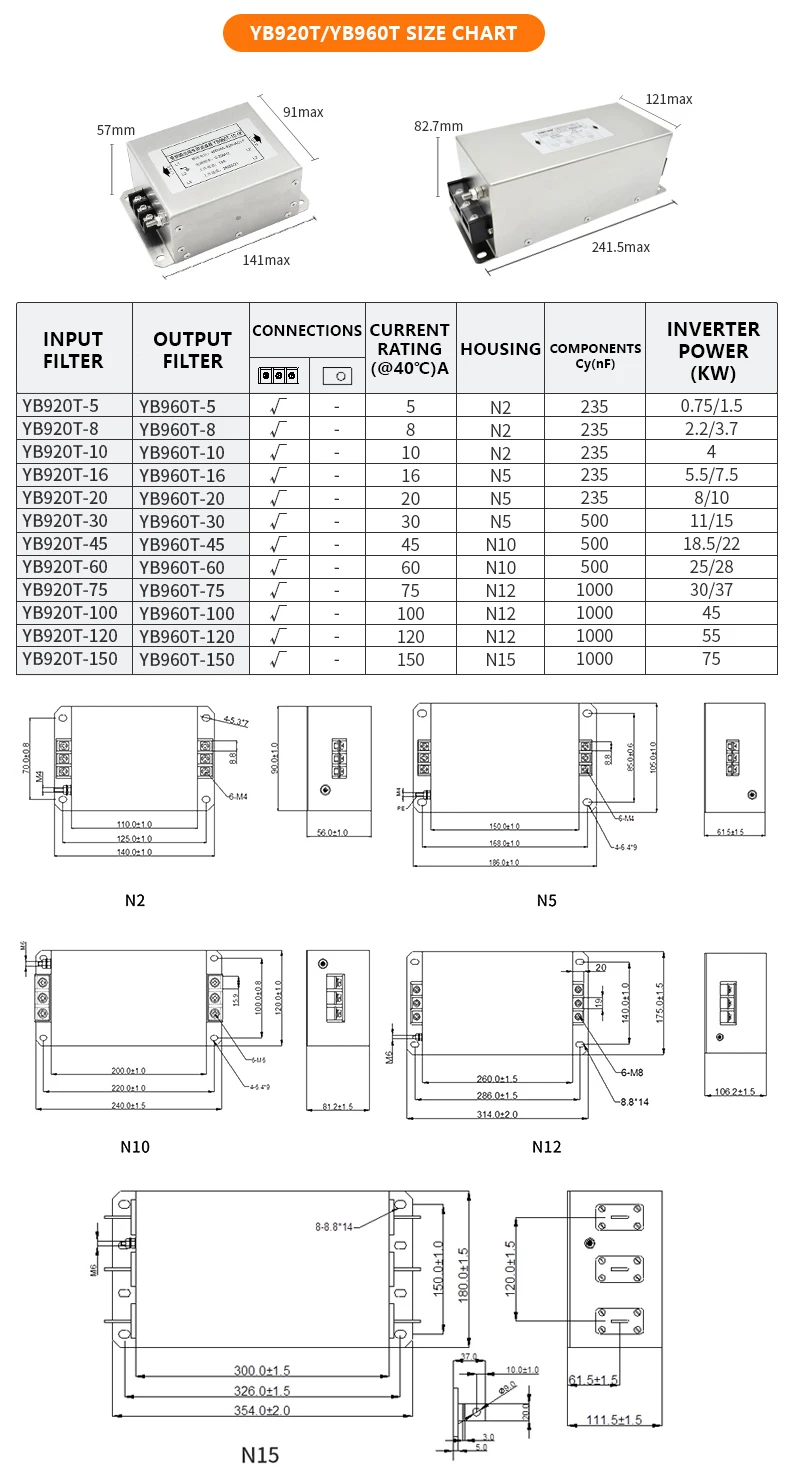

Product Model |
Connections - Type1 |
Connections - Type2 |
Current rating @40℃ |
Components - Cy(nF) |
Inverter power (KW) |
Housing |
YB960T-5 |
---- |
√ |
5A |
235 |
0.75/1.5 |
N2 |
YB960T-8 |
---- |
√ |
8A |
235 |
2.2/3.7 |
N2 |
YB960T-10 |
---- |
√ |
10A |
235 |
4 |
N2 |
YB960T-16 |
---- |
√ |
16A |
235 |
5.5/7.5 |
N5 |
YB960T-20 |
---- |
√ |
20A |
235 |
8.0/10.0 |
N5 |
YB960T-30 |
---- |
√ |
30A |
500 |
11.0/15.0 |
N5 |
YB960T-45 |
---- |
√ |
45A |
500 |
18.5/22 |
N10 |
YB960T-60 |
---- |
√ |
60A |
500 |
25/28 |
N10 |
YB960T-75 |
---- |
√ |
75A |
1000 |
30/37 |
N12 |
YB960T-100 |
---- |
√ |
100A |
1000 |
45 |
N12 |
YB960T-120 |
---- |
√ |
120A |
1000 |
55 |
N12 |
YB960T-150 |
---- |
√ |
150A |
1000 |
75 |
N15 |
