2400-2500/5150-5850MHz 2×2 MIMO Omnidirectional Antenna |
||||
Technical Specifications |
YW-M2QC-2458V8B |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Bandwidth (MHz) |
100 |
700 |
||
Polarization |
Vertical |
|||
Gain (dBi) |
8 |
10 |
||
Vertical Beamwidth (°) |
22 |
11 |
||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|||
Maximum Power (W) |
50 |
|||

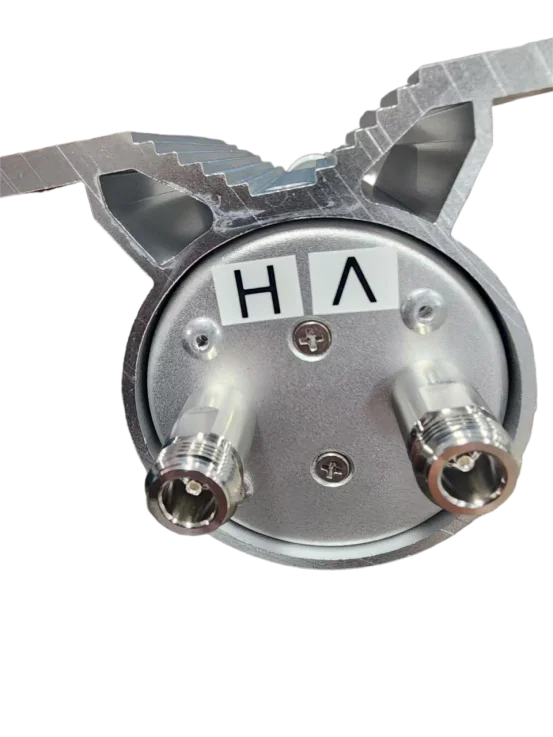

Connector Type |
2×N Female 2×2.4&5GHz Dual-band Ports |
|||
Antenna Dimensions (mm) |
Φ75×465 |
|||
Antenna Weight (kg) |
1.3 |
|||
Cover Material |
PVC (White) |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Mast Diameter (mm) |
50~90 |
|||
