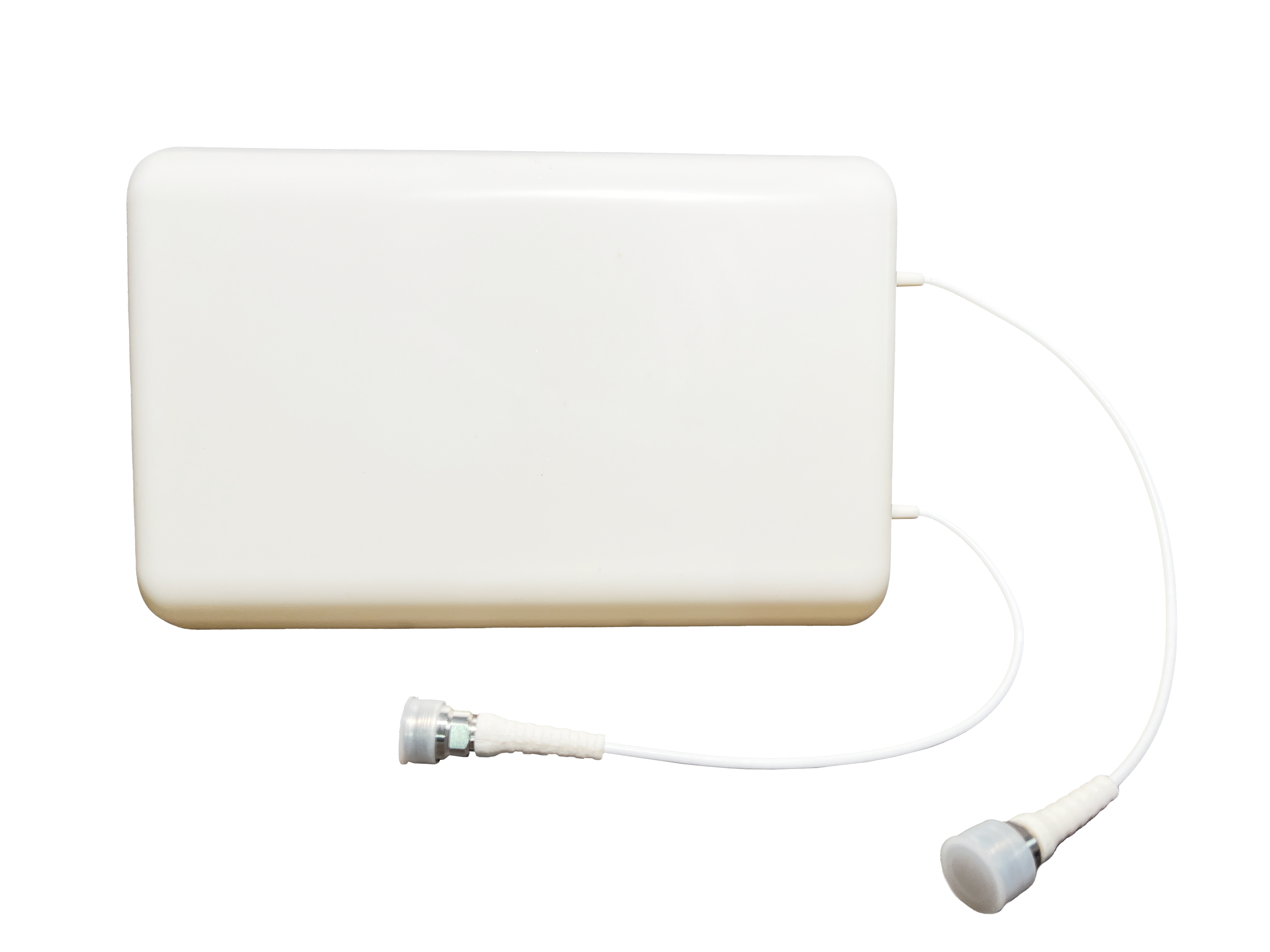

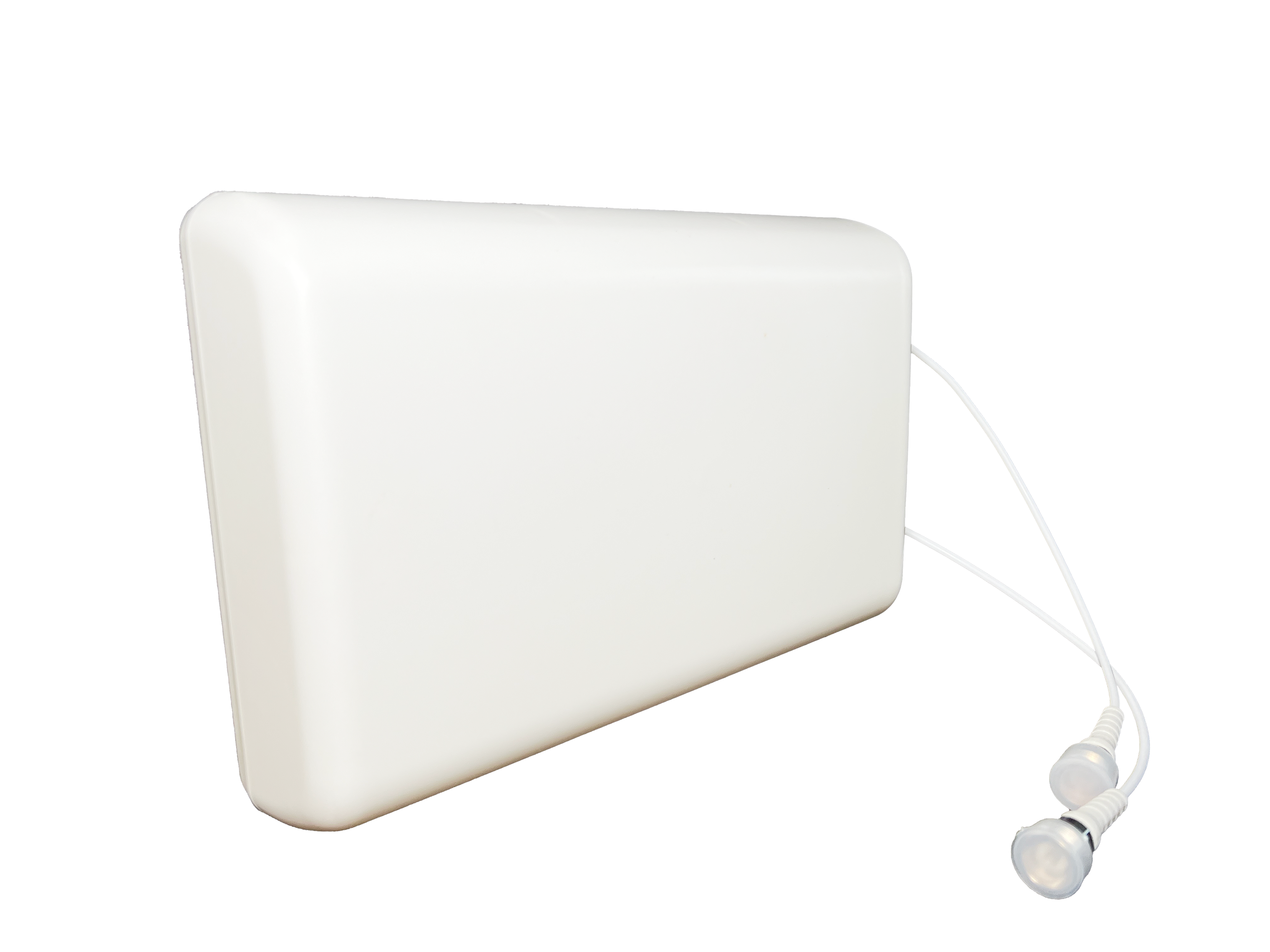

Introducing, the Yoongwin Dual-Polarized MIMO Indoor Wide-Band Panel Antenna with Lightning Protection! This innovative antenna is perfect for all your cellular application needs, providing top-notch performance and reliability.
With a 50Ω impedance, this antenna is specifically designed for use with a wide range of cellular devices, ensuring seamless connectivity and enhanced signal strength. The dual-polarized MIMO technology allows for maximum antenna efficiency, improving data transfer speeds and overall network performance.
Featuring a frequency range of 698-2700MHz, this antenna is capable of supporting a variety of cellular bands, making it suitable for use in a range of indoor environments. Whether you're looking to boost your cellular signal at home, the office, or in a commercial setting, the Yoongwin Panel Antenna has you covered.
In addition to its impressive performance capabilities, this antenna also comes equipped with built-in lightning protection. This feature ensures that your antenna is safeguarded against inclement weather conditions, giving you peace of mind knowing that your equipment is protected at all times.
Easy to install and simple to use, the Yoongwin Dual-Polarized MIMO Indoor Wide-Band Panel Antenna is the perfect solution for improving cellular signal strength and network performance. Say goodbye to dropped calls and slow data speeds – with this antenna, you'll experience reliable connectivity like never before.
Upgrade your cellular experience with the Yoongwin Panel Antenna today and enjoy fast, seamless connectivity in every indoor setting. Trust Yoongwin for all your antenna needs and experience the difference in performance and reliability
YWDSPBG698-2700X-7i-80-4310-1 |
||||
Electrical specifications |
||||
Frequency range (MHz) |
698-960 |
1710-2700 |
||
Polarization |
±45° |
|||
Gain(dBi) |
7 |
7 |
||
Horizontal half-power beam width (°) |
80±20 |
|||
Vertical half-power beam width(°) |
70 |
60 |
||
Front-To-Back Ratio |
≥15 |
|||
Isolation (dB) |
10 |
|||
VSWR |
≤1.8 |
|||
PIM, 3rd Order (dBc) |
≤-150 - 2 × 43 dBm carrier |
|||
Impedance(Ω) |
50 |
|||
Maximum input power(W) |
50 |
|||
Lightning protection |
DC ground |
|||
Mechanical specifications |
||||
Connector |
2 × 4.3-10 Female |
|||
Dimensions (H x W x D) (mm) |
300×250×100 |
|||
Net weight (with installation kit) (kg) |
≤1.8 |
|||
Application scen |
Indoor |
|||
Radome materia |
UV ABS |
|||
Operating temperature (℃) |
-40 to +55 |
|||
Mounting Kit |
On-wall |
|||
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
