Product Name |

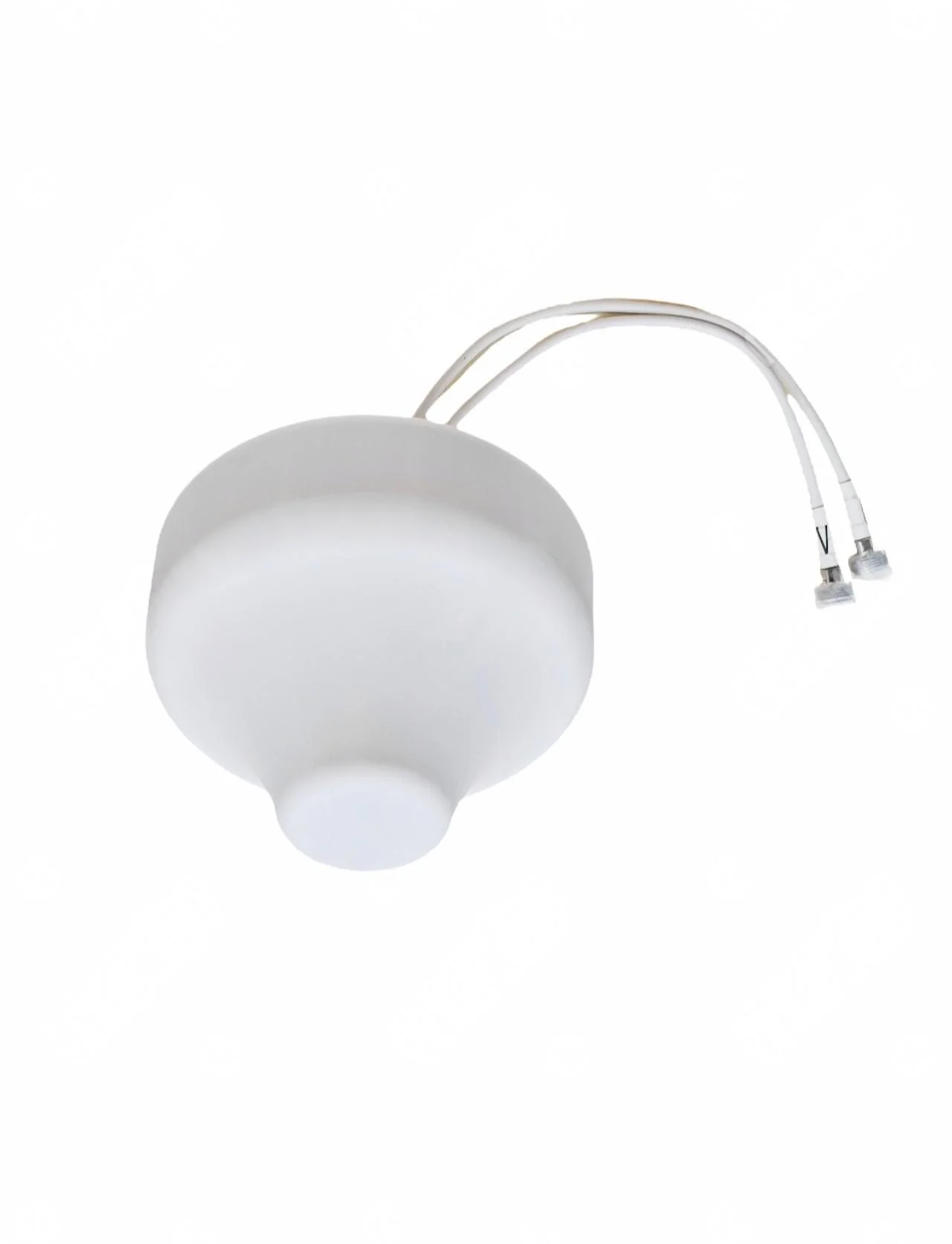

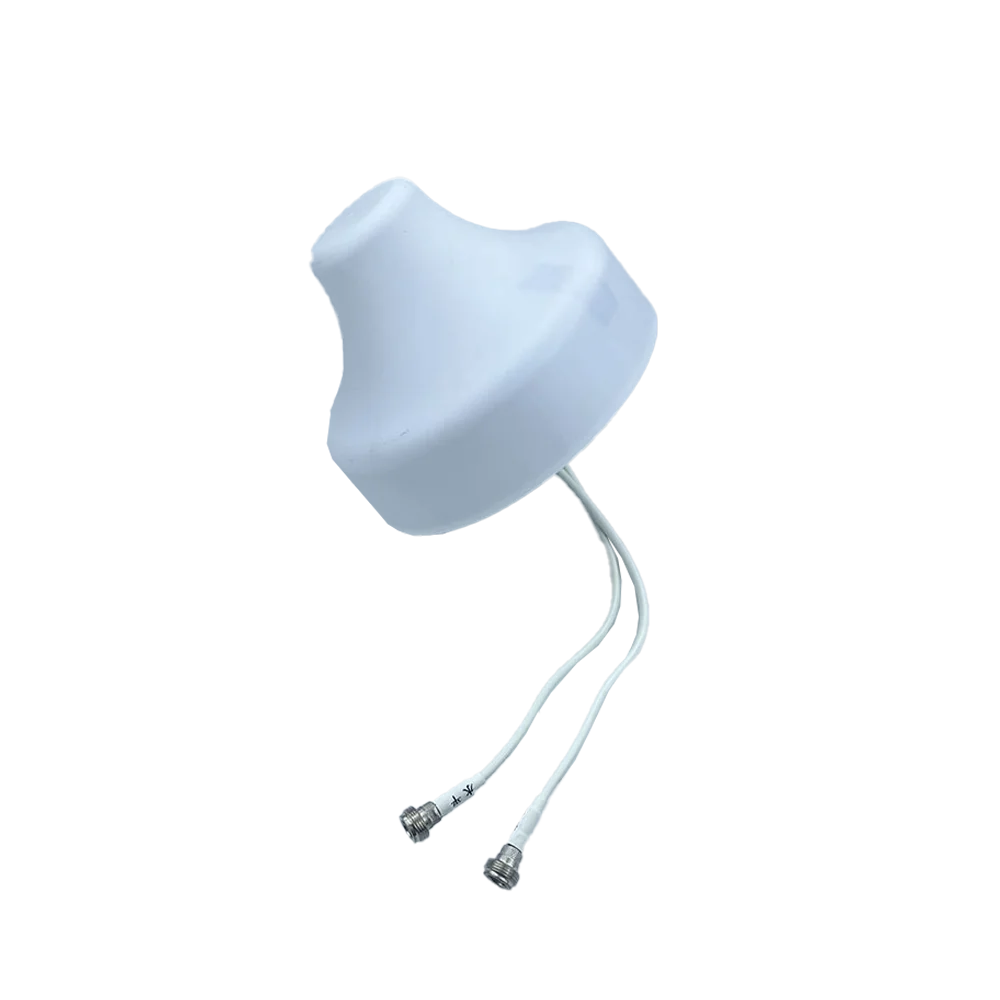

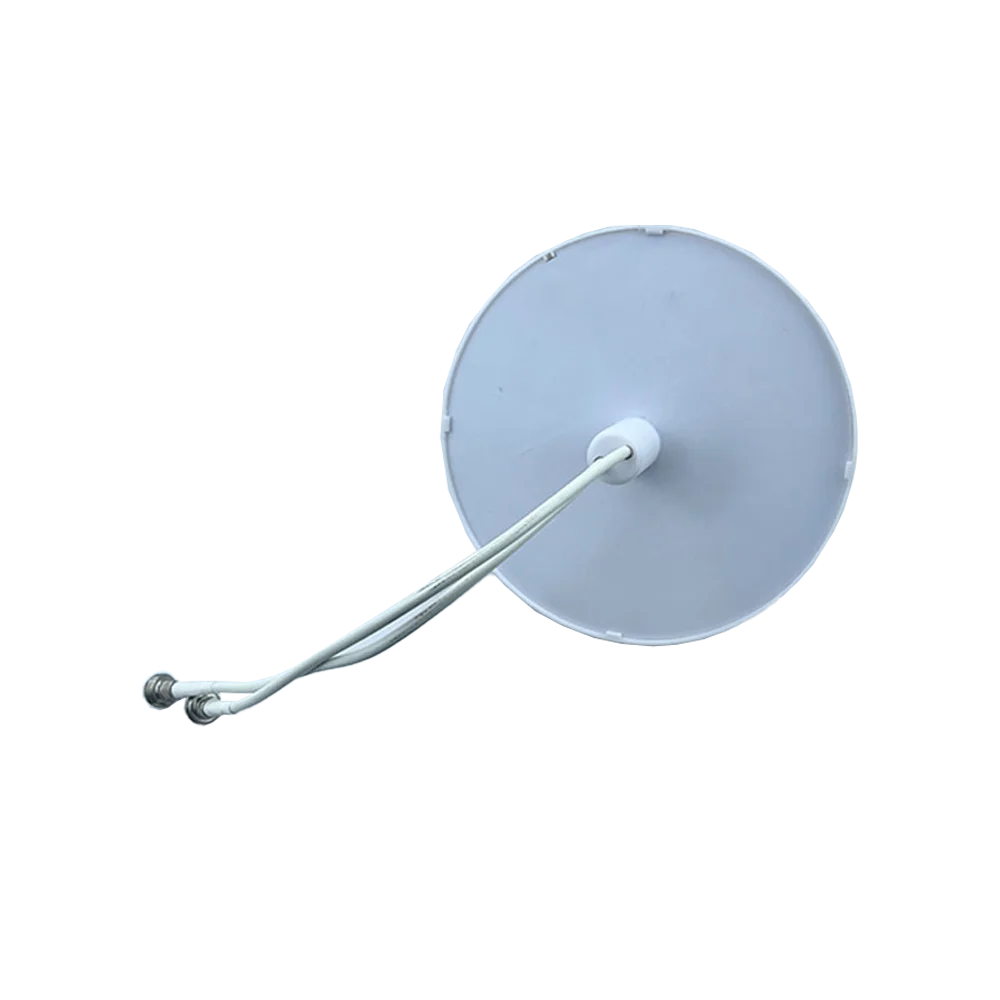

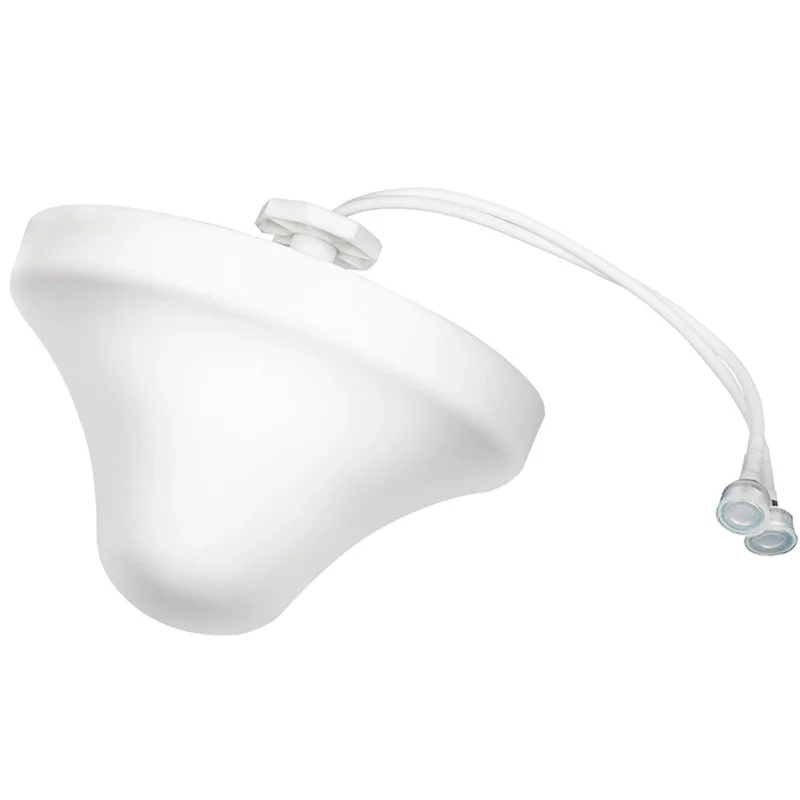

Omnidirectional Dual-Polarization Ceiling Antenna |
|||||
Electrical Performance |
Parameter 1 |
Parameter 2 |
Parameter 3 |
|||
Operating Frequency Band (MHz) |
806-960 |
1710-2500 |
3300-3700 |
|||
Polarization Mode |
V |
H/V |
H/V |
|||
Gain (dBi) |
≥1.5 |
≥2.0（H）/3.0（V） |
≥2.0（H）/3.0（V） |
|||
Pattern Roundness (dB) |
≤2.0 |
≤2.5(V) |
≤3.0（V） |
|||
Vertical Plane Half - Power Beamwidth (°) |
85 |
55 |
45 |
|||
Cross - Polarization Ratio (dB) |
/ |
≥8 |
/ |
|||
Isolation (dB) |
/ |
≥20 |
≥20 |
|||
Voltage Standing Wave Ratio |
≤1.5 |
≤1.5 |
≤1.5 |
|||
Third - Order Intermodulation (dBm) |
≤-107 (Input power 2×33dBm) |
≤-107 (Input power 2×33dBm) |
≤-107 (Input power 2×33dBm) |
|||
Average Power Tolerance (W) |
50 |
50 |
50 |
|||
Mechanical Performance |
||||||
Mechanical Performance |
Specification |
|||||
Antenna Housing Material |
ABS/PS |
|||||
Connector Type |
N - type Female |
|||||
Connector Lead Length (mm) |
≥200 |
|||||
Antenna Size (mm) |
Ф200*140 |
|||||
Packaging Size (mm) |
198*198*206 |
|||||
Antenna Weight (kg) |
0.4 |
|||||
Operating Temperature (℃) |
-30~+45 |
|||||
Storage Temperature (℃) |
-40~+55 |
|||||
