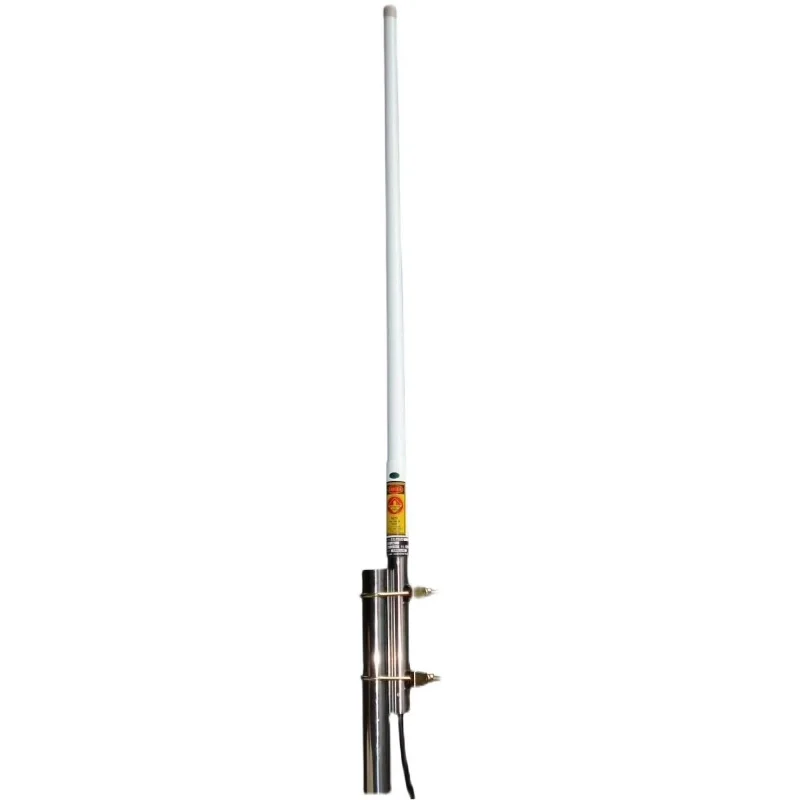

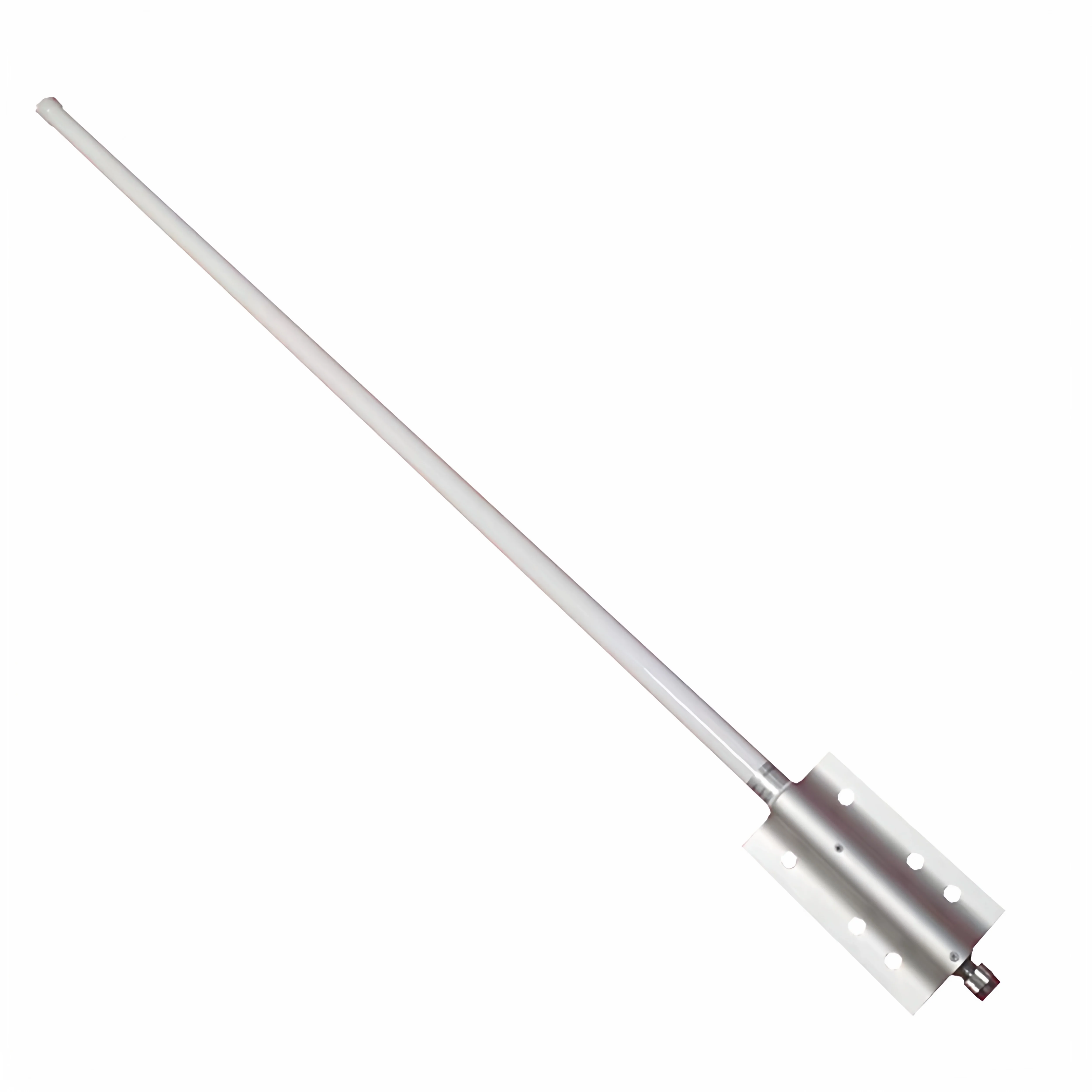

Fiberglass Radome 360° Coverage 8dBi Gain 698-798MHz Public Safety Base Station Antenna

Fiberglass Radome 360° Coverage 8dBi Gain 698-798MHz Public Safety Base Station Antenna

Description

[email protected]

Description

Product Description

1.Exceptional -150dBc Passive Intermodulation: Industry-leading IMD performance eliminates interference in multi-operator environments. Ensures crystal-clear signal quality even in congested frequency bands with multiple carriers.

2.Optimized for Public Safety Band (698-798MHz): Specifically designed for critical communication systems. Delivers reliable 8dBi gain with 100MHz bandwidth for emergency services and first responder networks.

3.High-Power 200W Base Station Capacity: Supports extended-range communications with robust power handling. Professional 7/16-Female connector ensures secure, low-loss connections for mission-critical applications.

4.Precision 15° Vertical Beamwidth: Combines true 360° horizontal coverage with focused vertical pattern. Provides optimal signal concentration for long-distance communications while maintaining complete azimuth coverage.

5.Industrial-Grade Fiberglass Construction: White FRP radome withstands extreme temperatures from -55℃ to +60℃ and 55m/s winds.Built for decades of reliable service in harsh outdoor environments with <95% humidity tolerance.

Product Detail

Electrical Specifications
Frequency Range (MHz)	698～798
Bandwidth (MHz)	100
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	≤1.5
Gain (dBi)	8±0.5
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	15
3rd Order Passive Intermodulation (2×43dBm Carriers)	≤-150 dBc
Maximum Power (W)	200
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical Specifications
Connector Type	7/16-Female
Overall Dimensions (mm)	52×1800
Installation Method	Pole-Mounted
Antenna Weight (kg)	6
Radome Material & Color	Fiberglass Reinforced Plastic (FRP), White
Pole Diameter (mm)	φ50-φ85
Operating Temperature (℃)	-55～60
Operating Humidity (%)	＜95
Wind Resistance (m/s)	55
