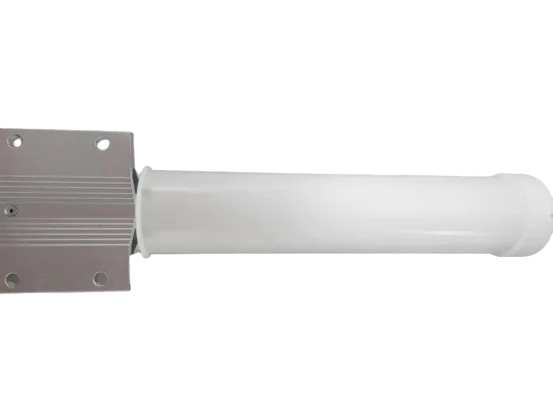

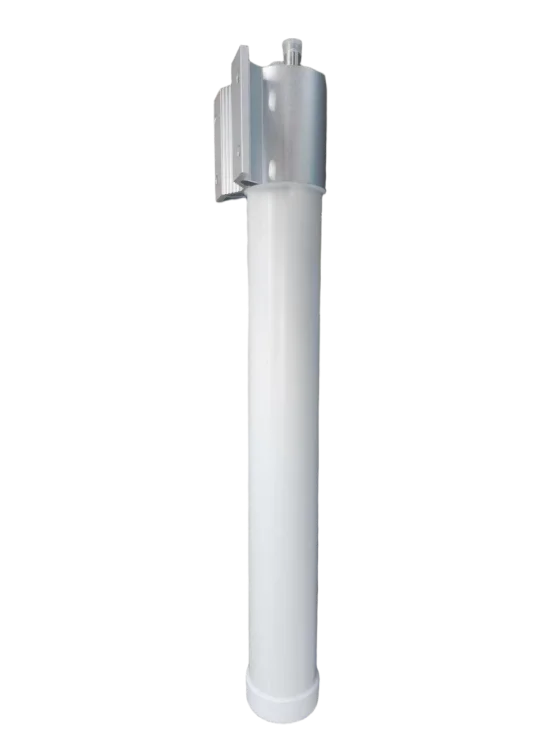

Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks
Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks

Fiberglass Radome Pole Mount 703-806MHz Band Base Station Omnidirectional Antenna for IoT and M2M Communication Networks

Get a Quote Contact Us
  • Description
product fiberglass radome pole mount 703 806mhz band base station omnidirectional antenna for iot and m2m communication networks599-1

[email protected]
Inquiry
Product Description

1. High 10dBi Gain with True 360° Coverage
Delivers strong omnidirectional signal performance with 10±0.5dBi gain, ensuring uniform coverage in all horizontal directions.

2. Excellent -150dBc PIM Performance
Features ultra-low third-order intermodulation (-150dBc @2×20W), making it ideal for multi-operator sites and high-density network environments.

3. Durable Fiberglass Construction
Built with weather-resistant fiberglass radome in white color, designed for long-term outdoor use with reliable performance.

4. High Power Handling Capacity
Supports up to 200W input power, ensuring stable operation in high-power transmission scenarios and demanding applications.

5. Easy Pole Mount Installation
Compatible with standard pole diameters (Φ50-85mm) and features 7/16 female connector for straightforward deployment and maintenance.
Product Detail
Electrical Specifications
Frequency Range
703 - 806 MHz
Gain
10 ± 0.5 dBi
Polarization
Vertical
Horizontal Beamwidth
360°
Vertical Beamwidth (Typical)
8°
Voltage Standing Wave Ratio (VSWR)
≤ 1.5
Third-Order Intermodulation (PIM, 2×20 W)
-150 dBc
Maximum Input Power
200 W
Impedance
50 Ω
Mechanical Specifications
Connector Type
7/16 - Female
Dimensions
52 × 3000 mm
Weight
6.5 kg
Mounting Kit
Pole Mount
Mounting Pole Diameter
Φ50 - 85 mm
Radome Material and Color
Fiberglass, White
Operating Temperature
-55 ~ 60 °C
