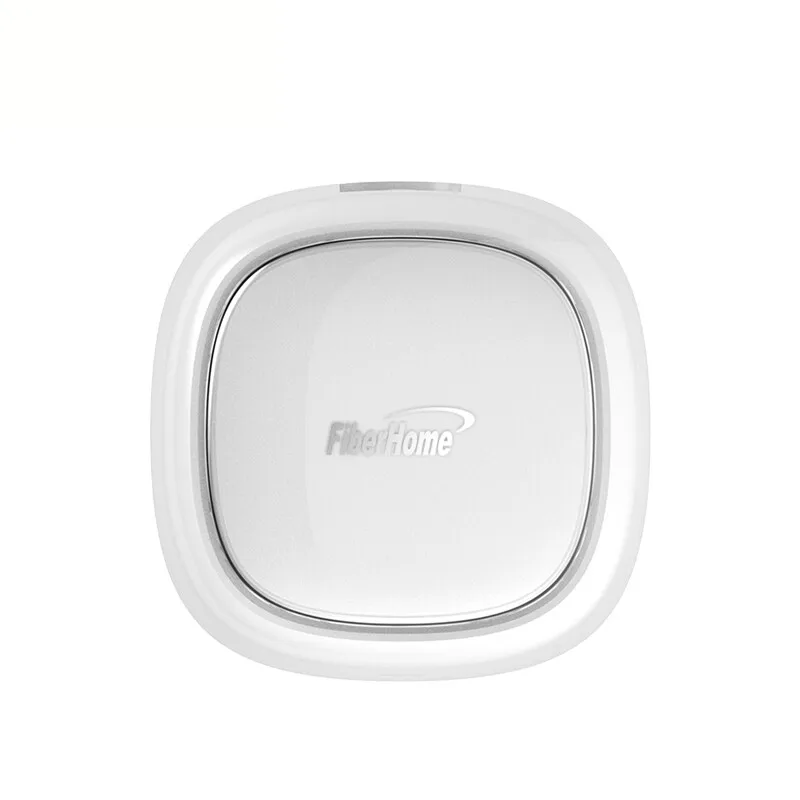

FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO
FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO

FiberHome 3.8Gbps High Speed Wireless Router Dual-Band Wi-Fi 6 5G CPE with Voice Port & USB for Home SOHO

Get a Quote Contact Us
  • Description
product fiberhome 38gbps high speed wireless router dual band wi fi 6 5g cpe with voice port usb for home soho-1

[email protected]
Inquiry
Product Description
Product Detail
Physical Specification
Dimensions
(W x D x H)
93mm x 96mm x 180mm

System Power Supply
DC 12V, 2A
Weight
About 680g
Power Adapter input
AC 100~240V, 50~60Hz
Colour
White
System Power
< 24W
Operating Temperature
-5℃~45℃
Storge Temperature
-20℃~70℃
NNI Ports
5G NR or 4G LTE or GE WAN
Buttons
Power/WPS/Reset
UNI Ports
2*GE+1*POTS+1*USB+dual
band Wi-Fi 6
LED Indicators
Power/5G/4G/WLAN/WPS/P
hone

RF Interface

5G NR
* Support 5G NR (3GPP Release 15) Sub- 6G
* 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41 /n77/n78
* 5G DL 4*4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
* Peak Throughput: DL 3.8Gbps/UL 2.5Gbps
4G LTE
* LTE Category: Cat 19
* Support TDD-LTE/FDD-LTE
* 4G FDD Bands: B1/B3/B5/B7/B8/B20/B28/B32
* 4G TDD Bands: B38/B40/B41/B42/B43
* 4G DL 4*4 MIMO: B1/B3/B7/38/B40/B41/B42/B43
* Peak Throughput: DL 1.6Gbps/UL 316Mbps
RF Extensions
* Support CA
* Support ENDC
* Support DSS
* Support two 5G antenna extension ports
SIM Slot
SIM Slot
 * 4FF SIM Card (Nano-SIM) format
* Support carrier SIM lock
* Support SIM card hot swap
Lock
* Locking Cells and Frequency oints
Message
* Send and Receive Short Message

UNI Interface
Ethernet Port
* 1*GE for LAN/WAN port + 1*GE for LAN port
* WAN/LAN switch
* RJ45 interface
* 10M/100M/1000M autonegotiation
* MDI/MDIX auto-sensing
* IEEE 802.3/802.3u
Phone Port
* 1*Phone port(RJ11)
* Support SIP Protocol
* Support CS voice communication
* Support VoLTE
* Support VoNR
USB
1 *USB port
Wi-Fi Interface
* IEEE 802.11 b/g/n/ax (2.4G)
* IEEE 802.11 a/n/ac/ax (5G)
* Dual-band Wi-Fi 6: 2.4G(2*2 MIMO 600M) and 5G(2*2 MIMO 2400M)
* Encryption: WEP, AES, and TKIP + AES
* Security mode: Open,WEP, WPA2-
* PSK,WPA/WPA2-PSK,WPA3
* Support multi SSID and guest SSID
* Support changing SSID and password
* Press the WPS button to quickly connect
* Wi-Fi 2.4G Hz&5G Hz dual-band auto selection
* 2 Built-in 2.4G Wi-Fi antennas
* 3 Built-in 5G Wi-Fi antennas
* Support DBDC & EasyMesh
* Support maximum of 128 connected stations

Product Function
Multi Services
 * Multi services: Internet, Voice
* Flexible UNI connection modes:
* Wire(GE/Phone) + Wireless(Wi-Fi)
Smart Interconnection
 * Easy to access two network: 5G / 4G LTE
* Support two 5G network mode: NSA / SA
* Easy to connect to ACS by TR069
* Wi-Fi 2.4G Hz&5G Hz dual-band auto selection
* IPv4/IPv6 auto-negotiation
* Different LED clearly indicate network statu
Software Update
* Web UI update
* TR069 update
* FOTA update
Device Management
* Web UI
* TR069 management
* Mobile APP (Could be customized)
APN Setting
* Support default APN (customized)
* Set APN Username/Password/IP Mode
TR069
* Support HTTP/HTTPS format
* Upload / Download the ACS specified files, Download CPE configuration files
* Configure & Query parameters
* Remote upgrade
Diagnosis
* Ping diagnosis
* Traceroute diagnosis
* Export operation diagnosis logs
L3 Functions
* Support PPPoE/DHCP/Static IP config
* Support IPv4 , IPv6, IPv4/IPv6 dual stack
* DNS RELAY and NAT
* ALG: H.323/SIP/RTSP/L2TP/PPTP/FTP
* Support PPTP/L2TP VPN/IPSec VPN
Security Services
* Firewall service: Firewall switch, DMZ, UPnP, Port forwarding, IP MAC Binding
* ACL filter: Mac/IP address filter, Port/URL filter , Wi-Fi Black/Whilte list
* Wi-Fi Authentication
