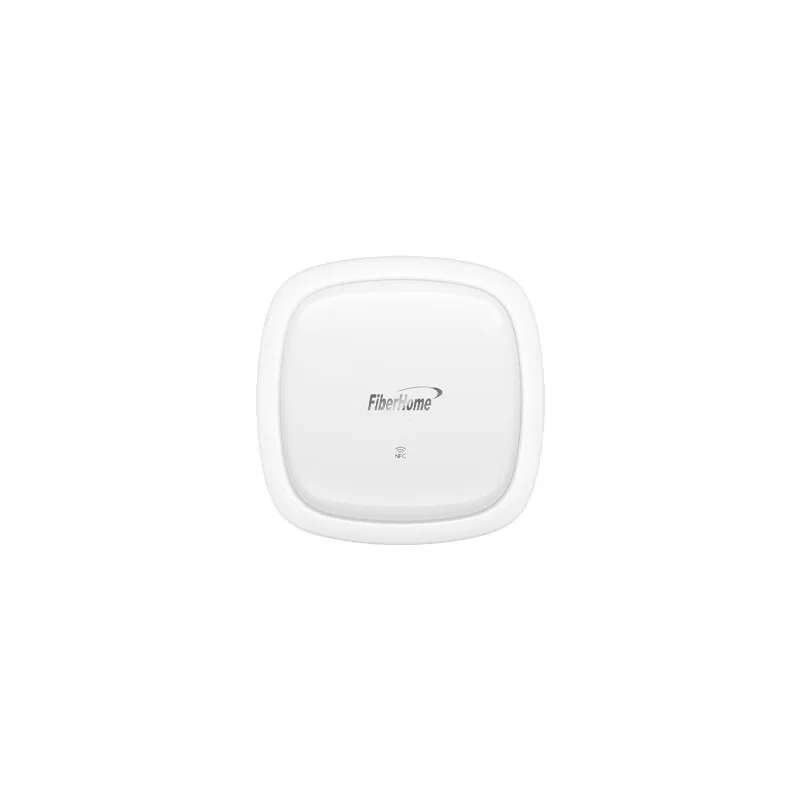

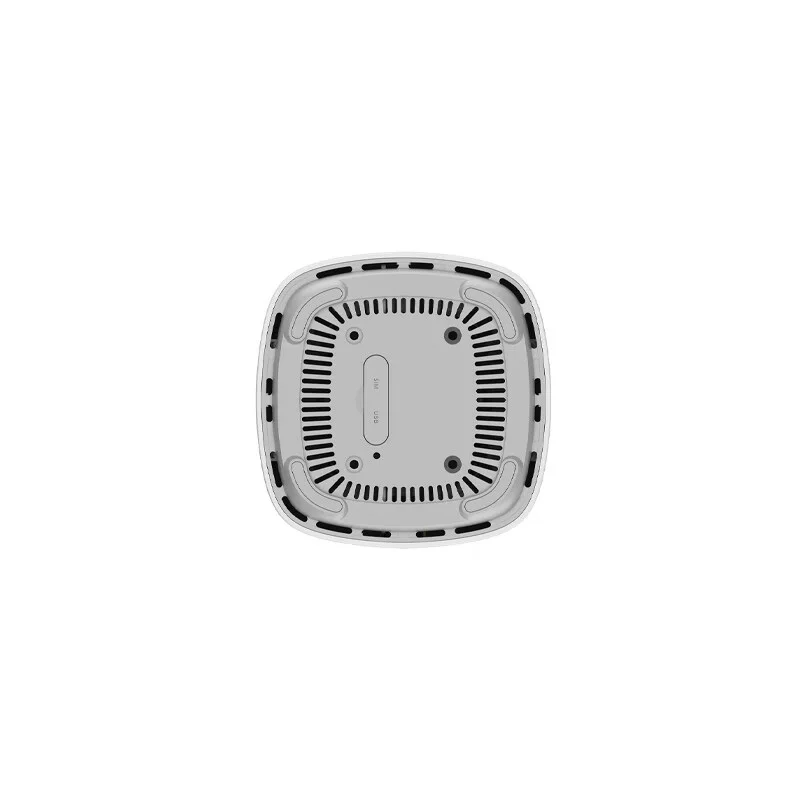

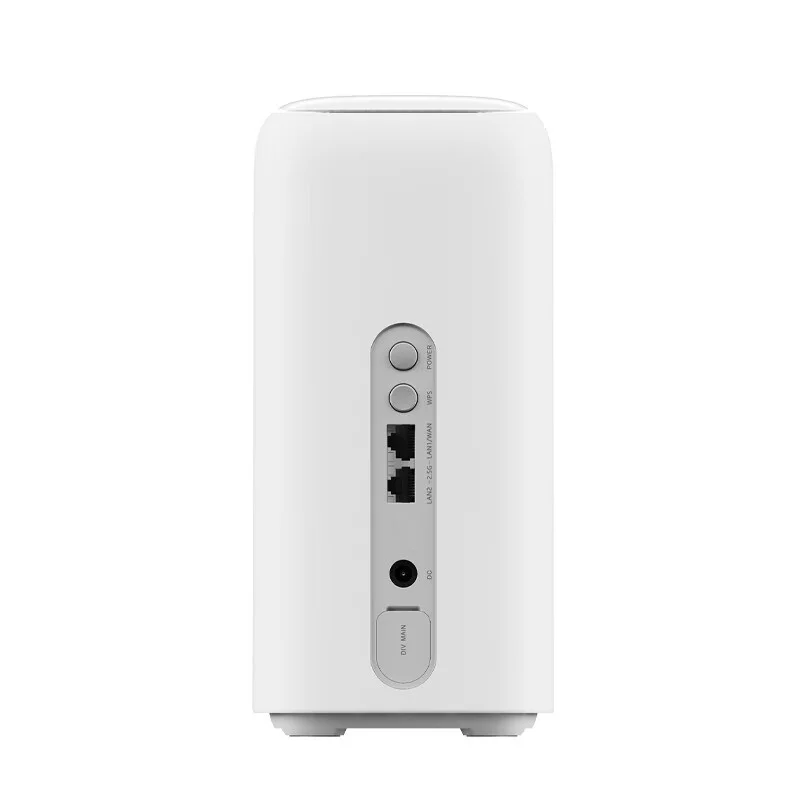

FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office
FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office

FiberHome Dual-Band 7.01Gbps High-Speed Router Wi-Fi 7 5.5G CPE with Dual 2.5GE Ports & VoIP for Home Office

Get a Quote Contact Us
  • Description
product fiberhome dual band 701gbps high speed router wi fi 7 55g cpe with dual 25ge ports voip for home office-1

[email protected]
Inquiry
Product Description
Product Detail
Physical Specification
Dimensions
(W x D x H)
108mm x 108mm x 226mm
System Power Supply
DC 12V, 2.5A
Weight
About 850g
Power Adapter input
AC 100~240V, 50~60Hz
Colour
White
System Power
< 30W
SoC
T830 4nm
Operating/Storge
Temperature
-5℃~45℃ /-20℃~70℃
NNI Ports
5G NR or 4G LTE or 2.5G WAN
Buttons
Power/WPS/Reset
UNI Ports
2*2.5GE+1*POTS+1*USB+dual-band Wi-Fi 7
LED Indicators
Power/5G/4G/WLAN/WPS/P
hone

RF Interface

5G NR
* Support 5G NR (3GPP Release 16) Sub-6G
* 5G NR Bands: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41 /n75/n77/n78
* 5G DL 4*4 MIMO: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41 /n77/78
* Peak Throughput: DL 7.01Gbps/UL 2.5Gbps
4G LTE
* LTE Category: Cat 19
* Support TDD-LTE/FDD-LTE
* 4G LTE Bands: B1/B3/B5/B7/B8/B20/B28/B32/B38/ B40/B41/B42/B43
* 4G DL 4*4 MIMO: B1/B3/b7B8/38/B40/B41/B42/B43
* Peak Throughput: DL 1.6Gbps/UL 316Mbps
RF Extensions
* Support NR 4CC CA
* Support ENDC
* Support DSS
* Support two 5G antenna extension
SIM Slot
SIM Slot
 * 4FF SIM Card (Nano-SIM) format
* Support carrier SIM lock
* Support SIM card hot swap
Lock
* Locking Cells and Frequency points
Message
* Send and Receive Short Message

UNI Interface
Ethernet Port
* 1*2.5GE for LAN/WAN port + 1*2.5GE for LAN port
* WAN/LAN switch
* RJ45 interface
* 10M/100M/1000M/2500M autonegotiation
* MDI/MDIX auto-sensing
* IEEE 802.3/802.3u
Phone Port
* 1*Phone port(RJ11)
* Support SIP Protocol
* Support CS voice communication
* Support VoLTE
* Support VoNR
USB
* 1 *USB port
Wi-Fi Interface
* IEEE 802.11 b/g/n/ax/be (2.4G)
* IEEE 802.11 a/n/ac/ax/be (5G)
* Dual-band Wi-Fi 6 : BE7200，
* 2.4G(4*4 MIMO) and 5G(4*4 MIMO)
* Encryption: WEP, AES, and TKIP + AES
* Security mode: Open,WEP, WPA2-
* PSK,WPA/WPA2-PSK,WPA3
* Support multi SSID and guest SSID
* Support changing SSID and password
* Press the WPS button to quickly connect
* Wi-Fi 2.4GHz&5G Hz dual-band auto selection
* 4 Built-in 2.4G Wi-Fi antennas
* 4 Built-in 5G Wi-Fi antennas
* Support DBDC
* Support maximum of 128 connected stations


Product Function
Multi Services
Multi services: Internet, Voice
Flexible UNI connection modes:
Wire(GE/Phone) + Wireless(Wi-Fi)
Smart Interconnection
Easy to access two network: 5G / 4G LTE
Support two 5G network mode: NSA / SA
Easy to connect to ACS by TR069
Wi-Fi 2.4G Hz&5G Hz dual-band autoselection
IPv4/IPv6 auto-negotiation
Different LED clearly indicate network status
Software Update
Web UI update
TR069 update
FOTA update
Device Management
Web UI
TR069 management
Mobile APP (Could be customized)
APN Setting
Support default APN (customized)
Set APN Username/Password/IP Mode
TR069
Support HTTP/HTTPS format
Upload / Download the ACS specified files, Download CPE configuration files
Configure & Query parameters
Remote upgrade
Diagnosis
Ping diagnosis
Traceroute diagnosis
Export operation diagnosis logs
L3 Functions
Support PPPoE/DHCP/Static IP config
Support IPv4 , IPv6, IPv4/IPv6 dual stack
DNS RELAY and NAT
ALG: H.323/SIP/RTSP/L2TP/PPTP/FTP
Support PPTP/L2TP VPN/IPSec VPN
Security Services
Firewall service: Firewall switch, DMZ,
UPnP, Port forwarding, IP MAC Binding
ACL filter: Mac/IP address filter, Port/URL filter , Wi-Fi Black/Whilte list
Wi-Fi Authentication
