Global Bands Support 3000mAh Battery Dual External Antennas Portable 4G LTE CPE Router

Item name

4G LTE CPE

Appearance

Dimension (L × W × H)

132*135*25mm

Weight

180g

Hardware Platform

HW_VER

CPF903-B－V2.0

MTK Chipset

MT6735WM

RAM/ROM

4GByte EMMC+512MByte DDR2

Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

GSM:900/1800MhZ

Diversity Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

B20 is optional

3GPP

3GPP R9 Cat.4

3GPP R9 Cat.4

3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM)

3GPP2

NA

Transfer rate

up to 150Mbps DL up to 50Mbps UL

up to 150Mbps DL up to 50Mbps UL

HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL

3.1Mbps DL

NA

Wi-Fi Chipset

MT6625L

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi Transfer rate

up to 150Mbps

Encryption

Wi-Fi Protected Access™ (WPA/WPA2)2

Antenna

External antenna *4 (2.4G WiFi antenna *2, LTE antenna*2)

Special function

Virtual card

4G+2G

Soft SIM

esim or softsim

Customization

Smart system, strong customization ability

Display

LCD

Color display

Port

On/off button

1 power

SIM

Micro sim card （3FF） *1

USB

USB TYPE A (5V 1A IN)

DC

12V 1A IN

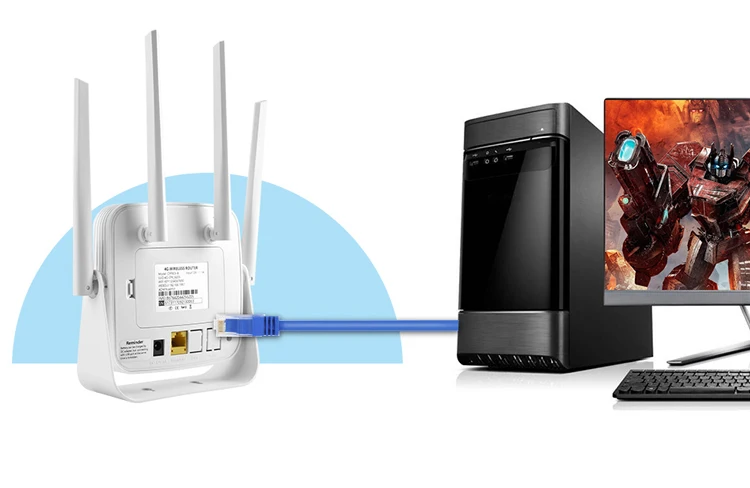

RJ45

1* WAN/LAN

Battery

3000mAh 6-8hours working time

PS. The battery does not support hot-plug

Internet

Wi-Fi

Wi-Fi AP， Max 10 users

SSID

4G-CPE-XXXX（last 4 digits of the IMEI number）

WIF password by default

1234567890

Operating Environment

Working temperature

-10°C~65°C

Working height

Current tested max height 3000m (10,000 inches)

Operation system

PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10

MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later

IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later

Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later

Operation Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari

Software Platform

System

Android 6.0

WEB

Gateway

http://192.168.199.1

Log in

Password：admin ( passord modification reqested to done at first loging as default setting
Language(Chinese/English)

Status

Connection; APN;IP; Signal Strength; Battery Capacity; Conneting time; Users

Networks

APN confirguration: International roaming switch, APN, User name, Password, Authorization type modification, New APN, Restore
defaulf APN parameters.
Traffic statistics:
Traffic Limitation: Afering reaching the set value, limit the speed as set.

Wifi

WLAN configuration: SSID modifiation, encryption methods, encryption password, Maximum user number setting, support PBC-WPS
WiFi connection list: check the list that connect to this device, check MAC address, IP address, hostname, forbid and recover
access to internet.

System Manage

Login password management: User name, password modification
System operation: Restart, Shutdown, Restore factory setting
System Information: Check software version, WLAN MAC address, IMEI NO.
Phonebook setting: New, modify, look up, delete contact
GPS control: GPS function turn on/off

SMS Management

SMS create, delete, send

OTHER

SIM lock

SIM card lock/unlock

SIM card compatibility

China Unicom, China Telecom, China Mobile and other 4G SIM cards
