Maximum operating voltage（VAC） |
Operating frequency Hz |
Hipot test voltage
P-N(VDC) 、PN-E(VAC)
|
Operating temperatureHz |
Minimum insulation resistance |
250 |
50/60 |
1760（P-N，VDC）、2000（PN-E，VAC） |
-25~+85℃ |
>200M@500VDC |

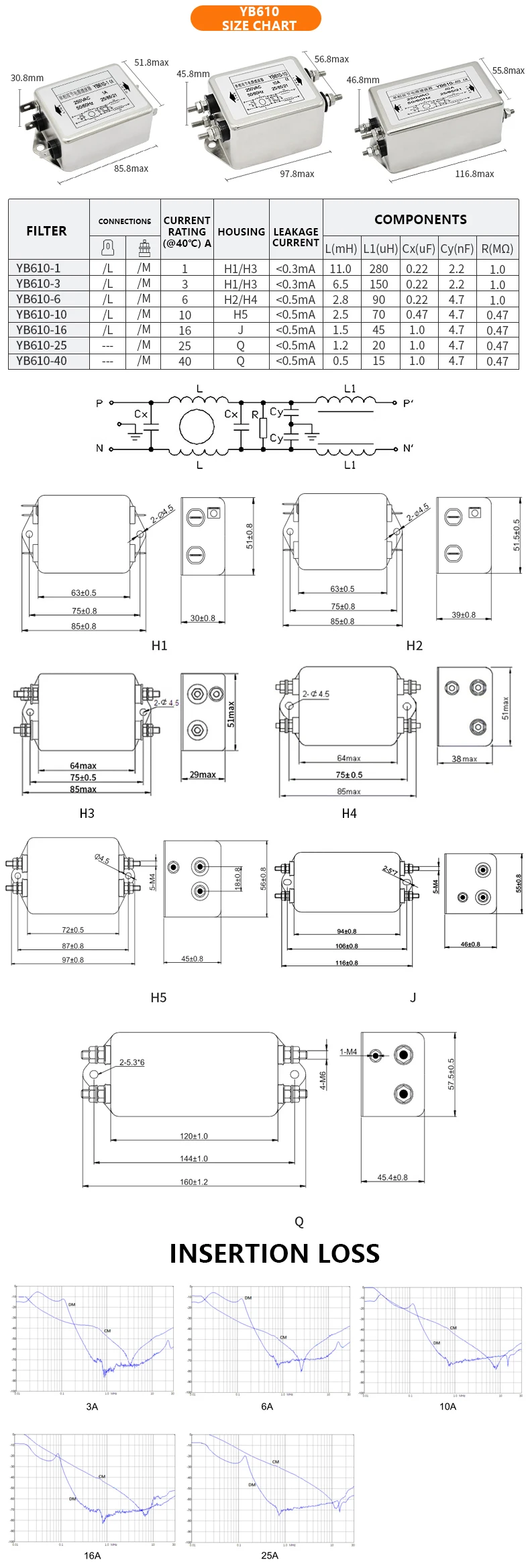

Product Model |
Connections - /L |
Connections - /M |
Current rating @40℃ |
Leakage current |
Components - L (mH) |
Components - L1(uH) |
Components - Cx(μF) |
Components - Cy(nF) |
Components - R(MΩ) |

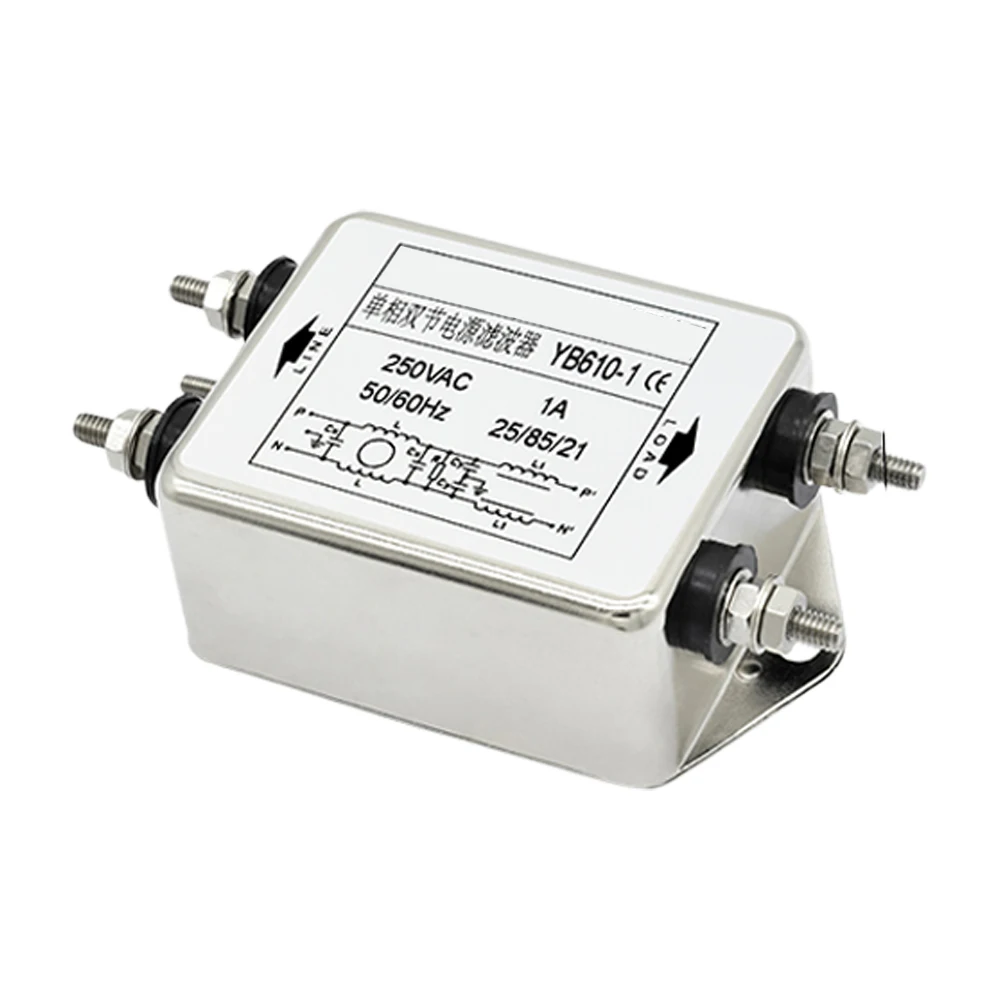

YB610-1 |
/L |
---- |
1A |
<0.3mA |
11 |
280 |
0.22 |
2.2 |
1 |
YB610-3 |
/L |
---- |
3A |
<0.3mA |
6.5 |
150 |
0.22 |
2.2 |
1 |
YB610-6 |
/L |
---- |
6A |
<0.5mA |
2.8 |
90 |
0.22 |
4.7 |
1 |

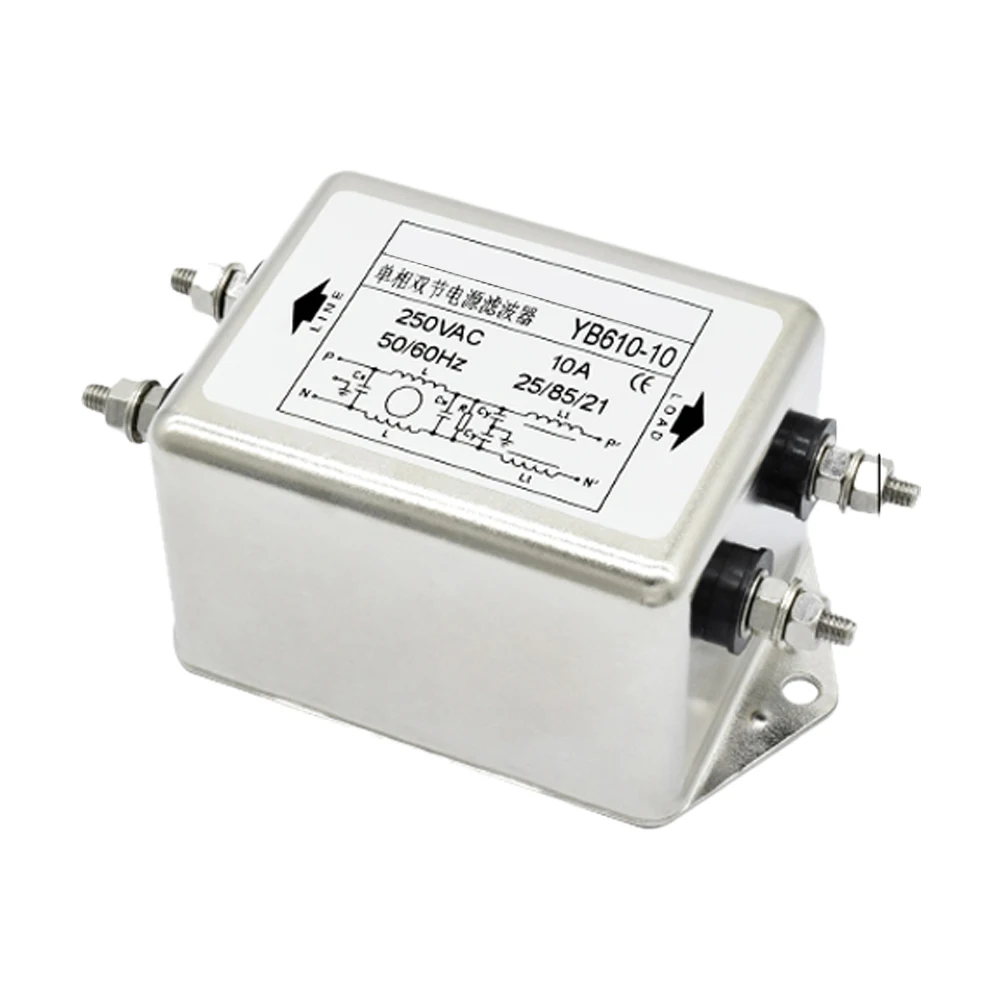

YB610-10 |
/L |
/M |
10A |
<0.5mA |
2.5 |
70 |
0.47 |
4.7 |
0.47 |

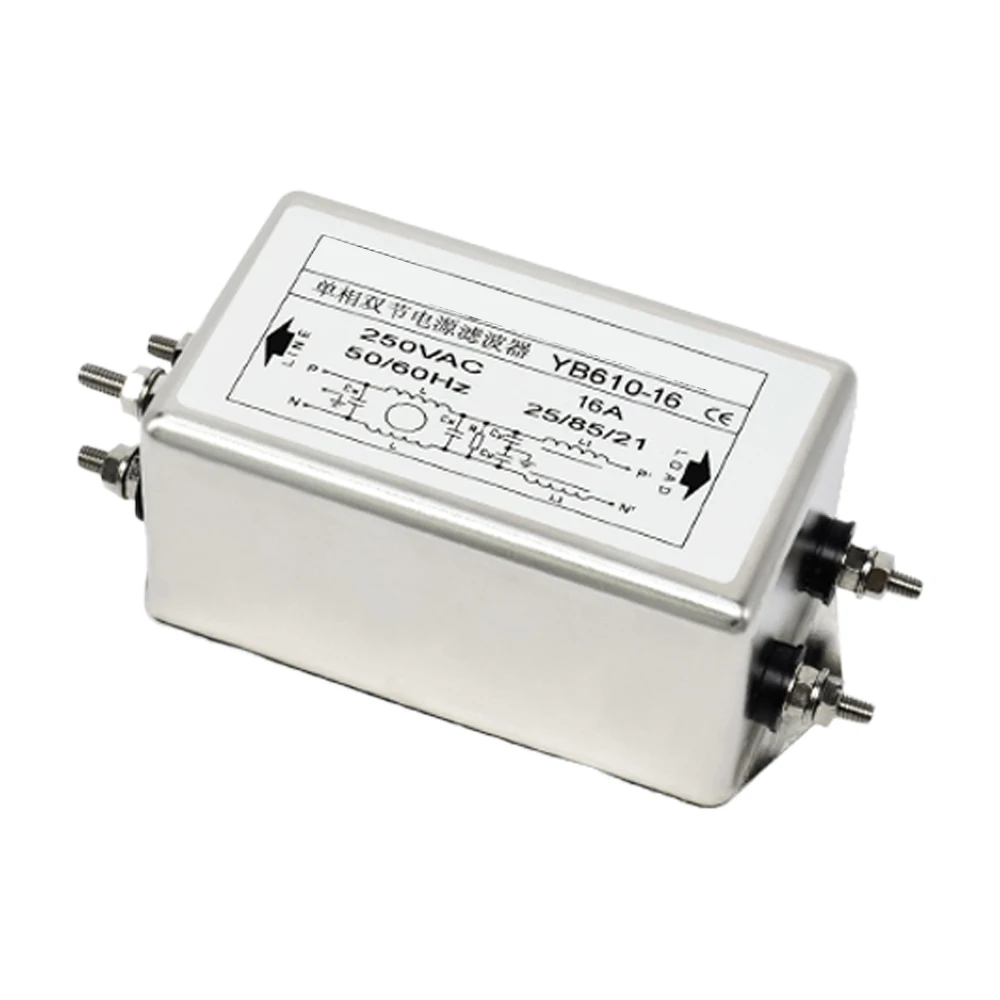

YB610-16 |
/L |
/M |
16A |
<0.5mA |
1.5 |
45 |
1 |
4.7 |
0.47 |
YB610-25 |
---- |
/M |
25A |
<0.5mA |
1.2 |
20 |
1 |
4.7 |
0.47 |

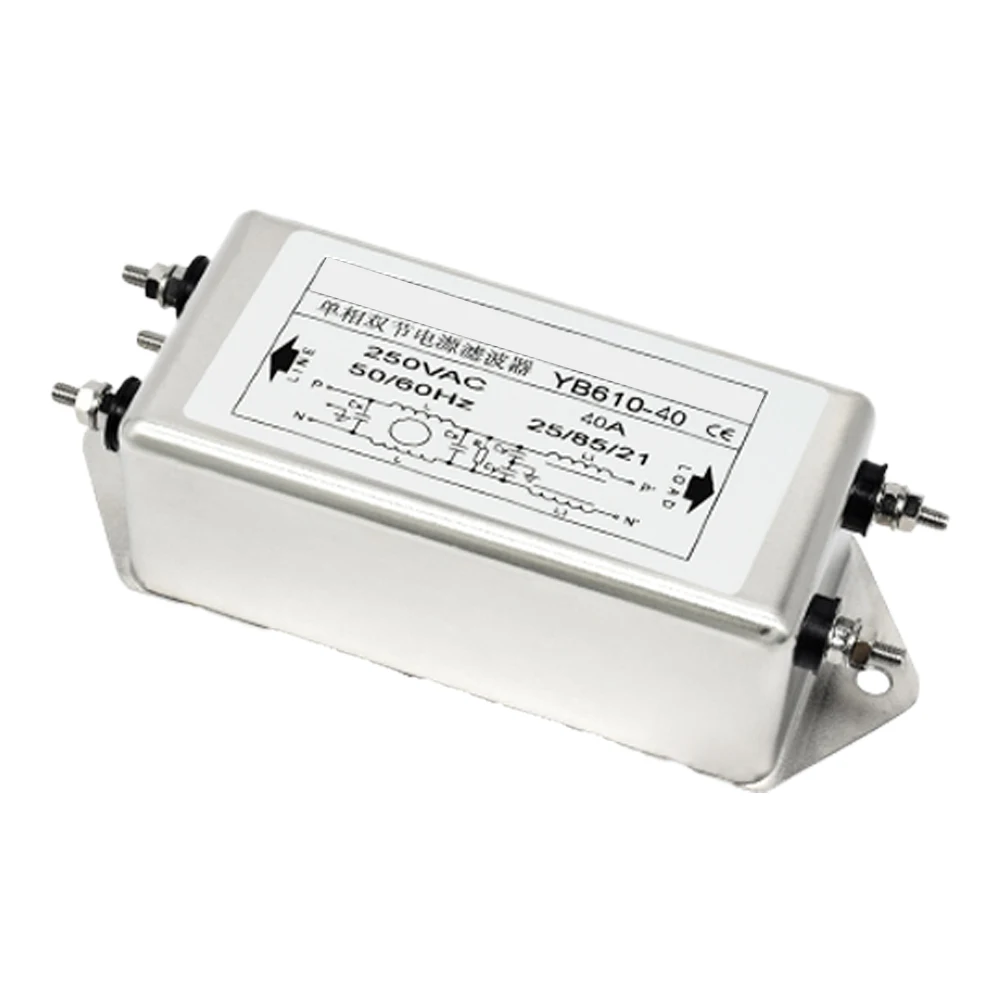

YB610-40 |
---- |
/M |
40A |
<0.5mA |
0.5 |
15 |
1 |
4.7 |
0.47 |
