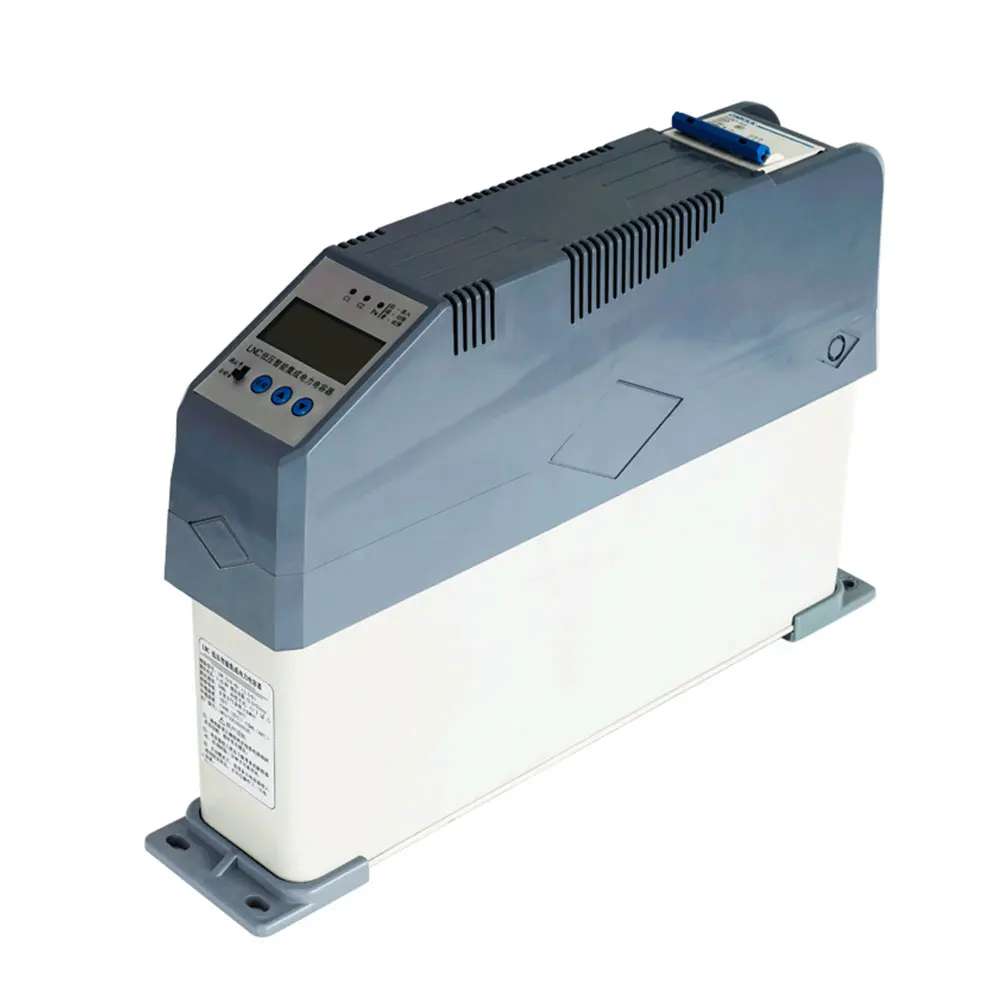

IEC 62109 IP65 Cloud Monitoring 30kVar 380VAC AI-Powered Solar Capacitor

IEC 62109 IP65 Cloud Monitoring 30kVar 380VAC AI-Powered Solar Capacitor

Description

[email protected]

Description

Product Description

Product Detail

Working voltage	380V/220V±15%
Rated frequency	50Hz±5%
Control capacity	Three-phase common compensation Δ type
Control capacity		Single-phase shunt Y-type
Maximum capacity	20 + 20Kvar
Maximum capacity		30 Kvar (10×3)
Insulation resistance	under normal atmospheric conditions ≥10MΩ
Voltage rating	450V

Compensation method	Specifications	Rated voltage (V)	Overall dimensions	Fixed size
Compensation method	Specifications	Rated voltage (V)	Overall dimensions	Fixed size
Three-phase common compensation	YBC-SX/0.48-10-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-15-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-20-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-25-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-30-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-35-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-40-7%	480	520120412	500*70
Three-phase common compensation	YBC-SX/0.48-50-7%	480	518154475	498*95
Phase-separated compensation	YBC-FX/0.28-5-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-10-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-15-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-20-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-25-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-30-7%	280	520120412	500*70
Phase-separated compensation	YBC-FX/0.28-40-7%	280	518154475	498*95
Controller	Intelligent Capacitor Comprehensive Monitor	Hole size: 138*138			Liquid crystal + LED light display

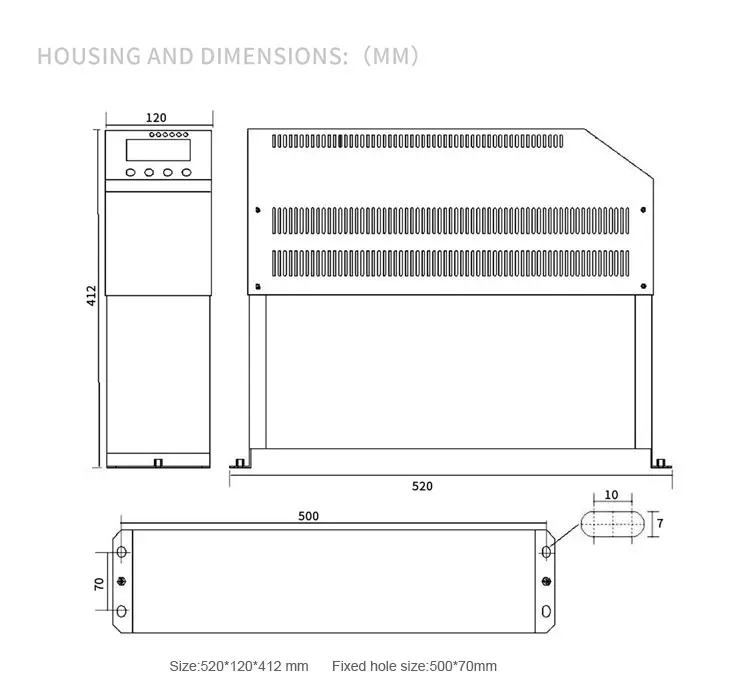

IEC 62109 IP65 Cloud Monitoring 30kVar 380VAC AI-Powered Solar Capacitor details
