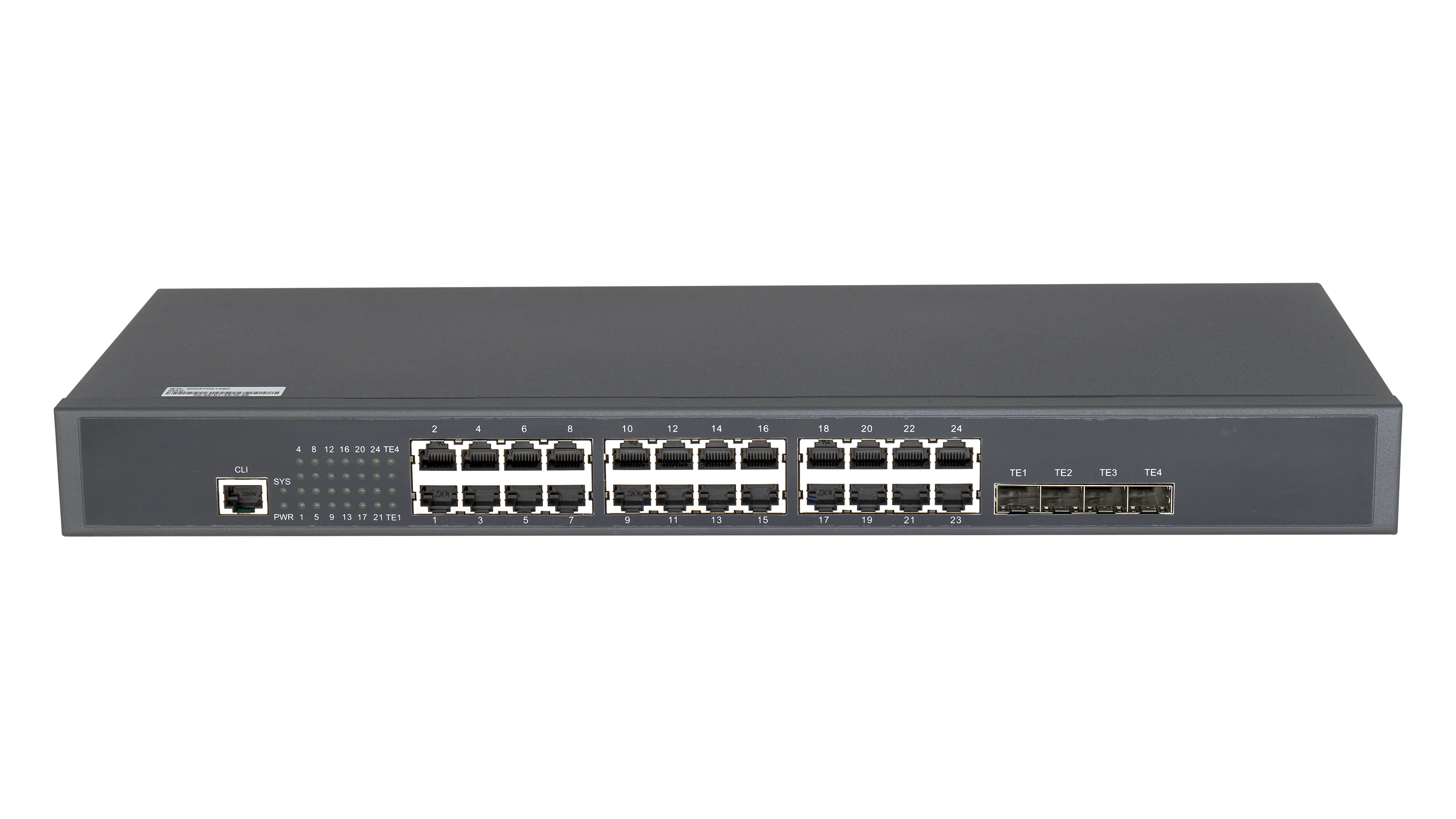

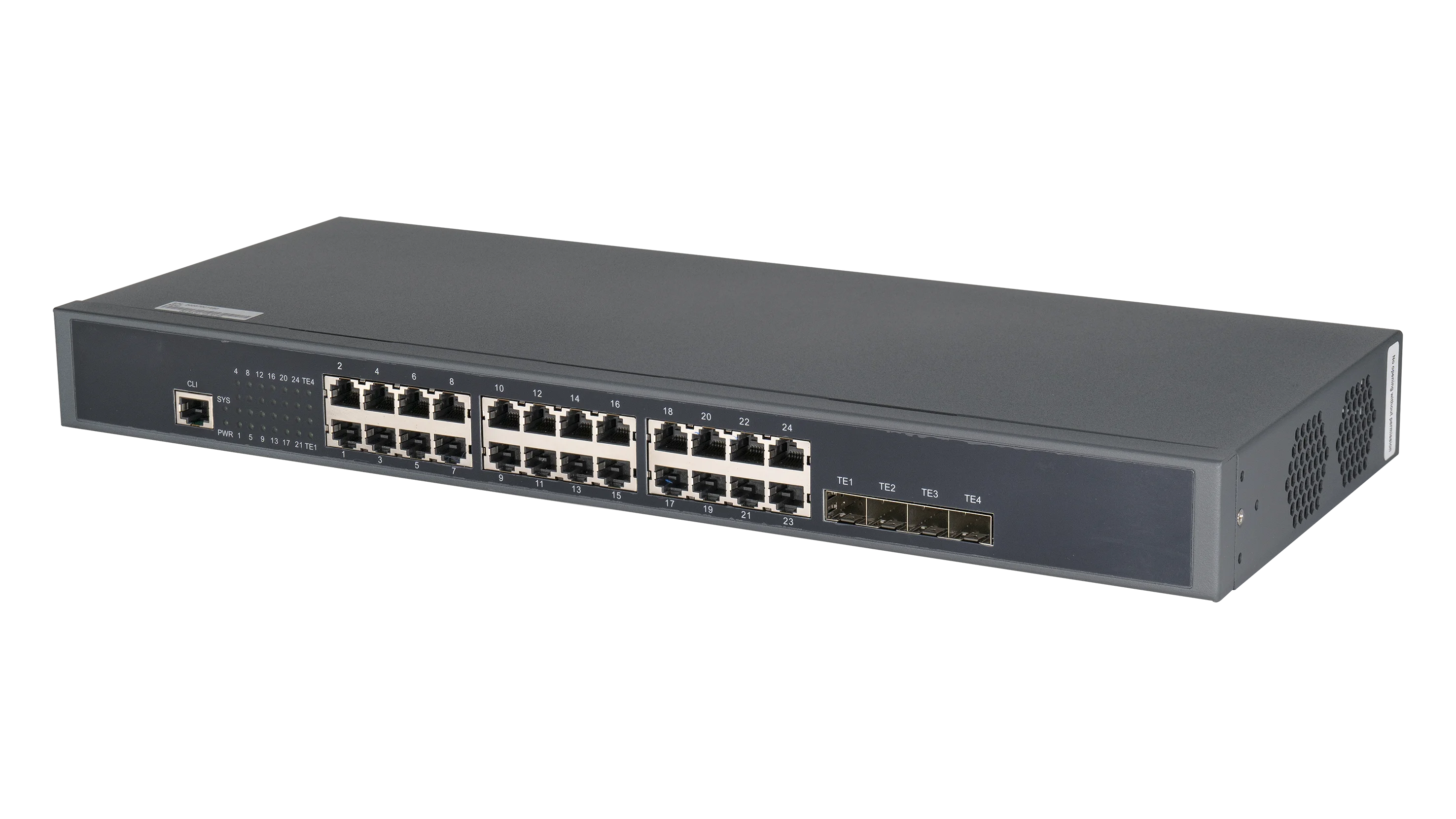

Industrial 24-Port Gigabit + 4-Port 10G SFP+ L3 Managed Switch

Model

YW-JT-S506CL-284TS

Product name

4 light 24 power 10 gigabit uplink L3 managed switch

Port

24*10/100/1000Mbps RJ45 port

4×1G/10Gbps SFP+ optical module expansion slot

1*Console interface

Pilot lamp

PWR、LINK/ACT、SYS

Network medium (cable)

10BASE-T : UTP category 3,4,5 cable (≤100m） 100BASE-TX : UTP category 5, 5e cable (≤100m）

1000BASE-T : UTP category 5e, 5 cable (≤100m）

1000BASE-X : MMF, SMF

10GBASE-X : MMF, SMF

MAC address list

16K, automatic learning, automatic update

Transmission mode

Store-and-forward

Packet forwarding rate

108Mpps

Exchange capacity

336Gbps

Dimensions (L*W*H)

440*180*44mm

Power input

AC：100V-240V，50Hz±10%

Power

<30W

Working temperature

-10 °C ~50 °C

Storage temperature

-40 °C ~70 °C

Working humidity

10% ~ 90% Non-Condensable

Storage humidity

5% ~ 95% Non-Condensable

MTBF

50,000 hours

Defects liability period

Host for 5 years (excluding adapters and accessories)

Virtualization

Supports virtualization

Mac exchange

Supports static configuration and dynamic learn- ing of MAC addresses. Enables viewing and clearing of MAC addresses.
MAC address aging time is configurable MAC address learning is limited in number Supports MAC address filtering
Supports IEEE 802. 1AE MacSec security controls

VLAN

Supports 4K VLAN ta- ble entries and GVRP
Supports QinQ,
Private VLAN, and voice vlan

Ring protection

Supports 802. 1D (STP), 802. 1W (RSTP), 802. 1S (MSTP))
Supports BPDU protection, root protection, and loop protection
Supports EAPS (Ethernet Autoprotect Protocol) for automatic protection of Ethernet links.
Supports ERPS Ethernet Ring Protection Protocol

Multicast

Supports IGMP v1/v2/v3
and IGMP Snooping
Supports IGMP Fast Leave
Supports multicast group policies and group size limits, and enables multicast traffic replication across VLANs.

IP route

Supports IPv4/IPv6 dual-stack protocol
Supports static routing
Supports RIP and OSPF dynamic routing
Supports VRRP virtual routing

IPv6

Supports ICMPv6, DHCPv6, ACLv6, and IPv6 Telnet Supports IPv6 neighbor discovery
Supports Path MTU discovery Supports MLD v1/v2
Supports MLD Snooping

DHCP

Supports DHCP Server
Supports DHCP Relay
Supports DHCP Client
Supports DHCP Snooping

ACL

Supports Layer 2, Layer 3, and Layer 4 ACLs
Supports IPv4 and IPv6 ACLs
Supports VLAN ACL

QoS

Supports traffic classification based on fields in L2/ L3/L4 protocol headers and CAR traffic restrictions
Supports 802. 1P/DSCP priority re-marking, sup- ports SP, WRR, SP+WRR and other queue scheduling methods, supports Tail-Drop, WRED
and other congestion avoidance mechanisms, supports traffic monitoring and traffic shaping

Security features

ACL Flow Recognition and Filtering Security Mechanism Based on L2/L3/L4 Supports protection against DDoS attacks, TCP SYN Flood
attacks, and UDP Flood attacks, as well as suppression of multicast, broadcast, and unknown unicast packets. Support port
isolation
Supports port security and IP+MAC+port binding Supports DHCP sooping and DHCP option82
Supports IEEE 802. 1x certification
Support Radius and Tacacs+ authentication Enable command-line level protection

Reliability

Supports static/LACP link aggregation
Supports UDLD unidirectional link detection
Ethernet OAM support
Supports uninterrupted system upgrades for ISSU operations

Maintenance

Supports Console, Telnet, and SSH 2.0
Supports ZTP zero-touch provisioning and browser-based web management
Supports SNMP v1/v2/v3
Supports TFTP file upload and download management Support RMON event history
