Upgrade your outdoor Wi-Fi access points and routers with the high-performance IP65 Dual-Band 2400~2500MHz 14dBi Antenna from Yoongwin. This sleek antenna features a vertical/horizontal flat panel design that provides optimal signal strength and coverage for seamless connectivity in any outdoor environment.
With a frequency range of 2400~2500MHz, this antenna is specifically designed for dual-band Wi-Fi networks, allowing you to boost both 2.4GHz and 5GHz signals for enhanced connectivity and speed. The 14dBi gain ensures that your Wi-Fi signals are strong and stable, even over long distances.
The IP65 rating means that this antenna is weatherproof and can withstand exposure to the elements without compromising performance, making it ideal for outdoor use in any climate. Whether you're setting up a Wi-Fi network for your backyard, patio, or commercial outdoor space, this antenna is designed to deliver reliable connectivity in any outdoor setting.
Installation is quick and easy, thanks to the included mounting bracket and hardware. The vertical/horizontal flat panel design allows for flexible positioning to ensure optimal signal reception and coverage. Plus, the sleek and compact design of this antenna blends seamlessly into any outdoor space, providing discreet but powerful Wi-Fi coverage.
Don't let spotty Wi-Fi signal ruin your outdoor experience. Upgrade your outdoor Wi-Fi access points and routers with the Yoongwin IP65 Dual-Band 2400~2500MHz 14dBi Antenna and enjoy fast and reliable connectivity wherever you are. Whether you're working, streaming, gaming, or simply browsing the web, this antenna will ensure that you stay connected, no matter the weather.
Invest in the best for your outdoor Wi-Fi network. Choose the Yoongwin IP65 Dual-Band 2400~2500MHz 14dBi Antenna and experience the difference that high-quality performance and design can make in your outdoor connectivity. Order yours today and stay connected in style
2400～2500MHz 30°14dBi 0° Electrical Downtilt |
||
Electrical Specifications |
DF24-30VH14D |
|
Frequency Range (MHz) |
2400～2500 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
14 |
|
Electrical Downtilt (°) |
0 |
|

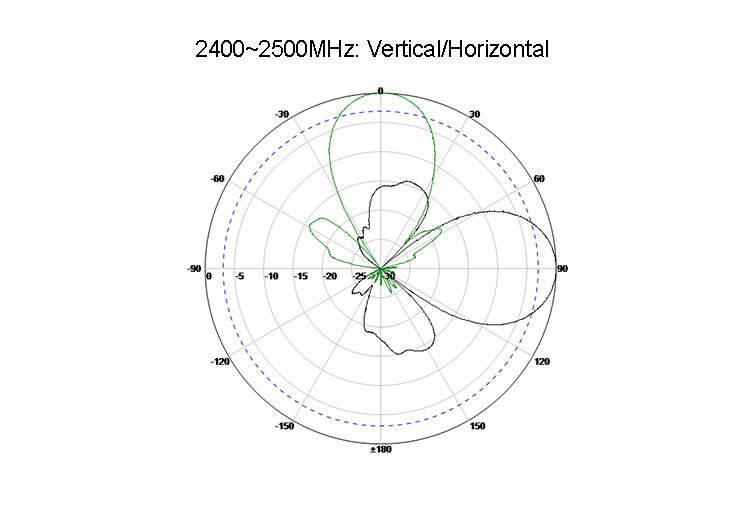

Half-power Beam width - ° |
Horizontal: 30 |
|
Vertical: 30 |
||
Front Port Isolation (dB) |
≥25 |
|
Front-to-Back Ratio (dB) |
≥25 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio |
≤1.5 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Specifications |
||

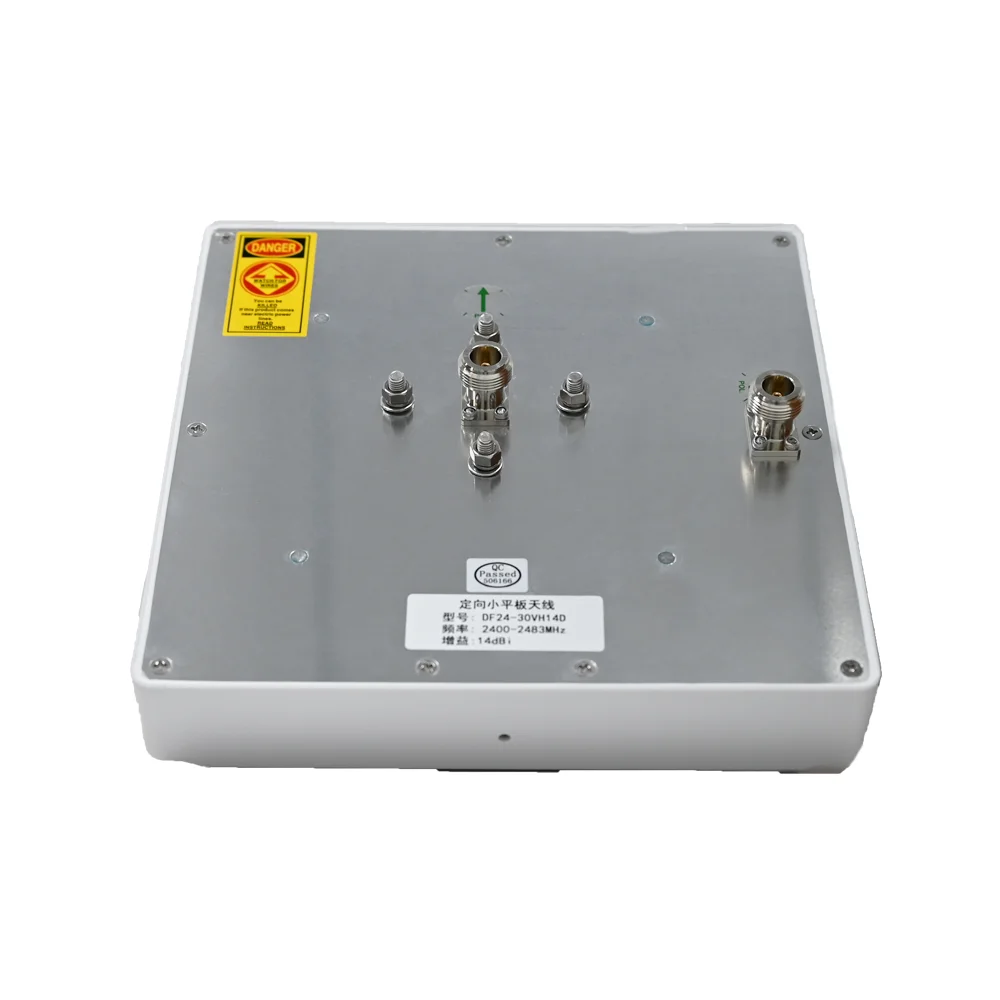

Connector Type |

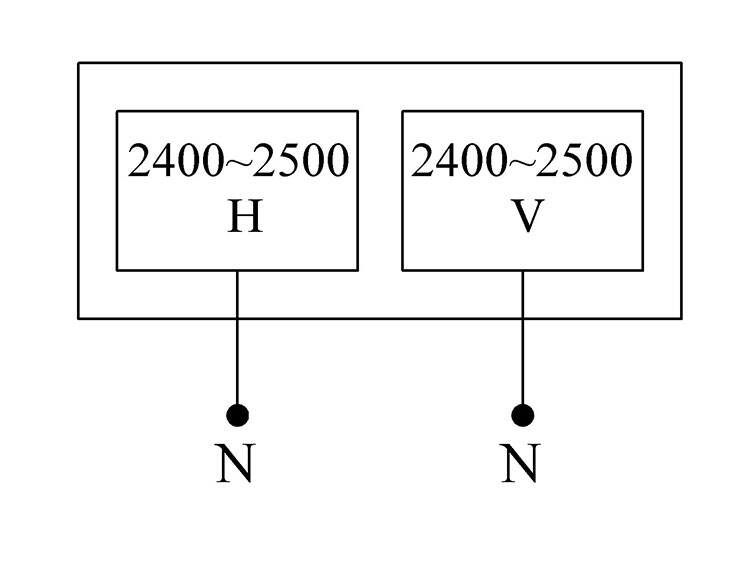

2×N Female Connector |
|
Lead Length |
/ |
|
Antenna Dimensions (Length×Width×Thickness: mm) |
190×190×40 |
|
Antenna Weight (kg) |
1 |
|

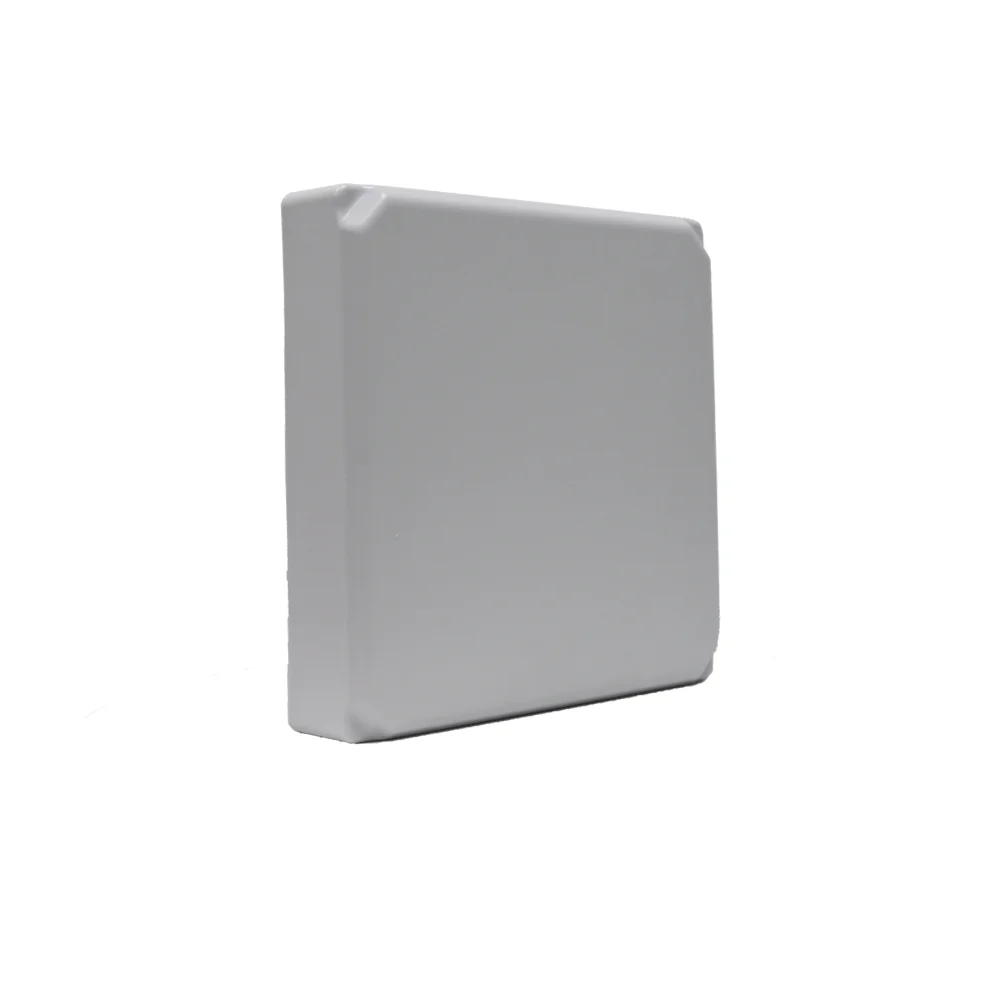

Radome Material |
ABS |
|
Radome Color |
White |
|
Mechanical Adjustable Tilt (°) |
0～30 |
|
Operating Temperature (℃) |
-40～60 |
|
Extreme Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35～50 |
|
Mounting Bracket Model |
MK004 L-shaped Steel Clamp |
|
