Product Description

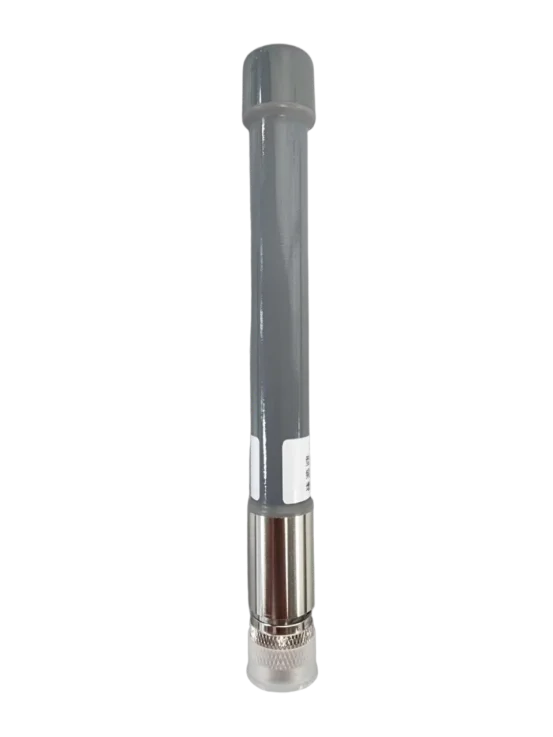

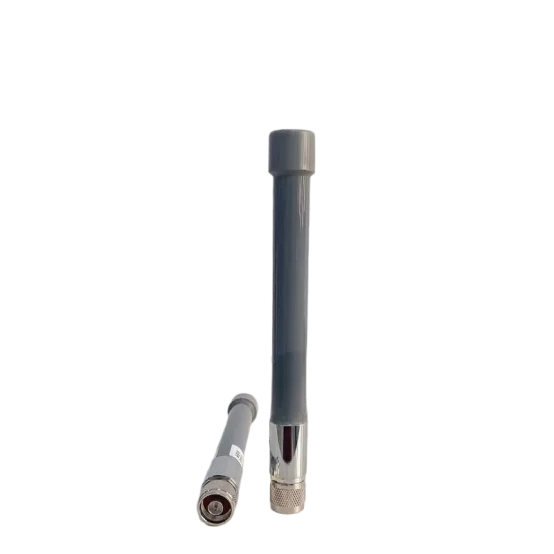

1.Ultra-Compact φ20×400mm Size: One of the smallest professional antennas in its class, offering space-saving installation without compromising performance. Ideal for applications where space is at a premium.

2.Precise 360° Coverage with ±1.5° Circularity: Delivers exceptional omnidirectional performance with minimal signal variation.Ensures consistent connectivity regardless of device orientation.

3.IP65 Waterproof & Salt Spray Resistant: Fully protected against dust and water jets, with 96-hour salt spray certification. Built for harsh industrial and coastal environments where corrosion resistance is critical.

4.Wide Temperature Range -40℃ to +60℃: Maintains stable performance in extreme weather conditions. The gray FRP radome provides excellent UV resistance and long-term durability.

5.Bottom N-J Connector for Easy Integration: Simplified installation with reliable connector placement. Withstands 60m/s winds while maintaining optimal electrical performance in outdoor deployments.

Product Detail

Electrical Specifications
Frequency (MHz)	2496-2690
Polarization	Vertical
Gain (dBi)	5
Horizontal Non-Circularity (°)	±1.5
Horizontal Beamwidth (°)	360
Vertical Beamwidth (°)	20±7
Input Impedance (Ω)	50
VSWR (Voltage Standing Wave Ratio)	≤ 2.0
Power Handling Capacity (W)	50
Mechanical Specifications
Connector Type	N-J
Connector Position	Bottom
Radome Material	Fiberglass Reinforced Plastic (FRP)
Antenna Dimensions (mm)	φ20×(400±10)
Antenna Color	Gray
Waterproof Rating	IP65 (Tested with water leakage holes plugged)
Operating Temperature (℃)	-40～+60
Salt Spray Resistance	96-hour neutral salt spray (GB/T 2423.17-2008)
Wind Resistance (m/s)	60
