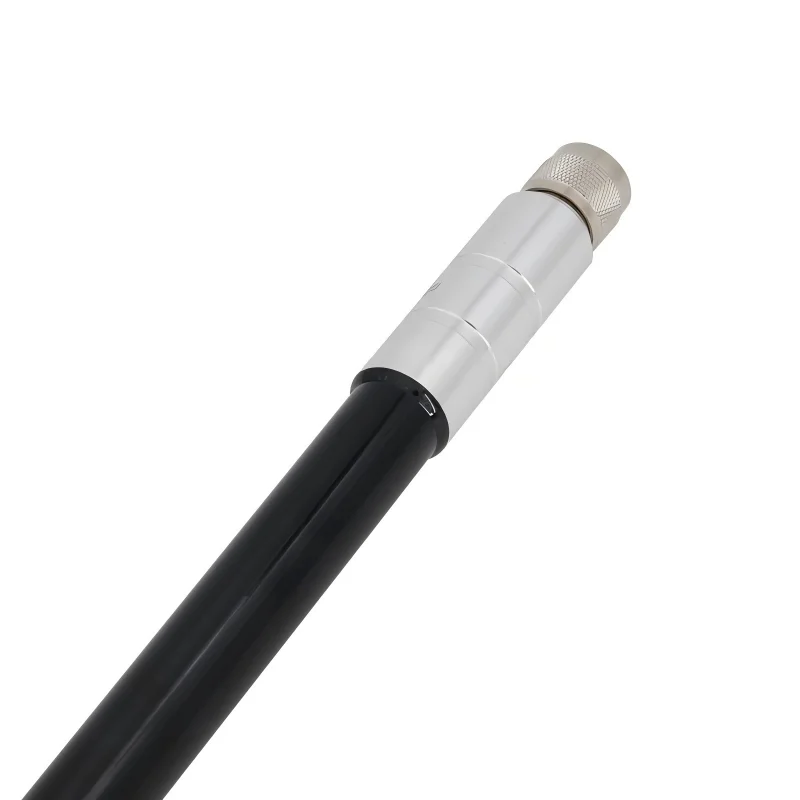

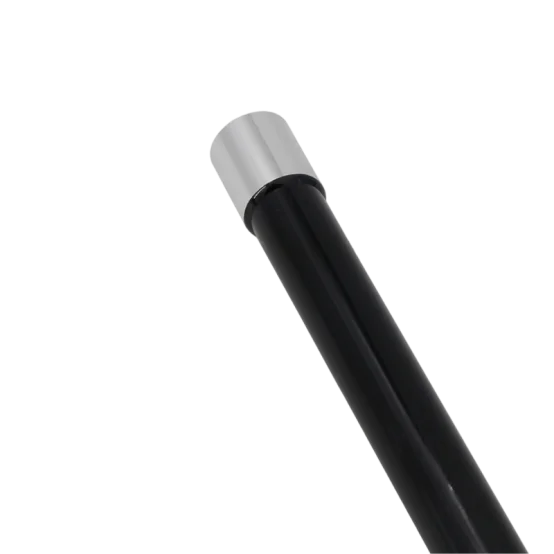

YW-QB24V7A 2400～2483MHz 7dBi Vertical Polarization Antenna |
|||
Technical Specifications |
QB24V7A |
||
Frequency Range (MHz) |
2400～2483 |
5150～5850 |
|
Bandwidth (MHz) |
83 |
700 |
|
Polarization |
Vertical |
||
Gain (dBi) |
7 |
10 |
|
Input Impedance (Ω) |
50 |
11 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
||
Maximum Power (W) |
50 |
||
Connector Type |
N Male |
||
Antenna Length (cm) |
46 |
||
Antenna Weight (kg) |
Approximately 0.3 |
||
Cover Material |
Fiberglass (Gray) |
||
Ultimate Wind Speed (km/h) |
120 |
||
Mounting Method |
Used with suction cup mounts |
||
