IP67 Waterproof 5dBi 703-803MHz + GPS 1170-1620MHz Dual-Band Base Station Antenna

IP67 Waterproof 5dBi 703-803MHz + GPS 1170-1620MHz Dual-Band Base Station Antenna

Description

[email protected]

Description

Product Description

1.All-in-One Dual-Band Solution: Combines 700MHz Communication and GPS Tracking in a Single Antenna. Eliminates the need for two separate devices, saving you money on hardware and simplifying your installation

2.360° Omnidirectional Signal Reception: Ensures stable data communication and reliable GPS positioning no matter which direction your vehicle or equipment is facing. Enjoy consistent performance without the hassle of precise alignment.

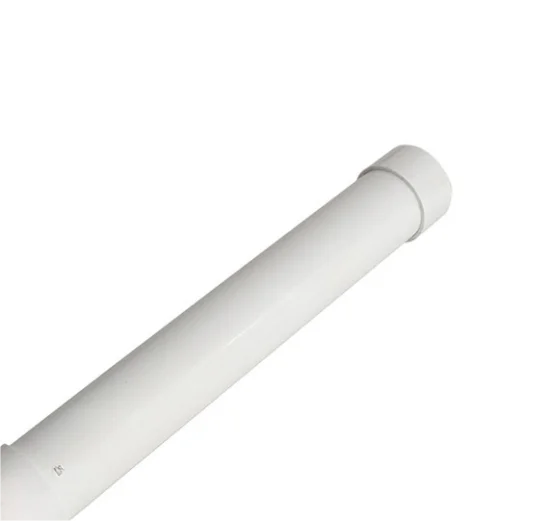

3.Built to Last with IP67 Rating: Fully waterproof and dust-tight, this antenna withstands harsh outdoor conditions like rain, snow, and dust. Its rugged UPVC radome and corrosion-resistant mounting kit guarantee long-term reliability.

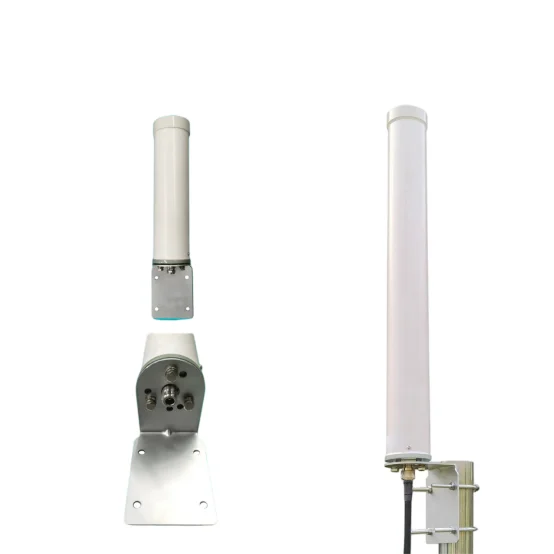

4.Universal and Easy Installation: Designed for standard poles (Φ30-50mm) with a stainless steel U-clamp. Get your fleet or equipment online quickly with a straightforward setup that requires minimal time and effort.

5.Professional-Grade Performance for Critical Applications: Delivers clear communication and precise location data for fleet management, IoT devices, and public safety vehicles. Trust in robust construction and stable links to keep your operations running smoothly.

Product Detail

Electrical Specifications
Frequency (MHz)	703～803	1170～1620 (Receive)
Polarization	V (Vertical)
Gain (dBi)	5	\
Horizontal Beamwidth (°)	360	\
Vertical Beamwidth (°)	35±5	\
Input Impedance (Ω)	50
VSWR (Voltage Standing Wave Ratio)	≤2.0	≤2.5
Withstand Power (W)	100
Ground Protection	DC
Mechanical Parameters
Connector Type	1×NK
Connector Position	Bottom
Radome Material	UPVC
Dimensions (mm)	Ф63×580
Maximum Wind Speed (m/s)	60
Protection Rating	IP67

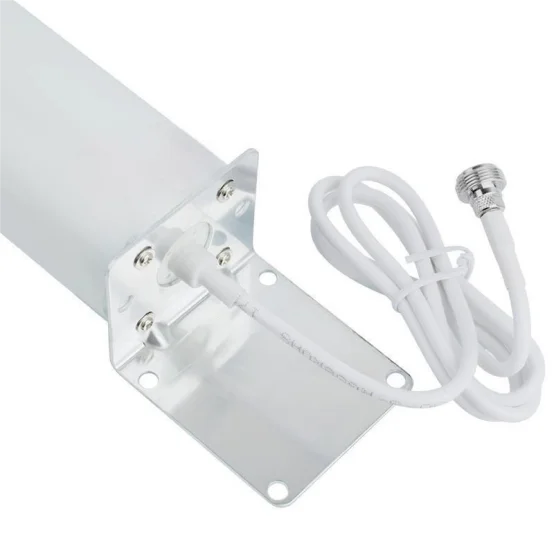

Mounting Component Material	Mounting plate: Hot-dip galvanized; U-shaped clamp: 304 stainless steel (passivated)
Operating Temperature (℃)	-40～+65
Pole Diameter (mm)	Φ30-50

Recommend Products

Company Profile

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-2

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-3

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-4

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-5

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-6

product ip67 waterproof 5dbi 703 803mhz gps 1170 1620mhz dual band base station antenna-7

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
