L16 Connector 360° Coverage 6.5dBi Gain 806-866MHz Omnidirectional Fiberglass Antenna

L16 Connector 360° Coverage 6.5dBi Gain 806-866MHz Omnidirectional Fiberglass Antenna

Description

[email protected]

Description

Product Description

1.Dedicated 806-866MHz Public Safety Band: Optimized for emergency services and critical communications. Delivers reliable 6.5dBi gain performance when it matters most for police, fire, and medical response teams.

2.Ultra-Lightweight at Only 0.5kg: Significantly lighter than comparable antennas while maintaining full performance. Reduces installation complexity and structural load - perfect for quick deployments and existing infrastructure upgrades.

3.True 360° Omnidirectional Performance: Ensures consistent signal reception from all directions with >20° vertical beamwidth. No antenna adjustment needed - ideal for applications where device orientation varies or multiple directions need coverage.

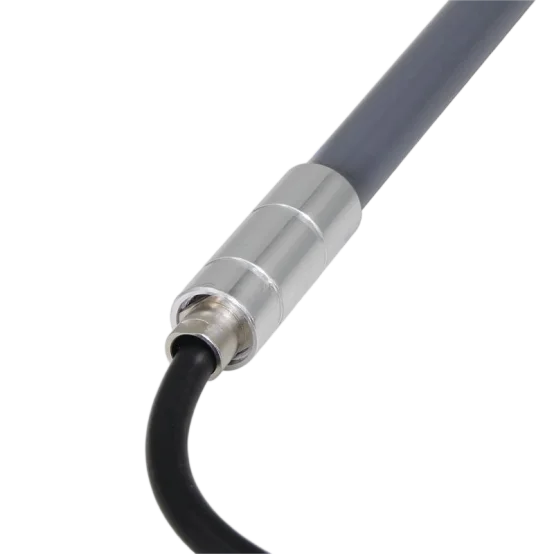

4.Professional L16 Female Connector: Provides superior connection stability and weather resistance compared to standard connectors.Ensures long-term reliability in outdoor installations with secure, corrosion-resistant performance.

5.Rugged Fiberglass Construction: Withstands temperatures from -40℃ to +60℃ and wind speeds up to 60m/s. The FRP radome offers excellent durability against UV radiation, moisture, and environmental corrosion for years of reliable service.

Product Detail

Electrical Performance
Frequency Range (MHz)	806～866
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	＜1.8
Gain (dBi)	6.5
Electrical Downtilt (°)	0
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	＞20
Maximum Power (W)	100
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical Parameters
Connector Type	L16 Female Connector
Antenna Dimensions (mm)	φ22×1170
Antenna Weight (kg)	0.5
Radome Material	Fiberglass Reinforced Plastic (FRP)
Operating Temperature (℃)	-40～+60
Maximum Wind Speed (m/s)	60

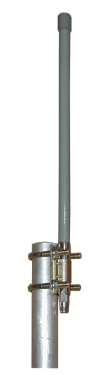

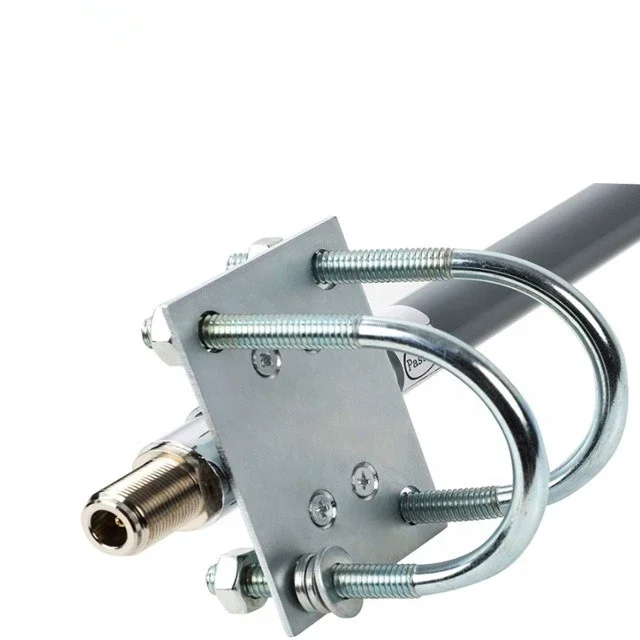

Installation Method	Pole-Mounted
Pole Diameter (mm)	Φ30～Φ50
