Product Description
Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.
Product Detail
The 4911 is a high-performance, dual-redundant data link system specifically engineered for MALE (Medium Altitude Long Endurance) and small UAVs. It guarantees reliable Command & Control (C2), telemetry, and high-definition payload data transmission over long distances up to 200km.
Featuring a primary L-band and a backup UHF link, it ensures uninterrupted communication even in complex and contested environments. With its robust anti-jamming capabilities, lightweight airborne terminal (only ~700g), and compliance with rigorous DO-160G and EASA standards, the 4911 is the trusted data link for critical missions in surveying, inspection, emergency response,and defense.
Dual-Redundant Links: Primary L-band and backup UHF link provide failsafe communication, ensuring mission continuity.
Long-Range & High-Bandwidth: Delivers a stable 8 Mbps HD video downlink at a maximum range of 200km (LOS).
Lightweight & Compact: The airborne terminal weighs approximately 700g, minimizing impact on UAV payload and flight time.
Military-Grade Reliability: Certified to DO-160G aviation environmental standards and validated by EASA flight tests.
Anti-Jamming Capability: Designed to maintain a stable link in electromagnetically complex environments.
Rapid Deployment: Ground equipment supports vehicle-mounted fixed installation or quick tripod setup in the field.
Product Name
L/UHF Dual Redundant Data Link System for MALE/Small UAVs
Target UAV
MALE & Small UAVs
Max Range
≥ 200 km (Line-of-Sight)
Communication Frequency

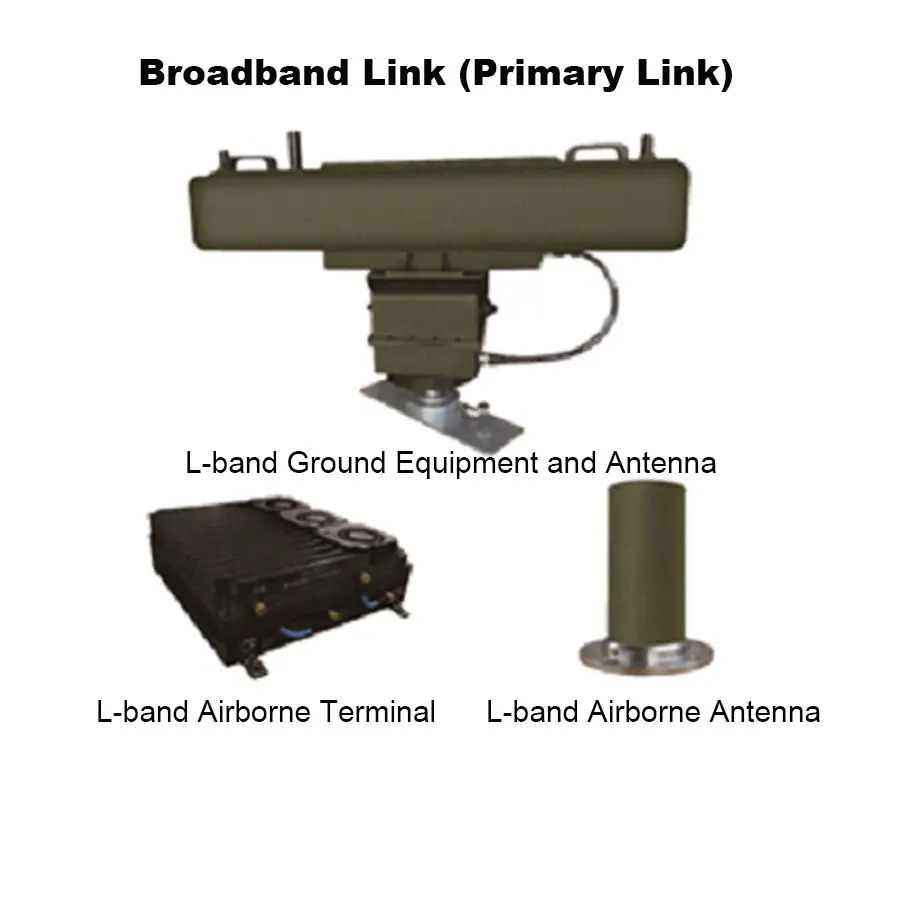

Primary: L-band

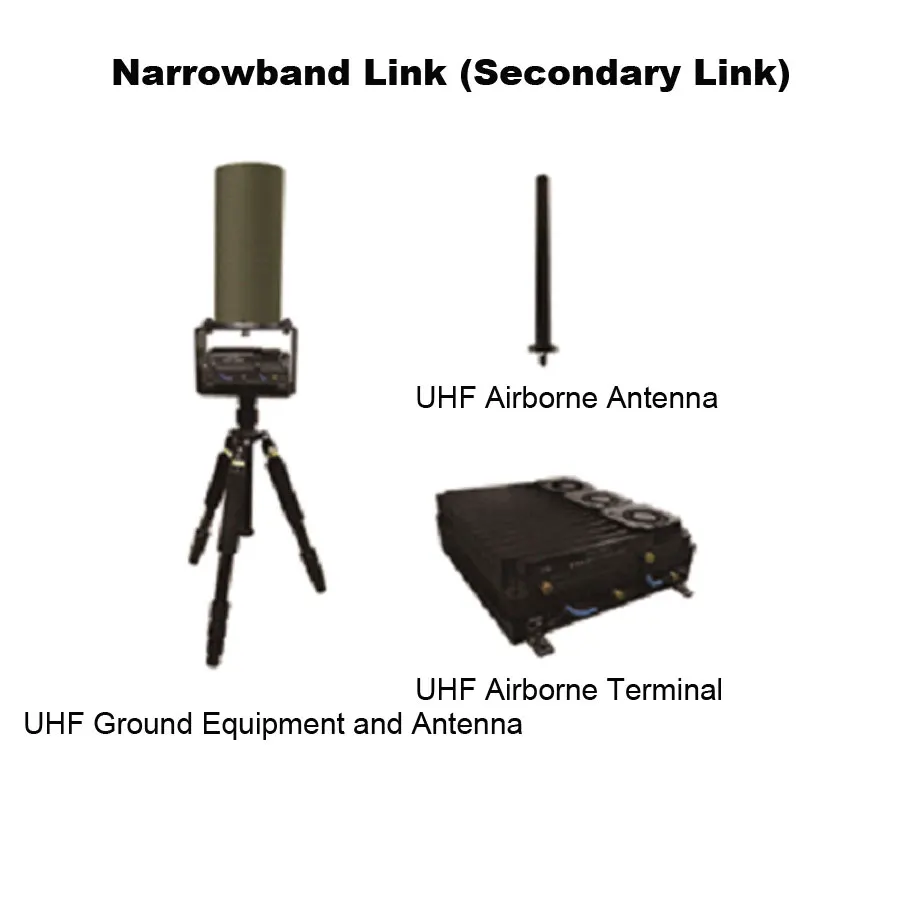

Secondary: UHF band
Duplex Mode
Primary: FDD
Secondary: TDD
Data Rate (Downlink)
Primary: 2/4/8 Mbps (Selectable)
Data Rate (Uplink)
Primary/Secondary: 25.6/51.2/102.4 kbps (Selectable)
Weight (Airborne Terminal)
~680 g (Primary) / ~650 g (Secondary)
Key Certifications
DO-160G CNAS Test, EASA Flight Test

The 4911 Data Link System enables beyond-line-of-sight operations for a wide range of professional and demanding applications:

Aerial Surveying & Mapping: Transmit high-resolution aerial imagery and LiDAR data in real-time for efficient terrain modeling and cartography.
Infrastructure Inspection: Perform long-distance, detailed inspections of power lines, pipelines, and wind turbines with live HD video feeds.
Emergency Response & Search and Rescue (SAR): Establish reliable communication for UAVs providing aerial overviews in disaster zones, enabling real-time decision-making.
Border Security & Defense: Conduct extended-range surveillance and reconnaissance missions with secure, anti-jamming command and video links.
Proven Performance: Successfully integrated and tested on platforms including the Robinson R44Ⅱ helicopter and CX8XX UAV models, demonstrating reliability in Western China's complex environments.
product long range 200km 8mbps data link for mapping inspection drones-3
product long range 200km 8mbps data link for mapping inspection drones-4
product long range 200km 8mbps data link for mapping inspection drones-5
product long range 200km 8mbps data link for mapping inspection drones-6
product long range 200km 8mbps data link for mapping inspection drones-7
product long range 200km 8mbps data link for mapping inspection drones-8
product long range 200km 8mbps data link for mapping inspection drones-9
Q: Are you a manufacturer or a trading company?
A: We have been professional antenna manufacturer for 18 years.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A: T/T, AliPay,Paypal,Afterpay,Klarna etc.
Q:What certifications do you have?
A:Certified by FCC, CE, RoHS,ISO available upon request.
Q: Where is your factory located? Can I visit your factory?
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province.
Just call us, we will pick you up with no delay.
