Product Name |

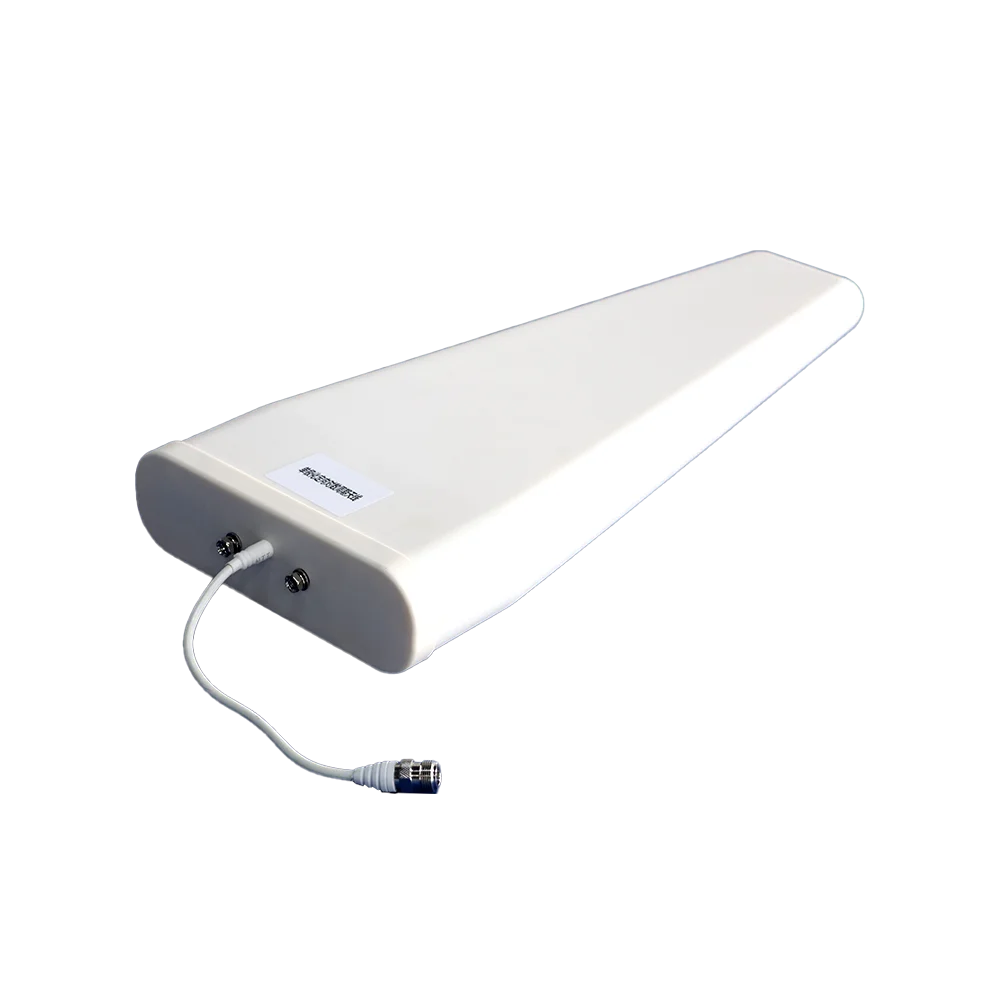

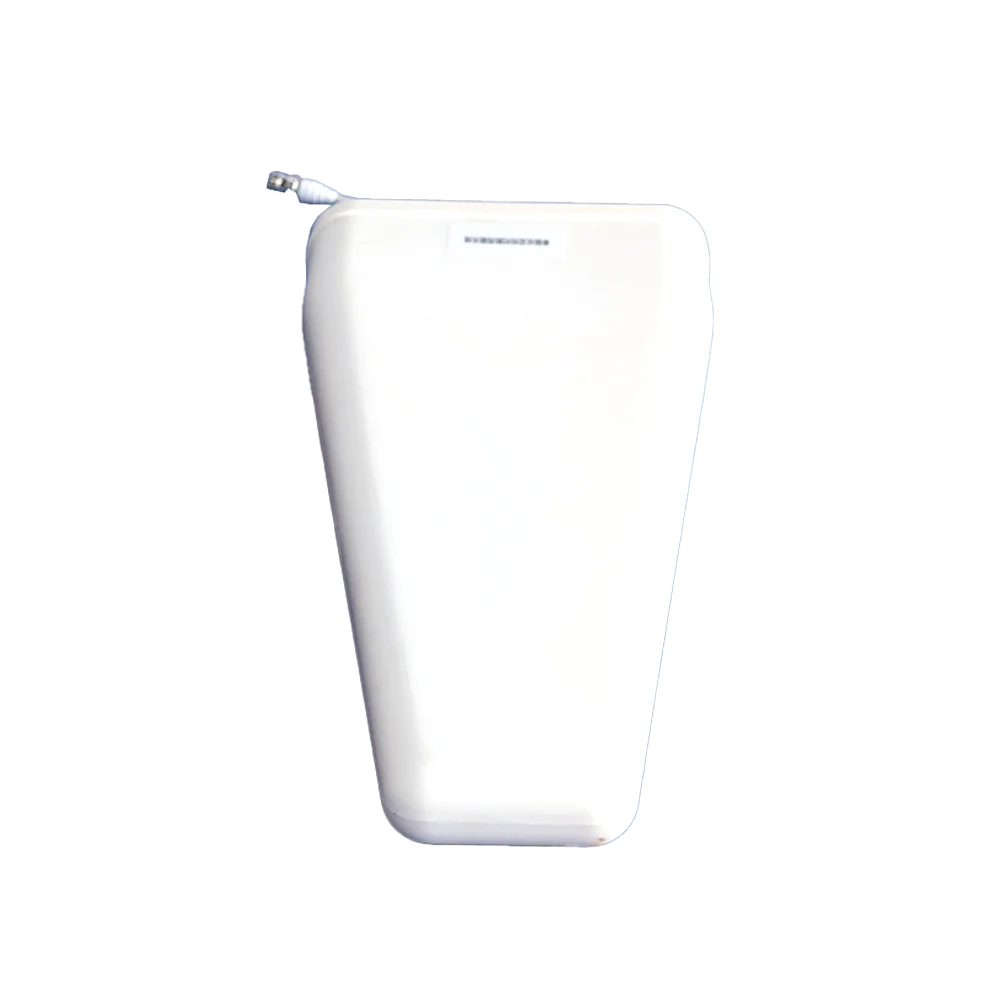

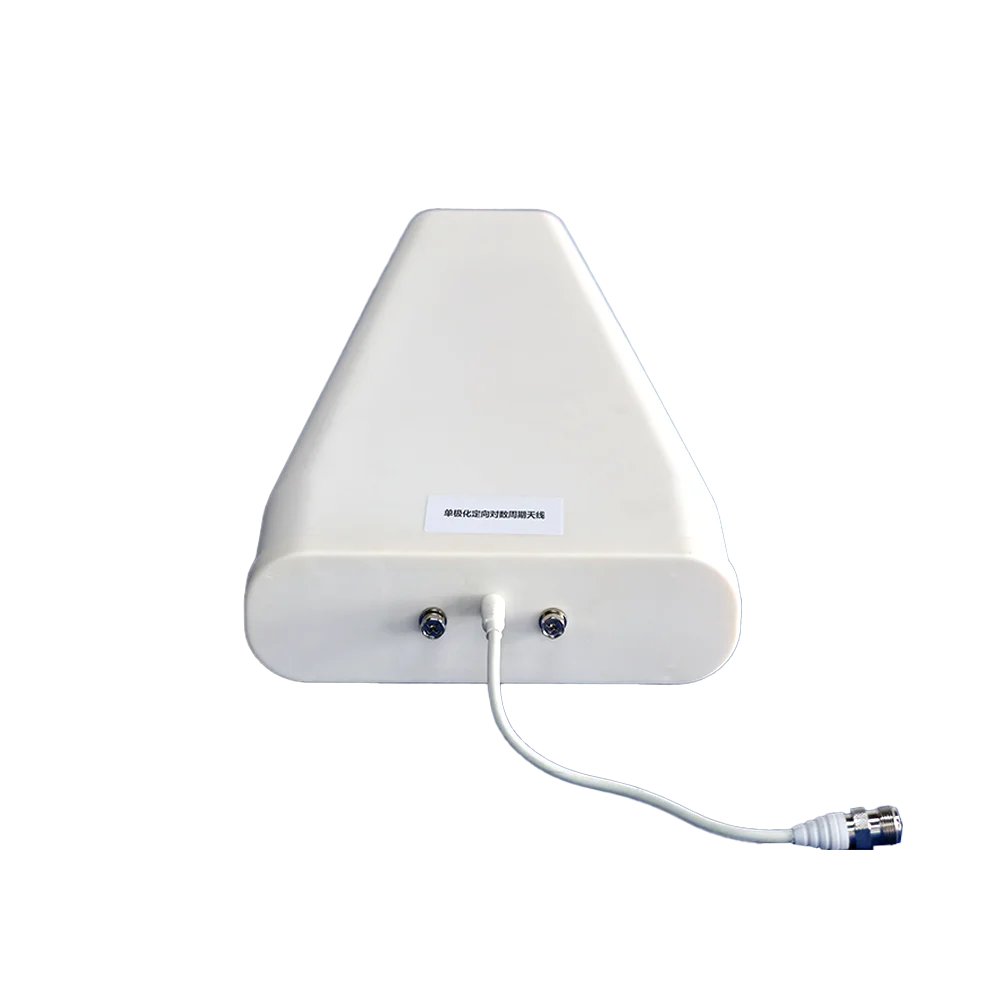

High-Gain Directional Log-Periodic Antenna |
|||||||||
Electrical Performance |
||||||||||
Operating Frequency Band (MHz) |
880-960 |
1710-1850 |
1885-2025 |
2300-2483.5 |
2515-2675 |
|||||
Polarization Mode |
V |
|||||||||
Gain (dBi) |
≥9.0 |
≥10.0 |
≥10.0 |
≥10.0 |
≥10.0 |
|||||
Horizontal Plane Half-Power Beamwidth (°) |
75±15 |
75±15 |
75±15 |
75±15 |
75±15 |
|||||
Vertical Plane Half-Power Beamwidth (°) |
55 |
50 |
50 |
50 |
50 |
|||||
Front-to-Back Ratio (dB) |
≥15 |
≥15 |
≥15 |
≥15 |
≥15 |
|||||
Voltage Standing Wave Ratio |
≤1.5 |
|||||||||
Third-Order Intermodulation (dBm@2*2W) |
≤-85 |
≤-85 |
/ |
|||||||
Power Tolerance (W) |
≥50 |
≥50 |
≥50 |
≥50 |
≥50 |
|||||
Mechanical Performance |
||||||||||
Antenna Housing Material |
ABS/PS |
|||||||||
Connector Type |
N-type Female |
|||||||||
Connector Lead Length (mm) |
≥250 |
|||||||||
Antenna Size (mm) |
442*212*64 |
|||||||||
Packaging Size (mm) |
486*222*74 |
|||||||||
Antenna Weight (kg) |
0.5 |
|||||||||
Operating Temperature (℃) |
-30~+45 |
|||||||||
Storage Temperature (℃) |
-40~+55 |
|||||||||
